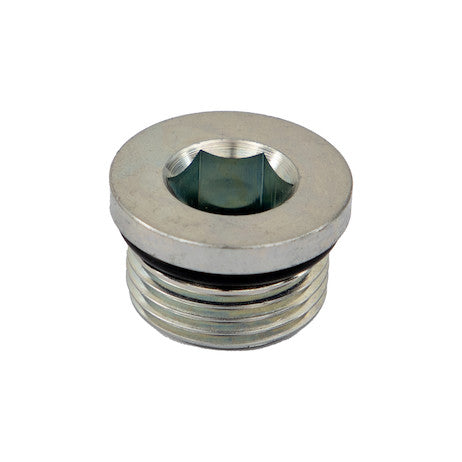

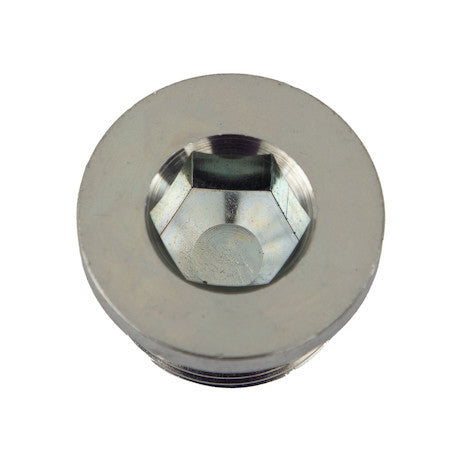

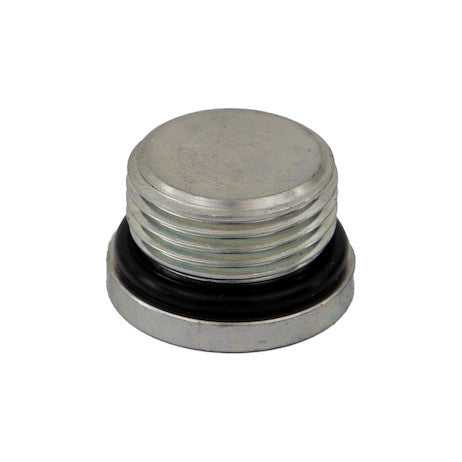

H7238X12 - Straight Thread O-Ring Hex Socket Plug 3/4 Inch Port Size

The Straight Thread O-Ring Hex Socket Plug pipe fitting from Buyers Products is used to close the end of a pipe. It features tough carbon steel construction, dryseal pipe threads and O-ring for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.

Specifications

Advanced Technical Overview: Straight Thread O-Ring Hex Socket Plug (3/4 Inch Port Size)

The Straight Thread O-Ring Hex Socket Plug, with its 3/4 inch port size, represents a critical component in modern hydraulic and pneumatic systems, engineered for unparalleled sealing integrity and mechanical robustness. Manufactured by Buyers Products, this fitting is meticulously designed to close off fluid ports in a wide array of applications, ensuring system containment and preventing leakage under demanding operational conditions. Its construction adheres to stringent SAE specifications, guaranteeing interoperability and reliability within industry-standard configurations.

Central to its superior performance is the Straight Thread O-Ring Boss (ORB) connection, a design philosophy that markedly distinguishes itself from traditional tapered pipe threads. Unlike tapered threads which rely on a metal-to-metal interference fit for sealing, often requiring sealant tapes or compounds and susceptible to galling and limited reusability, the ORB system employs a parallel (straight) thread combined with an elastomeric O-ring seal. The 3/4 inch SAE ORB (-12) designation specifies a particular thread size and pitch that aligns with J1926/ISO 11926 standards, ensuring precise engagement and optimal sealing performance. The straight threads provide a robust mechanical connection, while the O-ring, seated in a precisely machined groove on the plug, is compressed between the plug and the mating port face upon installation. This controlled compression creates a positive, leak-proof seal that is highly effective even under fluctuating pressures and vibrations. This sealing mechanism offers significant advantages, including superior vibration resistance, reusability of the connection without compromising seal integrity, and a reduced risk of overtightening damage, as the sealing is achieved by O-ring deformation rather than thread distortion.

The Hex Socket design of this plug is a deliberate choice for environments where external wrenching might be impractical or impossible due to spatial constraints. An internal hexagonal recess allows for the use of an Allen key or hex wrench, facilitating installation and removal in tight clearances or flush-mount applications. This design not only contributes to a clean, low-profile aesthetic but also protects the wrenching surface from external damage that might occur with an exposed hexagonal head. The precise manufacturing of the hex socket ensures positive tool engagement, minimizing the risk of cam-out and promoting proper torque application, which is crucial for achieving the specified 3000 PSI pressure rating.

Material Science and Surface Engineering

The selection of carbon steel as the primary material for this plug is fundamental to its high-pressure rating and overall durability. Carbon steel, known for its excellent tensile strength, yield strength, and hardness, provides the structural integrity necessary to withstand the substantial internal pressures encountered in hydraulic and pneumatic systems. The specific grade of carbon steel chosen by Buyers Products is optimized for machinability, allowing for the precise threading and O-ring groove dimensions critical for a reliable seal, while simultaneously offering the mechanical properties required for demanding applications. This material exhibits exceptional resistance to fatigue, an important characteristic for components subjected to cyclic pressure loading, thereby extending the service life of the fitting and the system it serves.

Further enhancing the longevity and performance of the carbon steel plug is its corrosion-resistant zinc finish. Zinc plating is a widely adopted electrochemical process wherein a thin layer of zinc is deposited onto the steel surface. This coating serves as a sacrificial layer, preferentially corroding when exposed to corrosive agents, thus protecting the underlying steel from rust and oxidation. The zinc finish not only prolongs the operational life of the plug in aggressive environments but also maintains its aesthetic integrity, preventing premature degradation that could otherwise lead to system contamination or functional impairment. This protective layer is particularly vital in outdoor applications, marine environments, or in machinery where exposure to moisture, chemicals, or other corrosive elements is prevalent. The adherence to industry standards for zinc plating ensures consistent quality and performance across all units.

Performance Characteristics and Operational Parameters

Rated at up to 3000 PSI (pounds per square inch), this straight thread O-ring hex socket plug is engineered for high-pressure hydraulic applications. This pressure rating signifies the maximum continuous operating pressure the fitting can safely withstand without experiencing plastic deformation, material failure, or leakage. Achieving such a rating requires a confluence of precise material selection, robust design geometry, and stringent manufacturing tolerances. The integrity of the O-ring seal is paramount at these pressures, necessitating an O-ring material that resists extrusion and maintains its elastic properties under constant compression and system temperatures. While the specific O-ring material is not detailed, typical choices for hydraulic applications include Nitrile (Buna-N) for petroleum-based fluids and general industrial use, or Viton (FKM) for higher temperatures and chemical compatibility. The 3/4 inch port size corresponds to a specific flow area, and the plug's design ensures that it does not impede the structural integrity of the port it seals, even at maximum pressure. Temperature ranges for operation are also critical, as extreme temperatures can affect both the mechanical properties of the steel and the sealing efficiency of the O-ring. Typically, these fittings are designed to operate effectively across a broad industrial temperature spectrum, often ranging from -40°F to 250°F (-40°C to 121°C) for standard O-ring materials.

Fluid compatibility is another crucial aspect. Given its primary use in hydraulic systems, this plug is compatible with a wide range of hydraulic oils, including petroleum-based fluids, water-glycol solutions, and some synthetic fluids. In pneumatic applications, it is suitable for use with compressed air and inert gases. The choice of O-ring material is the primary determinant of fluid compatibility, and users should ensure that the O-ring provided or replaced is compatible with the system's working fluid to prevent degradation and subsequent seal failure.

Adherence to Industry Standards and Quality Assurance

The declaration that this fitting conforms to SAE specifications is a testament to its engineering quality and reliability. Specifically, the Straight Thread O-Ring Boss (ORB) connection aligns with SAE J1926/ISO 11926 standards. These standards define the thread dimensions, port geometry, and O-ring groove specifications necessary for interchangeability and consistent sealing performance across different manufacturers and components. Compliance with these rigorous standards ensures that the plug will mate correctly with corresponding SAE ORB ports found on pumps, valves, cylinders, and other hydraulic components globally. Buyers Products' commitment to these specifications underscores their dedication to producing fittings that meet the demanding performance and safety requirements of the hydraulic and pneumatic industries. Each manufacturing batch likely undergoes comprehensive quality control checks, including dimensional verification, material analysis, and pressure testing, to ensure every plug performs as specified.

Applications and Versatility

The 3/4 inch Straight Thread O-Ring Hex Socket Plug finds extensive utility across a broad spectrum of heavy-duty and industrial applications. Its primary function is to securely close open ports, whether temporarily for maintenance and testing purposes, or permanently in a finished system. Common application areas include:

• Mobile Hydraulics: Used in construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), forestry equipment, and municipal vehicles to cap unused ports on hydraulic manifolds, cylinders, and valves.
• Industrial Machinery: Essential in manufacturing plants for machinery like presses, injection molding machines, and automation equipment, where hydraulic power units require robust port sealing.
• Fluid Power Systems: Integral to various hydraulic power units (HPUs) and pneumatic circuits for isolating sections, facilitating pressure testing, or providing access points.
• Marine Applications: Employed in shipbuilding and marine propulsion systems where resistance to corrosion (due to the zinc plating) and leak-free operation are paramount.
• Heavy-Duty Transport: Used in trucks, trailers, and specialized transport vehicles for hydraulic braking systems, power steering, and auxiliary hydraulic functions.
• Test Benches: Critical for capping ports during testing or for creating temporary sealed environments in laboratory and R&D settings.

The plug's ability to create a hermetic seal under high pressure, combined with its compact, flush-mount design, makes it an indispensable component for optimizing system design, ensuring safety, and maintaining operational efficiency in these demanding environments.

Installation Best Practices and Maintenance Considerations

Proper installation is paramount to achieving the full performance potential of the Straight Thread O-Ring Hex Socket Plug. The key steps and considerations include:

1. Port Preparation: Ensure the mating port is clean, free of debris, burrs, and any residual sealant. Inspect the O-ring sealing surface within the port for damage.
2. O-Ring Inspection: Always inspect the O-ring on the plug for cuts, nicks, or deformation. Replace if any damage is observed. Lubricate the O-ring with a compatible system fluid or a recommended O-ring lubricant to facilitate smooth assembly and prevent pinching.
3. Thread Engagement: Thread the plug into the port by hand until the O-ring makes contact with the mating port face. This ensures proper alignment and prevents cross-threading.
4. Torque Application: Using an appropriately sized hex wrench and a calibrated torque wrench, tighten the plug to the manufacturer's specified torque value. Overtightening can crush the O-ring, leading to premature failure, while undertightening can result in leakage. The controlled compression of the O-ring is critical for establishing the seal, not excessive thread tension.
5. System Pressure Test: After installation, pressurize the system and carefully inspect the plug connection for any signs of leakage.

For maintenance, the reusability of ORB fittings is a significant advantage. If the plug needs to be removed and reinstalled, the O-ring should always be inspected and ideally replaced to guarantee optimal sealing performance. This minimizes the risk of fluid loss, system downtime, and potential environmental contamination. The carbon steel construction combined with the zinc plating means that the plug itself requires minimal maintenance, primarily limited to visual inspection for physical damage or significant corrosion.

Conclusion and Value Proposition

The Straight Thread O-Ring Hex Socket Plug from Buyers Products, with its 3/4 inch port size, embodies a commitment to high-performance fluid power solutions. Its robust carbon steel construction, advanced O-ring sealing mechanism, and protective zinc finish are meticulously combined to deliver a fitting that is capable of enduring up to 3000 PSI in continuous operation. The hex socket design offers practical advantages in terms of installation and space utilization, while adherence to SAE standards assures global compatibility and reliability. This product represents a superior choice for engineers and technicians seeking a durable, leak-free, and technically advanced solution for closing hydraulic and pneumatic ports. By investing in this precision-engineered component, users benefit from reduced maintenance costs, enhanced system reliability, and an extended operational lifespan, making it a critical asset in any demanding fluid power application.
