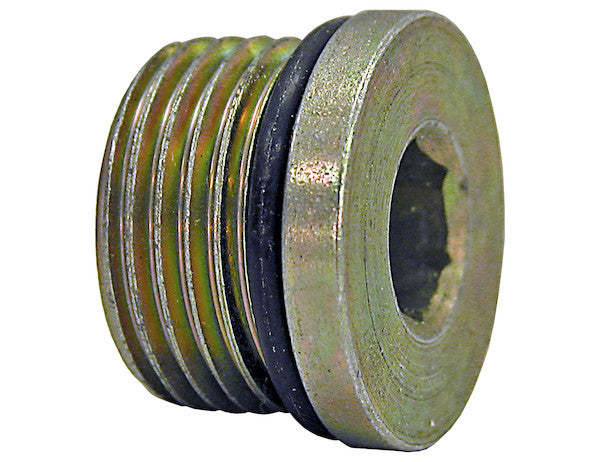

The Straight Thread O-Ring Hex Socket Plug pipe fitting from Buyers Products is used to close the end of a pipe. It features tough carbon steel construction, dryseal pipe threads and O-ring for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Hex Socket |
| Side 1 | 1/8 SAE ORB (-2) |
| Side 2 | 1/8 SAE ORB (-2) |
| Style | M |
Technical Deep Dive: The Straight Thread O-Ring Hex Socket Plug (1/8 Inch Port Size)
The Straight Thread O-Ring Hex Socket Plug, specifically designed for a 1/8 inch port size (SAE ORB -2), represents a critical component in modern hydraulic and pneumatic systems. Engineered for precision and reliability, this fitting is tasked with providing an unyielding seal for unused ports, diagnostic points, or temporary closures in fluid power circuits. Its design integrates several sophisticated engineering principles, ensuring optimal performance under demanding operational conditions. This comprehensive technical description will meticulously explore the fundamental aspects, material science, sealing mechanisms, performance characteristics, and application considerations of this essential fitting.
Advanced Sealing Technology: Straight Thread O-Ring Boss (ORB)
The core of this plug's exceptional sealing capability lies in its Straight Thread O-Ring Boss (ORB) design. Unlike tapered pipe threads (such as NPT or BSPT) that rely on metal-to-metal interference and deformation for sealing, the ORB system employs a parallel (straight) thread and an elastomeric O-ring to achieve a robust and leak-free connection. The straight thread, typically conforming to UN/UNF thread standards, ensures mechanical retention without inducing radial stress that can weaken the port or fitting. This design prevents overtightening damage and allows for repeated assembly and disassembly without compromising thread integrity or sealing performance.
The sealing mechanism in an ORB connection is remarkably effective. The plug features a precision-machined face that, upon engagement, compresses an O-ring seated within a chamfered port (the O-ring boss). As the plug is tightened into the port, the O-ring is compressed axially and radially, forming a positive seal against both the fitting and the port face. This pre-load on the O-ring creates an initial static seal. As system pressure increases, the fluid pressure further energizes the O-ring, pressing it more firmly into the sealing cavity and enhancing the seal's integrity. This pressure-energized sealing characteristic makes ORB fittings inherently superior for high-pressure applications where dynamic sealing is crucial. The 1/8 inch port size, designated as SAE ORB -2, refers to the specific dimensions of the thread and O-ring boss that conform to the SAE J1926 (formerly J514) standard, ensuring dimensional accuracy and interchangeability across various manufacturers and systems.
Material Excellence: High-Grade Carbon Steel Construction
The selection of carbon steel as the primary material for this plug is a deliberate engineering choice, driven by its exceptional mechanical properties and cost-effectiveness for hydraulic and industrial applications. Carbon steel offers a formidable combination of high tensile strength, yield strength, and hardness, which are essential for components subjected to significant internal pressures, external forces, and cyclic loading. The inherent toughness of carbon steel enables the plug to withstand the stresses associated with high-pressure fluid transfer systems, including hydraulic shock and vibration, without succumbing to deformation or catastrophic failure.
The specific grade of carbon steel used in such fittings typically exhibits a finely controlled carbon content (generally between 0.15% and 0.25% for common fitting alloys), along with trace elements that contribute to its machinability and weldability, if applicable. The manufacturing process often begins with cold-drawn bar stock, which provides a uniform grain structure and enhanced surface finish. Precision machining operations then transform this raw material into the intricate form of the hex socket plug, ensuring tight dimensional tolerances for the threads, O-ring groove, and sealing face. This meticulous manufacturing ensures that the fitting can reliably perform at its rated pressure of up to 3000 PSI, depending on the specific pipe size and application safety factors. The robustness of carbon steel ensures longevity and reliable operation, minimizing downtime and maintenance requirements in critical industrial environments.
Enhanced Durability: Corrosion-Resistant Zinc Finish
To augment the inherent strength of carbon steel and provide comprehensive protection against environmental degradation, the Straight Thread O-Ring Hex Socket Plug is treated with a corrosion-resistant zinc finish. Zinc plating is a widely adopted electroplating process that applies a thin, uniform layer of zinc onto the steel substrate. This finish serves a dual purpose in corrosion protection: it acts as a sacrificial barrier and a physical barrier.
As a sacrificial coating, zinc is more electrochemically active than steel. In the presence of an electrolyte (such as moisture or corrosive fluids), the zinc corrodes preferentially, thereby protecting the underlying steel from rust and oxidation. This galvanic protection mechanism ensures that even if the coating is scratched or compromised in small areas, the adjacent zinc layer will continue to protect the steel. Simultaneously, the zinc layer acts as a physical barrier, isolating the steel from direct contact with corrosive agents in the operating environment. The application of a clear or yellow chromate passivation layer over the zinc further enhances its corrosion resistance, providing increased durability and aesthetic appeal. Modern zinc plating processes typically utilize trivalent chromium passivation (Cr3+) to comply with environmental regulations such as RoHS and REACH, replacing older, hexavalent chromium (Cr6+) processes. This advanced finishing technique significantly extends the operational lifespan of the plug, preventing premature failure due to corrosion and maintaining the aesthetic integrity of the component even in harsh or humid conditions, thus contributing to the overall reliability and safety of the fluid power system.
The Critical Role of the O-Ring Sealing Element
The O-ring is undeniably the most critical component in establishing and maintaining the leak-free integrity of the Straight Thread O-Ring Hex Socket Plug. Its design and material properties are meticulously selected to complement the ORB thread system, providing a dynamic and resilient seal. The O-ring, typically manufactured from an elastomer such as Nitrile (Buna-N), Viton (FKM), or EPDM, is chosen based on the fluid compatibility, temperature range, and pressure requirements of the specific application. For general hydraulic applications, Nitrile rubber is a common choice due to its excellent resistance to petroleum-based hydraulic fluids, good mechanical properties, and broad temperature range.
The sealing action of the O-ring is based on controlled deformation. When the plug is tightened, the O-ring is compressed within its designated groove against the chamfered port. This initial compression, often referred to as "squeeze," creates a continuous seal line. As internal system pressure rises, the fluid acts upon the O-ring, forcing it to deform further into the sealing gap. This pressure-energized sealing mechanism ensures that the seal becomes tighter as the pressure increases, offering superior resistance to leakage compared to purely mechanical seals. The O-ring also provides excellent vibration dampening, preventing loosening of the plug in dynamic environments. The careful selection of O-ring material, its durometer (hardness), and the precise dimensions of both the O-ring and its groove within the port are paramount to achieving reliable, long-term, and leak-free performance. Proper installation, including lubrication and ensuring the O-ring is not pinched or damaged, is crucial for its effectiveness and longevity.
Ergonomics and Efficiency: The Hex Socket Design
The integration of a hex socket design into this plug offers distinct advantages in terms of installation, space optimization, and operational safety. Unlike plugs with external hex heads that protrude from the system, the hex socket allows for a flush mounting profile. This recessing of the engagement feature minimizes the overall footprint of the plug, making it ideal for applications where space is at a premium or where a sleek, unencumbered surface is desired. The flush design also reduces the risk of snagging or accidental damage to the plug during operation, enhancing safety and system integrity.
Installation and removal are facilitated by the use of a standard hex key (Allen wrench). This method of engagement allows for the application of precise and controlled torque, which is crucial for ORB fittings to properly compress the O-ring without overtightening or damaging the threads. Overtightening, a common issue with external hex fittings, can lead to thread stripping, O-ring extrusion, or material fatigue, whereas undertightening can result in inadequate O-ring compression and leakage. The hex socket design mitigates these risks by providing a stable and centered point of torque application. Furthermore, in certain sensitive applications, the hex socket can offer a degree of tamper resistance, as it requires a specific tool for manipulation, contributing to system security and controlled access.
Performance Metrics and Operational Versatility
The Straight Thread O-Ring Hex Socket Plug is engineered to meet rigorous performance standards, highlighted by its impressive pressure rating of up to 3000 PSI. This rating signifies its capability to withstand substantial internal fluid pressures, making it suitable for a wide array of demanding hydraulic and pneumatic applications. The integrity of this pressure rating is a result of the combined strength of the carbon steel material, the precision of the straight thread, and the effectiveness of the O-ring seal. Designers consider not only the working pressure but also safety factors, burst pressure, and fatigue limits to ensure reliable operation over the product's lifespan.
Beyond pressure resistance, the operational temperature range is dictated by both the carbon steel body and the O-ring material. While carbon steel itself can withstand extreme temperatures, the O-ring's elastomeric properties limit the effective range. For instance, a Nitrile O-ring typically functions effectively from approximately -30°F to 250°F (-34°C to 121°C). For applications involving higher temperatures or aggressive chemicals, O-rings made from Viton (FKM) or other specialized elastomers would be specified. The plug's robust construction also provides excellent resistance to vibration and mechanical shock, maintaining its seal even in dynamic environments characteristic of mobile equipment or heavy machinery. This versatility in performance parameters allows the plug to be employed across diverse industries, including agriculture, construction, material handling, transportation, and general industrial manufacturing, serving to reliably block ports, provide test points, or facilitate temporary system modifications.
Installation Protocols and Maintenance Considerations
Proper installation is paramount to achieving the full performance potential of the Straight Thread O-Ring Hex Socket Plug. Before installation, it is crucial to inspect both the plug and the port for any debris, nicks, or burrs that could compromise the seal or thread integrity. The O-ring should be visually inspected for any cuts, abrasions, or deformities. A light coating of compatible system fluid or a dedicated O-ring lubricant on the O-ring will facilitate smooth installation, prevent twisting or pinching, and aid in achieving an initial seal.
The plug should be hand-threaded into the port until the O-ring just makes contact with the chamfered port face. This ensures correct thread engagement and prevents cross-threading. Subsequently, a hex key should be used to tighten the plug to the manufacturer's specified torque value. Adhering to torque specifications is critical; undertightening will result in insufficient O-ring compression and potential leakage, while overtightening can lead to O-ring extrusion, thread damage, or premature material fatigue. Once installed, periodic inspection of the plug and port area for any signs of leakage or corrosion is recommended as part of a comprehensive preventive maintenance program. The reusability of ORB fittings is a significant advantage, but for optimal performance, O-rings should generally be replaced during reassembly to ensure consistent sealing integrity.
Adherence to Industry Standards and Quality Assurance
The Straight Thread O-Ring Hex Socket Plug from Buyers Products is manufactured to conform to SAE specifications, specifically SAE J1926 (formerly J514), which governs dimensions, materials, and performance requirements for straight thread O-ring boss fittings and ports. This adherence ensures not only dimensional accuracy and compatibility with other SAE-compliant components but also guarantees that the product has undergone stringent design and testing protocols. These standards provide a benchmark for quality, reliability, and interchangeability, which are vital in demanding industrial applications where consistency is non-negotiable.
Quality assurance processes are integrated throughout the manufacturing lifecycle, from raw material inspection to final product verification. This includes metallurgical analysis of carbon steel, dimensional checks of thread profiles and O-ring grooves, and rigorous testing for pressure integrity and leakage. Manufacturers also maintain traceability for materials and production batches, allowing for comprehensive quality control and swift identification of any deviations. This commitment to industry standards and meticulous quality control ensures that each Straight Thread O-Ring Hex Socket Plug delivered is a high-performance, dependable component capable of seamlessly integrating into and securing critical fluid power systems, providing peace of mind and sustained operational efficiency for end-users.
Conclusion
The Straight Thread O-Ring Hex Socket Plug for a 1/8 inch port size is far more than a simple closure device. It is a precisely engineered component that embodies advanced fluid power sealing technology. Through its robust carbon steel construction, sophisticated ORB sealing mechanism, durable zinc plating, and ergonomic hex socket design, it offers unparalleled reliability, leak prevention, and longevity in even the most demanding hydraulic and pneumatic environments. Conforming to stringent SAE specifications and backed by rigorous quality assurance, this plug stands as a testament to engineering excellence, providing a critical solution for maintaining system integrity and operational efficiency across a vast spectrum of industrial applications.
