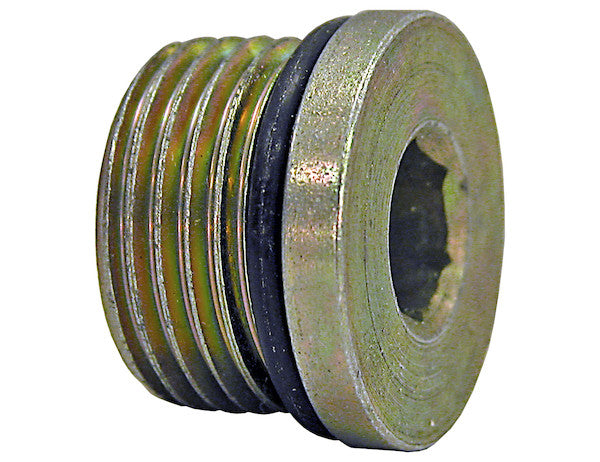

H7238X8 - Straight Thread O-Ring Hex Socket Plug 1/2 Inch Port Size

The Straight Thread O-Ring Hex Socket Plug pipe fitting from Buyers Products is used to close the end of a pipe. It features tough carbon steel construction, dryseal pipe threads and O-ring for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to SAE specifications. Buyers Products steel pipe fittings are rated at up to 3000 PSI depending on pipe size.

Specifications

Technical Overview: Straight Thread O-Ring Hex Socket Plug (1/2 Inch Port Size)

This technical description provides an in-depth analysis of the Straight Thread O-Ring Hex Socket Plug, a critical component in various fluid power and industrial applications. Designed for unparalleled sealing integrity and robust performance, this fitting embodies precision engineering compliant with stringent industry standards. Its primary function is to securely seal the end of a port or line within a hydraulic or pneumatic system, preventing fluid loss, contamination ingress, and ensuring the operational efficiency and safety of the machinery.

Advanced Sealing Technology: The SAE Straight Thread O-Ring Boss (ORB) System

The plug's superior performance hinges on its adherence to the SAE Straight Thread O-Ring Boss (ORB) standard, SAE J1926. Unlike tapered pipe threads (NPT/BSPT) that seal via metal-to-metal interference, the ORB system uses robust mechanical threads for strength and a precision O-ring for the primary fluid seal. This dual-component mechanism offers significant advantages:

• Superior Leak Prevention: The elastomeric O-ring, compressed within a precision-machined groove, creates a positive, virtually leak-proof seal. This design effectively mitigates issues common with tapered threads, such as galling, sealant degradation, and vibration-induced leaks. The O-ring deforms under compression, filling microscopic irregularities and ensuring an impenetrable barrier against fluid egress or ingress under varying pressures and temperatures.
• Reduced Overtightening Risk: Tapered thread connections often require excessive torque to achieve a seal, leading to material stress, thread damage, and potential cracking. The ORB system, conversely, achieves its seal at a lower, specific torque value primarily to compress the O-ring; the threads provide mechanical retention. This significantly reduces the risk of component distortion or failure due to overtightening, prolonging the service life of both the fitting and the mating port.
• Vibration Resistance: In high-vibration environments, the ORB connection's robust mechanical threads and resilient O-ring maintain a constant sealing force, offering enhanced resistance to loosening and leakage, unlike tapered seals challenged by dynamic loads.
• Repeatable Performance: ORB connections are engineered for multiple assembly/disassembly cycles, maintaining sealing integrity when the O-ring is properly maintained. This facilitates regular system maintenance and component swaps, ensuring consistent, reliable performance.

The "1/2 SAE ORB (-8)" designation is crucial: "1/2" denotes nominal port size, "SAE ORB" confirms the thread standard, and "(-8)" is a hydraulic dash size, indicating suitability for approximate 1/2 inch OD tubing or corresponding port dimensions. This standardized nomenclature ensures compatibility and simplifies component selection.

Material Excellence: Carbon Steel Construction

Deliberately selected for demanding industrial environments, carbon steel optimizes this hex socket plug with essential mechanical properties for high-pressure fluid power applications:

• High Tensile Strength: Carbon steel exhibits excellent tensile strength, allowing the plug to withstand significant internal pressures without plastic deformation or catastrophic failure. This is paramount in hydraulic systems where pressures can frequently reach the specified 3000 PSI and sometimes higher during transient spikes.
• Durability and Wear Resistance: The inherent hardness and toughness of carbon steel contribute to the fitting's exceptional durability, ensuring a long operational life even in applications involving abrasive fluids or external mechanical stresses. It resists wear from repeated installation and removal, maintaining thread integrity.
• Cost-Effectiveness: Compared to alternative materials like stainless steel, carbon steel offers a more economical solution without compromising critical performance characteristics in many applications. This balance of performance and cost makes it a preferred material for a vast range of industrial fittings.
• Machinability: Carbon steel is readily machinable, allowing for the precise manufacturing of intricate thread forms, O-ring grooves, and hex sockets necessary for a high-quality fitting. This precision is vital for the integrity of the ORB seal.

Corrosion Protection: Zinc Plated Finish

Augmenting carbon steel's inherent strength, the plug features a corrosion-resistant zinc plating. This functional surface treatment, typically applied via electroplating, extends service life and maintains performance in corrosive or humid environments. Key benefits include:

• Sacrificial Protection (Galvanic Corrosion): Zinc is more electrochemically active than steel. In the presence of an electrolyte (moisture), the zinc corrodes preferentially to the steel, sacrificing itself to protect the underlying ferrous material. This galvanic protection mechanism prevents rust formation on the steel, even if the coating is scratched in a small area.
• Barrier Protection: The zinc layer acts as a physical barrier, preventing moisture, oxygen, and other corrosive agents from directly contacting the carbon steel. This delays the onset of rust and maintains the aesthetic and structural integrity of the fitting.
• Enhanced Durability: Zinc plating can also improve the surface hardness and abrasion resistance of the fitting, further contributing to its longevity in demanding applications.

This zinc finish is critical for outdoor, moist, or chemically exposed applications, reducing maintenance and extending operational lifespan.

Design Innovation: Hex Socket Configuration

The Hex Socket design (internal hex) distinguishes this plug from traditional externally-wrenched fittings, offering several practical engineering advantages:

• Compact Profile and Flush Installation: A hex socket plug can be installed flush or recessed into the component's surface, resulting in a significantly lower profile compared to plugs with external wrench flats. This compact design is advantageous in space-constrained applications, prevents snagging, and contributes to a cleaner, more streamlined equipment aesthetic.
• Protection from Damage: Since the wrenching mechanism is internal, the plug's head is less susceptible to external impact damage or wear that could round off traditional external hex heads, ensuring easier removal for future maintenance.
• Ease of Installation in Tight Spaces: Requiring a hex key for installation, the internal socket design often proves easier to manipulate in tight spaces, facilitating quicker and more efficient assembly/disassembly than external wrench options.

Performance Metrics: Pressure Rating and SAE Compliance

The stated 'up to 3000 PSI' pressure rating for Buyers Products steel pipe fittings, coupled with SAE specification adherence, highlights the robust engineering. While the precise rating for this 1/2 inch plug may slightly vary with specific testing, the general rating signifies its suitability for medium-to-high pressure hydraulic and pneumatic systems.

• Understanding Pressure Ratings: The working pressure rating is a critical safety parameter, defining the maximum continuous pressure a fitting can safely withstand during operation. This is determined through rigorous testing, factoring in material strength, thread design, and safety factors (typically a 4:1 safety factor for burst pressure, meaning the burst pressure is at least four times the working pressure). The specific 1/2 inch port size contributes to the overall strength profile, as larger ports generally have lower pressure ratings due to increased stress concentrations.
• SAE J1926 Compliance: Adherence to SAE J1926 (formerly SAE J514 and J1453) for straight thread O-ring boss connections is crucial. This standard specifies the dimensions, threads, O-ring groove geometry, and performance requirements for these fittings, ensuring interchangeability and consistent performance across manufacturers. For engineers and technicians, specifying an SAE-compliant fitting guarantees a known level of quality, compatibility, and reliability, simplifying design and procurement processes.

Applications and Versatility

The Straight Thread O-Ring Hex Socket Plug finds extensive utility across a broad spectrum of industries and applications where secure and leak-free port closure is paramount. Its design makes it particularly suitable for:

• Hydraulic Systems: Essential for sealing unused ports in hydraulic manifolds, pumps, valves, cylinders, and reservoirs. It's used during system assembly, maintenance, or when specific functions are temporarily or permanently isolated. Examples include heavy construction equipment, agricultural machinery, industrial presses, and marine hydraulics.
• Pneumatic Systems: Employed to cap off pneumatic lines or ports in air compressors, actuators, and control systems, preventing air leakage and maintaining system pressure.
• Automotive and Transportation: Utilized in vehicle fluid power systems, including braking systems, power steering, and transmission circuits, where reliability and leak prevention are critical for safety and performance.
• Industrial Machinery: Integral to various types of manufacturing and processing equipment, ensuring fluid containment in lubrication systems, coolant lines, and other critical fluid transfer circuits.
• Temporary or Permanent Closure: While often used for permanent closure, its robust design and repeatable sealing also make it suitable for temporary closure during testing, flushing, or partial system commissioning.

Its versatility stems from its robust construction, reliable sealing, and standardized design, making it a staple component in engineering and maintenance inventories.

Installation Best Practices and Maintenance

Proper installation is critical for the Straight Thread O-Ring Hex Socket Plug to achieve full performance, ensuring optimal sealing, preventing damage, and prolonging component life:

• Cleanliness: Before installation, ensure both the plug threads and the mating port are free from dirt, debris, metal shavings, or any contaminants that could damage the O-ring or impede proper seating. System cleanliness is fundamental to fluid power integrity.
• O-Ring Inspection and Lubrication: Any damaged O-ring must be replaced. Lightly lubricate the O-ring with compatible system fluid or a dedicated lubricant to facilitate smooth installation, prevent pinching, and establish the initial seal.
• Hand Tightening: Hand-thread the plug carefully into the port, ensuring smooth engagement without cross-threading, which can permanently damage both the plug and the mating component.
• Torque Specification: Tighten the plug to the manufacturer's specified torque using an appropriately sized hex key and calibrated torque wrench. Overtightening risks crushing the O-ring or damaging threads/port, while undertightening leads to leakage. The torque primarily compresses the O-ring, not to create a metal-to-metal seal.
• System Integration: After installation, conduct a system pressure test to confirm the integrity of the seal, especially in critical applications.

The O-ring is the primary wear component; it should be replaced during system overhauls or upon plug removal with one of the correct material and durometer for continued leak-free performance. Regular visual inspection for corrosion or damage is also recommended.

Conclusion

The 1/2 inch Straight Thread O-Ring Hex Socket Plug, crafted from tough carbon steel with a corrosion-resistant zinc finish and conforming to SAE specifications, ensures reliable fluid power connectivity. Its innovative Straight Thread O-Ring Boss (ORB) sealing mechanism, combined with the compact hex socket design, provides a leak-proof, durable, and highly dependable closure. Engineered for demanding industrial conditions and rated for high-pressure applications up to 3000 PSI, this plug enhances the safety, efficiency, and longevity of hydraulic and pneumatic systems. Adherence to SAE standards guarantees interchangeability and consistent quality, making it an indispensable component for uncompromising fluid system integrity.
