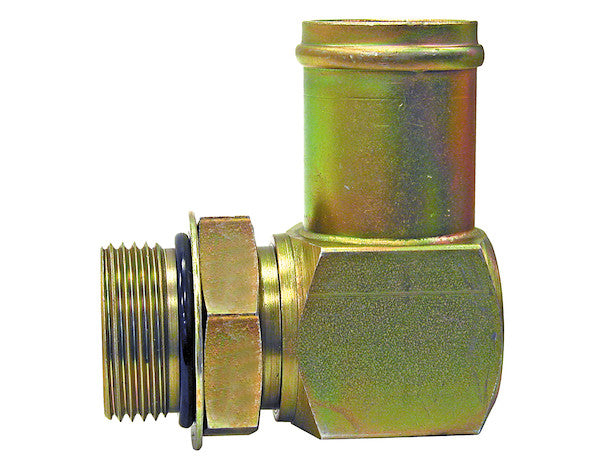

The 90?? Straight Thread Hose Connector is part of the Buyers Products line of JIC 37 degree flare tube fittings. The fittings feature tough carbon steel construction, 3 piece flare sealing for a tight, secure connection, and a corrosion-resistant zinc finish. Fitting conforms to JIC and SAE specifications. Buyers Products tube fittings are used with copper, brass, steel, aluminum, and other tubing that can be flared. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Combination Nipple |
| Side 1 | 1 1/4 Hose Barb |
| Side 2 | 1 SAE ORB (-16) |
| Style | MM |
The 90 Degree Straight Thread Hose Connector, a premium component from Buyers Products, represents a critical element in the construction of robust and efficient hydraulic and fluid power systems. Engineered for demanding industrial and mobile applications, this fitting seamlessly integrates a JIC 37-degree flare connection with an SAE O-Ring Boss (ORB) straight thread port and a hose barb, providing a multifaceted solution for complex fluid routing challenges. Its design emphasizes durability, leak prevention, and operational integrity, making it an indispensable choice for professionals seeking uncompromising performance.
Advanced Engineering and Design Characteristics
Optimized 90-Degree Configuration
The integral 90-degree bend of this connector is not merely an arbitrary design choice but a calculated engineering feature. In numerous hydraulic and pneumatic layouts, space constraints and the need for optimized fluid flow paths necessitate sharp directional changes. A standard straight fitting combined with a sharp bend in the hose or tube can induce undue stress on the hose material, restrict flow, and potentially lead to premature system failure. The pre-formed 90-degree angle of this connector elegantly addresses these issues by:
- Reducing Hose Strain: By providing a smooth, pre-bent path, it eliminates sharp kinks and excessive bending radii in the attached hose, prolonging its service life and maintaining its structural integrity.
- Enhancing Flow Efficiency: A properly designed bend minimizes turbulence and pressure drop, ensuring the unimpeded flow of hydraulic fluid or other media. This is crucial for maintaining system efficiency and power transfer.
- Space Optimization: Its angular configuration allows for compact system designs, facilitating installation in tight compartments often encountered in heavy machinery, agricultural equipment, and industrial setups.
- Simplified Assembly: The angled design can simplify the routing process, making assembly and future maintenance more straightforward and less labor-intensive.
Straight Thread (SAE O-Ring Boss - ORB) Connection
One of the distinguishing features of this connector is its integration of a straight thread, specifically identified as a 1 SAE ORB (-16) connection on Side 2. Unlike tapered pipe threads (e.g., NPT/NPTF) which rely on deformation and interference for sealing, straight threads utilize a mechanical O-ring seal. The SAE J1926/ISO 1179-1 O-Ring Boss (ORB) port is globally recognized for its superior leak prevention characteristics, particularly in high-pressure hydraulic applications. Key advantages of the ORB connection include:
- Exceptional Leak Prevention: The O-ring, typically made of elastomeric materials like Buna-N (Nitrile) or Viton (FKM) depending on fluid compatibility and temperature requirements, is compressed into a precisely machined groove within the boss. This creates a highly effective, repeatable, and static seal that is virtually immune to vibrational loosening and pressure fluctuations.
- Reusable Connection: Unlike tapered thread seals that can be compromised with repeated assembly, an ORB connection can be disassembled and reassembled multiple times by replacing the O-ring, maintaining its sealing integrity.
- Lower Assembly Torque: The O-ring does most of the sealing, requiring less thread torque compared to tapered pipe threads. This reduces the risk of over-tightening, galling, and damaging components.
- Resistance to System Shock: The O-ring's elastomeric nature provides a degree of shock absorption, making the connection more resilient to impulse pressures and vibrations common in hydraulic systems.
- Standardization: Adherence to SAE J1926 ensures global interchangeability and simplifies design and maintenance protocols.
Robust Hose Barb Integration (1 1/4 Hose Barb)
Side 1 of this connector features a 1 1/4 Hose Barb, an essential component for securely attaching flexible hose lines. A hose barb is characterized by a series of annular ridges or serrations that securely grip the inside diameter of a hose when inserted. This design, when combined with an appropriate hose clamp, creates a durable and leak-resistant mechanical connection. Considerations for the hose barb include:
- Secure Retention: The barb design ensures excellent tensile strength and resistance to hose pull-off, critical in dynamic and high-pressure fluid transfer systems.
- Compatibility: Designed for standard hose inner diameters, ensuring broad compatibility with industrial hoses.
- Proper Clamping: For optimal performance and safety, the hose barb connection mandates the use of suitable hose clamps (e.g., worm drive, spring, or crimp clamps) to provide consistent radial compression over the barb, preventing leaks and detachment.
- Material Compatibility: The carbon steel construction of the barb ensures long-term integrity even when exposed to various hydraulic fluids and environmental conditions.
JIC 37-Degree Flare Sealing System
The core of this connector's high-pressure integrity lies in its JIC (Joint Industry Council) 37-degree flare tube fitting design. JIC fittings, standardized under SAE J514 and ISO 8434-2, are ubiquitous in hydraulic applications due to their proven reliability and robust metal-to-metal sealing mechanism. The "3-piece flare sealing" mentioned in the description refers to the complete assembly, comprising:
- The Fitting Body (this product): Features a male 37-degree flared nose.
- A Flare Nut: A separate component that slides over the tube and threads onto the fitting body.
- A Sleeve (or Ferrule): Also slides over the tube, positioned between the flare nut and the flared tube end. The sleeve provides support behind the flare, preventing tube deformation and concentrating the sealing force.
- High-Pressure Capability: The robust metal-to-metal seal can withstand extreme pressures, rated up to 10,000 PSI depending on tube size and material, making it ideal for demanding hydraulic circuits.
- Vibration Resistance: The mechanical locking action of the flare nut and sleeve, combined with the continuous metal contact, provides excellent resistance to vibration fatigue, which is a common failure mode in less secure connections.
- Reusability: JIC flare connections can be disconnected and reconnected multiple times without degradation of the seal, assuming the flared tube end and fitting body are not damaged.
- Ease of Assembly: While requiring specific flaring tools, the assembly process for JIC fittings is straightforward and well-understood across the industry.
- Broad Material Compatibility: The design allows for use with various flareable tubing materials, as detailed below.
Material Science and Surface Protection
Premium Carbon Steel Construction
The choice of carbon steel as the primary material for this connector is a testament to its superior mechanical properties and cost-effectiveness for hydraulic applications. Carbon steel offers:
- High Tensile Strength: Critical for resisting the immense internal pressures and external forces encountered in hydraulic systems, preventing deformation and burst failures.
- Excellent Durability: Provides long-term resistance to wear, fatigue, and impact, ensuring a prolonged service life even under arduous operating conditions.
- Ductility: While strong, carbon steel retains sufficient ductility to absorb shocks and resist brittle fracture, contributing to overall system safety and reliability.
- Cost-Effectiveness: Compared to specialty alloys, carbon steel offers an optimal balance of performance and economic viability, making high-quality fittings accessible for a wide range of applications.
Corrosion-Resistant Zinc Finish (Zinc Plated)
To augment the inherent strength of carbon steel, the fitting undergoes a zinc plating process, imparting a robust corrosion-resistant finish. This zinc plating serves several critical functions:
- Sacrificial Protection (Galvanic Action): Zinc is more electrochemically active than steel. In the presence of an electrolyte (e.g., moisture), the zinc corrodes preferentially, sacrificing itself to protect the underlying steel from rust and degradation.
- Barrier Protection: The zinc layer acts as a physical barrier, preventing direct contact between the steel substrate and corrosive elements in the environment.
- Enhanced Appearance: The bright, uniform zinc finish provides a professional aesthetic, indicative of a quality product.
- Extended Service Life: By mitigating corrosion, the zinc plating significantly extends the operational lifespan of the fitting, reducing maintenance requirements and replacement costs.
Compliance and Interoperability
Adherence to JIC and SAE Specifications
The commitment of Buyers Products to conform to both JIC and SAE specifications underscores the connector's premium quality, reliability, and universal compatibility.
- JIC (Joint Industry Council): JIC standards for 37-degree flared fittings are widely adopted in North America and globally for high-pressure hydraulic applications. Adherence ensures interchangeability with other JIC components, simplifies system design, and guarantees predictable performance characteristics under specified operating parameters.
- SAE (Society of Automotive Engineers): SAE standards, particularly SAE J514 for flared fittings and SAE J1926 for O-Ring Boss ports, provide comprehensive guidelines for dimensions, materials, and performance testing. Compliance with SAE standards ensures that the fitting meets rigorous engineering criteria for safety, durability, and functionality, particularly in mobile hydraulic systems, automotive, and heavy equipment sectors.
Versatility Across Tubing Materials and High-Pressure Capability
Broad Tubing Material Compatibility
The design of Buyers Products tube fittings, specifically their JIC 37-degree flare capability, allows them to be used with a wide range of flareable tubing materials, including:
- Copper: Excellent for lower pressure, often instrumentation or brake lines, due to its malleability and corrosion resistance.
- Brass: Similar to copper but with increased strength, used in various fluid handling and pneumatic applications.
- Steel: The most common choice for high-pressure hydraulic lines due to its superior strength and fatigue resistance. Both seamless and welded steel tubing can be flared, provided they meet specifications.
- Aluminum: Lighter than steel, used in applications where weight is a critical factor, such as aerospace or certain mobile equipment, for medium-pressure fluid transfer.
- Other Flareable Tubing: Any metallic tubing with sufficient ductility and wall thickness that can be properly flared to a 37-degree angle without cracking or material thinning can be effectively used with this fitting.
Exceptional Pressure Rating (Up to 10,000 PSI)
The specification of "up to 10,000 PSI depending on tube size" highlights the extraordinary strength and engineering integrity of this connector. Such high-pressure capability positions it for use in the most demanding hydraulic systems, including:
- Heavy Construction Equipment: Excavators, bulldozers, cranes where hydraulic forces are immense.
- Agricultural Machinery: Tractors, harvesters utilizing powerful hydraulic implements.
- Industrial Presses and Machinery: High-force manufacturing processes.
- Oil and Gas Applications: Systems requiring robust components for exploration and production.
Operational Benefits and Application Spectrum
The combination of a 90-degree angle, JIC 37-degree flare, SAE ORB straight thread, and hose barb in a single, carbon steel, zinc-plated fitting delivers a multitude of operational benefits:
- Enhanced Reliability: The dual sealing mechanisms (metal-to-metal flare and O-ring boss) minimize the potential for leaks, contributing to a more reliable and environmentally sound fluid power system.
- Durability in Harsh Environments: Carbon steel construction and zinc plating ensure longevity and performance in corrosive, high-vibration, and temperature-variant conditions.
- Streamlined Maintenance: The reusability of ORB and JIC connections simplifies inspection, repair, and component replacement, reducing downtime and operational costs.
- Design Flexibility: The 90-degree bend and combination of connection types offer engineers greater flexibility in designing compact and efficient hydraulic circuits.
- Industry Standard Compliance: Adherence to JIC and SAE specifications ensures global compatibility, availability of replacement parts, and compliance with safety regulations.
This 90 Degree Straight Thread Hose Connector is ideally suited for a broad array of applications including but not limited to:
- Hydraulic steering and braking systems in heavy-duty trucks and buses.
- Fluid power circuits in mining, forestry, and waste management equipment.
- Industrial automation and robotics for fluid transfer lines.
- Marine hydraulic systems, including steering, winches, and propulsion controls.
- Pneumatic systems requiring high integrity connections.
Conclusion
The 90 Degree Straight Thread Hose Connector from Buyers Products exemplifies engineering excellence in fluid power components. Its meticulously designed 90-degree form factor, coupled with the proven reliability of JIC 37-degree flare technology and the superior leak prevention of an SAE O-Ring Boss connection, positions it as a premier choice for demanding hydraulic applications. Constructed from robust carbon steel with a corrosion-resistant zinc finish, and conforming to stringent JIC and SAE specifications, this connector offers unparalleled durability, versatility, and performance. Capable of handling pressures up to 10,000 PSI and compatible with a diverse range of flareable tubing, it provides a dependable and long-lasting solution for critical fluid routing challenges, ensuring system integrity and operational efficiency across various industrial sectors.
