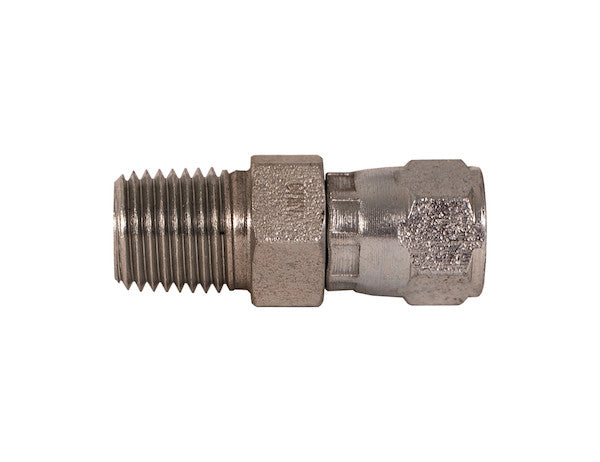

The Female 37?? JIC to Male Pipe Swivel Adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 1 JIC (-16) |
| Side 2 | 1 NPT |
| Style | MF |
Advanced Technical Overview: Female 37° JIC Swivel to Male Pipe Adapter (1 JIC (-16) to 1 Inch NPT)
The Female 37° JIC Swivel to Male Pipe Adapter, specifically configured for a 1 JIC (-16) connection adapting to a 1 Inch NPT male pipe, represents a critical component in sophisticated hydraulic and fluid power systems. This precision-engineered fitting from Buyers Products is designed to facilitate seamless, robust, and leak-free transitions between two distinct, widely utilized industry standards: the JIC 37° flared tube fitting and the NPT tapered pipe thread. Its robust construction, featuring high-strength carbon steel and a protective zinc plating, ensures superior performance and longevity in demanding operational environments, with pressure ratings extending up to an impressive 10,000 PSI depending on the specific pipe size and application parameters.
The Engineering Significance of Hybrid Adapters
In modern industrial and mobile hydraulic systems, the integration of diverse components often necessitates the use of specialized adapters. The Female 37° JIC Swivel to Male Pipe 1 JIC (-16) to 1 Inch NPT adapter addresses a common requirement: bridging the gap between a flexible tubing assembly (typically terminated with a male JIC flare) and a rigid piping system (often employing NPT threads). The "swivel" functionality on the JIC end provides significant installation advantages, allowing for easy alignment and tightening without twisting the hose or tubing, thereby preserving the integrity of the hydraulic lines and simplifying maintenance procedures. This specific adapter is characterized by a straight configuration, optimizing fluid flow and minimizing pressure drop across the connection.
Detailed Analysis of the JIC 37° Flare Connection (Side 1: 1 JIC (-16))
The Joint Industry Council (JIC) 37° flare fitting standard, codified under SAE J514, is a cornerstone of hydraulic plumbing due to its inherent reliability and ease of assembly. The "Female 37° JIC Swivel" portion of this adapter is designed to mate with a male 37° flared tube fitting. The core principle of the JIC seal is a metal-to-metal contact between the conical male flare and the corresponding internal cone of the female swivel nut. This mechanical interference, when properly torqued, creates a robust, leak-proof seal capable of withstanding high pressures and significant vibration.
The designation "1 JIC (-16)" refers to a fitting designed for a nominal 1-inch (25.4 mm) outside diameter (O.D.) tube. While the product title mentions "1-5/16 Inch Tube O.D.," it's crucial to clarify that the 1-5/16 inch dimension typically corresponds to the external thread diameter of the mating male JIC fitting (specifically, 1-5/16"-12 UNF-2A thread). The female swivel nut on this adapter will possess the internal thread to engage this male counterpart, along with the precision-machined 37° cone for the sealing surface. This system is highly preferred in applications where quick assembly, disassembly, and reassembly are often required, such as in heavy equipment, construction machinery, and agricultural vehicles, without compromising sealing integrity. The swivel mechanism itself is a critical design feature, consisting of a nut that rotates independently on the fitting body, enabling accurate alignment of the hose or tube assembly before final tightening, thus preventing torsional stress on the fluid conductor.
Detailed Analysis of the NPT Pipe Thread Connection (Side 2: 1 Inch NPT)
The National Pipe Taper (NPT) thread standard, defined by ANSI/ASME B1.20.1, is the most prevalent thread type for general-purpose pressure applications in North America. The "Male Pipe 1 Inch NPT" end of this adapter features a tapered thread profile. Unlike parallel threads, the taper on both the male and female NPT threads creates an interference fit as they are tightened. The seal in an NPT connection is achieved not merely by the threads themselves, but by the deformation of the thread material and, critically, the application of a suitable thread sealant (such as PTFE tape or pipe dope) to fill the helical leak path that naturally exists between the engaged threads. This mechanism ensures a secure, pressure-tight connection for stationary pipe installations.
A "1 Inch NPT" designation refers to the nominal pipe size, not the actual measured thread diameter, which is approximately 1.315 inches (33.4 mm) O.D. on the male end. NPT connections are renowned for their strength and stability, making them ideal for connections to valves, pumps, cylinders, and other rigid components within a hydraulic circuit. The permanent or semi-permanent nature of NPT connections complements the more flexible and serviceable JIC connections, providing a robust interface between these different system segments.
Material Science: High-Strength Carbon Steel Construction
The selection of tough carbon steel as the primary material for this adapter is a testament to its engineering integrity. Carbon steel, known for its exceptional mechanical properties, offers an optimal balance of strength, ductility, and cost-effectiveness for high-pressure hydraulic applications. Its high tensile strength and yield strength allow the fitting to withstand significant internal fluid pressures and external mechanical stresses without permanent deformation or failure. Furthermore, the inherent hardness of carbon steel ensures resistance to wear and abrasion, particularly at the critical sealing surfaces of the JIC flare and the threads of both connections, thereby prolonging the operational life of the adapter.
The metallurgical composition of the carbon steel used is carefully controlled to achieve specific properties, including weldability (if applicable during manufacturing, though these are typically machined from bar stock or forged) and resistance to brittle fracture. Its structural integrity is paramount when subjected to cyclical pressure loading, common in hydraulic systems, where fatigue resistance is a crucial design criterion. The use of robust carbon steel ensures that the Female 37° JIC Swivel to Male Pipe 1 JIC (-16) to 1 Inch NPT adapter maintains its form and function even under dynamic and challenging conditions.
Advanced Surface Treatment: Corrosion-Resistant Zinc Plating
To further enhance the durability and operational lifespan of the carbon steel adapter, a corrosion-resistant zinc finish is applied. Zinc plating is a widely adopted sacrificial coating method in the fluid power industry. In the presence of corrosive agents (such as moisture, salt, or certain chemicals), the zinc coating preferentially corrodes before the underlying carbon steel, thereby protecting the base metal from degradation. This sacrificial protection mechanism significantly extends the service life of the fitting, especially in environments prone to oxidation and rust.
Beyond its protective qualities, the zinc plating also provides an aesthetically pleasing finish and a smoother surface, which can aid in assembly and reduce friction. The precise application of this coating, often followed by a passivation layer (e.g., clear trivalent chromium), ensures maximum adherence and consistent performance. This comprehensive surface treatment guarantees that the adapter maintains its structural and sealing integrity over time, reducing the risk of premature failure due to environmental exposure and minimizing the need for frequent replacement.
Pressure Rating: Up to 10,000 PSI Capability
A standout feature of this Female 37° JIC Swivel to Male Pipe adapter is its impressive pressure rating of up to 10,000 PSI (pounds per square inch), contingent upon the specific pipe size and other system variables. This high-pressure capability underscores the superior design, material strength, and manufacturing precision of the fitting. The ability to operate at such elevated pressures makes this adapter suitable for the most demanding hydraulic applications, including ultra-high-pressure jacking systems, industrial presses, and specialized heavy machinery where immense force generation is required.
The determination of pressure ratings involves rigorous testing, including burst pressure tests and fatigue analyses, in accordance with industry standards such as SAE J514 for JIC fittings. The working pressure rating typically incorporates a substantial safety factor (e.g., 4:1) relative to the minimum burst pressure, ensuring reliable and safe operation below critical failure thresholds. It is vital for system designers and maintenance personnel to verify that all components within a hydraulic circuit, including hoses, tubing, valves, and pumps, are rated for the system's maximum operating pressure to prevent catastrophic failures. The stated 10,000 PSI rating for this specific 1 JIC (-16) to 1 Inch NPT adapter signifies its qualification for severe-duty applications.
Design and Manufacturing Precision
The "straight" shape of this adapter signifies a simple, linear flow path, which is advantageous for minimizing turbulence and pressure drop in the hydraulic line. This design simplicity contributes to manufacturing efficiency and inherent strength. Precision machining is paramount in the production of hydraulic fittings, particularly for the critical 37° flare angle and the precise thread profiles of both the JIC and NPT ends. Adherence to tight dimensional tolerances ensures perfect mating with corresponding components, forming the foundation for a reliable, leak-free seal.
Each Female 37° JIC Swivel to Male Pipe 1 JIC (-16) to 1 Inch NPT adapter undergoes stringent quality control processes. This includes dimensional checks, surface finish inspections, and often pressure testing of batches to confirm compliance with design specifications and performance criteria. The meticulous manufacturing process ensures that the metal-to-metal seal characteristic of the JIC connection is consistently achieved and that the NPT threads provide maximum engagement for sealant effectiveness.
Diverse Industrial Applications
The versatility and robust nature of this adapter make it indispensable across a broad spectrum of industries. Typical applications include:
- Heavy Equipment: Construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and forestry machines often utilize JIC connections for their hydraulic cylinders and attachments, requiring NPT transitions to pumps, reservoirs, or control valves.
- Industrial Manufacturing: In factory automation, power units, and assembly lines, these adapters facilitate the integration of hydraulic actuators and sensors into existing piping infrastructure.
- Marine and Offshore: Due to their corrosion resistance and high-pressure capabilities, these fittings are suitable for marine steering systems, deck machinery, and offshore drilling platforms.
- Oil and Gas: In exploration, production, and refining processes, reliable high-pressure connections are critical for various fluid transfer and control systems.
- Utility Vehicles: Municipal service vehicles, refuse trucks, and lifting platforms frequently employ this type of adapter for connecting hydraulic tools and systems.
The ability to reliably connect a 1-inch nominal tube JIC system to a 1-inch NPT pipe system offers critical flexibility for system architects and maintenance teams, ensuring operational continuity and efficiency.
Installation and Maintenance Protocols
Proper installation is crucial for maximizing the performance and longevity of the Female 37° JIC Swivel to Male Pipe adapter. For the JIC connection, the female swivel nut should be hand-tightened onto the male flare until snug, then carefully torqued to the manufacturer's recommended specification using an appropriate wrench. Over-tightening can deform the flare and compromise the metal-to-metal seal, while under-tightening can lead to leaks. For the NPT connection, a suitable thread sealant (e.g., PTFE tape or liquid pipe sealant) must be applied to the male NPT threads before assembly. The connection should be tightened sufficiently to create an effective seal, ensuring thread engagement without excessive force that could damage the threads or deform the pipe joint.
Regular maintenance involves visual inspections for signs of wear, corrosion, or leakage. Any loose connections should be re-torqued according to specifications. System cleanliness is also paramount; preventing contamination from entering the hydraulic fluid through connection points helps preserve the integrity of the entire system. Following these protocols ensures the adapter's long-term reliability and contributes to the overall safety and efficiency of the hydraulic circuit.
Conclusion: Uncompromising Quality and Performance
The Female 37° JIC Swivel to Male Pipe 1 JIC (-16) to 1 Inch NPT adapter from Buyers Products stands as an exemplary solution for demanding hydraulic applications requiring a transition between JIC and NPT standards. Its meticulously engineered design, premium carbon steel construction, corrosion-resistant zinc plating, and validated pressure capability of up to 10,000 PSI make it a superior choice for professionals seeking uncompromising reliability and performance. This adapter not only ensures a secure and leak-free connection but also offers the flexibility of a swivel design, simplifying installation and maintenance. Investing in this high-quality fitting means bolstering the integrity, efficiency, and safety of complex hydraulic systems across numerous industrial sectors, providing a durable link in your critical fluid power infrastructure.
