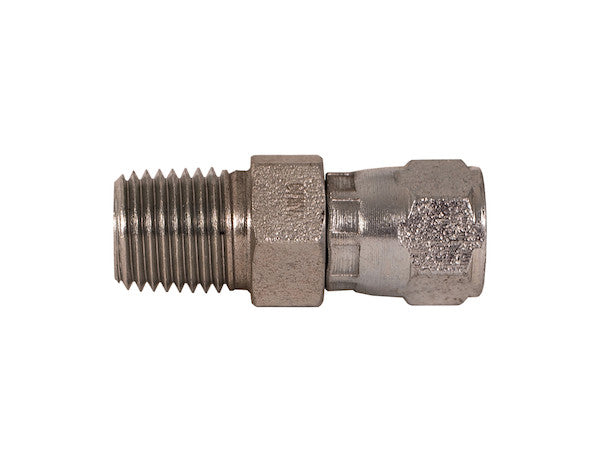

The Female 37?? JIC to Male Pipe Swivel Adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 1/4 JIC (-4) |
| Side 2 | 1/4 NPT |
| Style | MF |
The Female 37° JIC Swivel to Male Pipe Adapter, specifically configured for a 7/16 Inch Tube O.D. to 1/4 Inch NPT, represents a critical component in fluid power systems requiring robust and reliable connections between disparate plumbing standards. This precision-engineered adapter, part of the distinguished Buyers Products line, is designed to facilitate seamless integration and operational efficiency in a multitude of demanding industrial and mobile hydraulic applications. Its specialized design merges the high-performance attributes of a JIC flare connection with the ubiquity of NPT pipe threads, providing a versatile solution for system designers and maintenance professionals.
Advanced Technical Overview: Bridging Hydraulic Standards
The core function of this adapter is to convert a female 37° JIC (Joint Industry Council) swivel connection, typically found on hydraulic hoses or tube assemblies, to a male 1/4 Inch NPT (National Pipe Taper) pipe thread, suitable for interfacing with pumps, valves, cylinders, or fixed piping systems. This transition capability is fundamental for establishing secure and leak-proof fluid transfer paths in complex machinery and infrastructure. The product’s design emphasizes durability, ease of installation, and consistent performance under rigorous operating conditions, attributes made possible by its premium material selection and adherence to stringent manufacturing standards.
Detailed Analysis of the 37° JIC Swivel Connection
The JIC standard, formally defined by SAE J514, is a globally recognized specification for fluid power connections, particularly prevalent in hydraulic systems. The defining characteristic of a JIC fitting is its 37-degree flare seat, which mates with a corresponding flared tube or hose insert to create a metal-to-metal seal. This sealing mechanism is inherently robust, offering superior resistance to pressure surges, vibration, and thermal cycling compared to many elastomeric seal types. The female swivel nut on this adapter is a crucial ergonomic and functional feature. It allows for the easy alignment and tightening of the fitting onto a male JIC flare without twisting the connected hose or tube, thereby preventing torsional stress, potential damage, and simplifying assembly in confined spaces. This swivel capability significantly reduces installation time and enhances the longevity of the entire fluid conduit system.
The specification "7/16 Inch Tube O.D." precisely defines the size of the tube or hose insert that the female JIC connection is designed to accommodate. In the JIC sizing nomenclature, a 7/16-inch tube outside diameter corresponds directly to a -4 JIC fitting size, which is often referred to as 1/4 JIC. This fractional designation (1/4 JIC) relates to the nominal hose or pipe size that the fitting connects to, not the thread size of the JIC nut itself. The internal geometry of the JIC connection is meticulously machined to ensure a perfect 37-degree conical seal interface. This precision is paramount; any deviation can compromise the metal-to-metal seal, leading to fluid leakage, diminished system performance, and potential safety hazards. The tapered engagement of the male flare into the female cone, driven by the torque applied to the swivel nut, compresses the metallic surfaces, forming a high-integrity, resilient seal that can withstand the intense pressures characteristic of hydraulic circuits.
Detailed Analysis of the 1/4 Inch NPT Male Pipe Connection
On the opposing end, the adapter features a male 1/4 Inch NPT thread. NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used on pipes and fittings, predominantly in North America, as defined by ANSI/ASME B1.20.1. Unlike parallel threads which typically rely on a gasket or O-ring for sealing, NPT threads achieve their seal through mechanical interference. The threads are tapered, meaning their diameter decreases along the length of the thread. When a male NPT thread is screwed into a female NPT thread, the flanks of the threads wedge against each other, creating an increasing interference fit that effectively seals the connection. For enhanced sealing integrity, especially in pressure applications, it is standard practice to use thread sealants such as PTFE tape (Teflon tape) or pipe thread compound (pipe dope). These sealants fill any microscopic voids or helical leak paths that might exist between the metal thread surfaces, ensuring a leak-tight joint even under elevated pressures.
The "1/4 Inch" designation for the NPT end refers to the nominal pipe size, which is an approximate internal diameter. It is crucial to understand that the actual measured outside diameter of a 1/4 inch NPT male thread is approximately 0.540 inches (13.7 mm). This distinction between nominal size and actual dimensions is a common characteristic of pipe thread standards and is essential for correct component selection and mating. The male pipe configuration of this adapter allows it to be directly threaded into female NPT ports found on a vast array of industrial equipment, fluid reservoirs, pneumatic systems, and fixed piping networks, offering immense flexibility in system design and repair scenarios.
Material Science and Construction Excellence: Carbon Steel and Zinc Plating
The selection of materials and manufacturing processes is fundamental to the adapter's performance and longevity. This adapter is constructed from tough carbon steel, a material renowned for its exceptional strength, rigidity, and cost-effectiveness. Carbon steel offers a high tensile strength, making it ideal for components subjected to significant internal pressures and external mechanical stresses, as is common in hydraulic applications. Its inherent hardness contributes to the integrity of the threads and sealing surfaces, resisting deformation and wear over time, even with repeated connection and disconnection cycles for the JIC end.
To further enhance the durability and resistance to environmental degradation, the carbon steel components undergo a corrosion-resistant zinc plating process. Zinc plating provides a sacrificial protective layer over the steel. When exposed to corrosive elements, the zinc preferentially corrodes, thereby protecting the underlying steel from rust and oxidation. The "Zinc Plated" finish, as specified, typically involves an electroplating process that deposits a thin, uniform layer of zinc onto the surface of the adapter. This finish not only extends the service life of the fitting in humid, wet, or chemically aggressive environments but also contributes to a cleaner aesthetic, indicating a product designed for industrial reliability. This robust construction ensures that the adapter maintains its structural and sealing integrity throughout its operational lifespan, even in challenging outdoor or industrial settings where exposure to moisture, dirt, and various chemicals is common.
Performance Metrics: High-Pressure Capability and Reliability
A critical specification for this adapter is its pressure rating of "up to 10,000 PSI depending on pipe size." This high-pressure capability underscores the adapter's suitability for severe-duty hydraulic systems. The phrase "depending on pipe size" is an important qualifier. Generally, in fluid power fittings, smaller nominal sizes are capable of withstanding higher pressures due to their reduced internal surface area exposed to the fluid and proportionally thicker walls relative to their bore. For a 1/4 JIC (-4) to 1/4 NPT adapter, this rating signifies that it is engineered to function safely and reliably in circuits where peak operating pressures can be exceptionally high. This performance envelope makes it indispensable for heavy machinery, high-force applications, and systems requiring precise hydraulic control. The integrity of both the metal-to-metal JIC seal and the properly installed NPT taper seal contributes to this impressive pressure handling capacity, ensuring minimal risk of leakage even under pulsating or extreme static pressures.
Beyond pressure resistance, the adapter is engineered for a tight, secure connection. This encompasses not only leak prevention but also resistance to loosening under vibration and dynamic loads. The JIC swivel nut, when properly torqued, locks the flared connection firmly, while the NPT's tapered thread engagement, aided by sealant, provides a mechanical lock. These attributes are vital in mobile equipment and machinery where constant movement and vibration could otherwise compromise the integrity of fluid lines, leading to catastrophic failures or significant downtime.
Installation, Maintenance, and System Integration Considerations
Proper installation is paramount to achieving the specified performance characteristics of this adapter. For the female 37° JIC swivel end, the mating male JIC flare should be clean and free of burrs or damage. The swivel nut should be hand-tightened until snug, then carefully torqued to the manufacturer’s recommended specification using a suitable wrench. Over-tightening can deform the flare and compromise the seal, while under-tightening can lead to leaks. The swivel feature greatly simplifies this process, allowing the nut to be rotated independently of the fitting body, ensuring proper alignment without stressing the connected hose or tube. For the male 1/4 Inch NPT end, the application of an appropriate thread sealant (PTFE tape or pipe compound) is critical. The sealant should be applied carefully to the male threads, leaving the first thread clear to prevent sealant fragments from entering the fluid system. The NPT end should then be threaded into the female NPT port until firm, and tightened to achieve a seal, usually specified in turns past hand-tight or by a specific torque value, taking care not to over-tighten which can crack the receiving port.
Maintenance largely involves periodic inspection of the connections for any signs of leakage, corrosion, or mechanical damage. The reusability of JIC connections is a significant advantage; provided the flare and seat surfaces remain undamaged, the JIC end can be disconnected and reconnected multiple times without degradation of sealing performance, unlike some other fitting types that rely on single-use seals. The carbon steel construction with zinc plating also implies good resistance to common hydraulic fluids, oils, and gases, contributing to a longer service life with minimal maintenance beyond visual checks.
Versatility and Applications Across Industries
The Female 37° JIC Swivel to Male Pipe 7/16 Inch Tube O.D. to 1/4 Inch NPT adapter serves as a critical interface component across a broad spectrum of industries. In manufacturing, it facilitates the connection of hydraulic power units to machinery, enabling the operation of presses, clamps, and robotic arms. In the agricultural sector, it's indispensable for linking hydraulic cylinders on tractors and implements to control their movement and functions. Construction equipment, such as excavators, loaders, and cranes, relies heavily on these types of adapters to ensure the integrity of their hydraulic circuits, managing high forces and dynamic motions. Furthermore, in general industrial piping, this adapter allows for the integration of modern hydraulic components with existing NPT infrastructure, offering a cost-effective solution for upgrades and system expansions. Its straight shape signifies a direct, in-line connection, making it suitable for applications where space is not overly restricted and a direct path between components is desired.
Conclusion: A Foundation of Reliability in Fluid Power Systems
In summary, the Female 37° JIC Swivel to Male Pipe Adapter, tailored for 7/16 Inch Tube O.D. to 1/4 Inch NPT, is far more than a simple connector. It is a precisely engineered component designed to overcome the challenges of integrating diverse fluid power standards, delivering uncompromised performance and reliability. Its robust carbon steel construction, enhanced with a corrosion-resistant zinc finish, ensures exceptional durability and longevity even in the most demanding operational environments. The meticulous design of both the 37° JIC metal-to-metal swivel seal and the 1/4 Inch NPT tapered pipe thread, combined with an impressive pressure rating of up to 10,000 PSI, guarantees a tight, secure, and leak-free connection. From heavy-duty industrial machinery to intricate hydraulic control systems, this adapter from Buyers Products stands as a testament to quality engineering, providing a vital link that ensures the safe, efficient, and continuous operation of critical fluid transfer applications. It embodies the crucial balance between technical precision, material strength, and practical utility, making it an indispensable asset for professionals seeking to build or maintain high-performance hydraulic and fluid handling systems.
