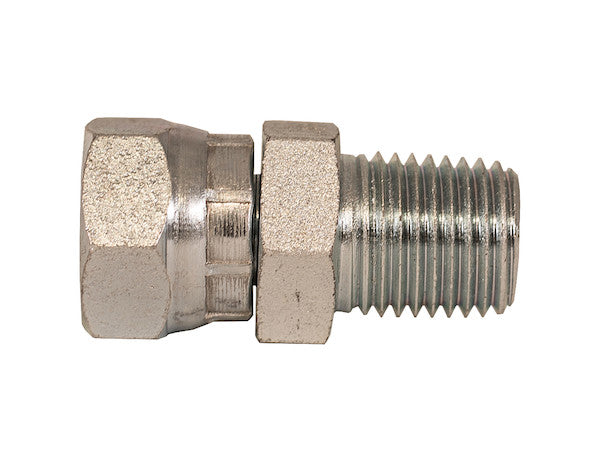

The Female Pipe Swivel to Male Pipe Straight adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 3/8 NPSM |
| Side 2 | 3/8 NPT |
| Style | MF |
The 3/8 Inch NPSM Female Pipe Swivel To 3/8 Inch Male Pipe Thread Straight adapter represents a critical component in the design and maintenance of hydraulic and pneumatic systems requiring robust, high-pressure connectivity. Engineered as part of the esteemed Buyers Products line of swivel adapters, this fitting is meticulously crafted to ensure optimal performance, unparalleled durability, and absolute reliability in the most demanding industrial environments. Its specialized configuration, featuring a 3/8-inch NPSM female swivel connection on one end and a 3/8-inch NPT male connection on the other, facilitates precise system integration while offering the distinct advantage of rotational freedom.
Advanced Engineering and Design: The Essence of Swivel Adapters
The core utility of this adapter lies in its swivel functionality, a design aspect that significantly enhances the flexibility and serviceability of fluid power systems. The 3/8-inch NPSM (National Pipe Straight Mechanical) female swivel connection is designed to rotate freely even when tightened, allowing for effortless alignment of hoses and tubing during installation without imparting torsional stress. This crucial feature not only simplifies complex routing challenges but also prevents premature wear and failure of hoses that could otherwise result from twisting or kinking. The straight configuration of the adapter ensures a direct and unimpeded flow path, minimizing pressure drop and turbulence, which are vital considerations for maintaining system efficiency and integrity. The male NPT (National Pipe Tapered) thread provides a secure and high-pressure sealing interface, leveraging the inherent deformation of tapered threads to create a metal-to-metal interference fit when torqued correctly.
Material Excellence: Carbon Steel Construction
The choice of carbon steel as the primary construction material for this adapter is fundamental to its superior performance characteristics. Carbon steel is renowned for its exceptional strength-to-weight ratio, high tensile strength, and excellent fatigue resistance, making it an ideal candidate for applications subjected to extreme internal pressures and dynamic stresses. The specific grade of carbon steel utilized is carefully selected to meet stringent industry standards, ensuring the fitting can withstand continuous operation in harsh industrial settings without compromising structural integrity. This robust material inherently resists mechanical shock, vibration, and abrasive wear, contributing to an extended operational lifespan and reducing the frequency of maintenance or replacement. The inherent rigidity of carbon steel also ensures that thread deformation under high pressure remains within acceptable limits, thereby preserving the integrity of the critical metal-to-metal seal.
Corrosion Protection: The Zinc Plated Finish
To further augment the durability and reliability of the carbon steel construction, the adapter is treated with a corrosion-resistant zinc finish. Zinc plating serves as a sacrificial coating, offering galvanic protection to the underlying steel. In the presence of moisture or corrosive agents, the zinc coating preferentially corrodes, thereby protecting the base metal from degradation. This protective layer is crucial for applications where the adapter might be exposed to humidity, water, chemicals, or other environmental contaminants commonly found in industrial and outdoor settings. The zinc finish also provides a smooth, aesthetically pleasing surface that can resist minor abrasions and contributes to the overall cleanliness of the hydraulic or pneumatic system. This multi-layered approach to material selection and surface treatment underscores Buyers Products' commitment to engineering components that not only perform under pressure but also endure the test of time and environmental exposure.
Precision Sealing: Metal-to-Metal Interface
A hallmark of this adapter's design is its reliance on a metal-to-metal seal. Unlike fittings that depend on elastomeric O-rings or other soft seals, a metal-to-metal seal offers unparalleled resilience in extreme conditions, particularly those involving high pressures, high temperatures, or aggressive fluid media that could degrade elastomeric materials. The NPSM female swivel is engineered with a precisely machined internal cone seat that mates with a corresponding external cone on the male pipe, creating a leak-proof seal through intimate metal contact. This sealing mechanism is inherently robust, offering superior resistance to extrusion, cold flow, and chemical attack. The integrity of a metal-to-metal seal is less susceptible to temperature fluctuations and pressure spikes, providing a more stable and reliable connection over a wide range of operational parameters. The precision engineering required to achieve such a seal is a testament to the advanced manufacturing capabilities employed in the production of these Buyers Products adapters.
Pressure Rating: Uncompromising Performance up to 10,000 PSI
The adapter's impressive pressure rating of up to 10,000 PSI, depending on the pipe size, positions it at the forefront of high-pressure fluid power applications. For a 3/8-inch nominal pipe size, achieving such high-pressure capability requires meticulous design, material selection, and manufacturing processes. Smaller pipe sizes generally tolerate higher internal pressures due to a smaller cross-sectional area exposed to the force, allowing for thinner wall sections relative to larger pipes while maintaining the required strength. This rating signifies that the adapter has undergone rigorous testing and adheres to stringent industry standards for pressure containment, burst pressure, and fatigue life. Integrating this adapter into hydraulic or pneumatic circuits ensures a critical safety margin, preventing catastrophic failures and maintaining operational continuity in systems where reliability is paramount. Engineers can specify this fitting with confidence, knowing it is built to perform in the most demanding high-pressure environments, from heavy-duty industrial machinery to advanced fluid transfer systems.
Thread Standards Explained: NPSM vs. NPT
Understanding the distinction between NPSM (National Pipe Straight Mechanical) and NPT (National Pipe Tapered) threads is crucial for proper application and optimal sealing performance. The 3/8-inch NPSM female swivel thread is a straight pipe thread, meaning its diameter remains constant along its length. It does not create a seal by thread deformation alone. Instead, NPSM fittings are typically used with a swivel nut and are designed to seal mechanically against a seat or a gasket, usually a 30-degree cone. In this adapter, the female NPSM swivel likely engages with a male component featuring a corresponding 30-degree cone seat, forming the crucial metal-to-metal seal described earlier. The swivel action of the NPSM allows for rotational movement without loosening the seal, which is invaluable for precise hose routing and stress reduction. Conversely, the 3/8-inch NPT male thread is a tapered pipe thread. Its diameter gradually decreases along its length, creating an interference fit as it is tightened into a female NPT port. This tapering design causes the threads to deform and wedge together, forming a pressure-tight seal directly within the threads themselves, often aided by thread sealant for added security. The combination of these two thread types in a single adapter offers a versatile solution: the NPT end provides a robust, fixed, primary connection point into a system component, while the NPSM swivel end offers flexible, rotational connection for a hose or pipe, optimizing installation and minimizing stress on the overall assembly.
Applications and Industry Versatility
The technical characteristics and robust construction of the 3/8 Inch NPSM Female Pipe Swivel To 3/8 Inch Male Pipe Thread Straight adapter make it indispensable across a vast array of industrial and mobile applications. Its high-pressure capability and durable design are perfectly suited for:
- Heavy Equipment: Construction machinery, agricultural vehicles, mining equipment, and forestry equipment, where hydraulic systems operate under immense loads and challenging environmental conditions.
- Industrial Manufacturing: Hydraulic power units, presses, injection molding machines, and automated assembly lines requiring precise and reliable fluid transfer.
- Material Handling: Forklifts, cranes, and conveyor systems that depend on robust hydraulic connections for lifting and movement.
- Transportation: Commercial trucks, trailers, and specialized vehicles that utilize hydraulic brakes, power steering, and auxiliary systems.
- Oil and Gas: Exploration, drilling, and processing equipment where high-pressure integrity and resistance to corrosive media are paramount.
- Marine Applications: Shipboard hydraulic systems, offshore platforms, and dredging equipment, benefiting from corrosion resistance and high-pressure performance.
The ability to handle pressures up to 10,000 PSI ensures that this adapter can serve in critical safety-related systems as well as high-performance operational circuits, providing engineers with a reliable component for diverse and demanding scenarios.
Installation Best Practices and Maintenance Considerations
To fully leverage the capabilities and ensure the longevity of the 3/8 Inch NPSM Female Pipe Swivel To 3/8 Inch Male Pipe Thread Straight adapter, adherence to proper installation and maintenance protocols is essential. When installing the NPT male end, it is critical to apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male threads to ensure a leak-free connection, as NPT threads rely on interference and deformation for sealing. Proper torque specifications, as recommended by the manufacturer or industry standards, must be followed to achieve an optimal seal without over-tightening, which can damage threads or crack the fitting. For the NPSM female swivel end, ensuring that the mating male component has a clean, undamaged 30-degree cone seat is paramount for the metal-to-metal seal. The swivel nut should be tightened sufficiently to compress the metal-to-metal interface, allowing the swivel body to rotate freely once tightened. Regular inspection for signs of wear, corrosion, or damage is advised. Any component exhibiting cracks, severe corrosion, or deformation should be promptly replaced to prevent system failure or safety hazards. Consistent adherence to these practices will maximize the adapter's operational life and maintain the integrity of the entire fluid power system.
The Buyers Products Advantage: Commitment to Quality
As a product within the Buyers Products line, this adapter benefits from a legacy of engineering excellence and a steadfast commitment to quality. Buyers Products is renowned for designing and manufacturing industrial components that meet and exceed industry standards for performance, durability, and safety. Every adapter is subjected to stringent quality control measures throughout the manufacturing process, from raw material sourcing to final inspection. This dedication ensures that each unit delivers consistent performance and reliability in the field. By choosing Buyers Products, customers are investing in components that are not only technically superior but also backed by a reputation for enduring quality and customer satisfaction. The integration of advanced design principles, premium materials, and precise manufacturing techniques culminates in a fitting that stands as a benchmark for high-pressure fluid connection solutions.
Conclusion
The 3/8 Inch NPSM Female Pipe Swivel To 3/8 Inch Male Pipe Thread Straight adapter is an expertly engineered solution for sophisticated hydraulic and pneumatic systems requiring a combination of high-pressure integrity, rotational flexibility, and unwavering reliability. Its robust carbon steel construction, enhanced by a corrosion-resistant zinc finish, ensures exceptional durability in even the most challenging operating environments. The precise metal-to-metal sealing mechanism, coupled with an impressive pressure rating of up to 10,000 PSI, provides a secure and leak-proof connection vital for critical applications. The unique NPSM swivel functionality simplifies installation, reduces system stress, and extends hose life, while the NPT male thread ensures a secure, fixed connection. As a distinguished offering from Buyers Products, this adapter embodies a commitment to superior engineering and manufacturing quality, making it an indispensable component for professionals seeking optimal performance and longevity in their fluid power systems.
