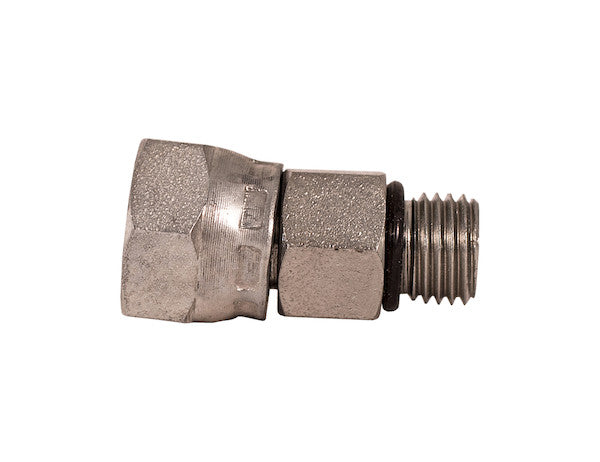

H9315X10X8 - 7/8 Inch NPSM Female Pipe Swivel To 1/2 Inch Female Pipe Thread Straight

The Male Straight Thread to Female Pipe Swivel Straight adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.

Specifications

Introducing the 7/8 Inch NPSM Female Pipe Swivel To 1/2 Inch Female Pipe Thread Straight adapter, a meticulously engineered component designed to facilitate robust and reliable connections within complex fluid power systems. As a critical offering within the comprehensive Buyers Products line of swivel adapters, this particular unit exemplifies precision manufacturing and material integrity. While the broader product line encompasses a variety of configurations, including male-to-female (MF) adapters, this specific product, as denoted by its title, features a female-to-female (FF) configuration, designed for connecting a 7/8 Inch National Pipe Straight Mechanical (NPSM) female swivel connection to a 1/2 Inch National Pipe Taper (NPT) female thread, all within a straight body form factor.

The core function of this adapter is to bridge the interface between two distinct, yet commonly utilized, piping standards, thereby enhancing system versatility and simplifying installation. The straight design ensures a direct flow path, minimizing turbulence and pressure drop, which is crucial for maintaining hydraulic efficiency. Crafted from tough carbon steel and finished with a corrosion-resistant zinc plating, this adapter is built to withstand the rigors of demanding industrial and mobile applications. Its ability to form a metal-to-metal seal underscores its design for high-pressure environments, a capability reinforced by its rating of up to 10,000 PSI, contingent upon specific pipe sizing and application parameters.

Technical Deep Dive: The 7/8 Inch NPSM Female Swivel End

The first interface of this adapter is a 7/8 Inch NPSM Female Pipe Swivel. Understanding the nuances of NPSM (National Pipe Straight Mechanical) threads is essential for proper application. NPSM threads are a type of parallel or straight pipe thread, differing fundamentally from the more common NPT (National Pipe Taper) threads. Unlike NPT, which relies on a tapered thread to create a mechanical seal by wedge action, NPSM connections primarily achieve their seal through a seating surface. In the context of a swivel adapter, the NPSM internal thread allows for connection to an external NPSM or NPT male thread. The "swivel" characteristic is a critical design feature, providing invaluable flexibility during assembly. This swivel capability permits rotational adjustment of the connected hose or pipe without having to turn the entire adapter or compromise the integrity of the opposing connection. This is particularly advantageous in confined spaces or when precise alignment of components is challenging. The 7/8-inch nominal size refers to the approximate inside diameter of the pipe that this thread size would typically connect to, with the actual major and minor diameters conforming to ANSI B1.20.1 standards for National Pipe Threads. The female configuration means this end is designed to accept a male-threaded component, effectively forming a robust, metal-to-metal seal often facilitated by a 30-degree cone seat, ensuring leak-free performance under pressure. This mechanism eliminates the need for external sealants or O-rings for the primary sealing interface, contributing to the adapter's high-pressure resilience and reduced maintenance requirements.

Technical Deep Dive: The 1/2 Inch Female Pipe Thread End

The second interface presents a 1/2 Inch Female Pipe Thread. While the original specifications table may reference NPSM, the product title explicitly states "Female Pipe Thread Straight," which, in common industry parlance for pressure applications, almost invariably refers to NPT (National Pipe Taper) threads. NPT threads are a standard for tapered threads used on pipes and fittings in the U.S. and Canada, defined by ASME B1.20.1. The tapering of the thread ensures that as the male and female threads are tightened, they wedge together, creating a seal. This mechanical interference, often augmented by thread sealant compounds or PTFE tape, is the primary sealing mechanism. The 1/2-inch nominal pipe size corresponds to specific thread dimensions, including pitch diameter, major diameter, and thread pitch, which are critical for ensuring compatibility and a proper seal. The female configuration of this end means it is designed to mate with a 1/2 Inch NPT male-threaded component. The inherent taper of NPT threads, typically 3/4 inch of taper per foot, dictates precise torque specifications during installation to achieve an optimal seal without over-stressing the material. The ability of this adapter to seamlessly connect an NPSM swivel to an NPT fixed female thread offers unparalleled utility in systems requiring both rotational flexibility and the ubiquitous NPT connection standard, making it an indispensable component for hydraulic engineers and maintenance professionals.

Material Science: The Strength of Carbon Steel

The selection of carbon steel for the construction of this adapter is a deliberate engineering choice driven by its superior mechanical properties and cost-effectiveness. Carbon steel, primarily an alloy of iron and carbon (typically up to 2.1% by weight), offers an exceptional balance of tensile strength, yield strength, and ductility. These properties are paramount in high-pressure hydraulic applications where components are subjected to immense internal pressures, dynamic loads, and vibrational stresses. The specific grade of carbon steel utilized is optimized for forging and machining, ensuring a dense, uniform grain structure that resists fatigue and creep over extended operational periods. Forging, a manufacturing process that involves shaping metal using localized compressive forces, enhances the material's strength and toughness by refining the grain structure and eliminating internal defects such as porosity. Subsequent precision machining processes sculpt the forged blank into the exact dimensions required for the threads and sealing surfaces, maintaining strict tolerances crucial for reliable metal-to-metal seals. The inherent robustness of carbon steel provides a significant margin of safety against burst pressure and catastrophic failure, making it a trusted material for critical fluid power components. Its ability to maintain structural integrity across a wide range of operating temperatures further solidifies its position as an industry standard for durable hydraulic fittings.

Enhanced Durability: The Zinc Plated Finish

To further augment the resilience of the carbon steel base material, the adapter undergoes a meticulous zinc plating process. This finish is not merely aesthetic; it serves as a sophisticated barrier against environmental degradation, predominantly corrosion. Zinc plating, often referred to as galvanization, involves electrodepositing a thin layer of zinc onto the steel surface. Zinc is a more electrochemically active metal than iron (steel), meaning it preferentially corrodes when exposed to corrosive agents, thus acting as a sacrificial anode. This galvanic protection prevents rust formation on the underlying carbon steel, even if the coating is scratched in a small area. Beyond sacrificial protection, the zinc layer also acts as a physical barrier, preventing moisture, oxygen, and other corrosive elements from directly contacting the steel. The typical zinc plating applied to hydraulic fittings provides excellent resistance to white rust (zinc corrosion) and red rust (steel corrosion) in various industrial, outdoor, and mobile environments, including those exposed to road salts, chemicals, and varying atmospheric conditions. This extended lifespan of the fitting contributes significantly to the overall reliability and longevity of the hydraulic system, reducing maintenance frequency and replacement costs. The quality of the zinc finish adheres to stringent industry standards, ensuring uniform thickness and adhesion for maximum protective performance without compromising the precise thread tolerances.

Performance Assurance: Tight, Secure Connections and Metal-to-Metal Sealing

The hallmark of this adapter's design is its commitment to forming a "tight, secure connection" through a "metal-to-metal seal." This advanced sealing methodology relies on the precise machining of mating conical or spherical surfaces, often incorporating a 30-degree or 37-degree flare/cone, which deform slightly under compression to create an impermeable barrier. Unlike elastomeric seals (O-rings, gaskets) that can degrade under high temperatures, chemical exposure, or extreme pressures, metal-to-metal seals offer superior performance in harsh environments. The direct contact between precisely machined metal surfaces eliminates the potential for elastomer extrusion, degradation, or chemical attack, ensuring long-term leak integrity. The security of the connection is further reinforced by the robust thread engagement, which, when properly torqued, resists loosening due to vibration or pressure fluctuations. This type of seal is particularly crucial in hydraulic and pneumatic systems where even minor leaks can lead to significant fluid loss, pressure drops, system contamination, and environmental hazards. The engineering behind these seals involves exceptionally tight manufacturing tolerances, surface finish specifications, and material hardness considerations to achieve the desired sealing performance without requiring additional sealants for the primary pressure containment. This inherent reliability makes the adapter suitable for critical applications where system uptime and safety are paramount.

Uncompromised Pressure Rating: Up to 10,000 PSI

The impressive pressure rating of "up to 10,000 PSI depending on pipe size" for these adapters underscores their robust construction and superior engineering. A 10,000 PSI (pounds per square inch) capability places this adapter firmly in the category of high-pressure hydraulic components, suitable for extremely demanding applications. This rating signifies the maximum allowable working pressure (MAWP) that the fitting can safely withstand under continuous operation, with a built-in safety factor. The ability to achieve such high-pressure ratings is a direct consequence of the material selection (carbon steel), the manufacturing process (forging and precision machining), and the specific design of the threads and sealing surfaces (metal-to-metal seal). Factors influencing the ultimate pressure capacity include the wall thickness of the fitting, the geometry of the threads, the absence of internal defects, and the integrity of the material's microstructure. Each component within the Buyers Products line is subjected to rigorous testing protocols, including hydrostatic proof tests and burst tests, to validate its pressure ratings against industry standards. Applications that routinely operate at pressures approaching or exceeding 5,000 PSI, such as heavy construction equipment, industrial presses, specialized manufacturing machinery, and oil and gas exploration equipment, will find this adapter to be an indispensable and reliable component. The high-pressure capability ensures system safety, prevents premature failure, and allows for efficient power transmission in hydraulically actuated systems.

Design and Application Versatility: The Straight Form Factor

The "Straight" shape of this adapter is fundamental to its application and integration into hydraulic circuitry. A straight adapter serves to directly connect two components along a single axis, maintaining the flow path without introducing turns or bends. This design minimizes flow restriction, turbulence, and the potential for pressure loss, which are critical considerations for maintaining system efficiency in high-flow or high-pressure applications. While the primary purpose of this specific adapter is to connect different thread types (NPSM swivel to NPT female), its straight configuration simplifies piping layouts and reduces the overall footprint of the connection compared to angled fittings. The combination of a straight form factor with a swivel end on one side provides an optimal balance of rigidity and flexibility. The swivel allows for easy alignment and stress-free installation of hoses or pipes that might otherwise be difficult to position, while the straight body ensures direct fluid transfer. This adapter finds extensive use across a multitude of industries: in the commercial vehicle sector for hydraulic braking or lifting systems; in agriculture for connecting implements and machinery; in construction for heavy equipment hydraulics; in manufacturing for industrial automation and machinery; and in marine applications where robust, corrosion-resistant connections are essential. Proper installation, including appropriate torque values for the fixed NPT connection and ensuring the NPSM swivel is free to rotate without binding, is crucial for realizing the full benefits of its design.

Commitment to Quality and Performance

Buyers Products is synonymous with unwavering commitment to quality, and this 7/8 Inch NPSM Female Pipe Swivel To 1/2 Inch Female Pipe Thread Straight adapter is a testament to that legacy. Every aspect of its design and manufacture, from material sourcing to final inspection, adheres to stringent quality control standards. The use of premium-grade carbon steel, coupled with advanced machining and finishing techniques, ensures that each adapter not only meets but often exceeds industry expectations for performance and durability. This rigorous approach to quality minimizes the risk of field failures, thereby reducing costly downtime and enhancing operational safety for end-users. Customers can confidently integrate this adapter into their critical hydraulic and pneumatic systems, knowing it is engineered for consistent, reliable performance under the most demanding conditions. The precision of the threads, the integrity of the metal-to-metal seal, and the effectiveness of the zinc plating are all rigorously verified, reflecting a product that is designed for longevity and unwavering functionality within its specified operating parameters. The comprehensive quality assurance protocols ensure that each unit delivers the superior sealing, strength, and corrosion resistance expected from a professional-grade fluid power component.

Conclusion

The 7/8 Inch NPSM Female Pipe Swivel To 1/2 Inch Female Pipe Thread Straight adapter represents a highly specialized yet critically important component for diverse fluid power applications. Its unique configuration, combining a 7/8 Inch NPSM female swivel with a 1/2 Inch NPT female thread in a straight body, provides an elegant solution for connecting disparate piping standards while offering crucial installation flexibility. Built from tough, zinc-plated carbon steel, this adapter is engineered for exceptional strength, superior corrosion resistance, and unwavering leak-free performance, even at pressures up to 10,000 PSI. The reliance on a precision metal-to-metal seal ensures reliability where elastomeric seals might falter, making it ideal for high-pressure, high-temperature, or chemically aggressive environments. Its robust construction and meticulously designed interfaces underscore its suitability for heavy-duty industrial, commercial, and mobile hydraulic systems. By facilitating secure, high-integrity connections, this Buyers Products adapter ultimately contributes to enhanced system reliability, reduced maintenance requirements, and optimized operational efficiency, solidifying its position as an indispensable component for professionals demanding the highest standards in fluid power connectivity.
