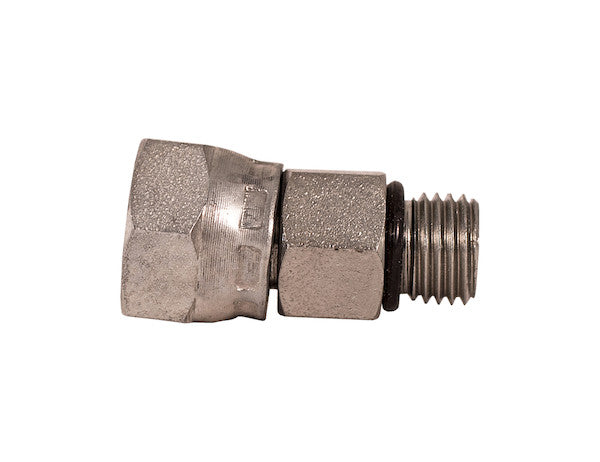

The Male Straight Thread to Female Pipe Swivel Straight adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | Straight |
| Side 1 | 3/4 SAE ORB (-12) |
| Side 2 | 3/4 NPSM |
| Style | MF |
In the realm of high-performance fluid transfer systems, precision-engineered adapters are not merely accessories but critical components that ensure operational integrity, safety, and efficiency. The 1-1/16 Inch NPSM Female Pipe Swivel To 3/4 Inch Female Pipe Thread Straight adapter exemplifies this principle, offering a robust and reliable solution for connecting disparate elements within complex hydraulic and pneumatic architectures. Designed and manufactured by Buyers Products, this adapter stands as a testament to meticulous engineering, utilizing superior materials and advanced construction techniques to meet the rigorous demands of industrial and mobile applications.
At its core, this adapter serves to bridge the connection between a 1-1/16 inch National Pipe Straight Mechanical (NPSM) female pipe swivel and a 3/4 inch female pipe thread straight connection. This specific configuration addresses common challenges in fluid power systems, particularly where alignment flexibility, high-pressure capability, and a secure, leak-free seal are paramount. The "straight" design ensures an unobstructed flow path, minimizing turbulence and pressure drops, which is crucial for maintaining system efficiency and component longevity. Its inherent design prevents unnecessary bends or turns in the fluid line, optimizing hydraulic performance by reducing flow resistance and heat generation.
Thread Design and Sealing Mechanisms: A Technical Deep Dive
The selection of specific thread types and their corresponding sealing mechanisms is fundamental to the performance of any fluid connector. This adapter features two distinct female thread types, each with unique characteristics that contribute to its overall efficacy.
1-1/16 Inch NPSM Female Pipe Swivel
The NPSM (National Pipe Straight Mechanical) thread is a crucial component of this adapter, particularly when paired with a swivel capability. Unlike the more common National Pipe Taper (NPT) threads, which seal through thread deformation, NPSM threads are straight (parallel) threads designed primarily for mechanical strength rather than sealing. The "swivel" aspect, facilitated by a swivel nut, allows for significant flexibility during installation. This feature enables the installer to properly orient connected hoses or pipes without twisting or torquing the lines, thereby preventing damage to hoses, reducing stress on connections, and simplifying maintenance. This is especially valuable in tight spaces or when connecting rigid piping that requires precise alignment without inducing residual stress. The nominal size of 1-1/16 inch indicates a specific pipe dimension that adheres to established industry standards for straight mechanical pipe threads.
The sealing mechanism for NPSM connections, as highlighted by the product's "metal-to-metal seal to a male pipe" feature, typically relies on a seating surface rather than thread interference. This often involves a chamfered face on the male component mating with a corresponding chamfer or seat within the female swivel connection. When properly torqued, this creates a robust, high-pressure seal that is highly resistant to leakage, even under dynamic pressure fluctuations and vibration. In some NPSM applications, a gasket or O-ring might be used in conjunction with the seat, but the emphasis here on a metal-to-metal seal underscores a design engineered for extreme durability and sealing integrity without reliance on elastomeric components which can degrade over time or under extreme conditions. This inherent sealing mechanism contributes significantly to the adapter's remarkable pressure rating.
3/4 Inch Female Pipe Thread Straight
The other end of the adapter features a 3/4 inch Female Pipe Thread Straight. The term "Pipe Thread Straight" typically refers to threads that, like NPSM, have parallel flanks, distinguishing them from tapered pipe threads like NPT or NPTF (National Pipe Taper Fuel). While the exact standard for "Female Pipe Thread Straight" can vary (e.g., it might refer to another NPSM thread, or potentially a British Standard Parallel Pipe (BSPP) thread if used in international contexts, though NPSM is prevalent in North American hydraulic applications), the fundamental characteristic remains: it is not a tapered sealing thread. Consequently, sealing for such connections is achieved either through a metal-to-metal seat, as described for the NPSM end, or through the use of a crush washer, gasket, or an O-ring and boss system. Given the product's emphasis on a "metal-to-metal seal," it is most probable that this end also relies on a precision-machined seat for its sealing integrity, designed to mate with a corresponding male pipe fitting. The 3/4 inch nominal pipe size is standard for a wide array of medium-flow hydraulic and industrial applications.
Complementary Thread Technologies: SAE O-Ring Boss (ORB)
While this specific adapter is defined by its NPSM and "Female Pipe Thread Straight" connections, it is important for industrial professionals to understand the broader context of high-performance fluid connector threads. Other configurations within the Buyers Products line, or even alternative interpretations of "Female Pipe Thread Straight," frequently utilize the SAE O-Ring Boss (ORB) connection, as indicated by the specifications for some adapters in this series. The SAE ORB standard is widely adopted in hydraulic systems for its superior sealing capability. It features a straight, parallel thread (typically UNF or UN thread form) combined with a precisely machined O-ring groove at the boss. The O-ring, when compressed between the male fitting and the female port, provides an excellent elastomeric seal that is highly effective against leakage, even under very high pressures and significant vibration. This design avoids the stress concentrations and potential for leakage associated with tapered pipe threads, offering a highly reliable, reusable seal. Understanding the principles of SAE ORB, NPSM, and other straight thread designs is vital for proper system design, component selection, and ensuring the longevity of hydraulic installations.
Material Science: Carbon Steel with Zinc Plating
The choice of material and finish for hydraulic adapters is not arbitrary; it is a critical engineering decision that dictates the component's performance, durability, and operational lifespan. This adapter is fabricated from robust carbon steel and finished with a corrosion-resistant zinc plating.
Carbon Steel Construction
Carbon steel is the material of choice for the core construction of this adapter due to its exceptional mechanical properties. It offers a combination of high tensile strength, yield strength, and toughness, making it ideally suited for applications exposed to high internal pressures and external mechanical stresses. Carbon steel provides excellent fatigue resistance, which is crucial for hydraulic components that undergo constant pressure cycling and vibration. Its ability to withstand significant forces without plastic deformation or fracture ensures the structural integrity of the connection over extended periods of operation. Furthermore, carbon steel's inherent hardness allows for the precise machining of critical thread forms and sealing surfaces, which is essential for achieving the stipulated "metal-to-metal seal" and maintaining a tight, secure connection. The cost-effectiveness of carbon steel, combined with its robust properties, makes it an industry standard for such demanding applications.
Corrosion-Resistant Zinc Finish
To enhance the inherent durability of carbon steel, the adapter is treated with a zinc plating. This surface treatment serves multiple critical functions. Firstly, zinc acts as a sacrificial coating. In the event of surface damage or exposure to corrosive elements, the zinc preferentially corrodes, protecting the underlying steel substrate. This galvanic protection significantly extends the component's service life, especially in harsh industrial environments where moisture, chemicals, and other corrosive agents are prevalent. Secondly, the zinc plating provides a barrier against rust and oxidation, preserving the adapter's appearance and functional integrity. High-quality zinc plating processes often include a chromate conversion coating (e.g., clear or yellow chromate) applied over the zinc. This passivation layer further augments corrosion resistance, improves adhesion for subsequent coatings (if any), and provides an aesthetic finish. The uniform application of this finish ensures comprehensive protection across all surfaces, including intricate thread forms, which are particularly susceptible to corrosion if left unprotected. The "corrosion-resistant zinc finish" is a key factor in the adapter's long-term reliability and reduced maintenance requirements.
Performance Metrics: Pressure Rating and Sealing Integrity
The performance of any fluid power component is ultimately defined by its ability to operate reliably under specified conditions. This adapter excels in two critical areas: pressure rating and sealing integrity.
High-Pressure Rating: Up to 10,000 PSI
The rating of "up to 10,000 PSI depending on pipe size" signifies that this adapter is engineered for extremely high-pressure hydraulic applications. While typical industrial hydraulic systems often operate in the range of 2,000 to 5,000 PSI, specialized systems, such as those found in heavy construction equipment, presses, and certain industrial machinery, can exceed these pressures significantly. A 10,000 PSI rating indicates that the adapter's design, material selection, and manufacturing processes incorporate substantial safety factors to withstand these extreme forces. This includes careful consideration of wall thickness, thread engagement, material yield strength, and dynamic fatigue resistance. Components rated for such high pressures contribute directly to the safety and reliability of critical hydraulic circuits, preventing catastrophic failures that could result in downtime, costly repairs, and potential injury. Engineers must always ensure that all components in a fluid power system are rated for the maximum expected operating pressure, with an adequate safety margin, and this adapter provides that assurance for demanding applications.
Uncompromising Sealing Integrity
The emphasis on a "metal-to-metal seal" is central to the adapter's ability to maintain sealing integrity under high pressures and dynamic conditions. Unlike seals that rely on deformable materials like elastomers or thread sealants, a properly engineered metal-to-metal seal offers inherent robustness. This type of seal is less susceptible to degradation from chemical attack, extreme temperatures, or wear over time. The precision machining of the mating surfaces ensures a very tight interface that, when clamped together with sufficient force, creates an impenetrable barrier against fluid leakage. This characteristic is particularly vital in hydraulic systems where even minor leaks can lead to significant fluid loss, contamination, reduced efficiency, and environmental hazards. The "tight, secure connection" facilitated by this design ensures that the system operates efficiently, without energy loss due to leakage, thereby enhancing overall system performance and environmental responsibility.
Applications and Industry Relevance
The specific configuration and robust design of the 1-1/16 Inch NPSM Female Pipe Swivel To 3/4 Inch Female Pipe Thread Straight adapter make it indispensable across a broad spectrum of industries and applications:
- Heavy Equipment and Mobile Hydraulics: Essential for construction machinery (excavators, bulldozers), agricultural equipment (tractors, harvesters), and material handling vehicles (forklifts, cranes) where high-pressure lines are frequently connected and disconnected, and where vibration and harsh environmental conditions are common. The swivel feature is particularly beneficial here for accommodating dynamic movements and simplifying field repairs.
- Industrial Manufacturing: Integrated into hydraulic power units, presses, injection molding machines, and automated assembly lines. The adapter ensures reliable connections in critical production processes where uptime and precision are paramount.
- Fluid Transfer and Processing: Used in systems that transfer various fluids, including hydraulic oils, lubricants, and other industrial liquids under high pressure, ensuring secure and leak-free flow in pipelines and manifolds.
- Power Generation: Utilized in hydraulic systems for controlling turbines, valves, and other ancillary equipment in power plants, where reliability under continuous operation is non-negotiable.
- Marine and Offshore: Deployed in harsh marine environments on ships, offshore platforms, and subsea equipment, where corrosion resistance and robust connections are critical for safety and operational continuity.
The versatility of this adapter stems from its ability to provide a secure, high-pressure connection while simultaneously offering the installation flexibility afforded by the swivel mechanism. This combination addresses a myriad of connection challenges encountered in complex fluid power architectures.
Installation, Maintenance, and Longevity
To maximize the performance and extend the lifespan of this precision adapter, proper installation and diligent maintenance practices are crucial. The swivel feature greatly simplifies installation by allowing the alignment of components without introducing torsional stress into the system's lines. However, correct torquing of the connections is paramount for achieving and maintaining the integrity of the metal-to-metal seal. Manufacturers' recommended torque specifications must be strictly followed to ensure adequate sealing pressure without overstressing the threads or component materials. Over-tightening can deform threads, compromise the seal, and potentially lead to premature failure, while under-tightening will result in leaks.
During installation, ensuring that mating surfaces are clean and free from debris is essential for a proper metal-to-metal seal. While thread sealants are not typically required for a metal-to-metal seating face, a light application of an appropriate thread lubricant can aid in achieving the correct torque and prevent galling of threads, particularly with stainless steel components (though this product is carbon steel, good practice for assembly still applies). Regular inspection of all hydraulic connections for signs of leakage, corrosion, or mechanical damage is vital. The corrosion-resistant zinc finish will protect the adapter, but environmental factors or mechanical abrasion can eventually compromise any coating. Timely replacement of any component showing signs of wear or degradation is critical to prevent system failures and ensure the safety of personnel and equipment. By adhering to best practices in installation and maintenance, the inherent durability and reliability of this Buyers Products adapter can be fully realized, providing years of trouble-free service.
Conclusion
The 1-1/16 Inch NPSM Female Pipe Swivel To 3/4 Inch Female Pipe Thread Straight adapter from Buyers Products represents a pinnacle of fluid connector engineering. Its thoughtful design, incorporating the flexibility of a swivel mechanism with the unwavering integrity of metal-to-metal sealing, addresses complex interconnection challenges in high-pressure environments. Constructed from tough carbon steel and fortified with a corrosion-resistant zinc finish, it is built to withstand the harshest industrial demands. Rated for pressures up to 10,000 PSI, this adapter delivers superior performance, reliability, and safety across a wide array of applications, from heavy machinery to intricate industrial systems. Choosing this adapter means investing in a component that not only ensures precise fluid transfer but also contributes significantly to the overall efficiency, longevity, and operational security of critical hydraulic infrastructure. It is more than just an adapter; it is a vital link in the chain of high-performance fluid power, engineered for excellence.
