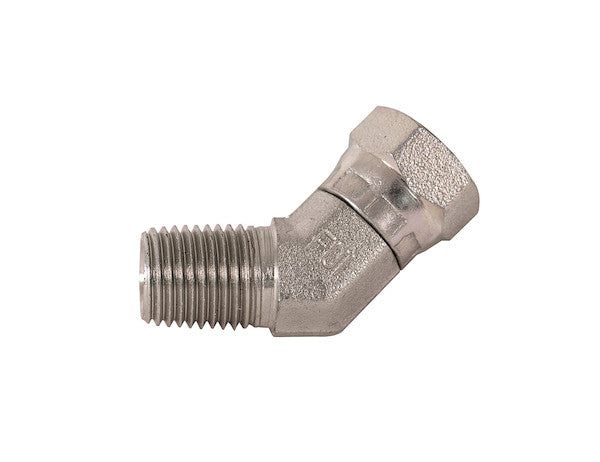

H9355X4X4 - 1/4-18 Inch NPSM Female Pipe Swivel To 1/4-18 Inch Male Pipe 45?? Elbow

The Female Pipe Swivel to Male Pipe 45?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.

Specifications

Advanced Technical Overview: 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe 45° Elbow Adapter

In the demanding world of fluid power systems, the selection of appropriate connectors is paramount for ensuring operational integrity, system longevity, and safety. The 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe 45° Elbow adapter, a distinguished component within the Buyers Products line of swivel adapters, represents a sophisticated solution engineered to meet stringent industrial requirements. This technical description delves into the intricate design, material science, performance characteristics, and diverse applications of this critical fitting, highlighting its strategic importance in hydraulic and pneumatic circuits.

Precision Engineering: Understanding the Thread Specifications

The nomenclature of this adapter, "1/4-18 Inch NPSM Female Pipe Swivel To 1/4-18 Inch Male Pipe 45° Elbow," immediately conveys crucial technical details regarding its construction and intended use. The numerical designation "1/4-18 Inch" refers to the nominal pipe size of 1/4 inch and a thread density of 18 threads per inch. This standardized sizing ensures interoperability across a vast array of fluid power components designed to the same specifications.

NPSM (National Pipe Straight Mechanical) Female Swivel End

The "NPSM Female Pipe Swivel" aspect of this adapter is a cornerstone of its functional design. NPSM threads are characterized as straight (non-tapered) pipe threads, designed specifically for mechanical joints where the sealing mechanism is not reliant on thread deformation. Instead, a "metal-to-metal seal" is achieved, as explicitly stated in the product description. This seal is typically formed by a conical or flared seat within the female swivel end that compresses against a corresponding male fitting's seat or nose when the swivel nut is tightened. The threads themselves serve primarily to provide mechanical strength and retain the connection securely, rather than to effect a seal. This design principle offers several significant advantages:

• Enhanced Sealing Integrity: The metal-to-metal seat provides a robust, highly reliable seal, particularly suited for high-pressure applications where elastomeric seals might be susceptible to extrusion or degradation.
• Reduced Overtorque Risk: Unlike tapered thread seals, which can be damaged by excessive tightening, the NPSM swivel connection relies on controlled compression of the mating surfaces, minimizing the risk of thread stripping or fitting distortion from over-torquing.
• Ease of Assembly and Orientation: The swivel feature is invaluable during installation. It allows the female end to rotate freely relative to the connecting pipe, enabling precise alignment of hoses or rigid tubing without imparting torsional stress or requiring cumbersome manipulation of the entire assembly. This significantly simplifies routing and reduces installation time, especially in confined spaces or complex system layouts.
• Repeatable Connections: The mechanical nature of the seal allows for connections to be disassembled and reassembled multiple times without compromising sealing effectiveness, assuming the mating surfaces remain in good condition.

NPT (National Pipe Taper) Male Pipe End

Conversely, the "Male Pipe" end of the adapter, specified as "1/4 NPT" in the technical specifications, utilizes the National Pipe Taper thread standard. NPT threads are inherently tapered, meaning their diameter gradually decreases along the length of the thread. When an NPT male thread is engaged with a corresponding NPT female thread, the taper causes the threads to wedge together, creating a mechanical interference fit. The seal in an NPT connection is formed by the deformation of the threads themselves as they are tightened, effectively compressing and deforming the thread flanks. While the metal-to-metal interference provides a primary seal, it is standard practice and often recommended to use a thread sealant (such as PTFE tape or pipe dope) to fill any helical leak paths and ensure a completely leak-free connection, especially in fluid power systems operating under pressure. Key characteristics of NPT connections include:

• Robust Mechanical Lock: The tapered design creates a strong, self-locking connection that resists loosening under vibration or pressure fluctuations.
• High-Pressure Capability: NPT connections, when properly installed with sealant, are highly effective in sealing pressurized fluids and gases.
• Industry Standard: NPT is one of the most widely adopted and recognized thread standards globally, ensuring broad compatibility with existing infrastructure and components.

The combination of an NPSM swivel end and an NPT male end provides a highly adaptable solution, marrying the ease of orientation and robust mechanical seal of the swivel with the permanent, secure connection of a tapered pipe thread.

The 45° Elbow Geometry

The "45° Elbow" shape is a critical design feature that dictates the flow path and routing capabilities of the adapter. Angled fittings are indispensable in fluid power systems for:

• Optimized Routing: They enable precise directional changes in piping or hose runs, facilitating complex system layouts and ensuring components are positioned correctly relative to each other. A 45° elbow offers a less abrupt change in direction compared to a 90° elbow, which can sometimes be beneficial for minimizing pressure drop and turbulence in the fluid flow.
• Space Efficiency: In compact machinery or equipment bays, angular adapters allow for tighter bends and more efficient use of available space, preventing hoses from kinking or rigid pipes from undergoing excessive bending stress.
• Stress Reduction: By providing a pre-formed angle, these elbows alleviate mechanical stress on hoses and connections that would otherwise be subjected to sharp bends or improper routing, thereby extending the service life of the entire fluid conduit system.

Material Science and Manufacturing Excellence

The durability and performance of this adapter are directly attributable to the choice of materials and the precision of its manufacturing process.

High-Strength Carbon Steel Construction

The adapter is constructed from "tough carbon steel." Carbon steel is an alloy of iron and carbon, known for its exceptional mechanical properties, making it an ideal material for high-pressure fluid power components. Its key attributes include:

• Superior Tensile Strength: Carbon steel exhibits high resistance to breaking under tension, which is crucial for fittings subjected to extreme internal pressures and external forces.
• Excellent Yield Strength: It can withstand significant stress before permanent deformation occurs, ensuring the fitting maintains its structural integrity and sealing surfaces even under peak operational loads.
• Fatigue Resistance: In systems experiencing pulsating pressures or vibrations, carbon steel’s resistance to fatigue ensures a long operational life.
• Machinability: Carbon steel can be precisely machined to exacting tolerances, which is vital for creating the intricate thread forms and sealing surfaces required for a high-performance hydraulic fitting. The "tight, secure connection" is a direct result of this precision machining.

The specific grade of carbon steel used is selected to balance strength, ductility, and machinability, ensuring that the final product can reliably perform under the specified pressure ratings and environmental conditions.

Corrosion-Resistant Zinc Finish

To augment the inherent strength of carbon steel and provide protection against environmental degradation, the adapter features a "corrosion-resistant zinc finish." This is typically achieved through an electroplating process, where a thin layer of zinc is deposited onto the steel surface. The zinc plating serves several critical functions:

• Sacrificial Protection (Galvanic Action): Zinc is more electrochemically active than steel. In the presence of an electrolyte (like moisture), the zinc preferentially corrodes, acting as a "sacrificial anode" and protecting the underlying steel from rust and corrosion, even if the coating is scratched or minor damage occurs.
• Barrier Protection: The zinc layer physically shields the steel from direct contact with corrosive elements in the environment, such as water, chemicals, and industrial atmospheres.
• Enhanced Durability: The zinc plating adds a layer of hardness to the surface, improving resistance to superficial abrasions and wear during handling and installation.
• Aesthetic Appeal: The bright, uniform finish provided by zinc plating contributes to the professional appearance of the component and the overall system.

This protective layer is essential for applications in harsh industrial environments, outdoor installations, or any scenario where exposure to moisture and corrosive agents is a concern, ensuring the fitting maintains its structural and sealing integrity over time.

Unparalleled Performance: Rated Up To 10,000 PSI

One of the most defining characteristics of this adapter is its impressive "rated at up to 10,000 PSI depending on pipe size." This extremely high-pressure rating underscores its suitability for the most demanding hydraulic and pneumatic applications. Achieving such a rating requires meticulous engineering and stringent manufacturing controls:

• Design Integrity: The geometry of the fitting, including wall thickness, internal bore, and thread engagement lengths, is optimized to distribute stress evenly and prevent areas of high stress concentration under maximum pressure.
• Material Strength: As discussed, the selection of high-grade carbon steel is fundamental to withstanding these immense pressures without yielding or rupturing.
• Manufacturing Precision: Flawless execution during machining is critical. Any imperfections, such as tool marks, inconsistent thread profiles, or surface defects, could act as stress risers and compromise the fitting's ability to hold pressure.
• Sealing Mechanism: The metal-to-metal sealing mechanism of the NPSM swivel end, combined with the robust NPT tapered thread, provides the necessary sealing capability to contain fluids at such high pressures without leakage.

It is important for users to adhere to the specific pressure ratings applicable to the exact pipe size and configuration, as these ratings can vary. The 10,000 PSI rating positions this adapter squarely within the category of components designed for heavy-duty industrial, mobile, and high-performance fluid power systems where reliability under extreme conditions is non-negotiable. Furthermore, consideration must be given to the overall system design, including burst pressure ratios, static vs. dynamic pressures, and potential pressure spikes, to ensure safe operation. The adapter's capability implies a robust design that typically incorporates a significant safety factor above the stated working pressure.

Versatile Applications Across Industries

The robust construction, high-pressure rating, and specialized thread configurations of the 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe 45° Elbow adapter make it an indispensable component across a broad spectrum of industries and applications:

• Heavy Construction Equipment: Used in excavators, bulldozers, loaders, and cranes for hydraulic lines controlling booms, buckets, and stabilization systems, where high pressures and rugged environments are common.
• Agricultural Machinery: Essential for hydraulic systems in tractors, harvesters, and implements that require precise control and durability in demanding field conditions.
• Industrial Manufacturing: Integrated into hydraulic presses, robotics, material handling systems, and assembly lines for conveying hydraulic fluid or compressed air, often where space is constrained and routing flexibility is key.
• Mobile Hydraulics: Critical for a variety of mobile applications, including municipal vehicles (e.g., garbage trucks, snowplows), forestry equipment, and utility trucks, offering reliable performance under dynamic operating conditions.
• Oil and Gas: While direct contact with media varies, such fittings can be found in auxiliary systems, test benches, or control lines within the broader oil and gas infrastructure, where pressure integrity is paramount.
• Pneumatic Systems: Although designed for higher pressures typically associated with hydraulics, these fittings can also be employed in heavy-duty pneumatic systems requiring superior sealing and structural integrity.

Its ability to provide a secure, leak-free angular connection, coupled with the swivel feature for ease of installation, makes it a preferred choice for system designers and engineers seeking optimal performance and simplified maintenance.

Installation Best Practices and Maintenance Considerations

Proper installation is crucial to fully leverage the performance capabilities of this high-pressure adapter and ensure the longevity of the entire fluid power system.

• Thread Preparation: For the NPT male end, always apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male threads. This fills the helical leak path and facilitates a leak-free connection. Ensure the sealant is compatible with the system fluid and operating temperature. For the NPSM swivel end, ensure the mating male fitting has a clean, undamaged sealing seat.
• Torque Specifications: Adhere strictly to the manufacturer's recommended torque values for both the NPT and NPSM connections. Overtightening NPT threads can lead to cracked fittings or deformed ports, while undertightening can result in leaks. For NPSM swivel nuts, proper torque ensures adequate compression of the metal-to-metal seal without deforming the seat.
• Component Alignment: The swivel feature greatly aids alignment. Ensure that the mating components are aligned before tightening to prevent cross-threading or undue stress on the connection. The 45° elbow should be oriented to provide the smoothest possible flow path and minimize stress on connected hoses or pipes.
• System Compatibility: Verify that all components in the fluid circuit, including hoses, pipes, valves, and pumps, are compatible in terms of pressure rating, material, and fluid compatibility.
• Regular Inspection: Periodically inspect all fittings for signs of leaks, corrosion, physical damage, or loosening. Early detection of issues can prevent system failures and costly downtime. Zinc plating helps to resist corrosion, but regular cleaning and inspection are still recommended, especially in harsh environments.
• Cleanliness: Maintain absolute cleanliness during installation. Contaminants introduced into hydraulic or pneumatic systems can lead to component wear, blockages, and system malfunction.

Key Advantages and Value Proposition

The 1/4-18 Inch NPSM Female Pipe Swivel To 1/4-18 Inch Male Pipe 45° Elbow adapter offers a compelling value proposition:

• Superior Reliability: The combination of high-grade carbon steel, a robust zinc finish, and precision engineering ensures exceptional durability and resistance to failure under extreme conditions.
• Leak Prevention: The distinct and effective sealing mechanisms of both NPSM metal-to-metal swivel and NPT tapered threads provide a high degree of leak integrity, critical for efficient and safe operation of fluid power systems.
• Installation Efficiency: The swivel feature significantly streamlines assembly, allowing for easy orientation and reducing labor time and potential for installation errors.
• System Optimization: The 45° elbow facilitates optimal hose and pipe routing, reducing bends, minimizing pressure drops, and extending the service life of connected conduits.
• High Performance: Rated for pressures up to 10,000 PSI, this adapter is engineered for the most demanding applications, offering peace of mind in critical systems.
• Cost-Effectiveness: By reducing leaks, extending component life, and simplifying installation, this high-quality adapter contributes to lower overall operational and maintenance costs over the system's lifespan.

Conclusion

The 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe 45° Elbow from Buyers Products is more than just a connector; it is a meticulously engineered component designed to enhance the performance, reliability, and maintainability of complex fluid power systems. Its strategic integration of NPSM swivel functionality with NPT male pipe threading, robust carbon steel construction, protective zinc plating, and a high-pressure rating of up to 10,000 PSI, positions it as an indispensable fitting for critical industrial and mobile applications. By understanding its technical nuances and adhering to best installation practices, engineers and technicians can harness the full potential of this adapter to build highly efficient, secure, and long-lasting fluid power circuits, ensuring optimal operational integrity and safety.
