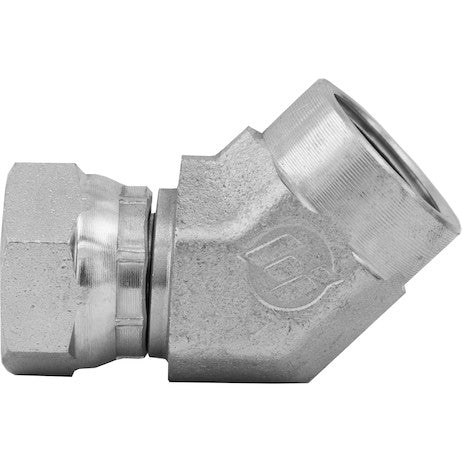

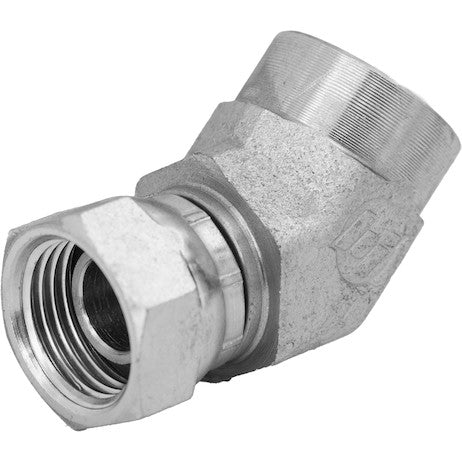

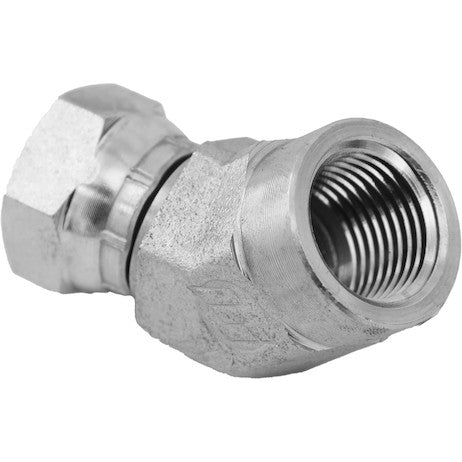

The Female Pipe Swivel to Female Pipe 45?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 45?? Elbow |
| Side 1 | 1/2 NPT |
| Side 2 | 1/2 NPSM |
| Style | FF |
Technical Overview: 1/2-14 Inch NPSM Female Pipe Swivel To 1/2-14 Inch Female Pipe 45° Elbow
The 1/2-14 Inch NPSM Female Pipe Swivel To 1/2-14 Inch Female Pipe 45° Elbow adapter represents a critical component in the engineering and maintenance of diverse fluid transfer systems. Manufactured by Buyers Products, this adapter is engineered to provide superior performance, durability, and adaptability in challenging operational environments. This detailed description will delve into the technical specifications, design considerations, material science, performance capabilities, and application versatility of this specialized fitting.
Precision Engineering for Fluid Transfer Systems
At its core, this product is a 45° elbow adapter designed with two distinct female pipe thread configurations: one 1/2-14 Inch NPT (National Pipe Taper) and one 1/2-14 Inch NPSM (National Pipe Straight Mechanical) swivel connection. This specific combination addresses common challenges in hydraulic and pneumatic system design, offering both a reliable fixed connection and the flexibility of a swivel mechanism. The nominal size of 1/2-14 Inch signifies a standard pipe dimension, ensuring compatibility within a vast array of existing infrastructure.
Understanding Thread Specifications: NPT vs. NPSM
A fundamental understanding of the thread types employed in this adapter is crucial for proper application and system integrity. The distinction between NPT and NPSM threads dictates their sealing mechanisms, installation procedures, and suitability for various pressure conditions.
National Pipe Taper (NPT): The 1/2-14 Inch NPT female connection on Side 1 of this adapter utilizes a tapered thread design. NPT threads are designed to create a pressure-tight seal by metal-to-metal interference as the tapered male and female threads are drawn together. This interference fit, coupled with the application of a thread sealant (such as PTFE tape or pipe dope), deforms the threads slightly, filling potential leak paths and establishing a robust, leak-free connection. The 1/2-14 designation indicates a nominal pipe size of 1/2 inch and 14 threads per inch (TPI). The integrity of an NPT connection heavily relies on proper torque during installation to achieve the necessary thread deformation without over-tightening, which can damage the threads or crack the fitting.
National Pipe Straight Mechanical (NPSM) Swivel: Side 2 of the adapter features a 1/2-14 Inch NPSM female swivel connection. Unlike NPT, NPSM threads are straight rather than tapered. This straight thread design does not rely on thread deformation for sealing. Instead, NPSM fittings are typically designed for mechanical joints where sealing is achieved externally, often by compressing a gasket or an O-ring against a shoulder or, as indicated by the product description, through a metal-to-metal seal with a specific mating male pipe. The "swivel" functionality is paramount here: the nut containing the NPSM threads can rotate independently from the main body of the elbow, allowing for easy alignment of connecting components without twisting the attached hose or pipe. This significantly simplifies installation, especially in confined spaces or when dealing with rigid piping that requires precise orientation. For the "metal-to-metal seal" specified for this swivel, it implies that the NPSM swivel nut is designed to engage with a male pipe fitting that features a complementary conical or flared seat. When tightened, the swivel nut compresses these mating surfaces together, forming a reliable, high-pressure seal.
The combination of an NPT fixed connection and an NPSM swivel connection provides engineers with optimal flexibility. The NPT end offers a permanent, high-integrity seal into a fixed port, while the NPSM swivel end allows for dynamic connection to a hose assembly or another pipe section that requires rotational freedom for stress-free assembly and maintenance.
Functional Design: The 45° Elbow Advantage
The 45° elbow configuration is a critical design feature, providing directional change within a fluid conduit. Unlike a 90° elbow, a 45° bend introduces less turbulence and pressure drop, facilitating smoother flow characteristics, which can be beneficial in certain hydraulic or pneumatic circuits where energy efficiency and minimal flow impedance are desired. The specific angle allows for precise routing of pipes and hoses around obstacles, within tight spaces, or for optimizing system layouts to reduce hose length and potential for kinking. This shape is particularly valuable in mobile equipment, industrial machinery, and complex manifold systems where space constraints are common.
Robust Material and Protective Finish
The performance and longevity of any fluid connector are intrinsically linked to its material composition and surface treatment. This adapter is constructed from tough carbon steel and features a corrosion-resistant zinc finish, chosen for their combined properties in demanding applications.
Carbon Steel Construction: Carbon steel is a preferred material for high-pressure hydraulic and pneumatic fittings due to its exceptional strength, hardness, and ductility. Its mechanical properties allow it to withstand significant internal pressures, external stresses, and vibrational loads without yielding or fracturing. Carbon steel offers a cost-effective solution without compromising the structural integrity required for critical fluid transfer systems. The specific grade of carbon steel chosen by Buyers Products ensures optimal balance between strength, machinability, and weldability, contributing to the fitting's ability to maintain a tight, secure connection even under cyclic loading and temperature fluctuations common in industrial and mobile applications.
Corrosion-Resistant Zinc Finish: The application of a zinc finish provides a crucial layer of protection against environmental degradation. Zinc plating works by acting as a sacrificial coating: in the presence of corrosive agents (e.g., moisture, chemicals), the zinc corrodes preferentially to the underlying carbon steel, thereby protecting the base metal from rust and oxidation. This extends the service life of the adapter significantly, particularly in outdoor environments, humid conditions, or applications exposed to various industrial fluids. Beyond corrosion protection, the zinc plating also offers a clean, professional aesthetic and contributes to the overall durability of the fitting, making it resistant to minor abrasions and handling damage.
Uncompromising Performance: 10,000 PSI Pressure Rating
A standout feature of this adapter is its impressive pressure rating of up to 10,000 PSI (pounds per square inch), depending on tube size. This high-pressure capability places it firmly within the realm of severe-duty hydraulic applications, such as those found in heavy construction equipment, industrial presses, oil and gas exploration, and high-performance manufacturing machinery. The ability to safely contain fluids at such elevated pressures is a testament to the robust design, material selection, and precision manufacturing processes employed by Buyers Products.
The pressure rating is not merely a number; it reflects the fitting's ability to withstand both static operating pressures and dynamic pressure surges that can occur during system operation. In hydraulic systems, pressure spikes can exceed steady-state pressures by a significant margin. A fitting rated at 10,000 PSI provides a substantial safety margin, contributing to the overall reliability and safety of the hydraulic circuit. When integrating this adapter into a system, it is crucial to ensure that all other components (hoses, pumps, valves, cylinders) are rated for equivalent or higher pressures to prevent system failure at its weakest link.
Installation, Maintenance, and System Integration
Proper installation and routine maintenance are paramount to realizing the full benefits and extended lifespan of this adapter.
Installation for NPT Side: For the 1/2-14 Inch NPT female connection, careful attention must be paid to applying appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to the mating male NPT threads. The fitting should be tightened sufficiently to achieve the metal-to-metal interference seal, but over-tightening must be avoided to prevent damage to the threads or distortion of the fitting. Referencing torque specifications from relevant standards or manufacturer guidelines is recommended.
Installation for NPSM Swivel Side: The 1/2-14 Inch NPSM female swivel connection offers distinct installation advantages. The swivel nut allows the connecting component (e.g., a male JIC or SAE flare fitting, or a male pipe with a conical seat for metal-to-metal sealing) to be positioned and oriented correctly without rotating the adapter body or the pipe/hose attached to it. Once aligned, the swivel nut is tightened, compressing the mating surfaces to form the seal. It is crucial to ensure that the male fitting has the correct sealing surface (e.g., a 37° or 45° cone) to achieve the described metal-to-metal seal with the NPSM swivel. The straight threads guide the connection, and the swivel action greatly eases assembly in constrained spaces. Proper torque should be applied to the swivel nut to ensure a secure, leak-free connection without stressing the components.
Maintenance: Regular inspection for signs of wear, corrosion, or leakage is advisable. While the zinc plating provides excellent corrosion resistance, harsh chemical environments or physical damage can compromise its integrity over time. Any signs of weeping or leakage indicate a need for immediate inspection and potential re-tightening or replacement of the fitting or its mating components. The robust carbon steel construction minimizes the need for frequent replacement, contributing to lower lifecycle costs and reduced downtime.
System Integration: This adapter is designed for seamless integration into a wide array of fluid power systems. Its fixed NPT end provides a secure anchor, while the NPSM swivel end offers dynamic flexibility, making it ideal for connecting rigid piping to flexible hose assemblies or for situations where components need to be easily connected and disconnected for maintenance or reconfiguration. Its high-pressure rating ensures compatibility with the most demanding hydraulic circuits.
Diverse Application Spectrum
The unique combination of features – NPT and NPSM swivel connections, a 45° elbow, carbon steel construction, zinc plating, and a 10,000 PSI pressure rating – makes this adapter indispensable across numerous industries:
- Heavy Equipment and Construction: Used in excavators, bulldozers, cranes, and other machinery for routing hydraulic lines in confined engine bays and chassis, managing high pressures in boom and attachment cylinders.
- Industrial Manufacturing: Integrated into hydraulic presses, robotics, assembly lines, and material handling systems where precise fluid routing and reliable connections are essential for automation and productivity.
- Agricultural Machinery: Employed in tractors, harvesters, and irrigation systems for reliable power transmission in hydraulic implements, enduring harsh outdoor conditions.
- Oil and Gas: Critical for fluid control in drilling equipment, offshore platforms, and pipeline systems, where extreme pressures and corrosive environments demand robust and dependable components.
- Marine Applications: Used in steering systems, winches, and auxiliary equipment on vessels, requiring corrosion resistance and resilience in saline environments.
- Automotive and Transportation: Found in commercial vehicle braking systems, power steering, and suspension systems, where compact design and high-pressure capability are crucial.
- Power Generation: Utilized in turbine control systems and auxiliary equipment for reliable fluid transfer under high-temperature and high-pressure conditions.
The swivel feature is particularly beneficial in applications where vibrations are present, as it can help absorb some movement, reducing stress on the piping system. The 45° elbow provides optimal flow characteristics for redirecting hydraulic fluid, minimizing pressure losses that can occur with sharper bends or excessive hose lengths.
Value Proposition and Quality Assurance
This 1/2-14 Inch NPSM Female Pipe Swivel To 1/2-14 Inch Female Pipe 45° Elbow adapter by Buyers Products delivers exceptional value through its combination of:
- Ease of Installation: The swivel end simplifies assembly and alignment, reducing labor time and effort.
- Unwavering Reliability: High-quality carbon steel and precision machining ensure consistent performance under demanding conditions.
- Extended Durability: Zinc plating offers superior corrosion resistance, prolonging the adapter's operational life.
- High-Pressure Capability: Rated up to 10,000 PSI, suitable for severe-duty hydraulic applications.
- Optimized System Design: The 45° elbow facilitates efficient fluid routing and minimizes pressure drop.
- Secure Connections: Designed for a tight, secure metal-to-metal seal, minimizing leakage risks.
Buyers Products is renowned for its commitment to engineering excellence and product reliability. This adapter is a testament to that commitment, designed and manufactured to meet stringent quality standards and deliver consistent, dependable performance in critical fluid transfer systems. By choosing this adapter, engineers and system operators are investing in a component that contributes significantly to the safety, efficiency, and longevity of their machinery and infrastructure.
Conclusion
The 1/2-14 Inch NPSM Female Pipe Swivel To 1/2-14 Inch Female Pipe 45° Elbow adapter is a meticulously engineered component, offering a sophisticated solution for complex fluid power challenges. Its dual thread configuration, featuring both fixed NPT and flexible NPSM swivel connections, combined with its 45° elbow geometry, robust carbon steel construction, corrosion-resistant zinc finish, and formidable 10,000 PSI pressure rating, makes it an indispensable asset in high-performance hydraulic and pneumatic systems. This adapter exemplifies the fusion of design innovation, material science, and manufacturing precision, ensuring reliable, long-lasting connections in the most demanding operational environments across a multitude of industries.
