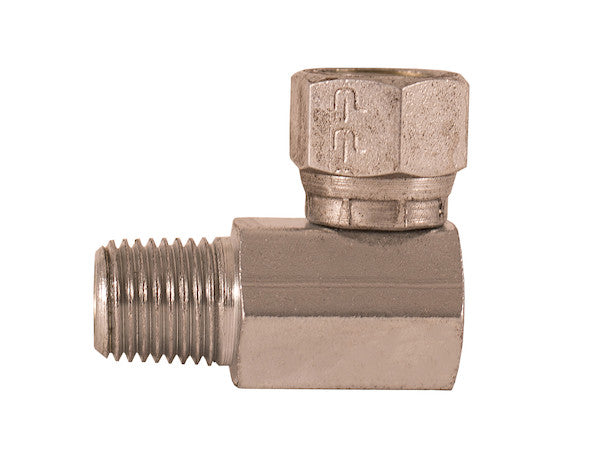

The Female Pipe Swivel to Male Pipe 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.
Specifications
| Finish | Zinc Plated |
|---|---|
| Material | Carbon Steel |
| Shape | 90?? Elbow |
| Side 1 | 1 NPSM |
| Side 2 | 1 NPT |
| Style | FM |
Advanced Technical Overview: 1-inch NPSM Female Swivel to 1-inch NPT Male 90-Degree Elbow Adapter
The 1-inch NPSM Female Pipe Swivel to 1-inch NPT Male Pipe Thread 90-Degree Elbow represents a critical component in fluid power systems, meticulously engineered to facilitate directional changes while offering unparalleled installation flexibility and robust performance under extreme operating conditions. This adapter, a flagship offering from Buyers Products, is designed for hydraulic, pneumatic, and industrial applications where reliable, leak-free connections and precise routing of conduits are paramount. The "1-11.5 Inch" designation in the product title precisely refers to a 1-inch nominal pipe size with 11.5 threads per inch (TPI), a standard specification for both National Pipe Straight Mechanical (NPSM) and National Pipe Taper (NPT) threads in this diameter, ensuring universal compatibility within the specified thread families. Its construction from high-strength carbon steel, augmented by a corrosion-resistant zinc plating, underscores its suitability for demanding environments, while the innovative swivel mechanism and metal-to-metal sealing technology provide both operational advantages and exceptional durability.
Detailed Analysis of Thread Standards: NPSM and NPT
Understanding the distinct characteristics and intended applications of NPSM and NPT threads is fundamental to appreciating the sophisticated engineering behind this adapter.
National Pipe Straight Mechanical (NPSM) Female Swivel Thread
The NPSM thread, or National Pipe Straight Mechanical, defines a straight thread form that is not designed to create a pressure-tight seal on the threads themselves. Instead, NPSM female swivel connections are typically employed where a mechanical joint is required, often incorporating a separate sealing mechanism. In the context of this Buyers Products adapter, the NPSM female swivel is designed to mate with a male NPT or NPSM component, forming a critical "metal-to-metal seal" as specified. This sealing mechanism commonly involves a precision-machined conical seat or a chamfered face on the female swivel component that compresses against a corresponding mating surface on the male fitting. When properly tightened, this compression creates a highly reliable and pressure-resistant seal, particularly effective in hydraulic systems where high integrity is essential. The "swivel" attribute of the NPSM female connection is a significant functional advantage. It allows the female end of the adapter to rotate freely around the male fitting even after the connection is securely tightened and sealed. This rotational capability greatly simplifies installation, preventing hose or pipe twisting, reducing torsional stress on components, and facilitating optimal alignment in complex plumbing layouts. For applications involving dynamic motion or where periodic re-orientation of connected components is necessary, the swivel feature is indispensable, contributing significantly to system longevity and operational efficiency by mitigating mechanical stresses that could otherwise lead to premature failure of hoses or other fluid conduits.
National Pipe Taper (NPT) Male Pipe Thread
In contrast to NPSM, the National Pipe Taper (NPT) thread is explicitly designed to provide a pressure-tight seal directly on the threads. NPT threads feature a tapered profile, meaning the thread diameter gradually decreases along its length. When a male NPT thread is screwed into a female NPT thread, the tapered flanks of the threads create an interference fit, pressing against each other and deforming slightly to form a seal. While this interference provides a primary seal, it is universally recommended and often mandated to use a thread sealant, such as PTFE tape or pipe compound (pipe dope), to fill any remaining helical leak paths and ensure a robust, leak-free connection, particularly in high-pressure or critical fluid transfer applications. The 1-inch NPT male end of this adapter is intended for secure, permanent, and sealed integration into a system's fixed port or a complementary female NPT component. Its tapered design ensures that once installed with appropriate torque and sealant, it establishes an immutable, high-pressure-resistant interface, making it ideal for the stationary side of an adapter that is not intended for dynamic rotation at the point of connection.
Compatibility and Interoperability
The ingenious design of this adapter lies in its ability to effectively bridge the functional differences between NPSM and NPT threads. While NPT male threads can mechanically engage with NPSM female threads, a successful, leak-free seal is not guaranteed by thread engagement alone. This adapter overcomes that challenge by incorporating a specific metal-to-metal sealing mechanism on the NPSM female swivel side, ensuring a high-integrity connection when paired with a standard male NPT thread. This deliberate engineering ensures that the rotational freedom of the swivel is maintained without compromising the sealing integrity, a critical requirement for high-pressure hydraulic systems. The "1-inch, 11.5 TPI" specification confirms that both thread types conform to ANSI/ASME B1.20.1 standards for this nominal size, ensuring precise engagement and optimal performance.
Robust Design and Material Science
The integrity and longevity of fluid power components are intrinsically linked to their material selection and manufacturing quality. This Buyers Products adapter exemplifies superior engineering through its choice of carbon steel construction and a resilient zinc-plated finish.
Carbon Steel Construction
The use of high-grade carbon steel as the primary material for this adapter is a deliberate choice driven by its exceptional mechanical properties suitable for demanding industrial applications. Carbon steel offers a superior combination of high tensile strength, excellent yield strength, and robust fatigue resistance, making it inherently capable of withstanding the immense internal pressures and external stresses typical of hydraulic systems, including the specified rating of up to 10,000 PSI depending on the tube size. Its inherent ductility provides resistance to brittle fracture, a crucial safety factor under sudden pressure spikes or external impacts. Furthermore, carbon steel exhibits excellent machinability, allowing for the precise manufacturing tolerances required for intricate features like threads and sealing surfaces, which are critical for achieving the specified metal-to-metal seal and maintaining the smooth operation of the swivel mechanism. Its cost-effectiveness compared to alternative high-strength alloys like stainless steel also makes it a practical choice for industrial components where strength and performance must be balanced with economic considerations, without compromising on reliability.
Corrosion-Resistant Zinc Plated Finish
To enhance the durability and operational lifespan of the carbon steel base, the adapter is subjected to a zinc plating process. Zinc plating serves as a sacrificial cathodic coating, providing excellent corrosion protection. In the presence of moisture or corrosive agents, the zinc coating preferentially corrodes before the underlying carbon steel, thereby protecting the adapter from rust and degradation. This electrochemical protection mechanism is vital in industrial environments, which are frequently exposed to humidity, water, chemicals, and other corrosive elements that could otherwise compromise the structural integrity and aesthetic of the component. The zinc finish also provides an additional layer of surface hardness, increasing resistance to minor abrasions and wear, thereby maintaining the precision of external dimensions and facilitating easier identification and maintenance over time. This dual benefit of corrosion resistance and augmented surface durability ensures that the adapter maintains its performance and appearance throughout its operational life, reducing maintenance requirements and extending the intervals between replacements.
Functional Engineering: 90-Degree Elbow and Swivel Mechanism
The combination of a 90-degree elbow configuration with a swivel mechanism is a testament to the intelligent design aimed at maximizing system flexibility and efficiency.
The 90-Degree Elbow Advantage
The 90-degree elbow shape is fundamentally designed to alter the direction of fluid flow by ninety degrees within a piping or hose system. This is an indispensable feature for navigating confined spaces, optimizing routing paths, and preventing hoses from sharp bends that could lead to kinking, flow restriction, or premature failure due to fatigue. By providing a controlled, smooth radius for the turn, the elbow minimizes turbulence and pressure drop, thereby maintaining system efficiency and power transfer. In hydraulic applications, where high-pressure fluids demand careful management, an engineered elbow like this ensures that flow characteristics are preserved even when the fluid path requires a significant change in direction, contributing to the overall reliability and performance of the hydraulic circuit.
Integrated Swivel Mechanism
The integrated swivel mechanism on the NPSM female end is arguably the most distinguishing feature of this adapter. Its primary function is to allow relative rotation between the adapter and the connected hose or pipe after the connection has been securely tightened. This provides immense practical benefits:
- Ease of Installation: It simplifies the assembly process, allowing installers to achieve perfect alignment without needing to twist the attached hose or pipe, which can be challenging or impossible in tight spaces.
- Prevention of Hose Twisting and Kinking: In systems with dynamic elements, such as articulated machinery or robotic arms, hoses can be subjected to significant torsional stresses. The swivel absorbs these rotational forces, preventing hose kinking, which can restrict flow, generate heat, and dramatically shorten hose life.
- Stress Reduction: By eliminating torsional stress on hoses and fittings, the swivel extends the lifespan of the entire hydraulic system, reducing wear and tear on components, and minimizing the risk of premature leaks or failures caused by fatigue.
- System Flexibility: It enhances the overall adaptability of the fluid circuit, allowing for more compact designs and greater freedom in positioning components without compromising fluid flow or connection integrity.
High-Pressure Performance and Safety
Rated for up to 10,000 PSI (depending on tube size), this adapter is engineered for the most demanding high-pressure hydraulic applications. This extraordinary pressure rating is a direct consequence of the robust carbon steel construction, precision manufacturing, and the inherent strength of the metal-to-metal sealing mechanism. Every aspect of the adapter's design, from thread engagement length to material thickness and surface finish, contributes to its ability to contain and manage hydraulic power effectively and safely. Adherence to such high-pressure specifications underscores Buyers Products' commitment to safety and reliability, ensuring that the component can operate well within the pressure envelopes of modern heavy machinery and industrial processes. When selecting such a component, it is paramount that the entire fluid power system, including hoses, pumps, valves, and other fittings, is rated to meet or exceed the maximum operating pressure to ensure system integrity and operator safety.
Applications Across Industries
The unique combination of a 90-degree elbow, swivel functionality, and high-pressure capability makes this adapter indispensable across a broad spectrum of industries and applications:
- Construction Equipment: Essential for heavy machinery such as excavators, loaders, cranes, and bulldozers, where hydraulic lines operate under extreme pressures and require flexible routing to accommodate articulated movements.
- Agricultural Machinery: Used in tractors, harvesters, and other farm equipment for routing hydraulic lines to various implements, enduring harsh environmental conditions and cyclical movements.
- Industrial Automation and Robotics: Critical for robotic arms and automated production lines where precise, flexible fluid delivery systems are needed for actuators and grippers.
- Material Handling: Employed in forklifts, stackers, and conveying systems for reliable hydraulic power transmission in dynamic loading and unloading operations.
- Mining Equipment: Designed to withstand the abrasive and high-stress environments of mining operations, providing durable connections for hydraulic cylinders and motors.
- Marine and Offshore: Utilized in marine vessels and offshore platforms where corrosion resistance and high-pressure integrity are vital for steering, lifting, and anchoring systems.
Installation, Maintenance, and Quality Assurance
Proper installation and routine maintenance are crucial for maximizing the performance and longevity of this high-quality adapter. For the NPT male side, it is imperative to apply an appropriate thread sealant (e.g., PTFE tape or liquid pipe dope) to ensure a pressure-tight seal, and to tighten to the manufacturer's specified torque, preventing both under-tightening (leaks) and over-tightening (damage to threads or fitting). For the NPSM female swivel side, ensure the mating male component has a compatible sealing surface (conical or chamfered face) to achieve the metal-to-metal seal. This side should be tightened sufficiently to create the seal, but care must be taken not to overtighten, which could impede the swivel function or damage the sealing surfaces. Regular inspection for signs of wear, corrosion, or leakage is recommended, especially in high-cycle or high-vibration applications. Buyers Products' commitment to quality is evident in every aspect of this adapter, from the selection of premium carbon steel and corrosion-resistant zinc plating to the precision machining of threads and sealing surfaces. Each unit is manufactured to exacting standards, undergoing rigorous quality control processes to ensure consistent performance, durability, and adherence to specified pressure ratings. This dedication to excellence provides end-users with a component that offers superior reliability and a longer service life, thereby minimizing downtime and operational costs.
Conclusion
The 1-inch NPSM Female Pipe Swivel to 1-inch NPT Male Pipe Thread 90-Degree Elbow from Buyers Products stands as an exemplary solution for complex fluid power routing challenges. Its robust carbon steel construction, enhanced by a durable zinc plating, provides exceptional strength and corrosion resistance. The intelligent integration of a 90-degree elbow facilitates efficient directional changes, while the precision-engineered NPSM female swivel, with its advanced metal-to-metal sealing technology, offers unparalleled installation flexibility and protection against torsional stress. Capable of withstanding pressures up to 10,000 PSI, this adapter ensures reliable, leak-free operation in the most demanding hydraulic and industrial environments. For engineers, system designers, and maintenance professionals seeking a high-performance, durable, and versatile fitting to optimize their fluid transfer systems, this Buyers Products adapter offers a technically superior and exceptionally reliable choice.
