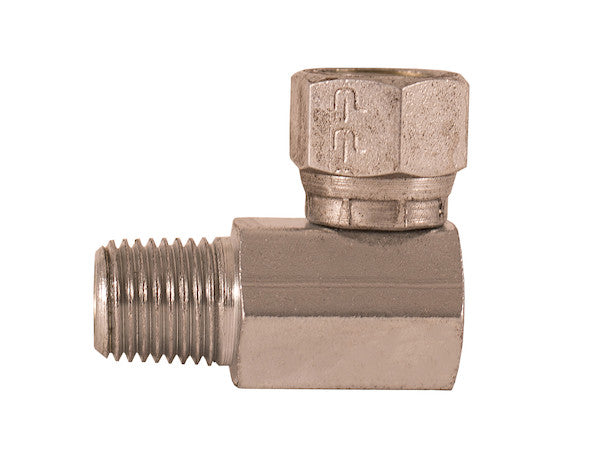

H9405X4X4 - 1/4-18 Inch NPSM Female Pipe Swivel To 1/4-18 Inch Male Pipe Thread 90?? Elbow

The Female Pipe Swivel to Male Pipe 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.

Specifications

The 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe Thread 90° Elbow adapter represents a critical component in fluid power and industrial piping systems, engineered for demanding applications where precision, durability, and flexibility are paramount. This detailed exposition will delve into the technical attributes, design principles, material science, operational benefits, and application spectrum of this specialized hydraulic fitting, emphasizing its robust construction and high-performance capabilities.

At its core, this adapter facilitates a robust and leak-free connection between two distinct pipe thread standards while introducing angular versatility. The designation "1/4-18" refers to the nominal pipe size (1/4 inch) and the threads per inch (18). The adapter features two distinct connection types on opposing ends: a 1/4-18 NPSM (National Pipe Straight Mechanical) Female Pipe Swivel and a 1/4-18 NPT (National Pipe Taper) Male Pipe Thread. The integrated 90° elbow configuration is specifically designed for efficient routing in constrained spaces, minimizing line stress and optimizing system layout.

Understanding Pipe Thread Standards: NPSM vs. NPT

A fundamental understanding of the thread standards is crucial for appreciating the adapter's functionality. NPT and NPSM are both part of the National Pipe Thread series, a U.S. standard for tapered and straight threads used on pipes and fittings. However, their sealing mechanisms and typical applications differ significantly.

NPT (National Pipe Taper) Male Pipe Thread: The 1/4-18 NPT Male end of this adapter features a tapered thread. This taper is designed to create a mechanical seal by interference fit when engaged with a corresponding NPT Female port. As the male and female tapered threads are tightened, the flanks of the threads compress against each other, forming a pressure-tight seal. For optimal sealing in NPT connections, particularly in high-pressure or critical applications, the use of a suitable thread sealant (such as PTFE tape or pipe dope) is highly recommended. This sealant fills any microscopic helical leak paths that might exist between the compressed threads. The tapered design ensures a progressive tightening, increasing the sealing force as torque is applied. The "1/4-18" specification indicates a nominal pipe diameter of 1/4 inch and 18 threads per inch, standard dimensions for this class of fitting.

NPSM (National Pipe Straight Mechanical) Female Pipe Swivel: The 1/4-18 NPSM Female Swivel end is characterized by a straight, non-tapered thread. Unlike NPT, NPSM threads do not rely on thread deformation for sealing. Instead, NPSM female swivel fittings achieve their seal through a metal-to-metal contact with a seating surface on the corresponding male fitting. This adapter is explicitly designed to make a "metal-to-metal seal to a male pipe." This typically means the female swivel nut compresses a seating surface (often a chamfered cone or a flat face with an O-ring groove, although for pure metal-to-metal, it's a cone) against a corresponding mating surface on the male pipe, creating a robust, high-integrity seal independent of the threads themselves. The threads merely provide the mechanical clamping force to hold the seal in place. The "swivel" capability is a critical feature: it allows the female nut to rotate independently of the fitting body. This facilitates easy alignment during installation, prevents hose torsion or kinking in dynamic applications, and allows for precise positioning without having to rotate the entire pipe run or hose assembly.

The Strategic Advantage of the 90° Elbow Configuration

The integrated 90° elbow design is not merely an aesthetic choice but a crucial functional element. In complex hydraulic or pneumatic systems, space constraints are common, and the efficient routing of lines is essential for optimal performance, maintenance, and safety. A 90° elbow allows for abrupt changes in flow direction, enabling designers and technicians to:

• Optimize Space Utilization: By redirecting flow at a sharp angle, the elbow minimizes the footprint required for plumbing, allowing for more compact machine designs.
• Reduce Line Length and Bends: In many scenarios, an elbow can eliminate the need for long, sweeping hose bends or multiple angled fittings, thereby reducing overall system complexity and potential leak points.
• Minimize Hose Stress: For hose assemblies, eliminating sharp bends that would otherwise be forced upon the hose material significantly extends hose life by preventing premature fatigue, abrasion, and kinking. The swivel function further enhances this by allowing the hose to be installed without twisting.
• Enhance System Aesthetics and Organization: Properly routed lines contribute to a cleaner, more organized system, which can simplify troubleshooting and maintenance.

Material Science: High-Strength Carbon Steel Construction

The choice of carbon steel for this adapter underscores its intended use in demanding, high-pressure environments. Carbon steel is an iron alloy with carbon as the primary alloying element, and its properties make it exceptionally suitable for hydraulic fittings:

• High Tensile Strength: Carbon steel exhibits excellent resistance to pulling forces, crucial for containing high internal fluid pressures without deformation or failure. This strength directly contributes to the fitting's remarkable 10,000 PSI pressure rating.
• Durability and Wear Resistance: It possesses inherent toughness, resisting wear from repeated pressure cycling, vibration, and mechanical stresses encountered in industrial and mobile applications.
• Cost-Effectiveness: Compared to stainless steel or specialized alloys, carbon steel offers a superior strength-to-cost ratio, making it an economically viable choice for mass-produced components without compromising performance.
• Machinability: Carbon steel is readily machinable, allowing for the precise threading, seating surfaces, and intricate geometry required for a high-quality, leak-proof fitting.
• Weldability: While fittings are typically machined, the base material's weldability is often a factor in related components, ensuring system integration flexibility.

The "tough carbon steel construction" mentioned in the current description highlights these inherent material advantages, guaranteeing longevity and reliability under severe operating conditions.

Corrosion Protection: The Zinc Plated Finish

To mitigate the susceptibility of carbon steel to corrosion, especially in environments exposed to moisture, chemicals, or atmospheric elements, the adapter features a "corrosion-resistant zinc finish." Zinc plating, often applied through electroplating, serves as a sacrificial coating:

• Sacrificial Protection: Zinc is an electrochemically more active metal than steel. When the coating is scratched or compromised, the zinc corrodes preferentially, protecting the underlying steel from rust and extending the component's lifespan.
• Barrier Protection: The zinc layer acts as a physical barrier, preventing corrosive agents from reaching the steel surface.
• Enhanced Appearance: Zinc plating provides a clean, bright finish that improves the aesthetic appeal of the fitting.
• Passivation: Modern zinc plating often includes a chromate passivation layer (e.g., clear, yellow, or black chromate, typically trivalent chromium for environmental compliance). This passivation enhances the zinc's corrosion resistance by forming a protective film, significantly improving resistance to white rust (zinc corrosion) and red rust (steel corrosion). This layer contributes to the "tight, secure connection" by maintaining the integrity of the external surfaces.

The zinc finish ensures that the adapter maintains its structural integrity and aesthetic quality even when subjected to challenging operational environments, preventing premature failure due to oxidation.

Exceptional Pressure Rating: Up to 10,000 PSI

A standout feature of this adapter is its impressive pressure rating of "up to 10,000 PSI." This indicates its suitability for extremely high-pressure hydraulic systems, which are common in heavy industrial machinery, specialized testing equipment, and certain mobile applications. The ability to withstand such immense pressures is a testament to the meticulous design, robust material selection (carbon steel), and precision manufacturing processes employed by Buyers Products.

Factors contributing to this high-pressure capability include:

• Material Strength: As discussed, carbon steel provides the necessary yield and tensile strength.
• Thread Design and Engagement: The precise machining of both NPT and NPSM threads ensures maximum engagement and load distribution, preventing thread stripping or deformation under pressure.
• Sealing Mechanism: The metal-to-metal seal on the NPSM end, coupled with the interference fit of the NPT, creates leak-proof connections critical for high-pressure retention.
• Wall Thickness and Geometry: The overall geometry and material distribution are optimized to minimize stress concentrations and maintain structural integrity throughout the fitting body, especially at the 90° bend.
• Quality Control and Testing: Fittings rated for such high pressures undergo rigorous testing, often including burst pressure tests and cyclic pressure endurance tests, to validate their performance and safety margins.

It is crucial to note the caveat "depending on tube size." While the adapter itself is rated for 10,000 PSI, the overall pressure rating of a hydraulic circuit is determined by its weakest component. Users must ensure that all other system components – hoses, tubes, pumps, valves, cylinders, and other fittings – are rated for at least the same or higher pressure to maintain system integrity and safety.

Operational Benefits and Application Spectrum

The combination of a swivel mechanism, high-pressure rating, robust construction, and angular geometry makes this adapter invaluable across a diverse range of industries and applications:

• Hydraulic Systems: This is the primary application area. The adapter is ideal for connecting hydraulic lines in heavy construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), industrial presses, injection molding machines, oil and gas exploration equipment, and marine hydraulic systems. The swivel function is particularly beneficial in preventing hose twist during assembly or dynamic movement of machinery.
• Fluid Transfer Lines: For systems handling various industrial fluids, oils, coolants, and even high-pressure water, where a reliable and flexible connection is needed.
• Pneumatic Systems (High Pressure): While 10,000 PSI is extremely high for standard pneumatics, this fitting could be used in specialized high-pressure air or gas systems, such as industrial gas cylinders or testing apparatus, where maximum sealing integrity and robustness are required.
• Test Benches and Prototyping: The ability to easily adjust the angle of a connection without dismantling the entire assembly makes it useful in experimental setups or when designing new hydraulic circuits.
• Maintenance and Repair: As a replacement part, it offers a durable and high-performance solution for restoring hydraulic system integrity. The swivel feature simplifies installation in tight repair situations.

Installation and Best Practices

Proper installation is paramount to leveraging the full capabilities and ensuring the longevity of this high-performance adapter:

• Thread Compatibility: Always ensure that the mating male component for the NPSM swivel end is designed to create a metal-to-metal seal with a straight thread female swivel, and that the NPT male end is installed into a compatible NPT female port. Mis-matching threads can lead to leaks, component damage, and system failure.
• Thread Sealant (for NPT): For the NPT male end, apply a high-quality thread sealant or PTFE tape to the male pipe threads before installation. This is crucial for achieving a leak-proof seal with the tapered threads. Avoid excessive application that could extrude into the fluid path.
• Torquing: Tighten fittings to the manufacturer's specified torque values. Overtightening can strip threads, deform the fitting, or damage sealing surfaces, while undertightening will result in leaks. For the NPSM swivel, ensure the swivel nut is tightened sufficiently to compress the metal-to-metal seal without excessive force.
• Cleanliness: Before assembly, ensure all threads and sealing surfaces are clean and free from dirt, debris, or metal shavings, which can compromise the seal integrity and potentially contaminate the fluid system.
• Inspection: Regularly inspect fittings for signs of wear, corrosion, damage, or leaks, especially in high-vibration or high-pressure environments.

Compliance and Quality Assurance

Buyers Products, as a reputable manufacturer, adheres to stringent quality control standards in the production of these adapters. While specific industry standards like SAE (Society of Automotive Engineers) or ISO (International Organization for Standardization) might govern hydraulic fittings more broadly, the manufacturing processes typically follow strict material specifications, dimensional tolerances, and testing protocols. This commitment ensures that each adapter meets or exceeds performance expectations, contributing to the safety and efficiency of the systems in which they are integrated.

Conclusion

The 1/4-18 Inch NPSM Female Pipe Swivel to 1/4-18 Inch Male Pipe Thread 90° Elbow adapter is a testament to precision engineering in fluid power connectivity. Its unique combination of thread types, swivel functionality, angular design, high-strength carbon steel construction with a protective zinc finish, and an exceptional pressure rating of up to 10,000 PSI positions it as an indispensable component for demanding hydraulic and pneumatic applications. By providing a reliable, flexible, and durable solution for changing flow direction and connecting differing thread standards, this adapter enhances system performance, simplifies installation, and contributes significantly to the operational integrity and longevity of critical industrial and mobile machinery. Its technical sophistication makes it a preferred choice for professionals seeking uncompromised quality and performance in their fluid transfer systems.
