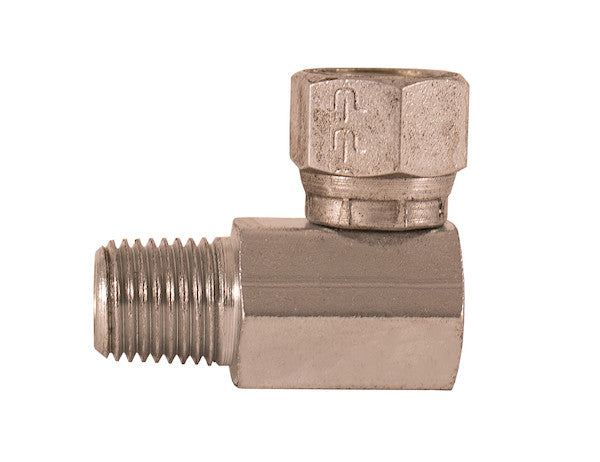

H9405X6X6 - 3/8-18 Inch NPSM Female Pipe Swivel To 3/8-18 Inch Male Pipe Thread 90?? Elbow

The Female Pipe Swivel to Male Pipe 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Technical Overview: 3/8-18 Inch NPSM Female Pipe Swivel To 3/8-18 Inch Male Pipe Thread 90° Elbow

The 3/8-18 Inch NPSM Female Pipe Swivel to 3/8-18 Inch Male Pipe Thread 90° Elbow represents a critical component in the precise engineering of fluid power systems. Designed for applications demanding robust performance, flexibility, and reliability under significant operational pressures, this adapter combines advanced thread mechanics with durable material science and strategic design. As a specialized fitting within the Buyers Products line of swivel adapters, it facilitates essential directional changes and connection flexibility without compromising system integrity or pressure handling capabilities.

Understanding the Thread Specifications: NPSM and NPT

A thorough understanding of the thread specifications is paramount for the correct application and optimal performance of this fitting. This adapter features a 3/8-18 Inch NPSM (National Pipe Straight Mechanical) Female Pipe Swivel on one end and a 3/8-18 Inch NPT (National Pipe Taper) Male Pipe Thread on the other. The numerical designation "3/8-18" refers to a nominal pipe size of 3/8 inch and a thread density of 18 threads per inch, standardizing its interface within compatible piping systems.

National Pipe Straight Mechanical (NPSM) Female Swivel Thread

The NPSM thread is a variant of the National Pipe Thread standard, distinguished by its straight (non-tapered) threads. Unlike its NPT tapered counterpart, an NPSM thread does not rely on thread deformation for its seal. Instead, the "Mechanical" in NPSM signifies that the sealing mechanism is external to the threads themselves, typically achieved through a metal-to-metal contact with a seating surface. In this particular swivel adapter, the female NPSM end is designed to swivel freely before tightening, allowing for easy alignment of connected components without twisting the hose or pipe. Once aligned, the swivel nut is tightened, drawing a 30-degree internal seat (often referred to as a cone seat) against a corresponding 30-degree external seat on the male pipe, forming a secure metal-to-metal seal. This sealing method is highly reliable, particularly in hydraulic and pneumatic applications where dynamic pressures and vibration are common. The swivel feature is invaluable during installation, enabling technicians to achieve precise component orientation without inducing torsional stress on rigid piping or hoses, which can lead to premature wear or failure.

National Pipe Taper (NPT) Male Pipe Thread

Conversely, the 3/8-18 Inch NPT Male Pipe Thread adheres to the more common National Pipe Taper standard. NPT threads are designed with a slight taper (1.789 degrees from the centerline) which allows them to progressively wedge into an NPT female thread as they are tightened. This wedging action creates a mechanical interference fit that forms a pressure-tight seal directly on the threads. While the primary seal is generated by the thread engagement, it is common practice and often recommended to use a thread sealant (such as PTFE tape or pipe dope) on NPT connections to fill any potential spiral leak paths and ensure a robust, leak-free connection, especially in fluid power applications. The NPT male thread on this elbow provides a rigid, secure connection point to a system's existing NPT female port, establishing a fixed orientation once tightened. The combination of an NPSM swivel with an NPT fixed male thread offers the best of both worlds: installation flexibility on the swivel end and a robust, standard connection point on the fixed end.

The Strategic Advantage of a 90° Elbow Configuration

The 90° elbow shape of this adapter is not merely a design choice but a critical functional element engineered to optimize fluid system layouts. In complex machinery and industrial environments, space constraints and efficient routing are constant challenges. A 90° elbow allows for a sharp, precise directional change in a fluid line, redirecting flow by ninety degrees with minimal footprint. This capability is essential for navigating around obstacles, fitting components into tight enclosures, or creating aesthetically pleasing and functionally superior plumbing configurations.

From a fluid dynamics perspective, while any bend introduces a degree of pressure drop, the internal geometry of a well-engineered 90° elbow, such as this one, is designed to minimize turbulence and maintain laminar flow as much as possible. Smooth internal bores and carefully transitioned corners are crucial to reducing energy losses and preventing localized pressure fluctuations that could impact system efficiency or component longevity. The robust construction and material properties discussed below further ensure that the elbow maintains its structural integrity and flow characteristics even under high-pressure conditions, preventing deformation that could constrict flow or create turbulent zones.

Material Science: The Strength of Carbon Steel

The selection of carbon steel as the primary construction material for this adapter is a deliberate choice driven by its exceptional mechanical properties and cost-effectiveness for demanding applications. Carbon steel, an alloy primarily composed of iron and carbon (typically up to 2% by weight), offers a formidable combination of strength, toughness, and ductility, making it ideal for high-pressure fluid power components.

Key characteristics of carbon steel that are critical for this fitting include:

• High Tensile Strength: Carbon steel exhibits a high resistance to being pulled apart, ensuring the fitting can withstand significant tensional forces exerted by high-pressure fluid lines without fracturing.
• Excellent Yield Strength: This refers to the stress level at which the material begins to deform plastically. For high-pressure applications, a high yield strength ensures that the fitting maintains its original shape and structural integrity even under extreme operational pressures, preventing permanent deformation that could lead to leaks or failure.
• Fatigue Resistance: Fluid power systems often experience fluctuating pressures and vibrations. Carbon steel's inherent fatigue resistance allows the fitting to endure millions of stress cycles without developing cracks or weakening, contributing to a longer service life.
• Impact Resistance: In many industrial environments, components may be subjected to accidental impacts. Carbon steel's toughness provides resilience against sudden shocks and mechanical abuse.
• Machinability: While strong, carbon steel is also highly machinable, allowing for the precise manufacturing of critical features such as threads, seating surfaces, and the specific internal geometry required for optimal flow and sealing. Precision machining is paramount for achieving the metal-to-metal seal on the NPSM end and the accurate taper on the NPT end.

The use of carbon steel underscores the commitment to producing a fitting that is not only functional but also exceptionally durable and reliable in rigorous industrial and mobile hydraulic contexts.

Enhanced Durability: Corrosion-Resistant Zinc Finish

To augment the intrinsic strength of carbon steel, this adapter features a corrosion-resistant zinc finish. This surface treatment is vital for protecting the fitting from environmental degradation, thereby extending its operational lifespan and maintaining its aesthetic and functional integrity over time. The zinc plating process typically involves electroplating, where a thin layer of zinc is deposited onto the carbon steel substrate.

The benefits of zinc plating are multifaceted:

• Sacrificial Protection (Galvanic Corrosion): Zinc is a more electrochemically active metal than steel. When exposed to corrosive elements (like moisture and oxygen), the zinc layer will corrode preferentially, acting as a sacrificial anode and protecting the underlying steel from rust. This means that even if the zinc coating is scratched in a small area, the surrounding zinc will continue to provide cathodic protection to the exposed steel.
• Barrier Protection: The zinc layer also acts as a physical barrier, preventing direct contact between the steel and corrosive agents. This passive protection is crucial in mitigating surface oxidation and the formation of iron oxides (rust).
• Improved Aesthetics: Zinc plating provides a clean, metallic appearance that is desirable in many industrial and commercial applications.
• Enhanced Hardness and Abrasion Resistance: While primarily for corrosion, the zinc layer can also offer some degree of added surface hardness, improving resistance to minor abrasions during handling and installation.

The application of a robust zinc finish ensures that the adapter can withstand exposure to various environmental conditions—including humidity, splashes, and mild chemicals—without succumbing to corrosion, which could otherwise compromise thread integrity, sealing surfaces, or the overall structural soundness of the fitting.

Performance Under Pressure: Rated Up to 10,000 PSI

The stated pressure rating of "up to 10,000 PSI depending on tube size" (for this specific 3/8-18 Inch fitting, it represents the robust capacity within the product line) highlights the exceptional engineering and material quality of this adapter. A 10,000 PSI (pounds per square inch) rating is indicative of a fitting designed for extreme high-pressure hydraulic and pneumatic systems, far exceeding the requirements of many standard applications. This capability is critical for environments where safety and performance are non-negotiable.

Achieving such a high-pressure rating involves several critical design and manufacturing considerations:

• Material Purity and Homogeneity: The carbon steel used must be of high quality, free from inclusions or defects that could act as stress concentrators under pressure.
• Precision Machining: Tight tolerances are essential for thread forms, sealing surfaces, and overall dimensional accuracy. Any irregularities could lead to localized stress points or inadequate sealing.
• Wall Thickness and Geometry: The internal and external dimensions of the elbow, including wall thickness, are meticulously calculated to distribute stress evenly across the component and resist expansion or rupture under immense internal pressure.
• Thread Engagement: The design of both the NPSM and NPT threads ensures maximum thread engagement, distributing the load over a greater surface area and preventing thread stripping or deformation. The metal-to-metal seal of the NPSM end is inherently robust against extrusion under high pressure.
• Quality Control and Testing: Fittings designed for such high pressures typically undergo rigorous testing, including hydrostatic pressure tests, where the component is subjected to pressures significantly higher than its rated working pressure to ensure a substantial safety factor.

This high-pressure capability makes the adapter suitable for demanding applications in heavy machinery, industrial presses, specialized test equipment, and other systems where intense forces and extreme fluid pressures are routine. The confidence in its 10,000 PSI rating allows engineers to design systems with a high degree of operational safety and longevity.

Versatile Applications and Industry Relevance

Given its technical specifications—a high-pressure rating, durable construction, and flexible swivel design—this 3/8-18 Inch NPSM Female Pipe Swivel to 3/8-18 Inch Male Pipe Thread 90° Elbow finds widespread application across numerous industries:

• Heavy Equipment & Construction: Indispensable in hydraulic circuits of excavators, bulldozers, cranes, and other construction machinery where high-pressure lines require robust and flexible connections to articulate components and manage directional changes in tight spaces.
• Agriculture: Used in hydraulic systems for tractors, harvesters, and specialized farm implements, enduring demanding outdoor conditions and cyclical loading.
• Manufacturing & Industrial Automation: Critical for hydraulic power units, clamping systems, robotic cells, and material handling equipment, providing reliable fluid transfer in automated production lines.
• Marine & Offshore: Essential for hydraulic steering, winches, and various fluid power systems on vessels and offshore platforms, where resistance to corrosion (due to zinc plating) and high-pressure integrity are paramount.
• Oil & Gas: Employed in exploration, drilling, and production equipment, often operating under extreme pressures and harsh environmental conditions.
• Mining: Used in hydraulic systems for mining machinery, which operate in highly abrasive and challenging environments.
• Transportation: Can be found in air brake systems, power steering, and other hydraulic/pneumatic applications in heavy-duty trucks and specialized vehicles.
• Test Stands & Laboratories: Utilized in facilities that conduct high-pressure testing of components or for experimental fluid dynamics setups, requiring precise and secure connections.

The swivel feature is particularly advantageous in these dynamic environments, simplifying assembly, reducing installation time, and allowing for easier maintenance and component replacement without needing to twist or re-route entire pipe runs. This flexibility minimizes potential stress on hoses and tubes, prolonging their life and preventing leaks.

Installation and Maintenance Best Practices

Proper installation and routine maintenance are crucial to realizing the full potential and longevity of this high-performance adapter.

• Cleanliness: Before installation, ensure that all threads, seating surfaces, and mating components are free from dirt, debris, metal shavings, or foreign particles. Contaminants can prevent proper sealing, damage threads, or introduce blockages into the fluid system.
• Thread Sealant (for NPT): For the 3/8-18 NPT Male Pipe Thread end, apply an appropriate pipe thread sealant (e.g., PTFE tape or liquid pipe dope compatible with system fluids and pressures) to the male threads. This aids in creating a leak-proof seal and allows for easier disassembly in the future. Avoid excessive sealant that could extrude into the fluid path.
• Metal-to-Metal Seal (for NPSM Swivel): The 3/8-18 NPSM Female Pipe Swivel relies on a clean, undamaged 30-degree cone seat for its metal-to-metal seal. Ensure the male component it mates with also has a clean, corresponding 30-degree seat. No thread sealant is typically used on this connection, as the seal is formed by the mechanical compression of the mating surfaces, not the threads.
• Tightening Sequence: First, thread the NPT male end into its mating NPT female port by hand until snug. Then, use a wrench to tighten to the manufacturer's recommended torque specifications. Overtightening can damage threads or deform the fitting, while undertightening can lead to leaks. For the NPSM swivel end, hand-tighten the swivel nut, then use a wrench to tighten it firmly until the metal-to-metal seal is properly engaged. The swivel portion should remain rotatable until the nut is fully tightened.
• Alignment: The swivel feature allows for easy alignment. Position the connected hose or pipe correctly before fully tightening the swivel nut. This prevents torsional stress.
• Inspection: Regularly inspect connections for signs of leakage, corrosion, or damage. Pay close attention to the sealing surfaces and threads. Any signs of wear, deformation, or excessive corrosion warrant immediate attention and potential replacement.
• Compatibility: Always ensure that the adapter is compatible with the system's operating pressure, fluid type, and temperature range.

Adhering to these practices ensures a safe, leak-free, and long-lasting connection, preserving the integrity and efficiency of the entire fluid power system.

Conclusion

The 3/8-18 Inch NPSM Female Pipe Swivel To 3/8-18 Inch Male Pipe Thread 90° Elbow is a precision-engineered component designed to meet the rigorous demands of modern fluid power applications. Its combination of a flexible NPSM swivel connection, a secure NPT male connection, a space-saving 90-degree elbow configuration, durable carbon steel construction, and a corrosion-resistant zinc finish positions it as an indispensable fitting for professionals. With an impressive pressure rating of up to 10,000 PSI, this adapter delivers exceptional reliability, operational flexibility, and long-term performance across a broad spectrum of industrial, mobile, and heavy-duty applications. It embodies a commitment to quality and engineering excellence, providing a critical link in ensuring the efficiency and safety of high-performance fluid systems.
