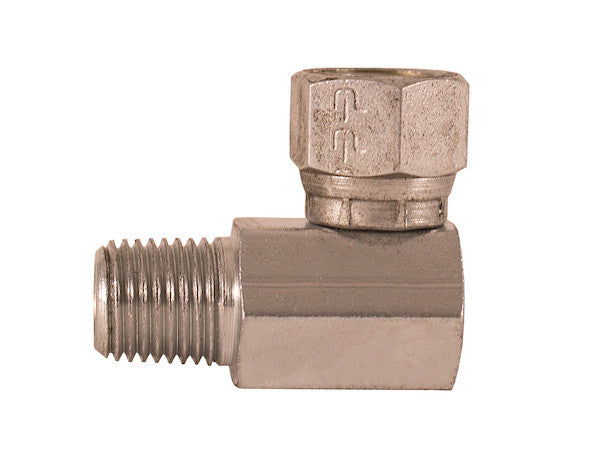

H9405X6X8 - 3/8-18 Inch NPSM Female Pipe Swivel To 1/2-14 Inch Male Pipe Thread 90?? Elbow

The Female Pipe Swivel to Male Pipe 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.

Specifications

Advanced Technical Overview: 3/8-18 Inch NPSM Female Pipe Swivel to 1/2-14 Inch Male Pipe Thread 90-Degree Elbow Adapter

The 3/8-18 Inch NPSM Female Pipe Swivel to 1/2-14 Inch Male Pipe Thread 90-Degree Elbow represents a precision-engineered solution for complex fluid conveyance systems requiring robust performance, critical angular adjustment, and reliable sealing under demanding conditions. As a specialized component within the extensive Buyers Products range of swivel adapters, this fitting is meticulously designed to facilitate directional changes and accommodate alignment discrepancies within hydraulic, pneumatic, and general industrial plumbing applications, all while maintaining superior operational integrity.

Unpacking the Nomenclature: Thread Specifications and Their Implications

Understanding the specific thread types and dimensions is paramount to appreciating the design and application of this adapter. The designation "3/8-18 Inch NPSM Female Pipe Swivel" and "1/2-14 Inch Male Pipe Thread (NPT)" indicates a transition fitting between two distinct pipe thread standards and sizes, each serving a particular function.

NPSM (National Pipe Straight Mechanical) Female Swivel Connection

The 3/8-18 Inch NPSM female swivel connection is characterized by a straight, non-tapered thread with 18 threads per inch and a nominal pipe size of 3/8 inch. Unlike its tapered counterpart, NPT, NPSM threads are designed primarily for mechanical joining rather than creating a pressure-tight seal directly on the threads. The "swivel" aspect is critical here. A female NPSM swivel consists of a nut that rotates freely around a fitting body. This design allows the installer to tighten the nut onto a mating male fitting without twisting the entire adapter or the connected hose/pipe, providing significant advantages in installation flexibility and preventing torsional stress on attached components. The seal for an NPSM swivel connection, particularly when described as a "metal-to-metal seal" as with this product, is typically achieved through a precisely machined internal conical or spherical seating surface within the female swivel body that mates with a corresponding flare, cone, or seat on the male fitting. This creates a highly reliable and durable seal capable of withstanding significant pressure without the need for additional thread sealants on the primary sealing surface, although thread sealant may still be recommended on the threads for anti-galling purposes or secondary sealing.

The 3/8-inch nominal size refers to the approximate inside diameter of the pipe that the thread size corresponds to, not the actual measured diameter of the threads themselves. The "18" denotes the threads per inch (TPI), a critical parameter for thread compatibility.

NPT (National Pipe Taper) Male Pipe Thread Connection

Conversely, the 1/2-14 Inch Male Pipe Thread (NPT) is a tapered thread with 14 threads per inch and a nominal pipe size of 1/2 inch. NPT threads are universally recognized for their ability to create a pressure-tight seal directly on the thread flanks as they are tightened. The taper (a 3/4-inch taper per foot, or 1 in 16 relative to the axis) causes the threads to wedge together, forming a mechanical lock and a fluid-tight seal. While the primary seal is often achieved by the deformation of the threads themselves, the use of appropriate thread sealants (such as PTFE tape or pipe dope) is highly recommended for NPT connections to fill any helical leak paths and facilitate proper torqueing without galling. The 1/2-inch nominal size and 14 TPI again indicate the standard dimensions for this widely used tapered pipe thread.

The combination of these two distinct thread types—a straight mechanical swivel and a tapered pressure-sealing thread—underscores the adapter's versatility. It allows for the integration of components designed for different sealing philosophies, providing a bridge between systems that might otherwise be incompatible or difficult to connect and align.

Engineered Geometry: The 90-Degree Elbow Advantage

The 90-degree elbow shape is a fundamental and indispensable design feature in fluid power systems. This specific geometry allows for a precise and abrupt change in the direction of fluid flow by 90 degrees. Its primary advantages include:

• Space Optimization: Enables compact system designs by allowing piping or hoses to turn corners sharply, minimizing footprint and maximizing available space, particularly in confined engine compartments or equipment enclosures.
• Routing Flexibility: Facilitates complex routing pathways, allowing lines to bypass obstacles or conform to specific equipment layouts, which is crucial for optimal system performance and maintenance accessibility.
• Reduced Stress on Hoses/Pipes: By providing a rigid directional change, the elbow prevents sharp bends in flexible hoses, thereby extending their service life and preventing flow restrictions or kinking that can lead to premature failure.
• System Integration: Essential for connecting components that are not directly aligned, ensuring a clean and professional installation that also contributes to system efficiency by minimizing turbulent flow compared to poorly routed hoses.

The internal bore of this 90-degree elbow is meticulously designed to minimize pressure drop and turbulence, ensuring efficient fluid transfer even at high flow rates and pressures. The transition from the 3/8-inch nominal diameter of the NPSM connection to the 1/2-inch nominal diameter of the NPT connection further highlights its role as an adapter, seamlessly integrating different line sizes within a single fluid path.

Material Science: The Strength of Carbon Steel

The choice of carbon steel as the primary construction material for this adapter is a testament to its engineered robustness and suitability for demanding industrial environments. Carbon steel is an iron-carbon alloy known for its exceptional mechanical properties, making it an ideal candidate for high-pressure fluid power components:

• High Tensile Strength: Carbon steel exhibits superior resistance to stretching or breaking under tension, which is crucial for fittings operating under significant internal pressure.
• Excellent Yield Strength: It can withstand substantial stress without permanent deformation, ensuring that the fitting maintains its structural integrity and sealing capability even during pressure spikes.
• Fatigue Resistance: Components in hydraulic and pneumatic systems are often subjected to pulsating pressures and cyclic loading. Carbon steel's inherent fatigue resistance contributes to a longer operational lifespan.
• Impact Resistance: Its ability to absorb energy and resist fracture upon sudden impact makes it suitable for applications where mechanical shock or vibration is present.
• Weldability and Machinability: While not typically welded in the field, the material's excellent machinability allows for the precise manufacturing of intricate thread forms and sealing surfaces, ensuring dimensional accuracy and consistency.
• Cost-Effectiveness: Compared to specialty alloys, carbon steel offers an optimal balance of performance and economic viability, making it a preferred material for industrial-grade fittings.

The specific grade of carbon steel used is selected to meet or exceed industry standards for pressure-containing components, ensuring reliability and safety across a wide range of operating conditions.

Corrosion Protection: The Efficacy of Zinc Plating

To augment the intrinsic strength of carbon steel and extend the adapter's service life, a high-quality zinc plating finish is applied. Zinc plating is a widely adopted and effective method for combating corrosion, particularly in environments exposed to moisture, chemicals, or atmospheric contaminants.

Process and Benefits:

• Sacrificial Protection: Zinc acts as a sacrificial anode. When the surface is scratched or exposed, the zinc corrodes preferentially to the underlying steel, protecting the base metal from rust and degradation.
• Barrier Protection: The zinc layer forms a physical barrier that prevents corrosive elements from reaching the carbon steel, significantly delaying the onset of rust.
• Enhanced Durability: Beyond corrosion resistance, the zinc plating provides a harder surface finish, offering improved abrasion resistance and protecting the fitting during handling and installation.
• Aesthetics: The uniform, bright finish of zinc plating provides a clean and professional appearance, which is important for overall equipment presentation.
• Environmental Resilience: This finish makes the adapter suitable for a broad spectrum of industrial and outdoor applications where exposure to varying environmental conditions is common, such as on commercial vehicles, agricultural machinery, and construction equipment.

The quality of the zinc plating, including its thickness and adhesion, is meticulously controlled during manufacturing to ensure long-term performance and compliance with relevant industry standards for protective coatings.

Pressure Rating and Performance Parameters

The stated capability of "up to 10,000 PSI depending on tube size" for Buyers Products swivel adapters highlights the robust engineering principles applied across their product line. While specific pressure ratings can vary based on the precise design, material thickness, and operating temperature of each individual fitting, this indicates that the components are designed for high-pressure applications. For this specific 3/8 NPSM to 1/2 NPT adapter, while 10,000 PSI is at the upper end for standard pipe thread fittings, it underscores its suitability for demanding hydraulic systems where operational pressures can frequently exceed 3,000 to 5,000 PSI.

Factors Influencing High-Pressure Capability:

• Material Strength: As discussed, high-grade carbon steel provides the foundational strength to resist bursting pressures.
• Thread Engagement and Design: Precision-machined threads (NPSM and NPT) ensure maximum engagement, distributing stress evenly and preventing thread stripping. The "metal-to-metal seal" mechanism on the swivel end is designed for leak-free performance under high load.
• Wall Thickness: Adequate wall thickness of the fitting body and critical stress points reinforces structural integrity.
• Geometry and Stress Concentrations: The 90-degree elbow's design is optimized to minimize stress concentrations at the bend and thread junctions, crucial for preventing fatigue failure.
• Manufacturing Quality: Strict adherence to manufacturing tolerances and quality control ensures consistent performance and reliability across all units.

Users should always refer to the specific engineering data provided for the part number in question to confirm its exact maximum working pressure for their intended application, factoring in safety margins and dynamic loads.

Operational Dynamics: The Swivel Mechanism and Sealing Integrity

The integrated swivel mechanism on the 3/8 NPSM female end is a significant functional enhancement. It allows the female connection to rotate independently of the male NPT connection during installation. This rotational freedom provides:

• Effortless Alignment: Facilitates easy alignment of connecting hoses or pipes without imparting twist or residual stress. This is particularly valuable in tight spaces or when connecting pre-assembled hose lines.
• Reduced Torsional Stress: Prevents the transmission of torque from the tightening process to attached components, thereby extending their lifespan and preventing potential leaks caused by strained connections.
• Simplified Maintenance: Allows for easier disconnection and reconnection during routine maintenance or component replacement.

The "metal-to-metal seal" philosophy ensures unparalleled reliability. Unlike elastomeric seals which can degrade over time due to chemical exposure, temperature fluctuations, or aging, a metal-to-metal seal, when properly assembled, offers a permanent and highly durable seal. This is typically achieved by a precisely machined conical or spherical seat within the swivel body that creates an interference fit with a complementary seating surface on the mating male pipe. The compression of these metal surfaces forms a leak-tight barrier that is resilient to extreme pressures and temperatures, making it ideal for systems where integrity is paramount and frequent disconnections are not the norm for the primary seal. For the NPT male side, the tapered threads, in conjunction with an appropriate thread sealant, form their own robust metal-to-metal seal by mechanical interference.

Applications and Versatility

This 3/8-18 NPSM Female Pipe Swivel to 1/2-14 NPT Male Pipe Thread 90-Degree Elbow adapter is an essential component across a diverse array of industrial and mobile applications, including but not limited to:

• Hydraulic Systems: Indispensable in heavy equipment, construction machinery, agricultural vehicles, and industrial presses for directing hydraulic fluid flow in high-pressure lines.
• Pneumatic Systems: Used in industrial automation, air braking systems, and compressed air networks where robust, leak-free connections are required.
• Transportation & Automotive: Critical for plumbing and hydraulic systems in commercial trucks, trailers, and specialized utility vehicles, where space constraints and vibration resistance are key.
• Fluid Transfer Systems: Suitable for various non-corrosive fluid transfer applications in manufacturing plants, processing facilities, and marine environments.
• OEM and MRO Markets: Valued by original equipment manufacturers for new system builds and by maintenance, repair, and overhaul operations for component replacement and system upgrades.

Its ability to adapt between common pipe thread standards and sizes, combined with its 90-degree angle and swivel functionality, provides exceptional flexibility for designers and technicians.

Installation Best Practices and Quality Assurance

Proper installation is paramount to achieving the full performance potential of this adapter. For the 3/8 NPSM female swivel connection, it is crucial to ensure that the mating male fitting has the correct seating surface (conical/spherical) to achieve the specified metal-to-metal seal. The swivel nut should be tightened to the manufacturer's recommended torque specifications to ensure proper seat compression without over-tightening. For the 1/2 NPT male connection, the application of a high-quality thread sealant, such as PTFE tape or liquid pipe thread sealant, is strongly recommended before threading into the female port. This not only ensures a leak-tight seal but also lubricates the threads to prevent galling and facilitate future disassembly.

Buyers Products maintains rigorous quality control standards throughout the manufacturing process. From raw material sourcing to final inspection, each adapter undergoes stringent checks to ensure dimensional accuracy, thread integrity, plating quality, and overall structural soundness. This commitment to quality assures that every fitting delivered meets the demanding performance expectations of industrial and heavy-duty applications, providing users with a reliable and long-lasting solution.

Conclusion

The 3/8-18 Inch NPSM Female Pipe Swivel to 1/2-14 Inch Male Pipe Thread 90-Degree Elbow adapter is more than just a simple fitting; it is a precisely engineered component designed for critical roles in fluid power and industrial systems. Its robust carbon steel construction, protected by a corrosion-resistant zinc finish, combined with its intelligent thread configuration and swivel functionality, provides unmatched adaptability, reliability, and ease of installation. With its capacity for high-pressure applications and its ability to manage complex routing challenges, this adapter stands as a testament to advanced fluid power engineering, offering a durable and efficient solution for connecting diverse components within a secure and high-performing system. It embodies the Buyers Products commitment to delivering superior quality components that meet the rigorous demands of professional use.
