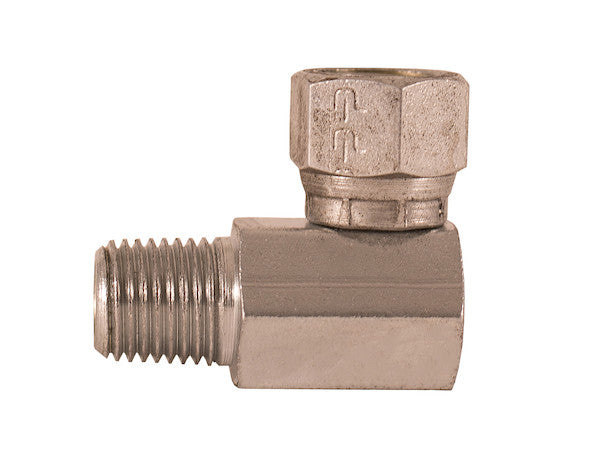

H9405X8X12 - 1/2-14 Inch NPSM Female Pipe Swivel To 3/4-14 Inch Male Pipe Thread 90?? Elbow

The Female Pipe Swivel to Male Pipe 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on tube size.

Specifications

The 1/2-14 Inch NPSM Female Pipe Swivel To 3/4-14 Inch Male Pipe Thread 90° Elbow represents a critical component within sophisticated fluid transfer systems, designed for precise directional change and secure, high-pressure connectivity. As a distinguished offering within the Buyers Products line of swivel adapters, this particular elbow facilitates a seamless transition between differing thread standards and sizes while providing the invaluable flexibility of a swivel mechanism. This technical exposition aims to delve into the intrinsic characteristics, engineering principles, performance capabilities, and diverse applications of this robust adapter, underscoring its pivotal role in optimizing hydraulic and pneumatic system integrity and operational efficiency.

At its core, this adapter is engineered to address common challenges in industrial plumbing, namely the need for tight-radius directional changes and the accommodation of varying connection orientations without inducing stress on hoses or pipes. The 90° elbow configuration inherently provides a compact and efficient solution for routing fluid lines around obstacles or for changing the plane of flow. This geometric advantage is further amplified by the swivel functionality, allowing for precise angular adjustment of the connected female NPSM line relative to the fixed male NPT port. This eliminates the necessity for exact alignment of components prior to assembly, significantly reducing installation time and mitigating the risk of torsion-induced failure in connected hoses or tubing.

One of the defining features of this adapter is its sophisticated threading on both ends. Side 1 features a 1/2-14 Inch NPSM Female Pipe Swivel. NPSM stands for National Pipe Straight Mechanical thread. Unlike its tapered counterpart, NPT, NPSM threads are parallel, meaning the threads maintain a constant diameter throughout their length. This straight thread form is inherently not designed for a primary thread-to-thread seal; rather, it typically relies on a mechanical seal, often facilitated by a gasket, O-ring, or a conical seat. In the context of this specific product, which emphasizes a "metal-to-metal seal to a male pipe," the NPSM female swivel likely incorporates an internal conical seat (such as a 30° or 37° flare cone) designed to mate with a complementary male pipe fitting that features a corresponding conical or flare end. This precision-machined interface, when properly torqued, creates a robust, leak-proof metal-to-metal contact seal capable of withstanding extreme pressures. The "1/2-14 Inch" designation indicates a nominal pipe size of 1/2 inch with 14 threads per inch, adhering to established American national pipe thread standards, ensuring compatibility with a wide array of industrial fittings and components.

Conversely, Side 2 presents a 3/4-14 Inch Male Pipe Thread (NPT). NPT, or National Pipe Tapered thread, is the most prevalent standard for tapered threads used in North America. The tapered nature of these threads is fundamental to their sealing mechanism; as the male NPT thread is tightened into a corresponding female NPT port, the flanks of the threads compress against each other, creating an interference fit that effectively forms a seal. To enhance this sealing capability and ensure a leak-tight connection, it is customary, and often imperative, to use thread sealants such as PTFE tape or pipe compound during assembly. The "3/4-14 Inch" specification denotes a nominal pipe size of 3/4 inch and also 14 threads per inch. The deliberate difference in nominal pipe sizes (1/2-inch NPSM to 3/4-inch NPT) highlights the adapter's function in bridging disparate pipe dimensions, thereby offering crucial versatility in complex system designs and retrofitting scenarios. The "Style: FM" specification unequivocally denotes a Female Swivel to Male configuration, clarifying the gender and operational nature of the connection points.

The material selection for such a critical component is paramount to its long-term performance and reliability. This adapter is constructed from tough carbon steel. Carbon steel is widely recognized in industrial applications for its exceptional mechanical properties, including high tensile strength, excellent yield strength, and superior fatigue resistance. These characteristics render it ideally suited for high-pressure fluid power systems where components are subjected to significant static and dynamic loads, vibration, and hydraulic shock. The inherent rigidity and durability of carbon steel prevent deformation under pressure, ensuring the integrity of the critical sealing surfaces and thread engagements. While carbon steel itself is susceptible to corrosion, its robust mechanical properties provide the foundational strength necessary for demanding environments.

To counteract the natural susceptibility of carbon steel to oxidation and environmental degradation, the adapter is meticulously finished with a corrosion-resistant zinc plating. Zinc plating acts as a sacrificial coating, meaning that in the presence of an electrolyte (like moisture), the zinc preferentially corrodes, thereby protecting the underlying steel substrate. This electroplating process forms a thin, uniform layer of zinc over the entire surface of the adapter, significantly extending its operational lifespan, particularly in environments exposed to humidity, water, chemicals, or other corrosive agents. Beyond its protective qualities, zinc plating also provides a clean, professional aesthetic, which is often a consideration in industrial machinery. The quality and thickness of the zinc plating adhere to rigorous industry standards, guaranteeing consistent performance and protection against various forms of corrosion, including galvanic corrosion, which can occur when dissimilar metals are in contact.

A standout attribute of this adapter is its impressive pressure rating of up to 10,000 PSI (pounds per square inch). This exceptional rating positions it firmly within the category of components suitable for extreme high-pressure hydraulic applications. Such pressures are commonly encountered in heavy construction equipment, large-scale industrial machinery, offshore drilling platforms, mining equipment, and various other sectors where immense force generation through hydraulic means is essential. It is crucial to note that the ultimate pressure rating can vary slightly "depending on tube size" or specific application parameters, highlighting the importance of consulting detailed technical data for specific configurations. However, the stated capacity indicates a design philosophy focused on maximum reliability and safety margins under severe operational conditions. This high-pressure capability is a direct consequence of the robust carbon steel construction, precision machining, and the secure, metal-to-metal sealing mechanism, which together prevent catastrophic failure, leakage, and system downtime, thereby enhancing operational safety and efficiency.

The concept of a "tight, secure connection" is not merely a descriptive term but a fundamental engineering requirement. This security is achieved through several synergistic factors: the accurate and consistent machining of the NPSM and NPT threads to specified tolerances, the robust material properties of carbon steel, the design of the metal-to-metal sealing interface for the swivel end, and the inherent taper sealing of the NPT end when properly torqued with sealant. A secure connection is paramount for preventing fluid leaks, which can lead to significant environmental contamination, safety hazards (especially with high-pressure fluids), system inefficiency due to pressure loss, and potential damage to adjacent components. The precision engineering of Buyers Products ensures that each adapter provides this crucial reliability, thereby contributing to the overall integrity and longevity of the fluid power system it serves.

The strategic incorporation of this 90° elbow with swivel functionality offers substantial advantages in practical applications. In scenarios where a straight connection is impossible due to space constraints or where maintaining a specific orientation of the connected hose is critical to prevent kinking or wear, this adapter provides an elegant solution. The swivel allows the installer to align the hose or pipe without twisting it during connection, which is particularly beneficial for high-pressure hydraulic hoses that are stiff and susceptible to internal damage from torsional stress. This not only eases installation but also significantly extends the service life of the connected hoses and prevents premature failure. The ability to make fine angular adjustments post-connection ensures optimal hose routing, minimizing bends and maximizing flow efficiency, which in turn reduces pressure drop and conserves energy within the system.

In terms of fluid dynamics, the 90° elbow shape, while introducing a change in direction, is meticulously designed to minimize turbulence and associated pressure losses. The internal geometry is optimized to facilitate a smooth flow transition, which is vital in high-flow, high-pressure systems where maintaining laminar flow and reducing energy dissipation are critical for system performance and efficiency. Furthermore, the robust construction ensures that the internal passages remain stable under dynamic pressure fluctuations, preventing cavitation or flow restrictions that could compromise pump efficiency or component lifespan.

The applications for such a high-performance adapter are extensive and varied. It is indispensable in mobile hydraulic systems found in construction machinery (excavators, bulldozers, cranes), agricultural equipment (tractors, harvesters), and utility vehicles. In industrial settings, it finds use in manufacturing plants, power generation facilities, and process industries for connecting hydraulic presses, automation equipment, and lubrication systems. Its resilience to corrosion and high pressure also makes it suitable for marine applications, oil and gas exploration, and chemical processing plants where harsh operating conditions are common. Anywhere a reliable, high-pressure, directional change with alignment flexibility is required between 1/2-inch NPSM swivel and 3/4-inch NPT connections, this adapter stands as an ideal choice.

When considering installation and maintenance, several technical points are critical. For the 3/4-14 Inch Male Pipe Thread (NPT) side, proper application of a high-quality thread sealant is non-negotiable to achieve a leak-free connection. The sealant fills the minute voids between the tapered threads, ensuring a hydraulic seal. Correct torqueing procedures must be followed for both connections to prevent over-tightening (which can damage threads or sealing surfaces) or under-tightening (leading to leaks). For the 1/2-14 Inch NPSM Female Pipe Swivel connection, specifically designed for a metal-to-metal seal, the mating male pipe's seat integrity is paramount. Any damage or contamination to these sealing surfaces can compromise the seal. Regular inspection of fittings and connections for signs of wear, corrosion, or leakage is part of a proactive maintenance strategy that extends system life and ensures safety.

In conclusion, the 1/2-14 Inch NPSM Female Pipe Swivel To 3/4-14 Inch Male Pipe Thread 90° Elbow from Buyers Products is a testament to precision engineering and robust manufacturing. Its unique combination of a swivel NPSM female connection, a fixed NPT male connection, and a 90° elbow configuration, all crafted from high-strength zinc-plated carbon steel, offers an unparalleled solution for complex high-pressure fluid transfer requirements. With its extraordinary pressure rating of up to 10,000 PSI and its ability to create a tight, secure metal-to-metal seal, this adapter not only provides critical directional changes and alignment flexibility but also significantly enhances the reliability, safety, and longevity of hydraulic and pneumatic systems across a vast spectrum of industrial applications. It embodies the rigorous standards and technical excellence expected from a leading provider of fluid power components, making it an indispensable asset for engineers and technicians striving for optimal system performance and operational integrity.
