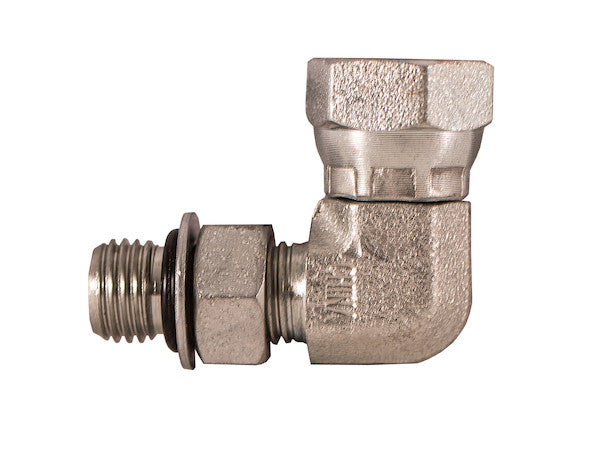

H9515X16X16 - 1.31-12 Inch Male Straight Thread 1-11.5 Inch NPSM Female Pipe Swivel 90?? Elbow

The Male Straight Thread to Female Pipe Swivel 90?? Elbow adapter is part of the Buyers Products line of swivel adapters. These adapters make a metal-to-metal seal to a male pipe. They feature tough carbon steel construction, a tight, secure connection, and a corrosion-resistant zinc finish. They are rated at up to 10,000 PSI depending on pipe size.

Specifications

The 1.31-12 Inch Male Straight Thread to 1-11.5 Inch NPSM Female Pipe Swivel 90° Elbow represents a critical component in advanced hydraulic and fluid conveyance systems, engineered for demanding applications that require robust performance, superior leak integrity, and adaptability in complex routing scenarios. This specific adapter from Buyers Products is designed to seamlessly integrate two distinct and widely utilized threading standards – the SAE (Society of Automotive Engineers) O-Ring Boss (ORB) male straight thread and the National Pipe Straight Mechanical (NPSM) female pipe swivel thread – into a singular, high-performance 90-degree elbow configuration.

At its core, this fitting serves as a precision interface, facilitating the transition between hydraulic components that utilize SAE ORB ports and those requiring an NPSM connection. The 90-degree elbow shape is strategically chosen to optimize spatial efficiency and fluid routing within confined or intricate machinery layouts, mitigating the need for excessive bending of rigid tubing or hoses, which can lead to material fatigue and flow restrictions. The integrated swivel feature on the NPSM side further enhances its utility by allowing for rotational adjustment during installation, ensuring proper alignment and preventing torsional stress on connected hoses or pipes, thereby prolonging system lifespan and simplifying maintenance procedures.

The construction of this adapter leverages high-grade carbon steel, a material renowned for its exceptional tensile strength, impact resistance, and overall durability in challenging industrial environments. The carbon steel composition provides the necessary structural integrity to withstand the internal pressures and external stresses typical of heavy-duty hydraulic operations. To further augment its resilience against environmental degradation, the adapter undergoes a meticulous zinc plating process. This finish acts as a sacrificial layer, offering superior corrosion resistance by preventing oxidation of the underlying carbon steel, thereby extending the component's operational life and maintaining its aesthetic and functional integrity even in corrosive or humid conditions.

A paramount feature of this elbow adapter is its impressive pressure rating, capable of handling hydraulic pressures up to 10,000 PSI, contingent upon the specific pipe size and system configuration. This high-pressure capability underscores its suitability for rigorous applications in heavy equipment, industrial hydraulics, and other systems where reliable performance under extreme force is non-negotiable. The engineering behind this rating involves meticulous design considerations for wall thickness, thread engagement, and material properties, ensuring that the fitting can consistently and safely operate within specified parameters without succumbing to deformation or catastrophic failure.

Technical Deep Dive into Thread Specifications and Sealing Mechanisms

Side 1: 1.31-12 Inch Male Straight Thread (1 SAE ORB / -16)

The male end of this adapter features a 1.31-12 Inch SAE O-Ring Boss (ORB) straight thread, corresponding to the -16 nominal size within the SAE J1926/ISO 11926 standard. This designation signifies a thread with a 1.3125-inch major diameter and 12 threads per inch. The SAE ORB connection is widely recognized in hydraulic systems for its superior leak prevention characteristics compared to tapered pipe threads.

The sealing mechanism of an SAE ORB fitting is fundamentally different from traditional metal-to-metal contact seals. It relies on an elastomeric O-ring, which is seated in a precisely machined groove on the male fitting's boss (the unthreaded portion). When the male ORB fitting is threaded into a female ORB port, the O-ring is compressed between the male fitting's boss and the face of the female port. This controlled compression creates a highly effective, resilient seal that is largely immune to vibration, pressure surges, and temperature cycling – factors that can often compromise tapered thread seals. The straight threads merely provide the mechanical retention, ensuring a tight and secure connection without contributing to the seal itself, which is entirely facilitated by the O-ring's deformation. The O-ring material, typically Nitrile (Buna-N) or Viton, is chosen for compatibility with various hydraulic fluids and operating temperatures, providing a robust, repeatable, and reusable seal. This design greatly minimizes the risk of fluid leakage, which is critical for system efficiency, environmental compliance, and operational safety in high-pressure hydraulic applications.

Side 2: 1-11.5 Inch NPSM Female Pipe Swivel

The female end incorporates a 1-11.5 Inch NPSM (National Pipe Straight Mechanical) swivel thread. This designation refers to a 1-inch nominal pipe size with 11.5 threads per inch, adhering to the ANSI/ASME B1.20.1 standard. Unlike NPT (National Pipe Taper) threads, NPSM threads are parallel (straight) and do not create a fluid-tight seal through thread interference alone. Instead, the straight threads are designed for mechanical joining and require a separate sealing mechanism.

The "swivel" feature is a crucial design element of this NPSM connection. It consists of a nut that rotates independently around the fitting body. This allows the user to orient the fitting's body (the elbow) into its desired position without turning the attached pipe or hose, and then tighten the swivel nut to secure the connection. This eliminates the need for pipe dope or tape for orientation and greatly simplifies installation in confined spaces or when dealing with rigid piping. The swivel capability is particularly advantageous for preventing hose twist and reducing assembly time.

The sealing mechanism for an NPSM female swivel typically involves either a flat face seal or a conical seat. In a flat face seal configuration, a gasket or O-ring (often elastomer or composite material) is placed between the face of the NPSM swivel and the face of the mating male pipe component. When the swivel nut is tightened, it compresses this gasket, creating a leak-proof seal. Alternatively, if mating with a male NPT (National Pipe Taper) or an AN/JIC (Joint Industry Council/Aviation and Naval) 37-degree flare fitting, the NPSM swivel's internal conical seat will engage with the tapered or flared end of the male fitting to form a metal-to-metal seal. The "metal-to-metal seal" mentioned in the general product description is most accurately applicable in this context where the NPSM swivel is mating with a conical male fitting. The specific application determines the optimal sealing method, but the inherent design of the NPSM swivel facilitates a secure, mechanically robust connection with the flexibility for precise alignment.

Material Science and Surface Engineering: Carbon Steel and Zinc Plating

Carbon Steel Construction

The selection of carbon steel as the primary construction material for this hydraulic adapter is a testament to its exceptional mechanical properties and cost-effectiveness for high-pressure fluid power applications. Carbon steel, primarily an alloy of iron and carbon, provides a balanced combination of strength, ductility, and machinability. Specifically, grades of carbon steel commonly employed in hydraulic fittings, such as AISI 1018 or similar medium-carbon steels, offer high tensile strength and yield strength, enabling the fitting to withstand the substantial internal pressures and dynamic stresses encountered in hydraulic circuits without plastic deformation or fatigue failure. The inherent toughness of carbon steel also provides resistance against impact and vibration, which are prevalent in mobile and industrial machinery.

Furthermore, carbon steel's excellent machinability allows for the precise manufacturing of intricate thread profiles, O-ring grooves, and sealing surfaces, all of which are critical for the fitting's performance and leak integrity. The ability to form tight tolerances during manufacturing ensures optimal thread engagement and effective sealing, directly contributing to the "tight, secure connection" characteristic. The material's weldability, while not directly applicable to the final fitting itself, is a desirable trait in the broader manufacturing ecosystem for related components and assemblies.

Corrosion-Resistant Zinc Finish

To enhance the inherent durability of carbon steel, the adapter is treated with a corrosion-resistant zinc finish. This surface treatment is typically applied through an electroplating process, where a thin layer of zinc is deposited onto the carbon steel substrate. Zinc plating offers several crucial benefits:

1. Sacrificial Protection (Galvanic Corrosion Prevention): Zinc is more electrochemically active than steel. In the presence of moisture and oxygen, the zinc layer preferentially corrodes, thereby protecting the underlying steel from rust and oxidation. This "sacrificial" action is particularly effective in environments where the coating might be scratched or minorly damaged.
2. Barrier Protection: The zinc layer acts as a physical barrier, isolating the carbon steel from direct contact with corrosive elements in the atmosphere or operating environment.
3. Enhanced Durability: The zinc plating increases the surface hardness of the fitting, providing improved abrasion resistance and reducing wear during installation and operation.
4. Aesthetic Appeal: The zinc finish provides a clean, metallic appearance, which is often preferred in industrial settings for ease of inspection and overall system aesthetics.
5. Reduced Friction: The smooth, plated surface can reduce friction during thread engagement, facilitating easier installation and preventing galling between mating components.

Modern zinc plating often utilizes trivalent chromium passivation to meet environmental regulations (e.g., RoHS compliance), providing a robust, long-lasting protective layer without using harmful hexavalent chromium compounds. This environmentally conscious approach ensures that the fitting not only performs exceptionally but also aligns with contemporary sustainability standards.

Performance Metrics and Design Advantages

High Pressure Rating: Up to 10,000 PSI

The stated pressure rating of up to 10,000 PSI signifies this adapter's capability to operate reliably in extremely high-pressure hydraulic circuits. Achieving such a rating requires rigorous engineering and manufacturing precision. Factors contributing to this capability include:

• Material Strength: The high tensile and yield strength of carbon steel is fundamental.
• Thread Design and Engagement: The integrity of both the SAE ORB and NPSM threads ensures that the connection can withstand axial and radial forces without stripping or deforming. Proper thread engagement length and pitch are critical.
• Wall Thickness and Geometry: The overall wall thickness and internal geometry of the elbow are designed to manage stress concentrations effectively, particularly at the 90-degree bend, which is often a point of weakness in lesser-quality fittings.
• Sealing System Integrity: The robust O-ring seal of the ORB side and the effective sealing mechanism of the NPSM swivel (whether gasket or conical metal-to-metal) are crucial for maintaining leak-free operation under high pressure.
• Manufacturing Quality: Tight tolerances, smooth finishes on sealing surfaces, and absence of material defects (e.g., porosity, inclusions) are paramount.

It is important to note that the pressure rating is "depending on pipe size." Generally, larger nominal pipe sizes often have lower maximum pressure ratings due to increased surface area for pressure to act upon and potentially thinner relative wall thicknesses. Users must always verify that the fitting's pressure rating meets or exceeds the maximum operating pressure of their specific hydraulic system, incorporating appropriate safety factors.

90° Elbow Geometry and Swivel Functionality

The 90-degree elbow configuration is a cornerstone of efficient fluid power system design. Its primary advantages include:

• Space Optimization: Allows for sharp changes in direction within confined spaces, reducing the overall footprint of hydraulic lines and components.
• Reduced Hose and Tubing Stress: By providing a pre-formed bend, it eliminates the need for hoses or tubing to be bent sharply, which can induce stress, reduce flow efficiency, and shorten component lifespan due to fatigue.
• Improved Aesthetics and Organization: Contributes to a neater, more organized system layout, simplifying troubleshooting and maintenance.

The integration of the NPSM swivel further elevates the functional advantages of this elbow. The ability of the female nut to rotate independently allows for:

• Effortless Alignment: Facilitates easy alignment of the fitting with mating ports, even in difficult-to-reach locations.
• Elimination of Torsion: Prevents twisting and torsional stress on hoses during connection, which can lead to premature hose failure.
• Simplified Installation: Reduces the complexity and time required for assembly, as components do not need to be rotated or forced into position once partially tightened.

Application Versatility and System Integration

This 1.31-12 Inch Male Straight Thread to 1-11.5 Inch NPSM Female Pipe Swivel 90° Elbow is a versatile component suitable for a broad spectrum of industrial and mobile hydraulic applications. Its robust design and high-pressure capabilities make it ideal for:

• Heavy Equipment: Construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and mining vehicles, where hydraulic systems operate under extreme loads and harsh environmental conditions.
• Industrial Hydraulics: Manufacturing automation, presses, material handling systems, and power units within factories and processing plants.
• Marine Applications: Shipboard hydraulic systems, offshore drilling rigs, and other marine equipment requiring corrosion resistance and reliable performance in corrosive saltwater environments.
• Oil and Gas: Hydraulic power units for valve actuation, drilling equipment, and fluid transfer systems.
• Transportation: Hydraulic braking systems, power steering, and auxiliary hydraulic functions in commercial vehicles.
• Utilities: Earth-moving equipment, aerial lifts, and other hydraulic tools used in utility maintenance and construction.

The adapter's specific thread types enable it to interface seamlessly with standard hydraulic pumps, motors, cylinders, valves, and other ancillary components that feature SAE ORB ports, while connecting to piping systems that utilize NPSM connections. This interoperability is crucial for system designers and maintenance professionals, ensuring compatibility across diverse equipment fleets and facilitating streamlined spare parts management.

Quality Assurance and Reliability

As part of the Buyers Products line, this swivel adapter benefits from a commitment to rigorous quality control and adherence to industry standards. Manufacturing processes typically involve:

• Precision Machining: Ensuring exact thread forms, accurate O-ring grooves, and smooth sealing surfaces to guarantee leak-free performance.
• Material Verification: Strict incoming material inspections to confirm chemical composition and mechanical properties of the carbon steel.
• Dimensional Inspections: Regular checks throughout the production process to maintain tight tolerances as per SAE and ASME standards.
• Pressure Testing: Batch testing or 100% testing of fittings to specified proof pressures to validate structural integrity and sealing capabilities.
• Surface Finish Evaluation: Assessment of zinc plating thickness and adhesion to ensure optimal corrosion resistance.

These measures collectively contribute to the high reliability and extended service life of the adapter, minimizing downtime and maintenance costs for end-users. The "tight, secure connection" is not merely a marketing claim but a result of meticulous engineering and manufacturing discipline, aimed at delivering hydraulic components that meet the demanding performance expectations of critical fluid power applications.

Conclusion

The 1.31-12 Inch Male Straight Thread 1-11.5 Inch NPSM Female Pipe Swivel 90° Elbow from Buyers Products stands as an exemplary hydraulic adapter, combining robust carbon steel construction, advanced corrosion protection, and precision engineering for critical thread interfaces. Its distinct design features, including the high-integrity SAE ORB male connection, the installation-flexible NPSM female swivel, and the space-optimizing 90-degree elbow geometry, collectively contribute to a component that delivers superior performance in high-pressure hydraulic systems. Rated for pressures up to 10,000 PSI, this adapter offers unparalleled reliability, leak prevention, and adaptability, making it an indispensable asset for engineers, technicians, and system integrators seeking to optimize fluid conveyance in a diverse array of demanding industrial and mobile applications. Its ability to ensure a tight, secure, and corrosion-resistant connection ultimately translates into enhanced operational efficiency, reduced maintenance burden, and prolonged system longevity, embodying a strategic investment in hydraulic system integrity and performance.
