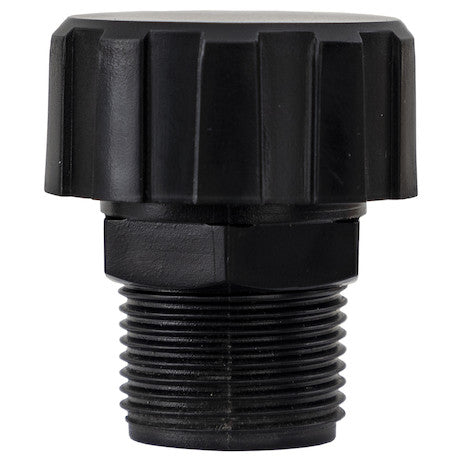

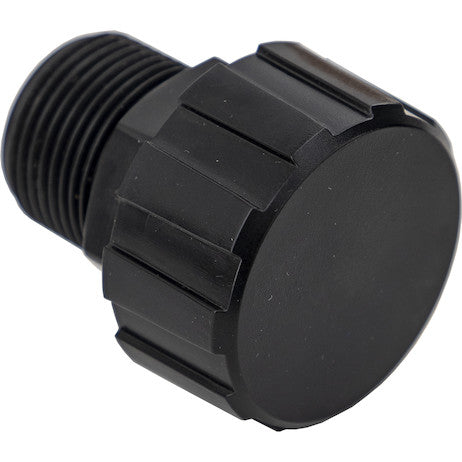

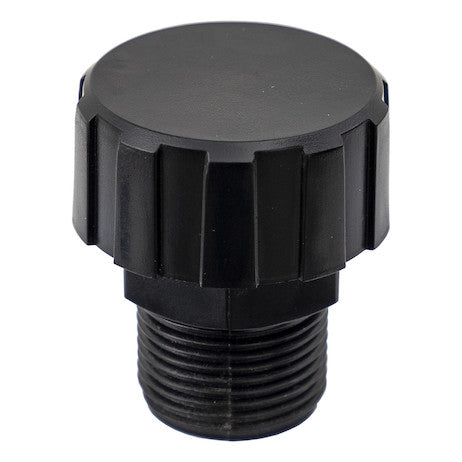

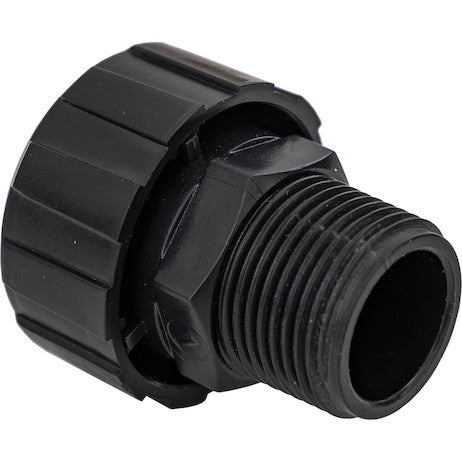

The Breather Cap from Buyers Products acts as a ventilator to provide a free flow of clean air into your reservoir. It features oil-resistant filter elements that keep out dirt and dust particles as small as 40 microns. Breather cap sizing ranges from 1/8 in. NPT to 1 in. NPT.
Specifications
| Cap Type | Threaded |
|---|---|
| Material | Plastic |
| Thread Size | 3/4 NPT |
Advanced Technical Overview: The Critical Role of the DC Hydraulic Power Unit's Poly 3/4 Inch Breather Cap
The operational integrity and longevity of any hydraulic system, particularly DC Hydraulic Power Units, are profoundly influenced by the quality of its auxiliary components. Among these, the Breather Cap stands as a deceptively simple yet critically important device. The Buyers Products Poly 3/4 Inch Breather Cap, with its precise engineering and robust construction, is designed to serve as the primary atmospheric interface for your hydraulic reservoir, ensuring optimal system performance and safeguarding against the most insidious threats to hydraulic efficiency: contamination and inadequate ventilation.
The Imperative of Reservoir Ventilation in DC Hydraulic Systems
Hydraulic reservoirs are not sealed containers; they are dynamic environments where fluid levels fluctuate significantly. These fluctuations are driven by several factors: the extension and retraction of hydraulic cylinders, thermal expansion and contraction of the hydraulic fluid, and the inevitable volumetric changes as accumulators charge and discharge. Each of these actions necessitates a corresponding intake or expulsion of air from the reservoir headspace. Without a properly functioning breather, the hydraulic system would quickly develop either a vacuum or positive pressure. A vacuum can lead to pump cavitation, causing noise, vibration, reduced efficiency, and premature pump failure. Conversely, excessive positive pressure can stress seals, leading to leaks and component degradation. The Buyers Products Breather Cap acts as a sophisticated ventilator, maintaining atmospheric equilibrium within the reservoir, thereby preventing these detrimental pressure differentials and ensuring smooth, consistent operation of the DC hydraulic power unit.
Precision Filtration: The 40-Micron Defense
While allowing air exchange, the primary function of a high-quality breather is to prevent the ingress of airborne contaminants. The Buyers Products Breather Cap features oil-resistant filter elements engineered to capture particulate matter as small as 40 microns. To put this into perspective, the average human hair is approximately 70 microns in diameter. This 40-micron filtration rating is not arbitrary; it is a carefully chosen specification that provides a critical first line of defense against the most common and damaging types of contaminants in hydraulic systems: dirt, dust, and environmental debris.
Hydraulic systems are inherently sensitive to particulate contamination. The sophisticated components within a DC hydraulic power unit, such as pumps, control valves, and actuators, rely on extremely fine clearances (often in the range of 5 to 20 microns) for their precise operation. Particles larger than these clearances act as abrasive agents, causing erosive wear on internal surfaces. This wear leads to:
- Reduced Component Life: Abrasive wear shortens the lifespan of expensive pumps, motors, and valves.
- Decreased Efficiency: Internal leakage across worn components increases, leading to a loss of power and efficiency.
- System Malfunctions: Contaminants can cause spool sticking in directional control valves, erratic operation, or complete failure of hydraulic functions.
- Fluid Degradation: Particulates accelerate the oxidation of hydraulic fluid and deplete critical additives, necessitating more frequent fluid changes.
By effectively filtering out particles down to 40 microns, this breather cap significantly reduces the rate of contaminant ingression, extending the life of hydraulic fluid and all hydraulic components within the DC power unit. The oil-resistant nature of the filter elements ensures that the cap maintains its filtration efficiency even when exposed to oil mist or splashes from within the reservoir, a common occurrence in operational hydraulic systems.
The Advantage of Polymeric Construction: Durability and Compatibility
The "Poly" in the product title signifies its construction from a high-grade plastic material. This choice of material offers several distinct advantages, particularly for applications within DC hydraulic power units where environmental conditions can be challenging:
- Corrosion Resistance: Unlike metallic breathers that can be susceptible to rust and corrosion in humid, salty, or chemically aggressive environments, the polymeric construction of this breather cap provides inherent resistance to a wide range of corrosive agents. This is particularly beneficial for mobile equipment, marine applications, or industrial settings where exposure to moisture and chemicals is common.
- Weight Reduction: Polymeric materials are significantly lighter than their metallic counterparts, contributing to the overall weight reduction of the hydraulic system, which can be a critical factor in mobile and portable DC power unit applications.
- Chemical Compatibility: The specific plastic chosen for the Buyers Products breather cap is engineered to be highly compatible with standard hydraulic fluids, greases, and common industrial cleaning agents. This ensures that the material will not degrade, crack, or leach contaminants into the hydraulic fluid over time, preserving fluid cleanliness and system integrity.
- Impact and Vibration Resistance: DC hydraulic power units often operate in environments subject to shock and vibration. High-quality engineering plastics exhibit excellent resistance to impact and fatigue, ensuring the breather cap remains securely attached and functional even under strenuous conditions.
- Cost-Effectiveness: Polymeric components often offer a more cost-effective solution without compromising on performance or durability, providing excellent value over the lifespan of the hydraulic system.
The robust plastic material is designed to withstand typical operational temperatures encountered in hydraulic systems, maintaining its structural integrity and performance characteristics over an extended service life.
Understanding the 3/4 NPT Thread Standard
The "3/4 NPT" designation refers to the National Pipe Taper thread standard, a widely recognized and utilized threading standard in North America for various fluid power applications. The 3/4 inch nominal size indicates the pipe diameter to which the cap is designed to attach. NPT threads are tapered, meaning the diameter of the thread decreases along its length, creating a metal-to-metal seal when tightened. This tapered design, often augmented with thread sealant (tape or paste), ensures a leak-proof and secure connection to the hydraulic reservoir's ventilation port.
The 3/4 NPT size is a common choice for many DC hydraulic power unit reservoirs, balancing adequate airflow capacity with a manageable physical footprint. This standardization simplifies installation, ensures broad compatibility with existing reservoir designs, and facilitates straightforward replacement. The threaded cap design guarantees a secure fit, preventing accidental dislodgement and maintaining the integrity of the filtration barrier.
Comprehensive Contamination Control: Beyond the Breather
While the Breather Cap is the first and often most critical line of defense against external particulate contamination, it is part of a larger strategy for maintaining hydraulic fluid cleanliness. Industry standards, such as ISO 4406, define cleanliness levels for hydraulic fluids. Achieving and maintaining these levels is paramount for system reliability. The Buyers Products Breather Cap contributes directly to this by:
- Preventing Ingress: Stopping airborne particles from entering the reservoir.
- Reducing Workload on Main Filters: By pre-filtering incoming air, the breather reduces the contaminant load on the main system filters (pressure, return, and suction filters), extending their service life and preventing premature clogging.
- Mitigating Water Contamination: While primarily focused on particulates, a well-designed breather can also limit the ingress of moisture in certain environments, which can lead to fluid oxidation, component corrosion, and reduced lubricity.
For DC hydraulic power units operating in demanding environments (e.g., construction sites, agricultural fields, mining operations), where airborne dust and debris are abundant, the effectiveness of the breather is amplified. Investing in a high-quality breather like this one translates into significant long-term savings by reducing maintenance costs, extending component lifespans, and minimizing downtime.
Applications and Operational Environments
The versatility and robustness of the Buyers Products Poly 3/4 Inch Breather Cap make it suitable for a wide array of DC hydraulic power unit applications, including but not limited to:
- Mobile Equipment: Dump trailers, liftgates, snowplows, utility trucks, agricultural machinery, construction equipment, and compact excavators.
- Industrial & Material Handling: Small lift tables, pallet trucks, compact presses, and other stationary equipment requiring DC power.
- Marine Applications: Smaller boat hydraulics, trim tabs, and steering systems where corrosion resistance is crucial.
- Specialty Vehicles: Emergency service vehicles, tow trucks, and other custom hydraulic applications.
In each of these diverse environments, the breather cap performs its essential role, adapting to varying temperatures, vibration levels, and exposure to environmental elements, thanks to its durable polymeric construction and effective filtration capabilities.
Maintenance and Lifecycle Management
Even the most robust breather caps require periodic inspection and, eventually, replacement. The filter elements, over time, will accumulate contaminants, leading to a reduction in airflow and an increase in pressure drop across the filter. Signs of a clogged breather include:
- Whistling noises from the reservoir during operation.
- Collapsing reservoir walls (in extreme vacuum conditions).
- Slow or sluggish hydraulic cylinder movement (due to cavitation).
Regular visual inspection of the breather cap and its filter element is recommended as part of a routine preventative maintenance schedule for any DC hydraulic power unit. The ease of replacement of this threaded breather cap simplifies maintenance procedures, ensuring that system uptime is maximized. Proactive replacement of a compromised breather cap is a small investment that yields significant returns in terms of hydraulic system reliability and longevity.
Conclusion: A Small Component with Monumental Impact
In the intricate ecosystem of a DC hydraulic power unit, every component plays a role in overall system performance. The Buyers Products Poly 3/4 Inch Breather Cap, while seemingly a minor accessory, performs a function that is absolutely vital: safeguarding the hydraulic fluid and components from atmospheric contamination and harmful pressure fluctuations. Its intelligent design, combining a durable polymeric material with a precise 40-micron oil-resistant filter and a universally compatible 3/4 NPT threaded connection, makes it an indispensable component for maintaining the health, efficiency, and longevity of your hydraulic system.
By preventing the ingress of damaging particulates, facilitating crucial air exchange, and resisting environmental degradation, this breather cap stands as a testament to the fact that meticulous attention to detail in component selection yields superior system reliability. For anyone responsible for the operation and maintenance of DC hydraulic power units, specifying and utilizing the Buyers Products Poly 3/4 Inch Breather Cap is a strategic decision that contributes directly to reducing operational costs, minimizing downtime, and ensuring the consistent, high-performance operation of their hydraulic assets.
