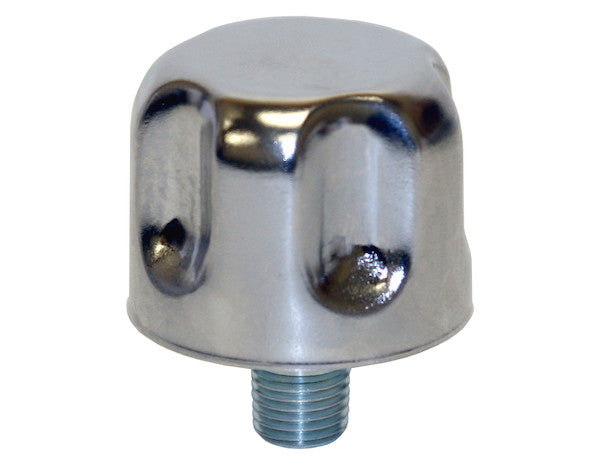

HBF4 - 1/4 Inch NPT Breather Cap

The Breather Cap from Buyers Products acts as a ventilator to provide a free flow of clean air into your reservoir. It features oil-resistant filter elements that keep out dirt and dust particles as small as 40 microns. Breather cap sizing ranges from 1/8 in. NPT to 1 in. NPT.

Specifications

The 1/4 Inch NPT Breather Cap by Buyers Products represents a critical component in the intricate architecture of hydraulic and fluid power systems, serving as a first line of defense against the pervasive threat of atmospheric contamination. In any closed fluid system, changes in fluid level, temperature fluctuations, and system operation inevitably lead to volumetric displacement within the reservoir. Without a meticulously engineered mechanism for atmospheric communication, these dynamics would either induce destructive vacuum conditions or excessive pressure build-up, both detrimental to system integrity and operational longevity. The primary function of this breather cap is precisely to mitigate these risks by facilitating a precisely regulated, free flow of impeccably filtered air into and out of the reservoir.

The Indispensable Role of Reservoir Ventilation

Hydraulic reservoirs are not truly sealed environments; they must "breathe" to accommodate the expansion and contraction of hydraulic fluid, which occurs as cylinders extend and retract, and as fluid temperature fluctuates during operation. When hydraulic cylinders extend, fluid is drawn from the reservoir. Conversely, when cylinders retract, fluid is returned to the reservoir. Each cycle necessitates a corresponding ingress or egress of air from the reservoir headspace. Without adequate ventilation, the system would experience either a negative pressure (vacuum) during fluid withdrawal, potentially leading to cavitation within the pump, or positive pressure during fluid return, which can stress seals and lead to leaks.

Cavitation is a particularly insidious form of damage, characterized by the formation and collapse of vapor bubbles within the hydraulic fluid, often at the pump inlet. This phenomenon generates significant noise, vibration, and, most critically, causes erosion of pump components, drastically reducing pump lifespan and overall system efficiency. A properly functioning breather cap ensures that ambient air, rather than internal vacuum forces, compensates for changes in fluid volume, thereby safeguarding the pump and other critical components from such destructive forces.

Advanced Filtration for Uncompromised Fluid Purity

The hallmark of a superior breather cap lies in its filtration capabilities. The Buyers Products 1/4 Inch NPT Breather Cap is equipped with advanced oil-resistant filter elements engineered to capture dirt and dust particles as minuscule as 40 microns. To put this into perspective, the human eye can typically discern particles no smaller than 40 microns under ideal conditions, meaning the filter elements are designed to block contaminants that are often invisible to the naked eye. Many critical clearances in modern hydraulic components, such as servo valves or hydrostatic transmissions, can be as small as 5-10 microns. While a 40-micron rating prevents the bulk of macroscopic particulate ingress, it significantly reduces the overall particulate load, extending the life of finer inline filters and the hydraulic fluid itself.

The selection of oil-resistant filter media is paramount. Standard paper or cellulose filters, while effective for air filtration, can degrade over time when exposed to oil mist or splashes common within a hydraulic reservoir's headspace. The specialized oil-resistant elements used in Buyers Products breather caps maintain their structural integrity and filtration efficiency even when saturated with oil, ensuring consistent performance throughout their service life. This resilience prevents the degradation of the filter medium itself from becoming a source of contamination. The integrity of these filter elements is crucial because even small amounts of airborne particulate matter, such as silica dust, can act as abrasive agents within the hydraulic system, causing premature wear to pumps, valves, cylinders, and seals. Contamination is widely recognized as the leading cause of hydraulic system failure, accounting for up to 70-80% of all malfunctions. Therefore, effective ingress filtration provided by a quality breather cap is not merely beneficial; it is foundational to system reliability and longevity.

Robust Construction: The Carbon Steel Advantage

The physical construction of the breather cap is as vital as its internal filtration mechanism. This particular breather cap features a robust body fabricated from carbon steel. Carbon steel is a ferrous alloy composed primarily of iron and carbon, with varying amounts of other elements that enhance its mechanical properties. Its selection for this application is based on several key advantages:

1. High Strength and Durability: Carbon steel offers excellent tensile strength and hardness, making the cap highly resistant to physical impact, vibration, and general wear and tear in demanding industrial and mobile environments. This ensures the cap maintains its structural integrity over long periods of continuous operation.
2. Environmental Resilience: Carbon steel exhibits good resistance to a wide range of environmental factors, including temperature fluctuations, UV exposure (when coated), and general atmospheric conditions. For applications where the breather cap may be exposed to corrosive agents or harsh weather, carbon steel provides a reliable and long-lasting protective enclosure for the filter element.
3. Cost-Effectiveness: Compared to more exotic alloys, carbon steel offers an optimal balance of performance and cost, making it a practical choice for high-volume industrial components without compromising on essential engineering requirements.
4. Machinability: Carbon steel is readily machinable, allowing for the precise threading and forming necessary for the cap's design, ensuring accurate dimensions and a secure fit.

While carbon steel naturally undergoes oxidation (rusting) when exposed to moisture and oxygen, components like this breather cap are typically treated with protective coatings (e.g., plating, powder coating) to enhance corrosion resistance, further extending their operational lifespan in various environmental conditions. The "Cap Type" being "Threaded" further emphasizes the robust and secure mounting provided by this material.

Precision Threading: 1/4 Inch NPT Standard

The specification of a "1/4 NPT" thread size is a critical detail. NPT stands for National Pipe Taper, a widely adopted standard for tapered threads used on pipes and fittings to create a liquid-tight and gas-tight seal.

Key characteristics and advantages of NPT threading include:

• Tapered Design: Unlike parallel threads, NPT threads taper slightly along their length. When a male NPT thread is screwed into a female NPT thread, the flanks of the threads compress against each other, forming a mechanical interference fit that provides a highly effective seal.
• Self-Sealing Properties: Due to the tapered design, NPT connections are inherently self-sealing to a significant degree, often requiring only a sealant tape (PTFE tape) or pipe dope for complete sealing, especially in pressure applications. For a breather cap, this ensures that air ingress and egress occur only through the filter element and not through leaks in the mounting threads.
• Industry Standard: NPT is a ubiquitous standard in North America for hydraulic, pneumatic, and fluid transfer systems. This widespread adoption ensures compatibility with a vast array of existing reservoirs and fittings, simplifying installation and replacement.
• Durability and Reusability: NPT connections, when properly installed, are very robust and can withstand significant vibration and pressure fluctuations. While not designed for frequent disassembly and reassembly without sealant reapplication, they offer reliable long-term performance.

The "1/4 NPT" designation refers to the nominal pipe size, which is approximately 0.540 inches (13.7 mm) in outside diameter for the male thread, and a corresponding internal diameter for the female port. This size is chosen for applications requiring sufficient airflow while maintaining a compact footprint on the reservoir. For many industrial and mobile hydraulic reservoirs, a 1/4 NPT port is a common and appropriate interface for auxiliary components like breather caps.

Versatility Across a Sizing Spectrum

While this specific product is a 1/4 Inch NPT Breather Cap, the broader product line offers a range from 1/8 in. NPT to 1 in. NPT. This extensive sizing spectrum underscores Buyers Products' commitment to providing comprehensive solutions for diverse hydraulic system requirements. Different reservoir sizes, fluid volumes, and operational demands necessitate varying levels of airflow.

• Smaller sizes (1/8", 1/4", 3/8" NPT): Typically suited for smaller hydraulic power units, auxiliary reservoirs, gearboxes, or systems with lower fluid volume displacement rates.
• Medium sizes (1/2", 3/4" NPT): Commonly found on medium-sized industrial machinery, agricultural equipment, or construction vehicles where moderate to high airflow is required.
• Larger sizes (1" NPT and above): Designed for large industrial hydraulic presses, heavy-duty mobile equipment, or systems with very large reservoirs and significant fluid displacement, ensuring unrestricted airflow even under rapid cycling.

This breadth of offerings allows engineers and maintenance professionals to select the optimally sized breather cap, ensuring that the ventilation capacity perfectly matches the system's "breathing" requirements, thereby preventing airflow restriction that could lead to vacuum issues or, conversely, avoiding oversized ports that might be unnecessarily susceptible to damage or take up excessive space.

Strategic Applications and Operational Benefits

The 1/4 Inch NPT Breather Cap finds critical application across a vast array of industries and equipment types:

• Mobile Hydraulics: Construction machinery (excavators, loaders, bulldozers), agricultural equipment (tractors, harvesters), refuse vehicles, utility trucks, and other off-highway equipment where exposure to dust, dirt, and challenging environmental conditions is constant.
• Industrial Hydraulics: Manufacturing plants, steel mills, plastics injection molding machines, presses, machine tools, and any fixed hydraulic power unit.
• Power Generation: Lubrication systems and hydraulic controls in turbines and generators.
• Marine Applications: Deck machinery, steering systems, and other hydraulic components on vessels.
• Wind Energy: Hydraulic pitch and yaw systems in wind turbines.

The overarching benefits derived from integrating a high-quality breather cap like this into a hydraulic system are substantial and directly impact operational efficiency, maintenance costs, and equipment lifespan:

1. Contamination Control: The most direct benefit is the prevention of airborne particulate ingress, which is the primary cause of abrasive wear and premature component failure in hydraulic systems. Clean air means clean fluid.
2. Prevention of Cavitation: By allowing unimpeded atmospheric pressure into the reservoir as fluid is withdrawn, the breather cap eliminates the risk of vacuum formation at the pump inlet, thereby preventing cavitation damage and extending pump life.
3. Protection Against Seal Damage: Proper ventilation prevents pressure build-up within the reservoir, which can stress and ultimately damage seals, leading to costly leaks and fluid loss.
4. Extended Fluid Life: By keeping the hydraulic fluid free from contaminants, its useful life is significantly extended. Contaminants accelerate fluid degradation (oxidation, sludge formation), necessitating more frequent and expensive fluid changes.
5. Reduced Maintenance Costs and Downtime: Proactive contamination control through effective breathing reduces the incidence of component failures, leading to fewer unscheduled repairs, lower spare parts inventory requirements, and maximized equipment uptime.
6. Improved System Efficiency: Components operating with clean fluid under optimal pressure conditions perform more efficiently, consuming less energy and delivering consistent power.
7. Compliance and Safety: Maintaining system integrity through proper ventilation and filtration contributes to compliance with industry best practices and enhances overall operational safety by reducing the likelihood of catastrophic component failures.

Installation and Maintenance Considerations

Proper installation is straightforward: the threaded cap simply screws into a corresponding 1/4 NPT port on the reservoir. It is crucial to use an appropriate thread sealant (e.g., PTFE tape or pipe thread compound) to ensure a leak-free seal and prevent unintended air ingress or egress. The orientation of the cap should ideally minimize exposure to direct splashes or debris, though its robust design offers inherent protection.

Like any filter, the breather element has a finite service life. Regular inspection of the breather cap is recommended, especially in dusty or heavily contaminated environments. A visible accumulation of dirt or a noticeable restriction in airflow are indicators that the filter element may need replacement. Timely replacement of the filter element ensures continuous, optimal protection for the hydraulic system. Buyers Products offers readily available replacement elements, underscoring the long-term serviceability of their components.

Conclusion: An Investment in Hydraulic System Longevity

In the complex ecosystem of hydraulic power, seemingly minor components often play disproportionately critical roles. The 1/4 Inch NPT Breather Cap from Buyers Products is a quintessential example of such a component. Far from being a mere accessory, it is an indispensable guardian of fluid purity and system equilibrium. Engineered with precision, utilizing durable carbon steel and advanced 40-micron oil-resistant filtration media, and designed with the universally compatible NPT threading standard, this breather cap offers robust protection against the primary threats of airborne contamination and pressure imbalances. Its meticulous design and construction reflect a commitment to engineering excellence that translates directly into extended component life, reduced operational costs, enhanced reliability, and maximized uptime for demanding hydraulic applications. Investing in a high-quality breather cap is not just a purchase; it is a strategic decision that underpins the long-term health and efficiency of your hydraulic assets.
