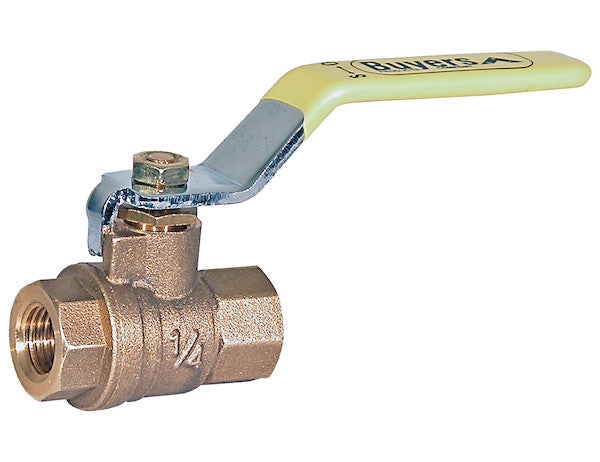

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Brass |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 600 |
| Maximum Working Pressure | 600 |
| Pipe Size | 0.250 |
| Seat Material | Teflon |
| Thread Size | 1/4 NPT |
The 1/4 Inch Brass Body Ball Valve is an indispensable component engineered for precision flow control within demanding industrial and mobile hydraulic systems, particularly those found in commercial truck applications. This valve exemplifies a fusion of robust material science, refined mechanical design, and application-specific performance parameters to ensure reliable and efficient operation. Its compact 1/4 inch NPT threading and capacity for 600 PSI non-shock pressure make it an optimal choice for managing hydraulic fluid transfer, isolation, and diversion with high levels of integrity and operational simplicity.
At its core, a ball valve functions through a rotating sphere (the "ball") within the valve body, featuring a bore that aligns with the flow path when in the open position. A 90-degree rotation of the external handle moves the ball, aligning the bore perpendicularly to the flow path, thereby blocking fluid passage and achieving complete shut-off. This quarter-turn operation is intrinsically advantageous, offering rapid actuation and a clear visual indication of the valve's status (open or closed), which is critical in dynamic operational environments like truck hydraulic systems where quick assessment and response are often necessary for safety and productivity.
The material selection for the various components of this 1/4 inch brass ball valve is a testament to its engineered durability and performance. The primary structural element, the valve body, is meticulously crafted from forged brass. Brass, an alloy primarily composed of copper and zinc, offers a suite of properties highly desirable for hydraulic applications. Its excellent machinability allows for precise manufacturing tolerances, ensuring a tight seal and consistent performance. More importantly, brass exhibits superior corrosion resistance against a wide array of hydraulic fluids, preventing material degradation that could lead to leakage, reduced operational efficiency, or system contamination. The inherent strength of forged brass further enhances the valve's ability to withstand the mechanical stresses associated with high-pressure hydraulic systems, mitigating the risk of structural failure under cyclic loading or pressure surges. Forging, as a manufacturing process, densifies the material grain structure, eliminating internal voids and improving the mechanical properties, including tensile strength and fatigue resistance, compared to cast alternatives. This results in a valve body with enhanced integrity and a prolonged service life, even in the vibrational and often harsh conditions characteristic of truck-mounted equipment.
Within the robust brass body, the ball itself is fabricated from hardened steel. The selection of hardened steel for the ball is crucial for several performance metrics. Hardening processes, such as heat treatment, significantly increase the surface hardness and wear resistance of the steel. This ensures that the ball maintains its spherical integrity and smooth surface finish over extended periods of operation, resisting erosion and abrasive wear from fluid flow and particulate matter that may be present in hydraulic systems. The high hardness also minimizes deformation, which could otherwise compromise the sealing capability of the valve. The precision machining of the hardened steel ball, combined with its high surface finish, reduces the torque required for actuation and contributes to the valve's reliable sealing performance by minimizing friction against the seat material.
The sealing mechanism relies critically on the seat material, which in this valve is Teflon (Polytetrafluoroethylene, PTFE). Teflon is an exceptional polymeric material renowned for its extremely low coefficient of friction, chemical inertness, and broad temperature resistance. In a ball valve, the Teflon seats provide a highly effective seal between the ball and the valve body, preventing fluid leakage both upstream and downstream. Its low friction property allows for smooth operation and reduces wear on the ball and the seats themselves, contributing to the valve's longevity and ease of operation. Furthermore, Teflon's chemical resistance makes it impervious to degradation from hydraulic oils and other common industrial fluids, ensuring seal integrity and preventing contamination. The slight elasticity of Teflon also allows it to conform minutely to the surface of the hardened steel ball, creating a highly effective, resilient seal even under varying pressure conditions. This combination of hardened steel and Teflon seating surfaces is a proven design for achieving reliable, bubble-tight shut-off in critical fluid control applications.
The operational interface of the valve is a carbon steel handle. Carbon steel is selected for its high strength-to-weight ratio and cost-effectiveness. The handle provides the necessary leverage for easy quarter-turn actuation of the ball. Its robust construction ensures that it can withstand the mechanical forces applied during operation without bending or breaking. To protect against environmental degradation, particularly in outdoor and mobile applications, the handle, along with the brass body, receives a zinc-plated clear finish. Zinc plating provides a sacrificial layer of protection against corrosion, preventing rust formation on the carbon steel and offering an additional layer of defense for the brass body, thereby extending the aesthetic and functional lifespan of the valve. The clear coating over the zinc further enhances corrosion resistance and provides a clean, professional appearance.
This valve is engineered to operate reliably under a maximum non-shock pressure of 600 PSI (pounds per square inch). The "non-shock" designation is a crucial engineering parameter. It indicates that the valve is designed for systems where pressure fluctuations are gradual and do not involve sudden, instantaneous pressure spikes or water hammer effects. Such sudden impacts can generate forces far exceeding the nominal operating pressure, potentially leading to material fatigue or catastrophic failure. For typical hydraulic systems in trucks, where pressures are regulated and flow changes are managed, a 600 PSI non-shock rating provides a substantial safety margin for general operational demands. The robust forged brass body and hardened steel ball are specifically designed to withstand these continuous pressures without compromising structural integrity.
The precise 1/4 NPT (National Pipe Taper) thread size ensures compatibility and secure integration into standard hydraulic piping systems. NPT threads are self-sealing due to their tapered design, which creates an interference fit as the threads are tightened. This mechanical advantage, when combined with appropriate thread sealant, results in a leak-proof connection capable of holding the specified pressure without issue. The quarter-inch pipe size indicates a specific flow capacity, optimized for systems where precise control over smaller volumes or lower flow rates of hydraulic fluid is required, without introducing excessive pressure drop or fluid velocity.
Installation and operation of this brass ball valve are designed for simplicity and efficiency. Its compact form factor facilitates integration into tightly packed engine compartments or hydraulic manifold systems. Proper installation involves applying an appropriate thread sealant (e.g., PTFE tape or liquid sealant) to the 1/4 NPT threads and tightening to the manufacturer's recommended torque specifications to ensure a leak-free connection. The intuitive quarter-turn handle provides immediate visual confirmation of the valve's state, simplifying operational checks and system troubleshooting. This inherent ease of use minimizes potential for operator error and speeds up maintenance or system reconfiguration tasks.
The primary application focus for this 1/4 inch brass ball valve is within truck hydraulic systems. These systems are integral to a multitude of functions on commercial vehicles, including but not limited to powering dump beds, plows, cranes, liftgates, and various auxiliary equipment. In such environments, the valve's ability to reliably control hydraulic fluid flow is paramount. For example, it can be used as a shut-off valve to isolate a hydraulic circuit for maintenance, to divert fluid to different actuators, or to control the flow to a specific component, ensuring precise operation of attached implements. The durability of brass, hardened steel, and Teflon ensures consistent performance even when exposed to vibrations, varying temperatures, and typical contaminants found in mobile hydraulic circuits.
It is important to reiterate the specified limitations of this valve. It is explicitly noted as "not suitable for steam or potable water applications." This caution is based on critical engineering considerations. Steam applications involve significantly higher temperatures and aggressive corrosive properties that can exceed the material capabilities of brass or degrade the Teflon seat prematurely, leading to leakage or failure. Furthermore, the combination of materials and manufacturing processes may not meet specific regulatory requirements or health standards for potable water systems, where material leaching or bacterial growth must be strictly controlled. Therefore, adhering to these application guidelines is essential for ensuring both the longevity of the valve and the safety of the overall system. For hydraulic fluids, typically non-corrosive oils, the valve's material composition and design are optimally suited.
In summary, the 1/4 Inch Brass Body Ball Valve stands as a robust, precisely engineered component for demanding hydraulic control applications, particularly within the commercial truck sector. Its construction from forged brass, hardened steel, and Teflon seating surfaces, coupled with a durable zinc-plated carbon steel handle, provides exceptional resistance to pressure, wear, and environmental factors. The 600 PSI non-shock rating, coupled with its reliable quarter-turn operation and clear open/closed indication, ensures efficient and safe fluid management. This valve represents a strategic investment in the long-term reliability and operational efficiency of any hydraulic system requiring dependable flow isolation and control, while strictly adhering to its specified operational envelope. Its design reflects a thorough understanding of the challenges and requirements inherent in modern hydraulic fluid power systems.
