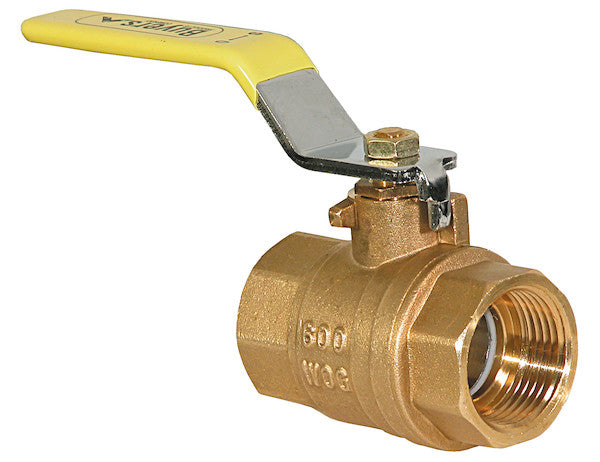

HBV038 - 3/8 Inch Brass Body Ball Valve

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: The 3/8 Inch Brass Body Ball Valve for Hydraulic Systems

In the demanding realm of mobile hydraulic applications, such as those found in commercial trucks and utility vehicles, the reliability and precision of fluid control components are paramount. The 3/8 Inch Brass Body Ball Valve from Buyers Products represents a meticulously engineered solution designed to meet these rigorous requirements. This comprehensive technical description delves into the intricate design, material science, performance characteristics, and application suitability of this essential fluid control device, underscoring its pivotal role in optimizing hydraulic system efficiency and safety.

Precision Engineering and Core Functionality

At its core, a ball valve operates on a simple yet highly effective principle: a rotatable ball with a bore, or hole, through its center. When this bore is aligned with the pipeline, fluid flows unimpeded. A quarter-turn (90-degree rotation) of the handle rotates the ball, positioning the solid side perpendicular to the flow, thereby blocking it completely. This quarter-turn operation is a hallmark of ball valves, offering rapid actuation and a clear visual indication of the valve's open or closed status, a critical safety and operational advantage in dynamic work environments. The 3/8 Inch Brass Body Ball Valve is designed for precise modulation of hydraulic fluid, ensuring that operators can confidently manage system flow to various actuators and components.

Material Science and Robust Construction

The choice of materials in valve manufacturing is fundamental to its performance, durability, and compatibility with the intended media and operating conditions. For this 3/8 Inch Ball Valve, each component has been selected and processed to deliver superior results in hydraulic applications:

Forged Brass Body: The Foundation of Strength and Durability

The valve's body, crafted from forged brass, is a testament to its robust construction. Forging is a manufacturing process that involves shaping metal using localized compressive forces. Unlike casting, which can introduce porosity and internal defects, forging refines the grain structure of the metal, resulting in a denser, stronger, and more homogeneous body. This enhanced structural integrity is crucial for resisting mechanical stresses, vibration, and pressure fluctuations inherent in mobile hydraulic systems. Brass, typically an alloy of copper and zinc, offers several intrinsic advantages:

• Corrosion Resistance: Brass exhibits excellent resistance to corrosion from various hydraulic fluids, including petroleum-based oils, synthetic lubricants, and some aqueous solutions. This prevents internal degradation that could lead to leakage, reduced performance, or contamination of the hydraulic system.
• High Strength-to-Weight Ratio: While robust, brass provides a favorable strength-to-weight ratio, contributing to the overall manageability and installation of the valve without compromising its structural integrity.
• Machinability: Brass is highly machinable, allowing for precise manufacturing tolerances that ensure tight seals and smooth operation. This precision is vital for components that must withstand high pressures and maintain leak-free performance.
• Temperature Stability: Brass maintains its mechanical properties across a wide temperature range, making it suitable for hydraulic systems that can experience significant temperature variations due to ambient conditions and operational demands.

The designation of "Brass Body" underscores a commitment to long-term reliability in demanding industrial and mobile settings.

Zinc Plated Clear Finish: Enhanced Surface Protection

Complementing the inherent corrosion resistance of the brass body is a zinc plated clear finish. Zinc plating involves electrochemically depositing a thin layer of zinc onto the brass surface. This process creates a galvanic barrier, where the zinc acts as a sacrificial anode, corroding preferentially to protect the underlying brass. The "clear" aspect often refers to a subsequent chromate conversion coating (passivation) that seals the zinc layer, enhancing its corrosion resistance, and providing an attractive, lustrous finish. This external protection is particularly beneficial in environments where the valve might be exposed to moisture, road salts, chemicals, or other corrosive agents prevalent in truck operations, ensuring the external integrity and aesthetic longevity of the component.

Hardened Steel Ball: The Heart of Flow Control

The critical element responsible for flow control within the valve is the hardened steel ball. Steel is chosen for its superior mechanical properties, and the hardening process further enhances its performance:

• Exceptional Hardness: Hardening, typically achieved through heat treatment, increases the surface hardness of the steel ball. This makes it highly resistant to abrasive wear, erosion from fluid flow, and deformation under the compressive forces exerted by the valve seats.
• High Strength and Durability: The hardened steel maintains its structural integrity even under high differential pressures, preventing distortion that could compromise sealing or operation.
• Surface Finish: Precision grinding and polishing techniques are applied to the hardened steel ball to achieve an extremely smooth surface finish. This minimizes friction with the valve seats, reduces operating torque, and contributes to a bubble-tight seal, preventing internal leakage.

The combination of hardened steel for the ball and forged brass for the body creates a synergistic effect, maximizing the valve's operational lifespan and reliability in controlling pressurized hydraulic fluids.

Teflon (PTFE) Seats: Superior Sealing and Chemical Compatibility

The sealing elements, known as seats, are manufactured from Teflon, a proprietary brand name for Polytetrafluoroethylene (PTFE). PTFE is an outstanding material for valve seats due to its unique combination of properties:

• Low Friction Coefficient: PTFE has one of the lowest coefficients of friction of any solid material. This property ensures smooth, low-torque operation of the ball, facilitating easy opening and closing even under pressure.
• Excellent Chemical Resistance: PTFE is virtually inert to a wide range of chemicals, including most hydraulic oils and fluids. This chemical compatibility prevents degradation of the seat material, which is crucial for maintaining seal integrity and preventing system contamination.
• Broad Temperature Range: While not suitable for steam, PTFE can withstand a significant range of operating temperatures commonly encountered in hydraulic systems, retaining its flexibility and sealing capabilities.
• Non-Aging and Non-Contaminating: PTFE does not degrade over time due to exposure to UV light, moisture, or ozone, contributing to a long service life. It is also non-leaching, ensuring the purity of the hydraulic fluid.
• Resilient Sealing: PTFE's inherent elasticity allows it to deform slightly under compression, conforming to the contours of the ball and providing an effective, leak-tight seal against both forward and reverse pressure.

Carbon Steel Handle: Ergonomics and Positive Indication

The valve's handle is constructed from robust carbon steel, ensuring mechanical strength and resistance to bending or breakage under operational stress. Its design facilitates easy quarter-turn actuation and provides a clear, unambiguous visual cue regarding the valve's status: parallel to the flow for open, perpendicular for closed. This intuitive design enhances operational safety and efficiency, allowing personnel to quickly ascertain system configuration.

Performance Specifications and Operational Integrity

Understanding the valve's performance specifications is crucial for proper system integration and safe operation:

Maximum Pressure Rating: 600 PSI Non-Shock

This valve is rated for a maximum working pressure of 600 PSI (pounds per square inch) in non-shock conditions. This rating signifies its capability to reliably contain and control hydraulic fluid at pressures up to 600 PSI without structural failure or leakage. The qualifier "non-shock" is critically important:

• Non-Shock Pressure: Refers to a system where pressure changes are gradual and predictable, without sudden spikes or surges. This represents the steady-state operating pressure the valve is designed to withstand continuously.
• Hydraulic Shock (Water Hammer): In contrast, hydraulic shock, often referred to as water hammer, occurs when the flow of fluid is abruptly stopped or reversed, creating a pressure wave that can far exceed the static working pressure. Such transient pressure spikes can momentarily reach several times the nominal system pressure, potentially damaging valves and other components not specifically designed to absorb such forces. The design of this ball valve, while robust, specifies its limits for prolonged performance. Proper system design, including the use of accumulators or slow-closing mechanisms, is essential to mitigate shock pressures and ensure the longevity of all hydraulic components, including this valve.

A 600 PSI rating makes this 3/8 Inch Brass Body Ball Valve exceptionally suitable for a wide array of auxiliary and control circuits in truck hydraulic systems, where operating pressures typically fall within or below this threshold for many functions.

Pipe Size and Thread Standard: 3/8 NPT

The valve is designed with a 3/8 NPT (National Pipe Taper) thread size. NPT is a widely adopted standard for tapered threads used in sealing pipes and fittings in the United States and Canada. The tapered design of NPT threads allows them to create a mechanical seal when tightened, as the flanks of the male and female threads are compressed together. For optimal sealing, especially in hydraulic applications, it is standard practice to use an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to fill any helical leak paths that might otherwise exist. The 3/8 inch nominal pipe size denotes the internal diameter of the pipe it is designed to connect to, facilitating integration into standard hydraulic lines.

Application in Truck Hydraulic Systems

The 3/8 Inch Brass Body Ball Valve is specifically engineered for robust performance within the challenging environment of truck-based hydraulic systems. Its attributes make it ideal for a multitude of applications:

• Dump Trucks: For controlling the flow to hoist cylinders, allowing precise control over the raising and lowering of the dump bed. This could include diverting flow for specific functions or isolating the hoist for maintenance.
• Snowplows and Salt Spreaders: Essential for managing hydraulic fluid to lift, angle, and oscillate plow blades, or to operate augers and spinners on salt spreaders. Quick shut-off capability is vital for emergency stops or function isolation.
• Utility Vehicles: Used in lift gates, aerial lifts (boom trucks), and other auxiliary equipment requiring independent control of hydraulic circuits. For instance, isolating a particular hydraulic function during non-use or maintenance.
• Tow Trucks: For controlling various functions of the wrecker body, such as boom extension, winch operation, or outrigger deployment.
• Refuse Trucks: In systems that operate compactors, lifters, and other waste handling mechanisms.
• Agricultural Equipment: While specified for trucks, its robust design makes it suitable for similar mobile hydraulic applications in agricultural machinery for controlling implements.

In these applications, the valve serves to:

• Isolate Sections: Allowing for maintenance, repair, or replacement of hydraulic components in a specific circuit without depressurizing the entire system.
• Divert Flow: Directing hydraulic power to different actuators or functions as needed, optimizing operational flexibility.
• Emergency Shut-Off: Providing a quick and reliable means to stop fluid flow in critical situations, enhancing operational safety.

Installation and Operation Guidelines

Proper installation and operation are key to maximizing the lifespan and performance of the 3/8 Inch Brass Body Ball Valve:

• Pre-Installation Check: Always inspect the valve for any signs of damage during shipping. Ensure the thread size matches the connecting pipework (3/8 NPT).
• Thread Preparation: Apply an appropriate hydraulic-grade thread sealant (e.g., PTFE tape or liquid pipe sealant) to the male NPT threads. Ensure not to over-apply, as excess sealant can enter the hydraulic system.
• Tightening: Use suitable wrenches to tighten the valve into the pipework. Avoid overtightening, which can deform the valve body or damage the threads, leading to leaks or operational issues. Consult typical torque specifications for 3/8 NPT connections, often around 25-35 ft-lbs, but avoid excessive force.
• Flow Direction: While most ball valves are bi-directional, it is good practice to install them in a manner that allows for convenient access to the handle and clear visibility of its position.
• System Flushing: After installation, it is advisable to flush the hydraulic system to remove any debris or contaminants introduced during assembly before full operational pressure is applied.
• Operation: The valve is designed for quarter-turn operation. Ensure the handle moves freely between the fully open and fully closed positions without undue force. The robust carbon steel handle ensures positive control and clear visual indication.

Limitations and Exclusions: Critical Considerations

As specified, this valve is not suitable for steam or potable water applications. Understanding the reasons behind these exclusions is vital for safety and compliance:

• Not Suitable for Steam:
  • Temperature Limitations of PTFE: While PTFE has a good temperature range, it typically begins to soften and lose its mechanical integrity at temperatures significantly above 400°F (204°C). Steam, particularly saturated or superheated steam, operates at much higher temperatures and can rapidly degrade PTFE seats, leading to leakage and valve failure.
  • Material Compatibility: High-temperature steam can also accelerate corrosion rates in brass components, and the thermal cycling can induce stresses that lead to material fatigue.
  • Steam Erosion: The high velocity and erosive nature of steam can cause accelerated wear on internal components, especially the hardened steel ball and PTFE seats.
  • Water Hammer in Steam Systems: Steam systems are notoriously prone to severe water hammer events, which can generate shock pressures far exceeding the valve's 600 PSI non-shock rating, causing catastrophic failure.
• Not Suitable for Potable Water Applications:
  • Lead Content in Brass: Standard brass alloys, while excellent for industrial applications, typically contain a small percentage of lead (e.g., C36000 free-machining brass contains approximately 2.5-3.7% lead by weight) to improve machinability. While the lead is integral to the alloy and generally stable, there are concerns about lead leaching into drinking water over time.
  • Regulatory Compliance: For potable water systems, stringent regulations (such as the Safe Drinking Water Act in the U.S. and standards like NSF/ANSI 61) mandate very low lead content in components that come into contact with drinking water. Lead-free brass alloys (e.g., C69300 EcoBrass, C87850 Silicon Brass) or other materials like stainless steel are required for these applications. This particular brass body valve is designed for industrial hydraulic fluids, not for conveying water intended for human consumption.

Adhering to these limitations ensures the valve is applied within its design envelope, guaranteeing optimal performance, safety, and compliance with relevant industry standards for hydraulic components.

Conclusion

The 3/8 Inch Brass Body Ball Valve from Buyers Products stands as a testament to engineering excellence, offering unparalleled reliability and control for critical hydraulic systems in trucks and mobile equipment. Its robust construction, featuring a forged brass body, hardened steel ball, and PTFE seats, ensures exceptional durability, resistance to corrosion, and precise flow modulation under pressures up to 600 PSI (non-shock). Designed for ease of installation and intuitive operation with its carbon steel handle, this valve provides a vital component for system isolation, flow diversion, and emergency shut-off, directly contributing to the safety and operational efficiency of heavy-duty vehicles. By adhering strictly to its intended applications – specifically, hydraulic fluid control within its pressure and temperature limits, and explicitly excluding steam and potable water – this ball valve delivers a high-performance, long-lasting solution that professionals can trust in their most demanding mobile hydraulic environments.
