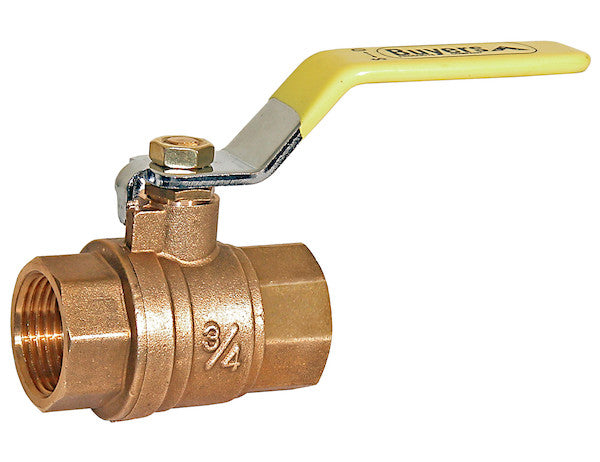

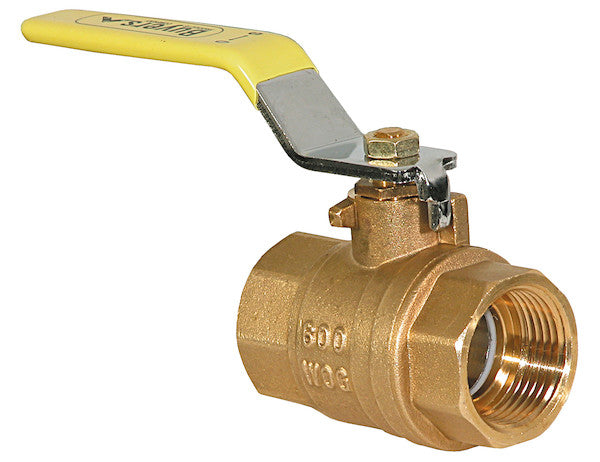

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Brass |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 600 |
| Maximum Working Pressure | 600 |
| Pipe Size | 0.750 |
| Seat Material | Teflon |
| Thread Size | 3/4 NPT |
The 3/4 Inch Brass Body Ball Valve from Buyers Products represents a pinnacle of fluid control engineering, meticulously designed for demanding hydraulic system applications, particularly within the commercial truck and heavy equipment sectors. This component is not merely a valve; it is a critical interface in fluid power systems, enabling precise, reliable, and safe management of hydraulic oil flow. Its robust construction, featuring a forged brass body, hardened steel ball, and advanced Teflon (PTFE) seating, is engineered to deliver exceptional performance and longevity under the rigorous conditions inherent to mobile hydraulic operations.
Understanding the operational mechanics of a ball valve is key to appreciating its utility. At its core, a ball valve operates on a simple yet highly effective principle: a spherical ball with a bore through its center rotates within the valve body. When the handle is aligned with the pipeline, the bore is open, allowing unimpeded fluid flow. A quarter-turn (90-degree rotation) of the handle positions the bore perpendicular to the pipeline, effectively blocking the flow. This quarter-turn actuation provides rapid shut-off or opening, a significant advantage in applications requiring quick response times. Furthermore, the design inherently offers a clear visual indication of the valve's operational status – an open handle signifies an open valve, while a perpendicular handle denotes a closed valve – enhancing operational safety and clarity in complex hydraulic schematics. Unlike gate or globe valves, ball valves offer minimal pressure drop when fully open, ensuring efficient energy transfer within the hydraulic system and reducing operational costs. Their compact design also facilitates installation in space-constrained environments typical of commercial truck chassis.
The choice of forged brass for the valve body is a deliberate engineering decision rooted in its superior material properties. Forging, a manufacturing process that involves shaping metal using localized compressive forces, refines the grain structure of the brass, resulting in a product with significantly enhanced tensile strength, ductility, and resistance to fatigue compared to cast alternatives. This increased structural integrity is paramount for a component subjected to intermittent high pressures and mechanical stresses in hydraulic systems. Brass, an alloy primarily of copper and zinc, offers excellent corrosion resistance, particularly against the various hydraulic fluids and environmental contaminants encountered in truck applications. Its inherent compatibility with hydraulic oils, combined with its resistance to dezincification – a form of corrosion that can degrade common brass alloys – ensures long-term integrity and prevents premature failure. The body's "Zinc Plated Clear" finish further augments its defensive capabilities against environmental degradation. This plating process applies a thin layer of zinc, which acts as a sacrificial coating, corroding preferentially to protect the underlying brass from oxidation and other corrosive agents. The clear chromate passivation over the zinc provides additional corrosion resistance and a clean, professional aesthetic, suitable for visible components in heavy-duty equipment.
At the heart of the valve's fluid control mechanism is the hardened steel ball. The selection of hardened steel for this critical component is essential for its performance and durability. Hardening processes increase the steel's surface hardness and wear resistance, allowing the ball to withstand the abrasive forces of high-velocity fluid flow and the mechanical stress of repeated actuation against the valve seats. This robustness ensures that the spherical integrity and surface finish of the ball are maintained over extensive operational cycles, preserving the valve's sealing capabilities and reducing the risk of internal leakage. The precision-machined surface of the hardened steel ball interacts seamlessly with the valve seats, contributing to smooth, low-torque operation and a reliable, leak-tight seal.
Complementing the hardened steel ball are the advanced Teflon (PTFE) seats. Polytetrafluoroethylene, commonly known as Teflon, is an extraordinary polymer chosen for its exceptional properties as a valve seat material. PTFE boasts an incredibly low coefficient of friction, which translates to reduced operating torque, making the valve easier to actuate even under pressure. More critically, PTFE exhibits remarkable chemical inertness, making it highly resistant to degradation by a wide array of aggressive hydraulic fluids, oils, and additives. Its wide operating temperature range allows the valve to perform consistently across varied environmental conditions, from sub-zero winters to scorching summers. The material's flexibility and resilience enable it to conform precisely to the contours of the hardened steel ball, creating an extremely tight seal that prevents both internal and external leakage (fugitive emissions). This superior sealing capability is crucial for maintaining system pressure, preventing fluid loss, and ensuring the safety and efficiency of the hydraulic system over its operational lifespan. The combination of hardened steel and PTFE seats ensures a durable, low-maintenance, and highly effective sealing interface.
The pressure rating of 600 PSI (pounds per square inch) non-shock is a testament to the valve's robust engineering. "Non-shock pressure" signifies the maximum continuous working pressure the valve can safely withstand in a system where sudden pressure spikes (hydraulic shock or water hammer) are either absent or sufficiently mitigated. For hydraulic systems in commercial trucks, operating pressures can frequently reach several hundred PSI, making this 600 PSI rating highly appropriate for a wide range of applications, from dump body hoists to snowplow lifts and auxiliary equipment controls. This substantial pressure capacity ensures a wide margin of safety, contributing to the overall reliability and longevity of the hydraulic circuit. The material choices – forged brass, hardened steel, and Teflon – are all selected to perform optimally and safely at or below this specified pressure, ensuring structural integrity and leak-free operation.
Connectivity is provided by the 3/4 inch NPT (National Pipe Taper) threads. The 3/4 inch pipe size is a common dimension for fluid lines in medium-duty hydraulic applications, offering a balance between flow capacity and compact installation. NPT threads are the standard for tapered threads in the United States and Canada, widely used in industrial and hydraulic piping systems. The tapered design of NPT threads means that as the male and female threads are tightened, they compress against each other, creating an interference fit that contributes to a leak-tight seal. However, to achieve a fully reliable and leak-free connection, especially in high-pressure hydraulic systems, the use of an appropriate thread sealant (such as PTFE tape or a compatible liquid pipe sealant) is essential. Proper installation techniques, including adequate thread engagement and controlled tightening torque, are critical to prevent thread damage and ensure a durable, leak-free connection capable of withstanding the specified working pressure and the dynamic forces within a truck's hydraulic system.
The carbon steel handle, beyond its primary function of actuating the valve, is designed for both durability and ease of use. Carbon steel offers excellent strength and rigidity, ensuring that the handle can withstand the forces of repeated operation without bending or breaking. Its design facilitates a firm grip, allowing for precise control even when operating with gloved hands, which is common in many outdoor and industrial settings. The distinct quarter-turn operation and clear alignment relative to the valve body provide an immediate visual cue regarding the valve's open or closed state, a crucial safety feature for operators managing multiple hydraulic functions. This clear indication helps prevent accidental operations and ensures that fluid flow is directed as intended, enhancing overall system safety and efficiency.
This 3/4 Inch Brass Body Ball Valve finds its primary and most impactful applications within the challenging environment of commercial and municipal vehicle hydraulic systems. Its robust design makes it ideally suited for:
- Dump Trucks: Controlling the hydraulic cylinders responsible for lifting and lowering the dump bed, requiring precise and reliable flow modulation.
- Snowplows and Salt Spreaders: Managing hydraulic fluid to articulate plow blades (lift, angle, and tilt functions) and operate spreader mechanisms, often under extreme cold and corrosive conditions.
- Refuse Vehicles: Directing fluid flow for compactor plates, lifter arms, and tailgate mechanisms, where rapid cycling and high pressures are common.
- Utility Trucks: Integral to the operation of aerial lifts, crane booms, outriggers, and other auxiliary hydraulic tools, providing essential control over critical safety and operational functions.
- Tow Trucks: Used for controlling winch lines, boom extensions, and wheel lift mechanisms, requiring robust components that can withstand significant loads and intermittent use.
- Forestry and Construction Equipment: While not exclusively for trucks, its specifications make it suitable for smaller hydraulic circuits in mobile off-highway equipment.
Optimal performance of the valve is also contingent upon proper installation and system integration. Before installation, it is imperative to ensure that the hydraulic lines are thoroughly purged of any debris, metal shavings, or contaminants that could damage the valve's internal components or seating surfaces. Pipe ends should be deburred and cleaned. When applying thread sealant, care must be taken to ensure that no excess sealant enters the fluid path, which could potentially foul other hydraulic components. Connections should be tightened to recommended torque specifications to achieve a secure seal without over-stressing the threads or the valve body. Post-installation, a thorough system pressure test should be conducted to verify leak integrity and proper function before putting the vehicle into service. Integrating such a high-quality valve into a well-designed hydraulic system contributes significantly to the longevity and efficiency of the entire fluid power circuit, reducing maintenance needs and improving operational reliability.
It is crucial to reiterate the specific exclusions for the application of this valve: it is explicitly not suitable for steam or potable water systems. These exclusions are based on specific technical and regulatory requirements. For steam applications, the high temperatures, rapid phase changes, and corrosive nature of steam necessitate valves constructed from materials specifically designed for such conditions, often featuring reinforced high-temperature seat materials (e.g., PEEK, metal seats) and body materials with higher resistance to thermal cycling and stress corrosion cracking than standard brass. Standard Teflon (PTFE) seats can degrade under continuous high steam temperatures and rapid thermal shocks. For potable water applications, stringent regulatory standards, such as NSF/ANSI certifications, require lead-free materials to prevent water contamination. While brass is generally durable, standard industrial brass alloys may contain trace amounts of lead that are unacceptable for drinking water systems. Potable water valves must meet specific health and safety standards that this industrial hydraulic valve is not designed or certified to fulfill. These distinctions are critical for ensuring system safety, regulatory compliance, and proper material performance in specialized environments.
In conclusion, the 3/4 Inch Brass Body Ball Valve from Buyers Products is a meticulously engineered component, specifically designed to meet the rigorous demands of truck hydraulic systems. Its construction from forged brass, combined with a hardened steel ball and advanced Teflon seating, ensures exceptional durability, corrosion resistance, and reliable fluid control under pressures up to 600 PSI non-shock. The thoughtful design, encompassing a clear operational indicator and robust carbon steel handle, prioritizes ease of use and safety in demanding applications. By delivering precise flow management and unwavering performance, this valve contributes significantly to the operational efficiency, reliability, and longevity of the heavy-duty vehicles it serves. Buyers Products' commitment to quality and robust design ensures that this valve is a critical, long-term asset in any compatible hydraulic system, providing unmatched value and performance in challenging mobile applications.
