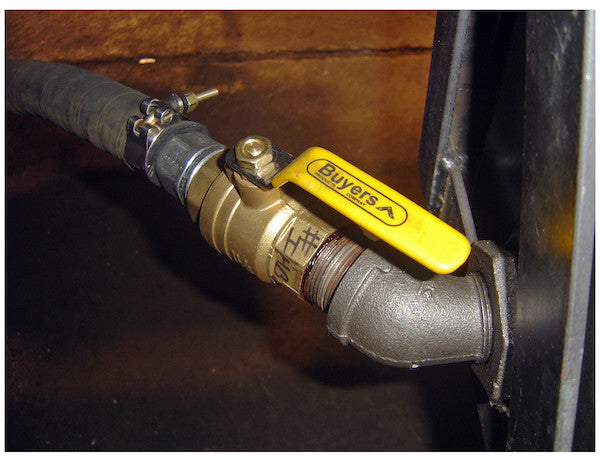

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Brass |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 600 |
| Maximum Working Pressure | 600 |
| Pipe Size | 1.250 |
| Seat Material | Teflon |
| Thread Size | 1 1/4 NPT |
Advanced Technical Overview: 1-1/4 Inch Brass Body Ball Valve for High-Performance Hydraulic Systems
The 1-1/4 Inch Brass Body Ball Valve by Buyers Products represents a critical component in the sophisticated fluid management architecture of mobile hydraulic systems, particularly within commercial truck and heavy equipment applications. Engineered for precision, durability, and operational reliability, this valve is meticulously designed to facilitate the positive and secure control of hydraulic fluid flow, ensuring optimal performance and safety within demanding operational environments. Its robust construction, featuring a forged brass body, hardened steel ball, and Teflon (PTFE) seating, coupled with a 600 PSI non-shock pressure rating, underscores its suitability for rigorous industrial use where consistent fluid control is paramount. This detailed technical exposition will delve into the material science, design principles, operational characteristics, and application considerations that define this exemplary hydraulic control device.
Material Science and Construction Integrity
The selection of materials for critical hydraulic components is never arbitrary; it is the result of extensive engineering analysis aimed at optimizing performance, longevity, and resistance to operational stresses. This ball valve's construction exemplifies this principle through a carefully chosen material palette.
Forged Brass Body: The primary structural component of this valve is its forged brass body. Brass, an alloy primarily composed of copper and zinc, is celebrated in fluid power applications for several inherent advantages. Forging, a manufacturing process that involves shaping metal through localized compressive forces, significantly enhances the material's structural integrity. Unlike cast brass, which can exhibit internal porosity and inconsistent grain structure, forged brass boasts a dense, uniform grain structure that translates directly into superior tensile strength, fatigue resistance, and overall ductility. This enhanced mechanical property profile allows the valve body to withstand the considerable internal pressures and external stresses typical of hydraulic systems without succumbing to deformation or catastrophic failure. Furthermore, brass offers excellent corrosion resistance, particularly against common hydraulic fluids (such as mineral oils, synthetic oils, and certain water-glycol mixtures), minimizing the risk of internal degradation that could lead to fluid contamination or leakage. Its inherent lubricity also contributes to the smooth operation of internal components, while its thermal conductivity aids in dissipating heat generated during fluid flow, contributing to system stability.
Hardened Steel Ball: At the core of the valve's functionality is the spherical ball, crafted from hardened steel. The choice of hardened steel for this dynamic component is critical. The hardening process, typically involving heat treatment, significantly increases the steel's surface hardness and wear resistance. In a ball valve, the ball is subjected to continuous rotational movement against the valve seats and is exposed to the erosive forces of high-velocity fluid flow. A hardened steel ball effectively resists abrasive wear, ensuring the longevity of the critical sealing surfaces and maintaining the valve's tight shut-off capabilities over extended operational cycles. This material also provides exceptional strength to withstand differential pressures across the valve without deformation, ensuring precise flow control and preventing potential seizing under load conditions. The interaction between the hardened steel ball and the Teflon seats is central to the valve's sealing efficacy and durability.
Teflon (PTFE) Seats: The valve's sealing mechanism relies on Teflon (Polytetrafluoroethylene) seats. PTFE is a fluoropolymer renowned for its extraordinary properties, making it an ideal material for valve seats in demanding applications. Key characteristics include:
- Low Coefficient of Friction: PTFE possesses one of the lowest coefficients of friction of any solid material. This property ensures smooth, low-torque operation of the ball, reducing wear on the ball and extending the lifespan of the valve's mechanical components.
- Chemical Inertness: PTFE is virtually immune to attack from most chemicals, including a wide array of hydraulic fluids. This inertness prevents material degradation, swelling, or embrittlement that could compromise the seal and lead to leakage or operational failure.
- Wide Temperature Range: PTFE maintains its mechanical properties and sealing effectiveness across a broad temperature spectrum, making the valve suitable for varying environmental and operational temperatures within hydraulic systems.
- Excellent Sealing Characteristics: PTFE seats conform effectively to the hardened steel ball, providing a bubble-tight seal in both the open and closed positions. Its slight deformability under compressive load helps to compensate for minor imperfections and ensures consistent sealing performance even under fluctuating pressures.
Carbon Steel Handle with Zinc Plated Clear Finish: The valve's handle, fabricated from carbon steel, provides the necessary mechanical strength and rigidity for manual actuation. Carbon steel is chosen for its excellent strength-to-weight ratio and cost-effectiveness. The handle is finished with a clear zinc plating. Zinc plating serves as an effective barrier against corrosion, protecting the underlying carbon steel from environmental factors such as moisture, humidity, and chemical exposure commonly encountered in mobile and industrial settings. The "clear" designation typically refers to a bright, aesthetically pleasing finish that also provides a protective chromate conversion coating, further enhancing corrosion resistance without significantly altering the handle's appearance.
Body Finish (Zinc Plated Clear): Beyond the handle, the body of the valve receives a zinc plated clear finish. This surface treatment is critical for external corrosion protection of the brass body, particularly in environments where the valve might be exposed to road salts, chemicals, or atmospheric moisture. While brass itself offers good corrosion resistance, zinc plating provides an additional layer of sacrificial protection, significantly extending the valve's aesthetic appeal and functional life by preventing surface oxidation and maintaining material integrity against external environmental aggressors.
Operational Mechanism and Design Advantages
The fundamental principle of a ball valve involves a spherical closure element (the "ball") with a bore through its center. When the valve is in the open position, the bore is aligned with the pipeline, allowing unimpeded fluid flow. A 90-degree rotation of the handle positions the solid side of the ball perpendicular to the flow path, thereby blocking the fluid's passage. This straightforward operational mechanism offers several distinct advantages:
- Positive Visual Indication: A key design advantage highlighted by this valve is the ease with which its operational status can be determined. The handle's position directly correlates with the ball's orientation. When the handle is aligned with the pipeline, the valve is open. When the handle is perpendicular to the pipeline, the valve is closed. This clear, unambiguous visual cue is invaluable for operators and maintenance personnel, enhancing safety by preventing accidental system activation or misconfiguration and simplifying troubleshooting procedures within complex hydraulic circuits.
- Quick Quarter-Turn Operation: The 90-degree rotation from fully open to fully closed allows for rapid actuation. This quick response time is essential in hydraulic systems where immediate fluid shut-off or diversion may be required for emergency procedures or precise sequence control.
- Low Pressure Drop: Ball valves, especially those designed with a full port (where the bore diameter is the same as the pipe's internal diameter), offer minimal resistance to fluid flow when fully open. This results in a very low pressure drop across the valve, which helps to maintain system efficiency, reduce energy consumption by pumps, and minimize heat generation within the hydraulic fluid. For a 1-1/4 inch valve, maintaining optimal flow characteristics is vital for system performance.
- Tight Shut-Off Capability: The precision machining of the hardened steel ball and the compliant nature of the PTFE seats ensure a positive, leak-tight seal when the valve is in the closed position. This capability is critical for preventing creepage, maintaining pressure integrity, and ensuring the safety of personnel and equipment in a hydraulic system.
Performance Specifications and System Integration
Understanding the valve's performance specifications is crucial for proper integration into hydraulic circuits.
Maximum Working Pressure: 600 PSI (Non-Shock): The rating of 600 PSI (pounds per square inch) indicates the maximum continuous pressure the valve is designed to safely withstand without compromising its structural integrity or sealing performance. The "non-shock" qualifier is significant in hydraulic engineering. It specifies that this pressure rating applies to static or gradually increasing pressures, rather than sudden, transient pressure spikes (hydraulic shock or water hammer) that can occur due to rapid valve closure or sudden changes in flow direction. Hydraulic shock can generate pressures significantly higher than the nominal system pressure and can severely stress system components. While this valve is robust, systems prone to severe shock may require additional mitigation measures or valves designed specifically for those conditions. For typical truck hydraulic systems involving moderate pressure fluctuations, 600 PSI provides a substantial safety margin and reliable performance.
Pipe Size and Threading: 1-1/4 NPT: The 1.250 inch pipe size, coupled with 1-1/4 NPT (National Pipe Taper) threading, dictates the connectivity standard for this valve. NPT threads are a widely accepted standard in North America for joining pipes and fittings, known for creating a pressure-tight seal through a "dryseal" interference fit. The tapered design allows the threads to wedge together, forming a mechanical seal. Proper installation of NPT connections is critical and typically involves the use of thread sealant (e.g., PTFE tape or pipe dope) to fill any helical leak paths and achieve a truly leak-free connection. The 1-1/4 inch dimension is a common size for main lines or branches requiring significant fluid volume transfer in medium-duty hydraulic applications.
Application Suitability and Limitations
This 1-1/4 Inch Brass Body Ball Valve is specifically engineered for and excels in various fluid control roles within mobile and industrial hydraulic systems.
- Truck Hydraulic Systems: Its primary application lies within the complex hydraulic circuits of commercial trucks. This includes, but is not limited to, dump trucks (for controlling the raise/lower function of the dump body), snowplows (for blade angling and lifting), refuse trucks (for compactor and lift arm control), tow trucks (for winch and boom operations), and various utility and service vehicles that rely on hydraulic power for attachments and implements. The valve's robust construction and reliable operation are perfectly suited for the harsh, dynamic conditions these vehicles often encounter.
- Industrial and Agricultural Machinery: Beyond trucks, the valve is equally applicable in other heavy-duty mobile and static hydraulic systems, such as those found in construction equipment, agricultural machinery, and industrial process control where similar pressure and fluid compatibility requirements exist.
Limitations: Not Suitable for Steam or Potable Water Applications: It is imperative to adhere to the specified application limitations. The valve is explicitly noted as "not suitable for steam or potable water applications." This restriction is based on several factors:
- Steam: High-temperature steam applications typically require materials with superior high-temperature resistance and specific metallurgical properties to withstand thermal cycling, corrosion, and erosion inherent to steam service. While brass has a decent temperature range, the PTFE seats have a definitive upper-temperature limit beyond which they can degrade, soften, or lose their sealing integrity. Additionally, steam service often requires specific valve designs and ratings (e.g., ASME B16.34) that this valve may not meet.
- Potable Water: Valves used in potable (drinking) water systems must comply with stringent health and safety regulations (e.g., NSF/ANSI standards) to ensure that no harmful substances leach into the water. While brass is often used in plumbing, the specific alloy composition, internal lubrication, and other components (like the zinc plating or certain sealants) in a hydraulic valve may not be certified or safe for direct contact with drinking water. Furthermore, the design may not meet flow rates or other requirements specific to municipal water systems.
Adherence to these limitations ensures not only the longevity and performance of the valve but also compliance with safety standards and regulatory requirements for specific fluid services.
Installation and Maintenance Best Practices
The "simple to install and operate" characteristic is a testament to thoughtful engineering, yet proper installation practices are paramount to realizing the valve's full potential and ensuring system integrity.
- Thread Preparation: Prior to installation, ensure that the mating threads on the pipework are clean, free of burrs, and correctly aligned. Apply a suitable hydraulic-grade thread sealant (e.g., PTFE tape specifically rated for hydraulic applications or liquid pipe dope) to the male NPT threads of the pipe. Apply sealant carefully, avoiding excess that could enter the fluid stream and contaminate the system.
- Tightening Torque: Hand-tighten the valve onto the pipe until snug, then use a wrench to apply appropriate tightening torque. Over-tightening can damage threads or distort the valve body, while under-tightening can lead to leaks. Refer to industry-standard torque specifications for 1-1/4 NPT connections.
- Flow Direction: While most ball valves are bidirectional, it's always good practice to observe any marked flow direction indicators if present, though for this type, bidirectional flow is typically assumed when open.
- System Flushing: After installation and before full operation, it is advisable to thoroughly flush the hydraulic system to remove any debris, contaminants, or air that may have entered during installation.
- Operational Checks: Conduct a series of operational checks to ensure the valve actuates smoothly, provides a positive shut-off, and exhibits no external leakage under system pressure.
- Minimal Maintenance: Due to its robust construction, the valve typically requires minimal ongoing maintenance. Periodic visual inspections for external leakage, handle integrity, and proper actuation are generally sufficient. The self-lubricating nature of PTFE seats and the hard-wearing properties of the ball contribute to a long service life without internal adjustments.
Conclusion
The 1-1/4 Inch Brass Body Ball Valve by Buyers Products is a meticulously engineered component, specifically designed to meet the rigorous demands of hydraulic fluid control in critical applications such such as commercial truck and heavy equipment systems. Its construction from forged brass, hardened steel, and high-performance Teflon seats provides a synergistic blend of strength, corrosion resistance, and reliable sealing. With a robust 600 PSI non-shock pressure rating and the intuitive visual feedback of its quarter-turn operation, this valve ensures precise and secure fluid management. Its suitability for hydraulic oils and similar non-corrosive fluids, coupled with a clear understanding of its limitations concerning steam and potable water, positions it as an indispensable and dependable asset for professionals seeking uncompromising quality and performance in their hydraulic system designs.
