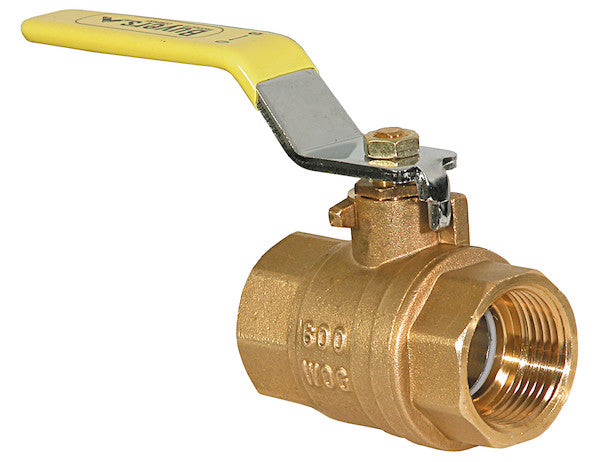

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Brass |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 600 |
| Maximum Working Pressure | 600 |
| Pipe Size | 1.500 |
| Seat Material | Teflon |
| Thread Size | 1 1/2 NPT |
Advanced Technical Overview: 1-1/2 Inch Brass Body Ball Valve for Hydraulic Systems
In demanding industrial and mobile applications, particularly within the robust hydraulic systems of modern trucks, the integrity and reliability of fluid control components are paramount. The 1-1/2 Inch Brass Body Ball Valve from Buyers Products is engineered to meet these rigorous requirements, providing precise, dependable, and durable control over hydraulic fluid flow. This technical exposition delves into the material science, design principles, performance specifications, and application advantages that define this critical component, ensuring optimal system functionality and longevity.
Precision Engineering and Material Selection
Forged Brass Body Construction
The core of this valve's robust design lies in its forged brass body. Brass, an alloy primarily composed of copper and zinc, is meticulously selected for its exceptional combination of strength, machinability, and superior corrosion resistance. Unlike cast brass, which can suffer from internal porosity and inconsistent grain structure, the forging process involves shaping the brass under immense pressure and heat. This mechanical working refines the grain structure, eliminates internal voids, and significantly enhances the material's density, tensile strength, and fatigue resistance. Forged brass bodies provide a structurally sound enclosure capable of withstand the dynamic stresses and pressures inherent in high-performance hydraulic systems. The inherent lubricity of brass also contributes to smooth internal operation and reduced wear on contacting components.
Hardened Steel Ball for Superior Wear Resistance
The control element within the valve, the ball, is crafted from hardened steel. This material choice is critical for several reasons. Hydraulic fluids, while generally clean, can occasionally carry minute abrasive particles or contaminants that, over time, can cause wear on softer materials. Hardened steel offers exceptional surface hardness and wear resistance, maintaining its spherical integrity and smooth finish even after extensive cycles of operation. This superior hardness minimizes the risk of pitting, scoring, or deformation, which could otherwise compromise the valve’s sealing capability and operational smoothness. The precise machining of the hardened steel ball ensures a tight tolerance fit with the seat materials, crucial for achieving a leak-tight seal in both open and closed positions.
Teflon (PTFE) Seats for Chemical Resistance and Low Friction
The sealing integrity of the 1-1/2 Inch Brass Body Ball Valve is primarily attributed to its advanced Teflon (PTFE) seats. Polytetrafluoroethylene, commonly known as Teflon, is a high-performance fluoropolymer renowned for its extraordinary chemical inertness, low coefficient of friction, and wide operational temperature range. In hydraulic applications, PTFE seats provide a resilient, self-lubricating interface between the hardened steel ball and the brass body. This ensures minimal torque required for actuation, preventing galling or seizing even after prolonged periods of inactivity. Furthermore, PTFE exhibits excellent resistance to a broad spectrum of hydraulic fluids, oils, and other common industrial chemicals, preventing material degradation, swelling, or embrittlement that could lead to leakage or operational failure. The inherent elasticity of PTFE allows it to conform intimately to the ball's surface, establishing a reliable, bubble-tight seal under pressure and maintaining sealing performance through numerous cycles.
Carbon Steel Handle with Zinc Plated Clear Finish
Actuation of the valve is achieved via a robust carbon steel handle. Carbon steel is chosen for its superior mechanical strength, providing the necessary rigidity and durability to withstand repeated manual operation, even in environments where impact or harsh handling might occur. The handle's ergonomic design facilitates a quarter-turn rotation, which is the hallmark of ball valve operation, offering rapid and definitive fluid control. To further enhance its resilience and aesthetic longevity, the carbon steel handle is treated with a zinc plated clear finish. Zinc plating provides an effective barrier against corrosion, protecting the handle from rust and environmental degradation, particularly in outdoor or humid conditions common in mobile hydraulic applications. The clear passivation layer adds an additional layer of protection while maintaining a clean, professional appearance.
Performance Specifications and Operational Dynamics
Maximum Pressure Rating: 600 PSI Non-Shock
A critical specification for any hydraulic component is its pressure rating. This 1-1/2 Inch Brass Body Ball Valve is designed and rigorously tested to safely operate at a maximum working pressure of 600 PSI (pounds per square inch) in non-shock conditions. The term "non-shock pressure" is crucial; it refers to the maximum static or gradually applied pressure the valve can withstand without damage or leakage. Hydraulic systems, especially in dynamic environments like truck operations, can experience transient pressure spikes or water hammer phenomena. While the valve is engineered for durability, sustained or excessive shock pressures beyond this rating can potentially compromise its structural integrity, deform internal components, or lead to seal failure. Adherence to this pressure limit is essential for ensuring system safety and the long-term reliability of the valve. The robust forged brass body and high-strength components contribute significantly to achieving this formidable pressure rating, making it suitable for a wide array of medium-pressure hydraulic circuits.
Fluid Control and Flow Characteristics
The fundamental function of a ball valve is to control fluid flow through a system. This 1-1/2 Inch Brass Body Ball Valve facilitates a full-port design, meaning the internal bore of the ball is approximately the same diameter as the connecting pipe (1.500 inches). This design characteristic minimizes pressure drop across the valve in the fully open position, promoting efficient fluid transfer and reducing energy losses within the hydraulic circuit. The quarter-turn actuation provides rapid shut-off or full-flow capabilities. When the handle is aligned with the pipe, the valve is open, allowing unimpeded flow. When the handle is perpendicular to the pipe, the valve is closed, blocking flow entirely. This intuitive visual indication of the valve's state is a significant operational advantage, reducing the likelihood of misoperation and enhancing safety.
Sealing Mechanism and Leak Prevention
The sealing mechanism of this ball valve is a testament to precision engineering. When the valve is closed, the hardened steel ball rotates to press firmly against the two PTFE seats. The resilient nature of the Teflon, coupled with the precision machining of the ball and body, creates a tight, consistent seal. The hydrostatic pressure of the fluid itself often assists in enhancing this seal, pressing the ball more firmly into the downstream seat. The stem, which connects the ball to the handle, is also engineered with robust sealing (typically O-rings or packing, though not explicitly listed for specific material, it is an industry standard expectation for a reliable valve of this type), preventing external leakage and ensuring the integrity of the hydraulic system.
Installation, Operation, and Application
Standardized NPT Threading for Seamless Integration
The valve features 1 1/2 NPT (National Pipe Taper) threading, a widely recognized and utilized standard for general-purpose pipe connections in North America. NPT threads are designed to create a leak-proof seal when properly tightened, as the tapered threads deform and wedge together. This standardization ensures compatibility with a vast range of existing hydraulic system components, allowing for straightforward installation into new or existing hydraulic lines. Proper installation involves applying an appropriate thread sealant (e.g., PTFE tape or pipe thread compound) to the male threads to ensure a secure, leak-free connection, followed by tightening to the recommended torque specifications to avoid over-stressing the valve body.
Ease of Operation and Visual Confirmation
One of the primary advantages of a ball valve, particularly in dynamic work environments, is its inherent simplicity of operation. The quarter-turn mechanism provides instant feedback on the valve's status. The handle's position directly indicates whether the valve is open (aligned with the pipe) or closed (perpendicular to the pipe). This clear visual confirmation reduces operational errors, enhances safety protocols, and simplifies troubleshooting within complex hydraulic circuits. The low operating torque afforded by the PTFE seats further contributes to user-friendliness, allowing for effortless manual actuation even after extended periods of dormancy.
Targeted Applications: Truck Hydraulic Systems
This 1-1/2 Inch Brass Body Ball Valve is specifically optimized for integration into truck hydraulic systems, encompassing a wide array of heavy-duty vehicles and mobile equipment. Examples include:
- Dump Trucks: Controlling the flow to hydraulic cylinders responsible for lifting and lowering the dump bed.
- Snow Plows and Salt Spreaders: Managing fluid to actuators that position plows, raise/lower attachments, and operate spreading mechanisms.
- Refuse Trucks: Directing hydraulic power to compactors, lifters, and ejection systems.
- Utility and Service Vehicles: Utilized in systems for cranes, winches, aerial lifts, and other specialized equipment.
- Agricultural and Construction Machinery: Serving as a reliable shut-off or diversion valve in various hydraulic subsystems.
Limitations and Considerations
Not Suitable for Steam Applications
It is imperative to note that this valve is explicitly not rated for steam service. The primary reason for this exclusion relates to the temperature limitations of the PTFE seat material and other internal elastomers (if present in the stem packing). While PTFE offers a broad operating temperature range, sustained exposure to the high temperatures and pressures characteristic of steam (which can reach well over 212°F or 100°C) can cause significant degradation, softening, or permanent deformation of the seats. This degradation leads to compromised sealing, internal leakage, and ultimately, valve failure. Furthermore, the rapid expansion and contraction associated with steam systems, coupled with potential for cavitation or water hammer, can place undue stress on components not specifically designed for such conditions. Specialized valves with metallic seats or high-temperature-rated elastomers are required for steam applications.
Not Suitable for Potable Water Applications
The valve is also explicitly deemed unsuitable for potable water applications. This restriction is primarily due to material compliance standards concerning lead content in brass alloys and potential leaching of other materials into drinking water. Many brass alloys, while excellent for industrial applications, may contain trace amounts of lead (e.g., C36000 or C37700 often used for forging) which are acceptable for non-potable uses but exceed strict regulatory limits (such as those outlined by the Safe Drinking Water Act in the U.S. or NSF/ANSI 61 standards) for water intended for human consumption. Furthermore, the internal lubricants or seal materials, while ideal for hydraulic oils, might not be certified for contact with potable water. For potable water systems, lead-free brass alloys (e.g., C89833, C69300), stainless steel, or specific plastic materials with appropriate NSF/ANSI certifications are mandatory.
Conclusion
The 1-1/2 Inch Brass Body Ball Valve stands as a testament to engineering excellence, offering a critical component for reliable fluid control in challenging hydraulic environments. Its meticulously selected materials—forged brass for the body, hardened steel for the ball, and advanced Teflon for the seats—work synergistically to deliver exceptional durability, chemical resistance, and sealing integrity. Designed to withstand 600 PSI of non-shock pressure and featuring a user-friendly quarter-turn operation with clear visual indication, this valve ensures efficient and safe system management. While its robust design excels in heavy-duty truck and mobile hydraulic applications, its limitations regarding steam and potable water underscore the importance of material and design specificity for diverse fluid handling requirements. For discerning engineers and operators seeking a high-performance, long-lasting solution for industrial hydraulic fluid regulation, this brass body ball valve represents an optimal choice, providing unmatched reliability and control.
