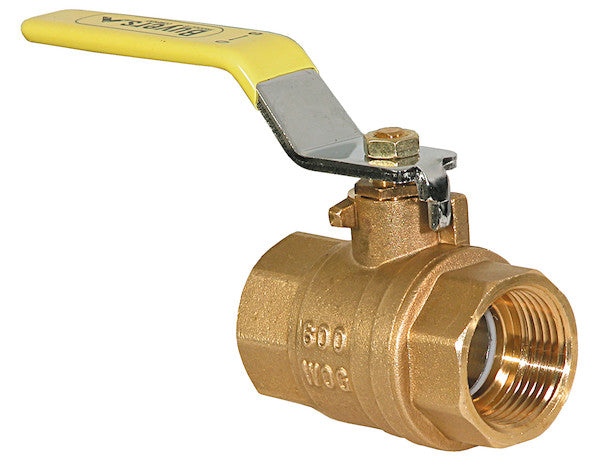

HBV200 - 2 Inch Brass Body Ball Valve

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: 2 Inch Brass Body Ball Valve for Hydraulic Systems

The 2 Inch Brass Body Ball Valve from Buyers Products represents a critical component in the precise control of fluid dynamics within demanding hydraulic systems, particularly those found in commercial and industrial trucks. Engineered for superior performance and longevity, this valve integrates robust material science with a straightforward, highly reliable operational mechanism. Its primary function is to provide an immediate and effective means of regulating fluid flow, ensuring operational efficiency and safety across a wide array of applications where hydraulic power is essential. This detailed technical exposition will delve into the design principles, material selections, performance specifications, and application considerations that define this exemplary ball valve.

Precision Engineering and Material Selection for Optimal Performance

The foundation of the valve's exceptional reliability lies in its meticulously chosen materials and advanced manufacturing processes. Each component has been selected for its specific attributes, contributing to the overall integrity and performance of the assembly:

Forged Brass Body Construction

The valve's body, crafted from high-quality forged brass, is central to its structural integrity and operational lifespan. Forging, a manufacturing process involving the shaping of metal through localized compressive forces, yields a product with a vastly superior grain structure compared to cast alternatives. This results in a non-porous, highly dense material that is inherently stronger and more resistant to fatigue and pressure fluctuations. Brass, an alloy primarily composed of copper and zinc, offers a compelling combination of properties ideal for hydraulic applications:

• Corrosion Resistance: Brass exhibits excellent resistance to corrosion from various hydraulic fluids, including petroleum-based oils and synthetic lubricants, extending the valve's operational life in environments where chemical exposure is constant.
• Mechanical Strength: The inherent strength of forged brass, coupled with its ductility, provides exceptional resistance to cracking and deformation under the sustained high pressures characteristic of hydraulic systems.
• Machinability: Brass is highly machinable, allowing for the precise manufacturing of critical internal dimensions and threaded connections (2 NPT), which are vital for leak-free sealing and optimal flow characteristics.
• Temperature Stability: Brass maintains its mechanical properties across a broad range of operating temperatures, ensuring consistent performance even under varying environmental conditions typical of truck-mounted equipment.
• Economic Viability: While premium in performance, brass offers a cost-effective solution for durable valve bodies, striking an optimal balance between material expense and long-term reliability.

Hardened Steel Ball: The Core of Flow Control

At the heart of the ball valve's functionality is the hardened steel ball. This critical component is responsible for initiating, stopping, and modulating fluid flow. The decision to utilize hardened steel for the ball is dictated by several key engineering considerations:

• Wear Resistance: In hydraulic systems, the constant flow of fluid, often carrying microscopic particulates, can lead to erosive wear. Hardened steel provides superior resistance to abrasion, maintaining the spherical integrity and surface finish essential for tight sealing against the valve seats.
• Compressive Strength: The hardened steel ball can withstand significant compressive forces exerted by the fluid pressure without deforming, ensuring consistent closure and preventing internal leakage.
• Surface Finish: A finely ground and polished surface on the hardened steel ball minimizes friction during actuation and contributes significantly to the valve's sealing performance, ensuring a positive shut-off.
• Durability: The hardening process imparts exceptional toughness and longevity to the steel, making it resilient to the repetitive cycling and mechanical stresses inherent in valve operation.

Teflon (PTFE) Seats: Superior Sealing and Chemical Inertness

The interface between the hardened steel ball and the brass body is critically managed by advanced Teflon (PTFE) seats. PTFE, or polytetrafluoroethylene, is a high-performance fluoropolymer renowned for its unique combination of properties, making it an ideal material for valve seats in hydraulic applications:

• Low Friction Coefficient: PTFE exhibits an exceptionally low coefficient of friction, which translates into smooth and effortless quarter-turn operation of the valve, reducing wear on the ball and stem and minimizing actuation torque.
• Chemical Inertness: PTFE is highly resistant to virtually all hydraulic fluids, including aggressive synthetic oils and additives. This chemical inertness prevents material degradation, swelling, or embrittlement that could compromise sealing integrity over time.
• Wide Temperature Range: PTFE maintains its sealing properties across a broad operational temperature spectrum, crucial for hydraulic systems that can experience significant temperature fluctuations.
• Excellent Sealing Characteristics: The resilient and deformable nature of PTFE allows the seats to conform precisely to the contours of the hardened steel ball, establishing a bubble-tight seal even under high-pressure differentials. This ensures zero external leakage and minimal internal bypass when the valve is in the closed position.
• Long Service Life: The combination of chemical resistance, low friction, and resilience contributes to an extended service life for the valve seats, reducing maintenance requirements and total cost of ownership.

Carbon Steel Handle with Zinc Plated Clear Finish

The valve's operational interface is completed by a robust carbon steel handle, designed for both durability and user-friendliness. Carbon steel offers high tensile strength and impact resistance, ensuring the handle can withstand rigorous use without bending or breaking. The zinc-plated clear finish applied to the handle, and the body, serves a dual purpose:

• Corrosion Protection: The zinc plating acts as a sacrificial layer, corroding preferentially to the underlying carbon steel and brass, thereby significantly enhancing the valve's resistance to atmospheric corrosion, moisture, and mild chemical splashes.
• Aesthetic Appeal: The clear finish provides a clean, professional appearance while allowing the underlying brass color to be visible, ensuring the valve maintains its visual integrity even in harsh operating environments.
• Tactile Feedback: The handle's design provides clear visual and tactile feedback on the valve's position (open or closed), which is critical for safe and efficient operation in dynamic environments.

Operational Parameters and Performance Capabilities

The 2 Inch Brass Body Ball Valve is engineered to meet stringent performance criteria, ensuring reliable fluid control under challenging conditions:

Pressure Rating: 600 PSI Non-Shock

This valve is rated for a Maximum Working Pressure of 600 PSI (pounds per square inch) in non-shock applications. Understanding this specification is paramount for appropriate system integration:

• Maximum Working Pressure (MWP): This indicates the highest continuous pressure the valve can safely withstand without compromising its structural integrity or sealing capabilities.
• Non-Shock Pressure: This critical qualifier implies that the pressure applied to the valve should be static or change gradually, without sudden surges or hydraulic hammer events. Hydraulic hammer, caused by rapid changes in fluid velocity, can generate momentary pressure spikes far exceeding the system's nominal pressure, potentially damaging the valve or other components. While the valve is robust, systems prone to severe shock should incorporate additional dampening or surge protection mechanisms. The 600 PSI rating makes it suitable for a wide range of medium-pressure hydraulic circuits found in utility, municipal, and construction vehicles.

Flow Characteristics: 2-Inch NPT Connection

The 2-inch pipe size and 2 NPT (National Pipe Taper) thread size indicate a valve designed for substantial flow rates. The NPT standard ensures compatibility with a vast array of industrial piping and hose assemblies. Ball valves are inherently capable of providing high flow rates with minimal pressure drop when in the fully open position due to their full-port design, which means the bore through the ball is the same diameter as the connecting pipe. This feature is particularly advantageous in hydraulic systems where maintaining system pressure and minimizing energy losses are critical for efficiency.

Application Specifics in Truck Hydraulic Systems

Designed specifically for truck hydraulic systems, this 2-inch ball valve addresses the unique challenges and demands of mobile hydraulic applications:

• Robustness for Mobile Environments: Truck hydraulic systems are exposed to constant vibration, road shock, temperature extremes, and environmental contaminants. The forged brass body, hardened steel ball, and secure NPT connections ensure the valve can withstand these harsh conditions without failure.
• Reliable Flow Isolation: In truck-mounted equipment such as dump trucks, snowplows, cranes, and service vehicles, reliable isolation of hydraulic circuits is crucial for safety, maintenance, and multi-function operation. This valve provides positive shut-off, allowing operators to isolate specific sections of the hydraulic system for repair, attachment changes, or to prevent unintended actuation.
• Fluid Compatibility: The selected materials—brass, hardened steel, and Teflon—are highly compatible with standard hydraulic oils, ensuring no degradation of components or contamination of the fluid over extended periods of operation.
• Ease of Integration: The standard 2 NPT threading simplifies installation into existing or new hydraulic circuits, requiring common tools and practices for secure, leak-free connections. Its compact design facilitates integration into often space-constrained truck chassis.

Installation, Operation, and Maintenance

The design philosophy extends to user experience, prioritizing simple installation, intuitive operation, and minimal maintenance:

• Simple Installation: The precision-machined 2 NPT threads allow for straightforward connection to hydraulic lines. Proper application of thread sealant and torque, as per industry standards, will ensure a durable, leak-proof union.
• Intuitive Operation: The quarter-turn mechanism, coupled with the distinctive position of the carbon steel handle, provides an unambiguous visual indication of the valve's open or closed status. A 90-degree rotation of the handle fully transitions the valve between these two states. This simplicity reduces the potential for operational errors, enhancing safety.
• Low Maintenance Requirements: The high-quality materials and robust construction minimize the need for frequent maintenance. The inherent lubricity of the Teflon seats reduces wear and tear, contributing to a long operational life without requiring sealing component replacement under normal operating conditions. Regular inspection for external leakage or physical damage is generally sufficient.

Important Application Exclusions

While exceptionally versatile for hydraulic applications, it is critical to adhere to the specified limitations for this valve:

• Not Suitable for Steam Applications: Steam, especially high-pressure steam, presents unique challenges that standard hydraulic valves are not designed to handle. Steam is characterized by high temperatures, significant thermal expansion and contraction cycles, and the potential for "water hammer" (rapid condensation causing violent pressure waves). The materials, particularly the Teflon seats, may not maintain their integrity or sealing effectiveness at typical steam temperatures, leading to premature failure and safety hazards. Specialized steam valves with high-temperature-rated seats and bodies are required for such applications.
• Not Suitable for Potable Water Applications: This valve is not approved for use with potable (drinking) water. Materials used in contact with potable water must meet stringent regulatory standards (e.g., NSF/ANSI 61 in North America) to ensure they do not leach harmful substances into the water supply. While brass is generally safe, the specific alloy composition, internal finishes, and other components (like hardened steel or certain lubricants used during assembly) may not be certified for potable water contact. For drinking water systems, valves explicitly labeled as "lead-free" and certified for potable water use must be selected.

Conclusion: A Benchmark in Hydraulic Fluid Control

The 2 Inch Brass Body Ball Valve from Buyers Products stands as a testament to precision engineering and material science, offering an unparalleled solution for reliable fluid control in heavy-duty truck hydraulic systems. Its forged brass body, hardened steel ball, and Teflon seats are meticulously chosen and integrated to deliver exceptional durability, superior sealing, and consistent performance under the rigorous demands of mobile machinery. Rated for 600 PSI non-shock pressure and featuring standard 2 NPT connections, this valve ensures high flow rates, minimal pressure drop, and seamless integration into various hydraulic circuits. While its robust design excels in its intended hydraulic environment, adherence to its specified limitations, particularly concerning steam and potable water, is crucial for safety and optimal performance. For professionals seeking a dependable, long-lasting, and efficient control valve for critical hydraulic applications, this brass body ball valve offers a technically sound and economically viable choice, embodying the commitment to quality and operational excellence that Buyers Products is known for.
