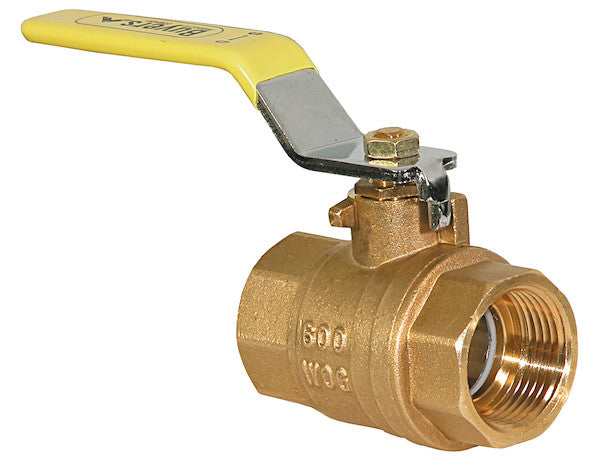

HBV250 - 2-1/2 Brass Body Ball Valve

The Brass Body Ball Valve from Buyers Products easily and reliably controls the flow of fluid in your truck's hydraulic system. The ball valve's design makes it easy to tell if it is open or closed. Simple to install and operate, the valve features sturdy forged brass construction. It's built to handle 600 PSI of non-shock pressure. Choose from a range of valve sizes to meet your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

Advanced Technical Overview: 2-1/2 Brass Body Ball Valve for Hydraulic Systems

The 2-1/2 Brass Body Ball Valve represents a critical component in the sophisticated architecture of modern hydraulic fluid control systems, particularly those integrated into commercial truck applications. Engineered by Buyers Products, this valve is meticulously designed to offer precise, reliable, and durable control over fluid flow within demanding operational environments. Its robust construction, high-pressure rating, and judicious selection of materials underscore its suitability for heavy-duty service where fluid dynamics and system integrity are paramount.

Fundamentals of Ball Valve Technology and Operation

At its core, a ball valve is a quarter-turn valve that utilizes a hollow, pivoting ball to control flow. The ball is positioned within the valve body and features a bore that allows fluid to pass through when aligned with the flow path. A simple 90-degree rotation of the valve handle moves the ball from an open position, where the bore is parallel to the flow, to a closed position, where the bore is perpendicular to the flow, effectively stopping the fluid. This quarter-turn operation is a significant advantage, providing rapid shut-off capability and clear visual indication of the valve's status.

The design principles of a ball valve contribute to several key performance characteristics that make it ideal for hydraulic applications. Firstly, when fully open, the straight-through flow path minimizes pressure drop, ensuring efficient energy transfer within the hydraulic system. This is crucial for maintaining system efficiency and preventing unnecessary heat generation. Secondly, the robust sealing mechanism, achieved through the compression of resilient seat materials against the spherical ball, provides a tight shut-off, preventing leakage and ensuring that fluid is precisely directed only when intended. This zero-leakage characteristic is vital for the performance and safety of hydraulic machinery, where even minor internal leakage can lead to inefficient operation or creep.

The inherent simplicity of the ball valve's mechanical action also contributes to its reliability and longevity. With fewer moving parts compared to other valve types, ball valves exhibit excellent resistance to wear and require minimal maintenance over their service life. This makes them a cost-effective and dependable choice for applications where continuous operation and minimal downtime are critical. The quick actuation also means less time for abrasive fluid flow across sealing surfaces, prolonging the life of critical components.

Material Science: The Strategic Use of Brass in Valve Construction

The selection of brass for the valve body is a deliberate engineering choice that leverages the material's advantageous properties for hydraulic system components. Brass, an alloy primarily composed of copper and zinc, offers an optimal balance of strength, ductility, machinability, and corrosion resistance. Specifically, the use of forged brass in this valve's construction further enhances these properties.

Forging is a manufacturing process that involves shaping metal through localized compressive forces. This process significantly improves the metallurgical grain structure of the brass, eliminating porosity and enhancing its mechanical properties, including tensile strength, fatigue strength, and impact resistance. Forged brass bodies are denser, less prone to internal defects, and possess superior resistance to pressure fluctuations and mechanical stresses compared to cast brass components. This translates directly into a more robust and reliable valve body capable of withstanding the dynamic pressures and vibrations inherent in truck hydraulic systems.

Furthermore, brass exhibits excellent compatibility with a wide range of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and some water-glycol mixtures, without significant degradation or contamination. Its natural resistance to rust and various forms of corrosion, including galvanic corrosion when properly isolated or chosen for compatible system materials, ensures long-term integrity and prevents the introduction of particulate matter into sensitive hydraulic circuits. The Zinc Plated Clear finish applied to the body provides an additional layer of protection against environmental corrosion and abrasion, extending the valve's aesthetic appeal and functional life, especially in exposed truck undercarriage or engine bay installations where road salt, moisture, and debris are common.

Internal Component Integrity: Hardened Steel Ball and Teflon Sealing

The efficacy and longevity of a ball valve are critically dependent on the materials and design of its internal components. For the 2-1/2 Brass Body Ball Valve, Buyers Products has specified Hardened Steel for the ball material and Teflon (PTFE) for the seat material, a combination engineered for optimal performance in high-pressure hydraulic applications.

The choice of Hardened Steel for the ball is paramount for durability. Steel undergoes a hardening process to increase its resistance to wear, abrasion, and deformation. In a ball valve, the ball is subjected to significant frictional forces during actuation and constant pressure from the fluid. A hardened steel ball maintains its spherical integrity over time, ensuring a consistent sealing surface against the seats and preventing premature wear that could lead to leakage or operational failure. Its high compressive strength allows it to withstand the 600 PSI non-shock pressure rating without deforming. The smooth surface finish achievable on hardened steel also reduces friction against the PTFE seats, contributing to easier operation and extended seat life.

Teflon (PTFE) is an exceptional material for valve seats due to its unique combination of properties. Polytetrafluoroethylene (PTFE) is a fluoropolymer renowned for its incredibly low coefficient of friction, superior chemical inertness, and wide operating temperature range. In the context of a ball valve seat, these attributes are indispensable:

• Low Friction: PTFE's slippery surface allows for smooth, low-torque operation of the valve, even under pressure, reducing wear on both the ball and the seats.
• Chemical Resistance: PTFE is virtually impervious to attack from most hydraulic fluids, solvents, and chemicals, preventing degradation of the seat material and ensuring long-term sealing performance.
• Elasticity and Resilience: Although often considered a hard plastic, PTFE possesses sufficient elasticity to conform to the surface of the ball, creating a tight, bubble-tight seal even after repeated cycles. Its ability to recover from deformation ensures consistent sealing over the valve's lifespan.
• Temperature Stability: PTFE maintains its mechanical properties and sealing capability over a broad temperature spectrum, accommodating the typical operating temperatures encountered in mobile hydraulic systems.

The synergy between the hardened steel ball and PTFE seats provides a robust sealing mechanism that ensures zero leakage, minimal operating torque, and extended service life, even under continuous high-pressure cycling.

Handle and Actuation: Carbon Steel for Robust Control

The valve's operational interface, the handle, is constructed from Carbon Steel. Carbon steel offers excellent tensile strength and rigidity, providing a sturdy lever for actuating the valve. Its inherent strength ensures that the handle will not bend or deform under the forces required to turn the ball, especially when the valve has been seated under pressure or has been dormant for a period. The design of the handle, typically a flat bar, offers clear visual feedback: when the handle is aligned parallel to the pipeline, the valve is open; when perpendicular, it is closed. This intuitive visual indicator is crucial for quick and safe operational assessments, particularly in fast-paced or multi-valve hydraulic circuits where system status needs to be instantly verifiable.

Pressure Dynamics: Understanding 600 PSI Non-Shock Rating

The specified Maximum Working Pressure of 600 PSI (pounds per square inch) for non-shock applications is a critical performance parameter. This rating signifies the maximum continuous static pressure the valve is designed to safely withstand without compromising its structural integrity or sealing capability. The qualifier "non-shock" is particularly important in hydraulic engineering.

Non-shock pressure refers to a system where pressure changes occur gradually, without sudden, rapid increases or "spikes." Hydraulic systems, especially those driving cylinders or motors, can generate significant pressure surges (hydraulic shock or water hammer) during rapid actuation, sudden stops, or relief valve operation. These shock pressures can momentarily exceed the system's nominal working pressure by several multiples, potentially leading to material fatigue, seal damage, or even catastrophic failure of components not designed to accommodate them. A valve rated for "non-shock" pressure is optimized for steady-state or slowly varying pressure conditions. While robust, operators must ensure that the valve is installed in a part of the hydraulic circuit where shock pressures are mitigated or inherently absent, or that a properly sized accumulator or pressure dampener is in place to protect the valve and the overall system. Understanding and adhering to this rating is fundamental for ensuring the long-term safety and reliability of the entire hydraulic installation.

Sizing and Connectivity: 2-1/2 Inch NPT for High-Flow Applications

The 2-1/2 inch pipe size and corresponding 2 1/2 NPT thread size indicate this valve is designed for high-flow hydraulic lines. A larger bore allows for a greater volume of fluid to pass through with minimal velocity increase, reducing heat generation and pressure loss, which is essential for efficient operation of large hydraulic cylinders, motors, or multiple actuators simultaneously. For example, in a dump truck, a 2-1/2 inch valve might be used to control the main hydraulic line feeding the lift cylinder, where rapid and powerful actuation is required.

NPT (National Pipe Taper) threads are a widely accepted standard in North America for joining pipes and fittings in pressure applications. The tapered design of NPT threads means that as the male and female threads are tightened, they wedge together, creating a mechanical seal. When combined with a suitable thread sealant (e.g., PTFE tape or pipe dope), NPT connections can provide a highly reliable, leak-free seal capable of holding the specified pressure. Proper installation, including correct thread engagement and torque, is crucial to achieving optimal sealing performance and preventing thread damage.

Applications in Truck Hydraulic Systems

This 2-1/2 Brass Body Ball Valve is specifically tailored for demanding applications within truck hydraulic systems. Commercial trucks, encompassing vocational vehicles such as dump trucks, refuse collection vehicles, snowplows, utility trucks with cranes or liftgates, and tow trucks, heavily rely on robust hydraulic circuits for their specialized functions. In these environments, reliability, durability, and precise control are non-negotiable.

Examples of its application include:

• Main Line Shut-Off: As a primary shut-off valve for the entire hydraulic system, allowing for maintenance, emergency stops, or isolation of specific sub-systems.
• Hydraulic Tool Isolation: Controlling the flow to various hydraulic tools or attachments, such as snowplow lift cylinders, salt spreader motors, or auxiliary power take-off (PTO) driven equipment.
• Load Holding and Directional Control: While not a primary directional control valve, it can be used in conjunction with other components to isolate sections of a circuit, hold a load in position by trapping fluid, or divert flow in simpler systems.
• Reservoir Isolation: Often installed on the suction or return lines connected to the hydraulic reservoir to allow for servicing or replacement of filters without draining the entire system.

The valve's robust forged brass construction and hardened steel ball make it highly resilient to the constant vibrations, varying temperatures, and often corrosive external environments encountered in mobile applications. Its resistance to common hydraulic fluids ensures long-term operational integrity, preventing material degradation that could lead to system contamination or failure.

Installation, Operation, and Maintenance

The valve is designed for simple installation and operation. Installation involves threading the valve into the hydraulic line using the 2 1/2 NPT connections, ensuring proper alignment and sealing with an appropriate thread sealant. Adherence to recommended torque specifications is vital to prevent overtightening, which can damage threads or distort the valve body, or undertightening, which can lead to leaks. Given its robust construction, the valve is largely maintenance-free in normal operating conditions. Periodic visual inspections for external leaks, damage to the handle, or corrosion of the body finish are recommended. The quarter-turn operation and clear handle position indication facilitate straightforward operation, even for less experienced personnel, minimizing the risk of operational errors.

Important Exclusions: Steam and Potable Water Applications

A critical specification notes that the valve is "not suitable for steam or potable water applications." This exclusion is based on fundamental material compatibility and regulatory requirements:

• Steam Applications: High-temperature steam presents several challenges. Standard brass alloys, while robust at moderate temperatures, can experience reduced strength and increased susceptibility to degradation, such as dezincification (leaching of zinc from the alloy), at the elevated temperatures often associated with steam. Furthermore, the PTFE (Teflon) seat material, while thermally stable, has upper-temperature limits that can be exceeded by superheated steam, leading to softening, deformation, and loss of sealing integrity. Specialized valves for steam service typically utilize higher-grade stainless steels, bronze alloys with specific compositions, and high-temperature-resistant seat materials like reinforced PTFE (RTFE), PEEK, or even metal-to-metal seating for extreme conditions.
• Potable Water Applications: The primary reason this brass valve is unsuitable for potable (drinking) water is related to lead content. Traditional brass alloys contain trace amounts of lead (typically 2-4%) to improve machinability. While safe for non-potable industrial applications like hydraulic systems, these lead levels are strictly regulated in potable water systems to prevent lead from leaching into drinking water, which poses health risks. Regulations such as the U.S. Safe Drinking Water Act (SDWA) and NSF/ANSI 61 standards require "lead-free" plumbing components for potable water, meaning the wetted surfaces must contain less than 0.25% weighted average lead content. Valves designed for potable water are manufactured from specific "lead-free" brass alloys (e.g., bismuth brass, silicon brass) or other approved materials. This valve is engineered purely for industrial hydraulic fluid control, not human consumption systems.

Conclusion

The 2-1/2 Brass Body Ball Valve by Buyers Products is a testament to precision engineering for heavy-duty hydraulic applications. Its meticulously selected materials—forged brass body, hardened steel ball, PTFE seats, and carbon steel handle—are all chosen to deliver a product characterized by durability, reliable performance, and ease of operation. With a robust 600 PSI non-shock pressure rating and 2-1/2 NPT connectivity, it is ideally suited for controlling high-volume fluid flow in demanding truck hydraulic systems. While its design excels in this specialized domain, the explicit exclusion from steam and potable water applications underscores the importance of material science and regulatory compliance in valve selection. This valve stands as a reliable workhorse, providing essential fluid control that underpins the operational efficiency and safety of a vast array of vocational machinery.
