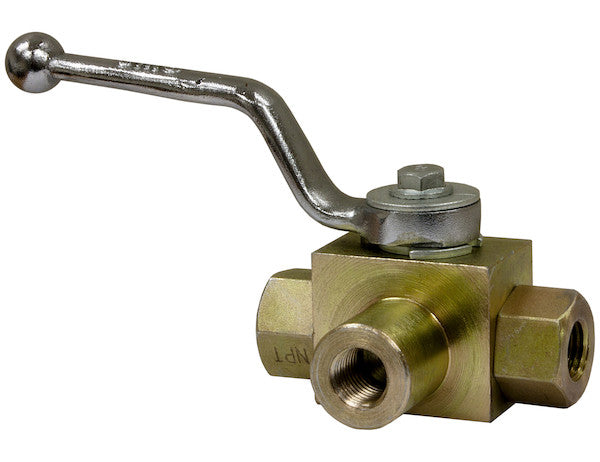

HBV3W050 - 1/2 Inch NPTF 3-Port High Pressure Ball Valve

The 3 Port High Pressure Ball Valve from Buyers Products reliably and easily controls the flow of fluids in your truck's hydraulic system. It's rugged carbon steel construction withstands very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

1/2 Inch NPTF 3-Port High Pressure Ball Valve: Precision Engineering for Demanding Hydraulic Systems

In the realm of modern hydraulic systems, where precision, reliability, and safety are paramount, the 1/2 Inch NPTF 3-Port High Pressure Ball Valve stands as a critical component. Engineered to meet the rigorous demands of industrial and mobile applications, particularly within heavy-duty truck hydraulics, this valve embodies a sophisticated blend of material science and mechanical design. Its function extends beyond mere fluid conveyance; it serves as a robust control mechanism, enabling operators to manage complex fluid circuits with unparalleled ease and safety. This detailed technical exposition delves into the core attributes, operational principles, material specifications, and multifaceted applications that define this essential hydraulic component.

Engineering Excellence: Design and Material Science

The performance of any hydraulic component is intrinsically linked to the quality of its design and the integrity of its constituent materials. The 1/2 Inch NPTF 3-Port High Pressure Ball Valve is a testament to this principle, featuring a construction optimized for extreme pressures and harsh operating conditions.

Robust Carbon Steel Body: Strength and Durability

The primary structural integrity of the valve is derived from its carbon steel body. Carbon steel is a preferred material for high-pressure hydraulic applications due to its exceptional tensile strength, yield strength, and fatigue resistance. These properties allow the valve to reliably withstand operating pressures up to 5800 PSI, significantly exceeding the common threshold for standard hydraulic components. The manufacturing process for the body involves precision machining to ensure accurate port alignment and tight tolerances, critical for consistent performance and prolonged service life. Its inherent rigidity minimizes deformation under pressure, preventing internal leakage paths from developing over time.

Precision Hardened Steel Ball: The Core of Flow Control

At the heart of the ball valve's mechanism lies the hardened steel ball. This component is crucial for the valve's functionality, dictating flow path and shut-off capability. The hardening process significantly enhances the steel's surface hardness and wear resistance, making it impervious to the abrasive effects of high-velocity fluid flow and particulate contamination common in hydraulic systems. The spherical geometry of the ball, precision-ground and polished, ensures a smooth, low-friction rotation within the valve body, facilitating easy actuation and a tight seal against the valve seats. This meticulous engineering of the ball directly contributes to the valve's longevity and consistent, leak-free operation.

Advanced Sealing Solutions: Teflon Seats and Buna N Seals

Effective sealing is paramount in high-pressure hydraulic systems to prevent fluid loss, maintain system efficiency, and ensure operational safety. This valve incorporates a dual-material sealing strategy:

• Teflon (PTFE) Seats: Low Friction and Chemical Resistance: The valve utilizes Teflon (Polytetrafluoroethylene) for its seat material. PTFE is renowned for its extraordinarily low coefficient of friction, which allows for smooth and effortless actuation of the ball, even under significant differential pressures. More critically, PTFE exhibits excellent chemical inertness, making it highly resistant to a vast array of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and some fire-resistant fluids. Its ability to maintain structural integrity and sealing performance across a broad temperature range (typically from -100°F to +400°F, though specific application limits may vary) further enhances the valve's versatility. Under high pressure, PTFE seats deform slightly to conform tightly around the hardened steel ball, creating a robust, bubble-tight seal that prevents internal leakage.
• Buna N (Nitrile Rubber) Seals: Superior Hydraulic Fluid Compatibility: Complementing the PTFE seats are Buna N (Nitrile Rubber) seals, primarily used for dynamic and static sealing elements around the stem and body joints. Buna N is specifically chosen for its exceptional resistance to petroleum-based hydraulic oils, greases, and solvents, which are ubiquitous in hydraulic systems. It offers excellent abrasion resistance and good compression set characteristics, meaning it retains its original shape and sealing force over prolonged periods, even after sustained compression. While Buna N has a more limited temperature range compared to PTFE (typically -40°F to +250°F), it is perfectly suited for the general operating temperatures encountered in most mobile and industrial hydraulic applications. The synergy between PTFE seats and Buna N seals creates a highly effective and durable sealing system, safeguarding against both internal and external leakage.

The Blow-Out Proof Stem: A Critical Safety Feature

Safety is a non-negotiable aspect in high-pressure applications. The valve incorporates a blow-out proof stem design. This critical safety feature ensures that the stem cannot be ejected from the valve body under pressure, even in the event of internal component failure or improper assembly. The stem is typically inserted from the inside of the valve body, with a shoulder or collar larger than the bore of the gland, physically restraining it. This design significantly enhances operator safety and prevents catastrophic failures that could lead to injury or extensive equipment damage, making it compliant with various industry safety standards for pressurized equipment.

Enhanced Protection: Zinc Plated Clear Finish

To further augment its durability and resistance to environmental degradation, the valve body receives a zinc plated clear finish. Zinc plating provides an effective sacrificial barrier against corrosion, protecting the underlying carbon steel from rust and oxidation. The clear chromate conversion coating applied over the zinc layer enhances this corrosion resistance, provides a clear, aesthetically pleasing finish, and improves paint adhesion if required. This protective layer is particularly vital for valves operating in exposed environments, such as on mobile equipment, where they are routinely subjected to moisture, road salts, and various industrial contaminants.

Ergonomic and Durable Actuation: Carbon Steel Handle

The control handle, crafted from carbon steel, provides a robust and reliable interface for manual valve operation. Its material choice ensures durability and resistance to bending or breakage, even under strenuous operation. The handle is typically designed for comfortable grip and leverage, facilitating easy quarter-turn actuation of the ball for rapid fluid flow control. Its secure attachment to the blow-out proof stem ensures precise alignment and reliable engagement.

Operational Mechanics and System Integration

Beyond its material composition, the functional design of this 3-port ball valve offers significant operational advantages and versatility within hydraulic circuits.

Understanding the 3-Port Configuration: Versatility in Fluid Routing

A key distinguishing feature of this valve is its 3-port configuration. Unlike 2-port (on/off) valves, a 3-port ball valve offers expanded functionality, allowing for the redirection or mixing of fluid flows. The "3-port" designation refers to the three distinct connection points for hydraulic lines. Depending on the internal bore design of the ball, these valves can typically operate in one of two primary flow patterns:

• L-Port Flow Pattern: An L-port ball has an L-shaped bore, allowing fluid to flow between two of the three ports at any given time. A 90-degree turn of the handle shifts the flow to a different pair of ports. This configuration is ideal for diverting flow from one line to another, such as directing hydraulic power to different actuators or selecting between two input sources.
• T-Port Flow Pattern: A T-port ball features a T-shaped bore, which provides even greater versatility. In one position, it can allow fluid to flow straight through two ports while diverting the flow from a third port. In another position, it can allow all three ports to be open, enabling mixing or simultaneous flow to two outputs from a single input. T-port valves are commonly used for bypassing components, selecting between multiple functions, or managing complex flow paths in a single valve body.

The specific flow pattern (L-port or T-port) will determine the valve's application. For hydraulic truck systems, this versatility is invaluable for controlling auxiliary functions like dump beds, plows, spreaders, or lifting mechanisms, offering compact and efficient control without the need for multiple 2-way valves.

High-Pressure Performance: Engineered for Demanding Environments

The valve's impressive maximum working pressure of 5800 PSI (5000 PSI for water, oil, gas) places it firmly in the category of high-pressure hydraulic components. Achieving and sustaining such pressures requires meticulous design and manufacturing. Every aspect, from the thickness of the carbon steel body to the precision of the hardened steel ball and the resilience of the PTFE seats, is engineered to prevent creep, fatigue, and catastrophic failure under these extreme conditions. High-pressure capability is crucial for systems that require significant force generation, operate with small bore cylinders, or manage high-speed actuators, common in heavy machinery, construction equipment, and specialized industrial processes.

The NPTF Thread Standard: Secure and Reliable Connections

The specified 1/2 Inch NPTF thread size is a critical detail for system integration. NPTF stands for National Pipe Taper Fuel. It is a variant of the widely used NPT (National Pipe Taper) standard, specifically designed to achieve a dry, mechanical seal without the need for thread sealant, though sealant is often still used as a secondary measure or for enhanced reliability. The taper of the threads causes them to wedge together when tightened, creating an interference fit that effectively seals against leakage. The "F" in NPTF indicates that the thread root and crest are controlled to allow for metal-to-metal sealing, minimizing the spiral leak path inherent in standard NPT threads. This self-sealing characteristic is highly advantageous in hydraulic systems where reliable, leak-free connections are essential for performance and safety. The 1/2-inch size denotes the nominal pipe diameter, indicating suitability for moderate to high flow rates typically encountered in robust hydraulic circuits.

The Quarter-Turn Advantage: Speed and Efficiency

Ball valves are inherently quarter-turn devices, meaning they only require a 90-degree rotation of the handle to transition from fully open to fully closed or to switch between flow paths in a 3-port configuration. This rapid actuation provides significant operational benefits:

• Quick Response: Allows for immediate control over fluid flow, critical in applications requiring rapid activation or deactivation of hydraulic functions.
• Ease of Operation: The simple quarter-turn motion is intuitive and requires minimal effort, even for high-pressure valves, especially with an appropriately sized handle providing sufficient leverage.
• Visual Indication: The position of the handle often directly indicates the valve's state, allowing for easy visual confirmation of flow direction or shut-off status.

Diverse Applications in High-Demand Industries

The robust construction and versatile design of the 1/2 Inch NPTF 3-Port High Pressure Ball Valve render it indispensable across a spectrum of demanding applications.

Core Application: Heavy-Duty Truck Hydraulic Systems

As indicated, a primary application for this valve is in heavy-duty truck hydraulic systems. This includes, but is not limited to:

• Dump Trucks: Controlling the lift and lower functions of dump bodies.
• Refuse Vehicles: Managing compaction mechanisms, lifters, and ejection plates.
• Snow Plows and Salt Spreaders: Directing hydraulic power to blade articulation, lift, and spreader motors.
• Service and Utility Trucks: Operating cranes, outriggers, aerial lifts, and other auxiliary equipment.
• Agricultural Machinery: Controlling implements, steering, and various hydraulic functions on tractors and harvesters.

In these mobile applications, the valve's ability to withstand vibration, environmental exposure, and high cycle counts under pressure is critical for uninterrupted operation.

Expanding Horizons: Industrial and Mobile Equipment

Beyond heavy-duty trucks, the valve's specifications make it suitable for a wide range of other high-pressure hydraulic systems:

• Construction Equipment: Excavators, loaders, bulldozers, and backhoes for managing auxiliary circuits or pilot lines.
• Manufacturing and Machine Tools: As part of hydraulic power units controlling presses, clamping mechanisms, and automation processes.
• Material Handling Equipment: Forklifts, conveyors, and lifting platforms requiring precise and reliable hydraulic control.
• Oil and Gas Sector: Non-critical control functions on drilling rigs, wellhead equipment, or fluid transfer systems where high pressure and robust construction are required.
• Offshore and Marine Applications: Provided appropriate corrosion considerations for the external environment are met, for various fluid power systems.

Fluid Medium Compatibility: Oils, Water, and Gases

The valve is designed for efficient control of various fluid mediums, including hydraulic oils, non-potable water, and inert gases. The material selection, particularly the Buna N seals and Teflon seats, ensures broad compatibility with standard petroleum-based and many synthetic hydraulic fluids. Its rating for water and gas applications (up to 5000 PSI) expands its utility, though it is crucial to re-emphasize the specific exclusions mentioned.

Performance Benchmarks and Reliability Factors

The sum of its carefully selected materials and precise engineering results in a valve that offers exceptional performance and long-term reliability.

Achieving Optimal Leakage Control

The combination of a precision-ground hardened steel ball and resilient Teflon seats, backed by robust Buna N O-rings, provides multiple layers of defense against both internal and external leakage. The tight seating mechanism prevents bypass leakage when the valve is in a closed position, ensuring that fluid power is effectively directed. The durable external seals maintain the integrity of the valve body, preventing environmental contamination and fluid loss from the system, which is crucial for maintaining hydraulic efficiency and reducing operational costs.

Extended Service Life and Reduced Maintenance

The choice of highly durable materials—carbon steel, hardened steel, Teflon, and Buna N—contributes significantly to the valve's extended service life. These materials resist wear, corrosion (with the zinc plating), and degradation from typical hydraulic fluids and operating conditions. The blow-out proof stem design further enhances longevity by protecting against component failure. This inherent durability translates into reduced maintenance requirements and lower total cost of ownership over the valve's lifespan, making it an economically sound investment for continuous operation.

Safety Compliance and Operational Integrity

The design principles underlying this ball valve prioritize operational safety. The blow-out proof stem is a prime example, providing a critical safeguard against hazardous pressure release. Furthermore, the robust construction ensures that the valve maintains its structural integrity under specified maximum working pressures, minimizing the risk of catastrophic failure. This focus on safety allows operators to work with confidence, knowing that the fluid control mechanism is designed to perform reliably under challenging conditions.

Installation Best Practices and System Design Considerations

Proper installation is crucial for maximizing the performance and longevity of the 1/2 Inch NPTF 3-Port High Pressure Ball Valve.

• Proper Thread Engagement and Sealing: When installing, ensure full and proper engagement of the NPTF threads. While NPTF threads are designed for a dry seal, the use of a high-quality thread sealant or PTFE tape specifically rated for hydraulic applications and high pressures is highly recommended to ensure an absolute leak-free connection and to lubricate the threads, aiding in assembly and disassembly. Overtightening should be avoided as it can damage threads and valve components, while undertightening will result in leaks.
• Pressure Rating Matching: Always ensure that the valve's maximum working pressure rating (5800 PSI) meets or exceeds the maximum anticipated pressure within the hydraulic system. Operating a valve above its rated pressure can lead to catastrophic failure.
• Flow Dynamics and Pressure Drop: While ball valves are known for their minimal pressure drop in the full open position, designers should consider the flow characteristics, especially with 3-port configurations, to ensure adequate flow rates are maintained for downstream components. Proper sizing also prevents cavitation and excessive heat generation within the system.
• Environmental Considerations: While zinc plating offers good corrosion resistance, for extremely aggressive environments (e.g., marine, highly corrosive industrial atmospheres), additional protective coatings or enclosures may be necessary to extend the valve's external life.

Important Application Exclusions

It is vital to reiterate and clarify the specific applications for which this valve is not suitable:

• Why Not for Steam Applications?: Steam applications typically involve high temperatures and often require valves constructed from specialized materials (e.g., stainless steel, specific high-temperature alloys) and sealing compounds (e.g., graphite) that can withstand extreme thermal cycling, aggressive condensation, and erosive velocities. The Buna N seals and Teflon seats, while robust for hydraulics, are not engineered to endure the specific high-temperature and chemical characteristics of steam, which would rapidly degrade their sealing capabilities and potentially lead to valve failure.
• Why Not for Potable Water?: The primary reason for exclusion from potable water applications is related to health and safety regulations. Components used in drinking water systems must comply with stringent standards (e.g., NSF/ANSI certifications) to ensure that no harmful substances leach into the water. The materials used in this industrial hydraulic valve, particularly the carbon steel with zinc plating and certain seal compounds, are not certified for contact with potable water and could potentially introduce contaminants, making it unsuitable for human consumption systems.

The Value Proposition: Precision, Durability, and Safety

The 1/2 Inch NPTF 3-Port High Pressure Ball Valve represents a significant investment in system integrity and operational efficiency. Its value proposition is multifaceted:

• Precision Control: Enables accurate and versatile management of hydraulic fluid flow within complex circuits.
• Exceptional Durability: Constructed from robust materials designed to withstand extreme pressures and harsh operating conditions, ensuring a long service life.
• Enhanced Safety: Features like the blow-out proof stem provide critical protection for operators and equipment.
• Reliable Performance: Advanced sealing solutions guarantee leak-free operation, preserving system efficiency and reducing downtime.
• Broad Application Suitability: Ideal for a wide range of mobile and industrial hydraulic applications, especially those requiring high-pressure capabilities.

Conclusion: A Foundation for Hydraulic Excellence

In conclusion, the 1/2 Inch NPTF 3-Port High Pressure Ball Valve is not merely a valve; it is a meticulously engineered component designed to be a cornerstone of high-performance hydraulic systems. Its superior material selection—including carbon steel, hardened steel, Teflon, and Buna N—combined with a sophisticated 3-port design, NPTF thread standard, and vital safety features like the blow-out proof stem, collectively ensure unparalleled reliability, safety, and operational flexibility. For engineers and system integrators seeking a robust, high-pressure flow control solution for demanding environments such as heavy-duty truck hydraulics or general industrial machinery, this valve provides a dependable foundation for hydraulic excellence, optimizing system performance and ensuring long-term operational integrity.
