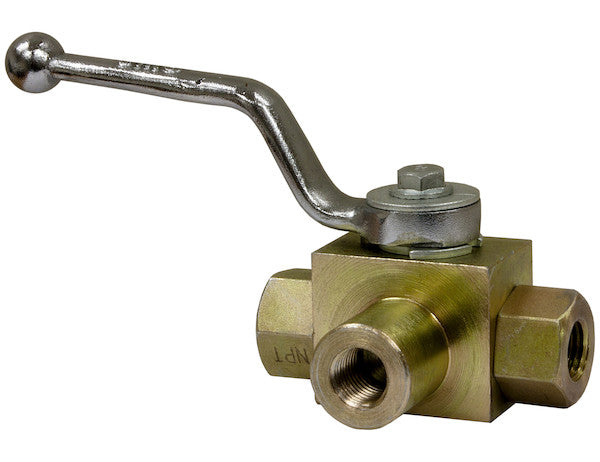

The 3 Port High Pressure Ball Valve from Buyers Products reliably and easily controls the flow of fluids in your truck's hydraulic system. It's rugged carbon steel construction withstands very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Carbon Steel |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 5000 |
| Maximum Working Pressure | 5000 |
| Pipe Size | 0.750 |
| Seat Material | Teflon |
| Thread Size | 3/4 NPT |
Advanced Technical Overview: 3/4 Inch NPTF 3-Port High Pressure Ball Valve
This comprehensive technical overview details the engineering, materials, and operational advantages of the 3/4 Inch NPTF 3-Port High Pressure Ball Valve, designed for demanding industrial and mobile hydraulic applications. Engineered to provide robust, reliable, and precise fluid flow control, this valve stands as a critical component in systems where operational integrity under extreme conditions is paramount. Its design integrates high-grade materials and advanced sealing technologies to ensure sustained performance, safety, and longevity within high-pressure hydraulic circuits, particularly prevalent in heavy-duty truck and commercial vehicle systems.
The Engineering Imperative of High-Pressure Fluid Control
Hydraulic systems are fundamentally dependent on the efficient and reliable transfer of power through pressurized fluid. Within this context, control valves serve as the orchestrators of flow, directing hydraulic energy to actuators, motors, and other system components. In high-pressure environments, such as those reaching 5000 PSI (approximately 345 bar), the demands on these components are exceptionally stringent. Failure is not merely an inconvenience but can lead to catastrophic equipment damage, significant downtime, and severe safety hazards. Therefore, the design and material selection for a high-pressure ball valve must prioritize structural integrity, sealing efficacy, and operational safety. This particular 3-port ball valve exemplifies these critical engineering principles, offering a solution that can withstand the rigors of continuous high-pressure operation while maintaining precise control over hydraulic fluids like water, oil, and gas, excluding steam and potable water applications due to specific material compatibility and regulatory requirements.
Core Design: The 3-Port Configuration
The defining characteristic of this valve, beyond its high-pressure capability, is its 3-port configuration. Unlike traditional 2-port (on-off) ball valves, a 3-port valve introduces enhanced functionality, allowing for fluid diversion, mixing, or flow reversal within a single compact unit. This design typically features an "L-port" or "T-port" flow path through the spherical ball, which can be rotated to connect different combinations of ports. An "L-port" configuration connects the common port to one of the two outlet ports, ideal for diverting flow from one circuit to another. A "T-port" configuration, conversely, can connect the common port to both outlet ports simultaneously, allowing for mixing or distributing flow, or it can divert flow as an L-port does depending on the handle's position. This versatility significantly simplifies hydraulic circuit design by reducing the number of individual valves required, minimizing potential leak points, and optimizing plumbing complexity. In a truck hydraulic system, for instance, a 3-port valve can efficiently switch hydraulic power between a dump bed cylinder and an auxiliary function, such as a snow plow lift, without requiring a complete shut-off and restart sequence. This operational flexibility contributes to increased system efficiency, reduced installation costs, and streamlined control interfaces for operators.
Pressure Rating and Structural Integrity: 5000 PSI Capability
The ability of this valve to reliably operate at a maximum working pressure of 5000 PSI is a testament to its robust engineering and material selection. Achieving such high-pressure containment demands careful consideration of every component's mechanical properties. The valve body and handle are constructed from high-grade carbon steel, a material renowned for its exceptional tensile strength, yield strength, and fatigue resistance. These properties are critical for enduring the immense internal stresses exerted by hydraulic fluids at 5000 PSI, preventing deformation, cracking, or catastrophic failure. The design incorporates optimized wall thicknesses and reinforcement at stress concentration points, ensuring that the structural integrity is maintained across the entire pressure envelope. Manufacturing processes for these components involve precision machining and rigorous quality control to ensure dimensional accuracy and surface finish, both of which are paramount for proper sealing and stress distribution. Each valve's pressure rating is typically validated through hydrostatic testing, where the valve is subjected to pressures exceeding its maximum working pressure (often 1.5 times the working pressure) to confirm its containment capabilities without leakage or permanent deformation. This meticulous approach to material specification and structural design ensures that the valve can perform safely and consistently even under peak operational loads and transient pressure spikes common in dynamic hydraulic systems.
Precision Sealing: Buna Seals and Teflon Seats
Effective sealing is foundational to the performance and reliability of any hydraulic valve, especially one operating at 5000 PSI. This valve employs a dual-material sealing strategy, combining Buna (Nitrile Rubber) seals for dynamic and static sealing elements, and Teflon (PTFE) for the ball seats.
Buna (Nitrile Rubber) Seals: Buna-N, or Nitrile Butadiene Rubber, is a synthetic rubber copolymer widely favored in hydraulic applications due to its excellent resistance to petroleum-based oils and fuels, water, and various solvents. Its mechanical properties, including high tensile strength, good abrasion resistance, and low compression set, make it ideal for seals around the valve stem and body joints. In a high-pressure ball valve, Buna seals provide critical sealing against external leakage, ensuring the integrity of the fluid circuit. They exhibit good resilience across a moderate temperature range, typically from -30°F to +250°F (-34°C to +121°C), making them suitable for the operational temperatures encountered in most truck hydraulic systems. Their ability to maintain elasticity and sealing force over time, even under continuous compression and exposure to hydraulic fluids, is crucial for long-term, leak-free operation.
Teflon (PTFE) Seats: The valve's seats are crafted from Teflon, or Polytetrafluoroethylene (PTFE), a high-performance fluoropolymer recognized for its exceptional chemical inertness, wide temperature range, and remarkably low coefficient of friction. In a ball valve, the seats are critical components that interface directly with the rotating ball, providing the primary seal against internal leakage when the valve is in a closed or diverted position. Teflon's properties make it an ideal choice for this demanding application. Its low friction ensures smooth, low-torque operation of the ball, reducing wear on the actuation mechanism and simplifying manual operation. More importantly, Teflon's excellent resistance to creep and cold flow, even under high pressure, allows it to maintain a tight seal against the hardened steel ball over extended periods. It can withstand a broad range of temperatures, from extreme lows to over 500°F (260°C), although the overall valve's temperature rating will be limited by other components like the Buna seals. The chemical inertness of Teflon also makes it compatible with a vast array of hydraulic fluids, resisting degradation that could compromise sealing performance. The combination of Buna and Teflon seals creates a robust, multi-layered sealing system that ensures both internal and external fluid integrity, maximizing the valve's efficiency and lifespan in high-pressure hydraulic environments.
Enhanced Safety: The Non-Blowout Stem
A critical safety feature integrated into this high-pressure ball valve is the non-blowout stem design. In traditional valve designs, the stem is inserted from the top and held in place by external components. In the event of excessive pressure buildup or component failure, such a stem could be forcibly ejected from the valve body, leading to a sudden and uncontrolled release of high-pressure fluid. This poses a severe hazard to personnel and surrounding equipment. The non-blowout stem design mitigates this risk by machining the stem with a shoulder that is larger than the bore of the valve body on the inside. This shoulder fits into a recess within the valve body, meaning the stem is installed from the inside of the valve and cannot be expelled by internal pressure, even if the packing or gland nuts were to fail. This inherent safety feature is not merely an enhancement but a fundamental requirement in high-pressure applications where worker safety and environmental protection are paramount. It aligns with industry best practices and regulatory standards for pressure-containing equipment, providing an indispensable layer of protection against potentially catastrophic failures and contributing significantly to a safer operational environment for hydraulic system users.
Connection Standard: 3/4 Inch NPTF Threading
The valve utilizes 3/4 Inch NPTF (National Pipe Taper Fuel) threading, a widely recognized and specified standard for fluid power connections, particularly in North American industries. NPTF threads are a variant of NPT (National Pipe Taper) threads, with a crucial distinction: NPTF threads are designed for "dryseal" applications. This means the crests and roots of the threads are designed to interfere with each other when tightened, creating a metal-to-metal seal without the absolute necessity of thread sealants (though their use is often recommended for added security and ease of assembly). The tapering of the threads, both internal and external, ensures that as the connection is tightened, the flanks compress against each other, forming a leak-tight seal. The 3/4 inch nominal pipe size denotes the internal diameter of the pipe that the valve is designed to connect to. The precision manufacturing of NPTF threads is essential for achieving reliable, leak-free connections in high-pressure hydraulic systems, where even minor leakage can lead to system inefficiency, safety concerns, and environmental contamination. Proper installation techniques, including adequate torque and clean threads, are vital to maximize the sealing performance of NPTF connections. This standardized connection method ensures compatibility with a vast range of existing hydraulic components and facilitates easy integration into new and legacy systems, making it a practical choice for industrial and mobile equipment.
Ball Material and Finish: Hardened Steel and Zinc Plated Clear
The selection of materials for the internal components and external finish significantly impacts the valve's performance and longevity.
Hardened Steel Ball: The spherical ball, the central flow control element, is fabricated from hardened steel. Hardening is a heat treatment process that increases the hardness and strength of the steel, making it exceptionally resistant to wear, abrasion, and deformation under the high forces exerted by pressurized fluid. In a ball valve, the ball continuously rotates against the seats, and its surface integrity is crucial for maintaining a tight seal and smooth operation. A hardened steel ball prevents galling and erosive wear, especially when handling fluids that may contain particulate matter, thus extending the valve's service life and ensuring consistent shut-off performance. The precision grinding and polishing of the hardened ball's surface also contribute to its sealing effectiveness, reducing friction and wear on the Teflon seats.
Zinc Plated Clear Body Finish: The carbon steel valve body is protected with a zinc plated clear finish. Zinc plating provides excellent sacrificial corrosion protection, meaning the zinc coating corrodes preferentially to the underlying carbon steel, safeguarding the valve body from rust and environmental degradation. The clear chromate passivation applied over the zinc plating enhances this corrosion resistance further and provides a more aesthetically pleasing, bright finish. This protective coating is particularly valuable in the harsh operating environments often encountered by truck hydraulic systems, which are exposed to moisture, road salts, chemicals, and abrasive elements. The durable finish ensures the valve maintains its structural integrity and appearance over time, minimizing maintenance requirements and extending its operational life in demanding outdoor and industrial settings.
Applications in Truck Hydraulic Systems
The 3/4 Inch NPTF 3-Port High Pressure Ball Valve is specifically engineered for rigorous use in truck hydraulic systems. Its robust construction and high-pressure rating make it indispensable for applications such as:
- Dump Trucks: Controlling the flow to hydraulic cylinders for raising and lowering dump beds.
- Snow Plows and Salt Spreaders: Directing hydraulic power for lifting, angling, and deploying plows, as well as operating spreader mechanisms.
- Refuse Vehicles: Managing the complex hydraulic circuits for compaction, lifting, and unloading mechanisms.
- Cranes and Lifts: Providing precise control for boom articulation, extension, and stabilization in vehicle-mounted crane systems.
- Utility and Service Vehicles: Powering various auxiliary equipment like winches, aerial platforms, and tool drives.
Operational and Environmental Considerations
While designed for high performance, specific operational and environmental parameters must be observed. The valve is rated for use with water, oil, and gas, but explicitly not suitable for steam or potable water applications. This exclusion is critical and based on material compatibility and regulatory requirements. Steam applications typically involve significantly higher temperatures and specific material demands that exceed the operational limits of Buna seals and certain aspects of carbon steel. Potable water applications, on the other hand, often require specific material certifications (e.g., NSF/ANSI standards) to prevent leaching of contaminants into drinking water, which standard industrial-grade carbon steel and zinc plating typically do not meet. Users must also consider the temperature range of the hydraulic fluid, ensuring it falls within the limits of the Buna seals and Teflon seats to prevent material degradation. Proper filtration of hydraulic fluid is essential to prevent particulate matter from damaging the hardened steel ball and Teflon seats, which could lead to internal leakage and reduced operational efficiency. Regular inspection for external leakage, stem packing integrity, and smooth handle operation will ensure the valve continues to provide reliable service throughout its intended lifespan.
