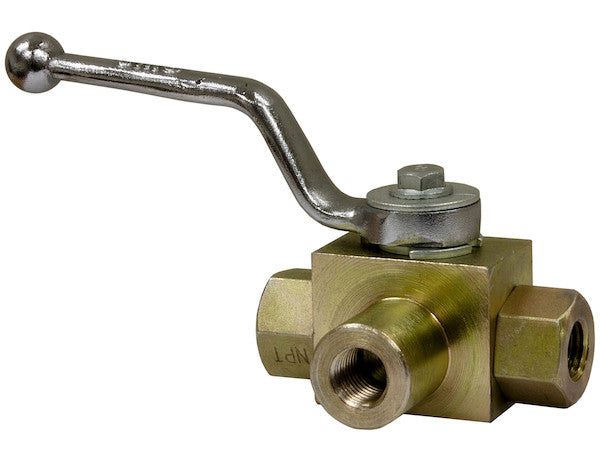

The 3 Port High Pressure Ball Valve from Buyers Products reliably and easily controls the flow of fluids in your truck's hydraulic system. It's rugged carbon steel construction withstands very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Carbon Steel |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 5000 |
| Maximum Working Pressure | 5000 |
| Pipe Size | 1.000 |
| Seat Material | Teflon |
| Thread Size | 1 NPT |
Advanced Technical Overview: 1 Inch NPTF 3-Port High Pressure Ball Valve for Hydraulic Systems
The 1 Inch NPTF 3-Port High Pressure Ball Valve, engineered by Buyers Products, represents a pinnacle of fluid control technology specifically designed for the rigorous demands of modern hydraulic systems. This robust component is meticulously crafted to ensure reliable and efficient management of fluid flow, providing essential operational integrity for a wide array of heavy-duty vehicular and industrial applications. Its design, characterized by a 3-port configuration and an impressive 5000 PSI maximum working pressure rating, positions it as a critical element in systems requiring precise control, high durability, and superior safety.
Core Functionality and Design Principles
At its heart, this valve operates on the well-established principle of a ball valve mechanism, offering rapid quarter-turn actuation for fluid isolation or diversion. Unlike conventional 2-port valves designed solely for on/off functions, the 3-port configuration significantly enhances system versatility. A 3-port ball valve typically features either an L-port or T-port ball design. While specific porting is not detailed, both configurations facilitate complex flow management. An L-port ball allows flow from one inlet to either of two outlets or isolates one port while connecting the other two. A T-port ball offers even greater flexibility, enabling flow between any two ports, or simultaneously between all three ports, which is crucial for mixing, diverting, or selecting fluid paths within a hydraulic circuit. This capability is invaluable in dynamic hydraulic environments where sequential operation, fluid routing, or pressure equalization between multiple lines is often required. The inclusion of a 1 Inch NPTF thread size ensures a standardized, highly secure connection within the hydraulic manifold or line, critical for maintaining system integrity under high-pressure conditions.
Engineering for Extreme Pressures: The 5000 PSI Advantage
The valve's defining characteristic is its extraordinary maximum working pressure rating of 5000 PSI (pounds per square inch). This specification is not merely a number; it is a testament to the rigorous engineering and selection of materials necessary to reliably contain and control hydraulic fluid at immense pressures. Such pressure ratings are imperative in heavy machinery and industrial hydraulics where forces generated must be substantial to perform tasks like lifting, pushing, or clamping. The ability to withstand 5000 PSI ensures that the valve will not deform, leak, or fail under the operational stresses typical of high-performance truck hydraulic systems, thereby safeguarding both equipment and personnel. The structural integrity is maintained through a combination of robust material selection and precision manufacturing techniques, which are paramount in preventing catastrophic failures such as rupture or uncontrolled fluid release.
Material Science and Structural Integrity
The selection of materials for this 3-Port High Pressure Ball Valve is a critical factor in its superior performance and longevity:
Body Material: Carbon Steel
The valve's body is constructed from high-grade carbon steel. Carbon steel is an alloy of iron and carbon, known for its exceptional strength-to-weight ratio, hardness, and durability. In high-pressure hydraulic applications, carbon steel provides the necessary tensile strength and yield strength to resist deformation under intense internal pressures. It also offers good fatigue resistance, crucial for components subjected to cyclic pressure loading typical in hydraulic systems. The economic viability of carbon steel, coupled with its robust mechanical properties, makes it an ideal choice for a component that must be both reliable and cost-effective for heavy-duty commercial applications.
Body Finish: Zinc Plated Clear
To augment the inherent durability of carbon steel, the valve body undergoes a zinc plating process followed by a clear chromate conversion coating. Zinc plating provides a sacrificial barrier against corrosion. In the event of surface damage, the zinc layer corrodes preferentially to the underlying steel, protecting the base metal. The clear chromate finish further enhances this corrosion resistance by forming a passive layer, improving adherence, and offering a visually appealing, non-reflective surface. This protective layer is vital for valves operating in exposed environments, such as on the exterior or underside of trucks, where they are subjected to moisture, road salts, dirt, and other corrosive agents that can degrade unprotected steel over time, leading to pitting, rust, and ultimately, structural compromise.
Ball Material: Hardened Steel
The internal rotating ball, the core component responsible for flow control, is made from hardened steel. Hardening is a heat treatment process that increases the hardness and strength of steel, particularly its wear resistance. In a ball valve, the ball is constantly in contact with the seats and subjected to high-velocity fluid flow, which can cause erosion and abrasion. Hardened steel resists this wear effectively, maintaining its spherical integrity and smooth surface finish, which is essential for consistent sealing performance and preventing internal leakage over the valve’s operational lifespan. This material choice ensures precise flow control and durability even under frequent actuation and the passage of potentially abrasive hydraulic fluids.
Seat Material: Teflon (PTFE)
The valve seats are manufactured from Teflon, a proprietary name for Polytetrafluoroethylene (PTFE). PTFE is a synthetic fluoropolymer of tetrafluoroethylene, renowned for its remarkably low coefficient of friction, excellent chemical inertness, and wide operating temperature range. In a high-pressure ball valve, PTFE seats provide a superior sealing interface against the hardened steel ball. Its malleability allows it to conform slightly to the ball's surface, creating a tight, low-leakage seal. Furthermore, PTFE's chemical resistance makes it impervious to degradation from various hydraulic fluids, oils, and other common industrial chemicals, ensuring long-term sealing performance without material breakdown. Its low friction also contributes to the ease of valve actuation, reducing torque requirements for operation.
Seal Material: Buna (Nitrile Rubber)
Complementing the Teflon seats, the valve incorporates Buna seals. Buna-N, also known as Nitrile Rubber (NBR), is a synthetic rubber copolymer of acrylonitrile and butadiene. It is widely recognized for its excellent resistance to petroleum-based oils and fuels, as well as its superior abrasion resistance. In hydraulic applications, Buna seals are crucial for preventing external leakage of hydraulic fluid around the stem and body joints. Their elastic properties allow them to maintain a tight seal under varying pressures and temperatures, preventing fluid loss that could lead to system inefficiency, environmental contamination, or safety hazards. The specific formulation of Buna used is engineered to provide an optimal balance of flexibility, resilience, and resistance to the specific chemical composition of hydraulic oils, ensuring robust and reliable sealing throughout the valve's service life.
Advanced Safety Feature: Non-Blowout Stem Design
A critical safety and reliability feature of this valve is its non-blowout stem design. In high-pressure applications, the stem, which connects the external handle to the internal ball, is subjected to significant internal pressure trying to force it outwards. A conventional stem, if improperly designed or installed, could be ejected under extreme pressure, leading to a rapid and uncontrolled discharge of high-pressure fluid. This poses a severe risk of injury to personnel and significant damage to equipment. The non-blowout stem design incorporates a shoulder on the stem that is larger than the hole it passes through on the inside of the valve body. This design ensures that even if the external packing or retaining components fail, the internal pressure will force the stem shoulder against the internal body, preventing it from being expelled from the valve. This inherent safety mechanism is a testament to the valve's adherence to stringent industrial safety standards and its commitment to operational integrity under the most demanding conditions.
Precision Threading: 1 Inch NPTF
The valve features 1 Inch NPTF (National Pipe Taper Fuel) threads. NPTF threads are a specialized type of NPT (National Pipe Taper) thread designed to create a mechanical seal without the need for additional sealant, although sealant is often recommended for added security in high-pressure applications. The "F" in NPTF signifies "fuel," indicating its suitability for applications where fluid containment is critical and leak-tight connections are paramount. The tapered design of both the male and female threads allows them to wedge together, creating a metal-to-metal interference fit. The 1-inch nominal pipe size corresponds to the standard dimensions for flow capacity and connection compatibility within a wide range of hydraulic systems, facilitating straightforward integration and maintenance.
Applications in Truck Hydraulic Systems
This 1 Inch NPTF 3-Port High Pressure Ball Valve is an indispensable component in a multitude of truck hydraulic systems, where reliability and precise fluid control are paramount. Examples include:
- Dump Trucks and Trailers: Controlling the hydraulic cylinders for lifting and lowering the dump bed, often requiring fluid diversion for auxiliary functions.
- Snow Plows and Spreaders: Managing the hydraulic flow for blade angling, lifting, and operating salt/sand spreaders.
- Lift Gates and Cranes: Directing fluid to various cylinders for accurate positioning and controlled movement of heavy loads.
- Wreckers and Rollback Trucks: Essential for operating winches, booms, and wheel lifts with precision and power.
- Utility and Service Vehicles: Used in aerial lifts, digger derricks, and other utility equipment requiring complex hydraulic circuit management.
In these applications, the valve's ability to withstand 5000 PSI ensures that the hydraulic power is efficiently transmitted and controlled, facilitating robust and safe operation of the attached equipment. The 3-port design allows for versatile system configurations, enabling operators to switch between functions or divert fluid paths with a simple quarter-turn of the carbon steel handle.
Installation, Maintenance, and Limitations
Proper installation of the 1 Inch NPTF threads is crucial for achieving a leak-free connection. While NPTF threads are designed for a mechanical seal, the use of a high-quality thread sealant or PTFE tape specifically rated for hydraulic applications and high pressures is generally recommended to ensure maximum sealing integrity and to facilitate future disassembly without galling. The robust construction and material selection of this valve contribute to a low-maintenance profile, minimizing downtime and operational costs over its extensive service life.
It is important to reiterate the specified limitations: this valve is explicitly noted as not suitable for steam or potable water applications. Steam applications typically require valves designed for extreme temperatures and specific sealing materials (e.g., graphite, specialized polymers) capable of withstanding thermal cycling and superheated vapor. Potable water applications, conversely, demand valves manufactured from lead-free materials (e.g., brass or stainless steel) and certified to meet specific health and safety standards to prevent contamination of drinking water supplies. This valve is optimized for the viscosity, pressure, and chemical composition of hydraulic oils, ensuring peak performance within its intended operational envelope.
Conclusion
The 1 Inch NPTF 3-Port High Pressure Ball Valve from Buyers Products stands as an exemplary component for demanding hydraulic systems. Its meticulous design, integrating hardened carbon steel, zinc plating, Teflon seats, and Buna seals, provides unparalleled durability and resistance to wear and corrosion. The 5000 PSI maximum working pressure capability, combined with a crucial non-blowout stem design, ensures both operational efficiency and paramount safety in high-stakes environments. The 3-port configuration with 1 NPTF threading offers versatile fluid management and secure connections, making it an ideal choice for truck hydraulic systems and other heavy-duty applications requiring precise, reliable, and safe control of high-pressure fluids. This valve is not merely a component; it is an engineered solution for critical fluid dynamics, embodying precision, strength, and longevity.
