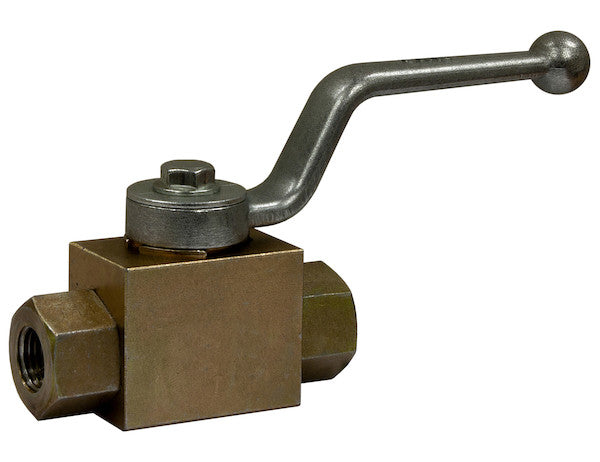

The 2 Port High Pressure Ball Valve from Buyers Products reliably controls the flow of fluids in your truck's hydraulic system. It's made to withstand very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Carbon Steel |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 7250 |
| Maximum Working Pressure | 7250 |
| Pipe Size | 0.500 |
| Seat Material | Teflon |
| Thread Size | 1/2 NPT |
Technical Overview: 1/2 Inch NPTF 2-Port High Pressure Ball Valve for Demanding Hydraulic Systems
The 1/2 Inch NPTF 2-Port High Pressure Ball Valve represents a critical component engineered for the stringent demands of modern hydraulic systems. Designed and manufactured by Buyers Products, this valve provides reliable and precise fluid flow control in applications where operational integrity under extreme pressure is paramount. Its robust construction, meticulously selected materials, and advanced design features ensure exceptional performance, longevity, and safety within heavy-duty mobile and industrial hydraulic environments.
Core Functionality and Design Principles
At its heart, this valve operates as a 2-port, quarter-turn ball valve. This configuration signifies its primary role as an on/off device, facilitating the complete isolation or full flow of hydraulic fluid within a circuit. The quarter-turn mechanism, requiring only a 90-degree rotation of the handle to transition between fully open and fully closed positions, offers rapid actuation and clear visual indication of the valve's operational state. This simplicity of operation, combined with its compact form factor, makes it an ideal choice for various applications requiring straightforward flow management.
High Pressure Rating: Engineering for Extreme Conditions
A standout characteristic of this ball valve is its impressive maximum working pressure rating of 7250 PSI (500 bar). Achieving such a high-pressure capability requires a deliberate and sophisticated engineering approach. The valve body, constructed from high-strength Carbon Steel, is precisely machined to withstand significant internal stresses without deformation or fatigue failure. The inherent strength and ductility of carbon steel, often further enhanced through specific heat treatments, make it a preferred material for high-pressure hydraulic components. The design incorporates thick wall sections and optimized internal geometries to distribute loads effectively, mitigating stress concentrations that could lead to failure under peak operating pressures. This robust design ensures the valve's reliability in systems commonly found in heavy machinery, construction equipment, agricultural vehicles, and other demanding industrial hydraulic applications where sustained high pressures are commonplace.
NPTF Threading for Superior Sealing Integrity
The specification of 1/2 Inch NPTF (National Pipe Taper Fuel) threads is a critical design choice that underscores the valve's suitability for high-pressure hydraulic systems. Unlike standard NPT (National Pipe Taper) threads, NPTF threads are specifically designed for mechanical interference sealing without the necessity of thread sealant for a primary seal. The 'F' in NPTF denotes "Fuel," indicating its suitability for applications where fluid containment is critical and leak paths must be eliminated. The threads are engineered with precise tolerances to ensure metal-to-metal contact at the crest and root, as well as along the flanks of the thread. This creates a dryseal connection, minimizing the risk of leaks associated with vibration, thermal cycling, or pressure fluctuations often encountered in dynamic hydraulic environments. The 1/2-inch nominal pipe size ensures an optimal balance between flow capacity and compact integration into existing hydraulic lines, making it versatile for a wide array of fluid power circuits.
Advanced Material Science for Durability and Performance
The selection of materials for each component within the valve is meticulously tailored to its specific functional requirements, contributing to the overall durability, sealing effectiveness, and operational lifespan.
Body Material: Carbon Steel with Zinc Plated Clear Finish
The valve body, the primary structural component, is forged or cast from Carbon Steel. Carbon steel is renowned for its exceptional tensile strength, yield strength, and fatigue resistance, properties crucial for withstanding the immense forces exerted by high-pressure hydraulic fluids. Its robust mechanical properties ensure dimensional stability and structural integrity even under continuous high-stress operation. To protect this robust foundation, the body features a Zinc Plated Clear finish. Zinc plating provides excellent cathodic protection, acting as a sacrificial coating that corrodes preferentially to the steel body, thereby preventing rust and corrosion, especially in environments exposed to moisture, chemicals, or abrasive elements. The "clear" aspect refers to the chromate conversion coating applied over the zinc, which further enhances corrosion resistance and provides a clean, professional aesthetic, while also offering a degree of lubricity.
Ball Material: Hardened Steel
The spherical ball, responsible for controlling fluid flow, is crafted from Hardened Steel. The hardening process, typically involving heat treatment, significantly increases the surface hardness and wear resistance of the steel. In a high-pressure ball valve, the ball experiences substantial mechanical forces during actuation and continuous fluid impingement. A hardened surface prevents erosion, galling, and deformation, ensuring smooth rotation and maintaining a tight seal against the valve seats over thousands of operational cycles. The exceptional hardness also contributes to the valve's ability to maintain its geometry under the high differential pressures, preventing leakage.
Seat Material: Teflon (PTFE)
The valve seats, critical for achieving a leak-tight seal when the valve is closed, are manufactured from Teflon (Polytetrafluoroethylene, or PTFE). PTFE is an advanced synthetic fluoropolymer known for its extraordinary properties:
- Low Coefficient of Friction: This property allows for smooth, low-torque operation of the ball, reducing wear on the stem and actuator mechanisms.
- Chemical Inertness: PTFE is virtually impervious to most chemicals, including common hydraulic oils and synthetic fluids, ensuring no degradation or contamination of the fluid or the valve material itself.
- Wide Temperature Range: PTFE maintains its mechanical properties and sealing effectiveness across a broad spectrum of temperatures, crucial for hydraulic systems that can experience significant thermal fluctuations.
- Excellent Sealing Characteristics: Its inherent flexibility allows the PTFE seats to conform precisely to the surface of the hardened steel ball, creating a highly effective, bubble-tight seal even under extreme pressure. While PTFE performs exceptionally well under high pressure, it is important to note that its temperature limits are a primary reason why the valve is not suitable for steam applications.
Stem Design: Blow-Out Proof Safety Feature
A critical safety feature integrated into this ball valve is its blow-out proof stem design. In high-pressure applications, should the internal pressure become excessively high, there is a theoretical risk of the valve stem being expelled from the valve body. A blow-out proof stem is designed with an internal shoulder that prevents the stem from being pushed out by system pressure, even if the packing gland or other external retaining components fail. This design enhances operational safety, protecting personnel and preventing catastrophic system failures by ensuring the stem remains securely contained within the valve body under all operating conditions.
Sealing System: Buna Seals
Beyond the primary PTFE seats, the valve incorporates Buna seals for additional sealing points, particularly around the stem. Buna, commonly known as Nitrile Rubber (NBR), is a copolymer of acrylonitrile and butadiene. It is widely recognized in the hydraulic industry for its outstanding properties:
- Excellent Resistance to Hydraulic Fluids: Buna is highly resistant to petroleum-based oils and fuels, common hydraulic fluids, making it an ideal choice for preventing leakage and material degradation.
- Abrasion and Tear Resistance: Its mechanical strength contributes to the longevity of the seals, even under dynamic conditions or minor particulate contamination.
- Temperature Range: Buna offers a good operational temperature range, complementing the PTFE seats for general hydraulic applications.
Handle Material: Carbon Steel
The handle, facilitating manual actuation of the valve, is also constructed from Carbon Steel. This choice ensures robustness and durability, allowing for firm and reliable operation without concern for bending or breaking, even with repetitive use in harsh environments. The carbon steel handle complements the overall heavy-duty construction of the valve.
Application Suitability and Operational Considerations
This 1/2 Inch NPTF 2-Port High Pressure Ball Valve is specifically engineered for severe-duty applications within mobile and industrial hydraulic systems. Typical applications include:
- Heavy Construction Equipment: Excavators, bulldozers, loaders, and cranes where precise control of hydraulic circuits operating at high pressures is essential.
- Agricultural Machinery: Tractors, harvesters, and implements requiring robust and reliable flow control for various hydraulic functions.
- Material Handling Equipment: Forklifts, telehandlers, and lift platforms where safety and precise fluid management are critical.
- Waste Management Vehicles: Refuse compactors and collection vehicles that utilize powerful hydraulic systems for compaction and lifting mechanisms.
- Industrial Hydraulic Power Units: Static industrial machinery, presses, and manufacturing equipment requiring dependable high-pressure isolation.
- Auxiliary Systems in Oil & Gas: Non-corrosive, high-pressure hydraulic lines in onshore and offshore applications.
Fluid Compatibility and Limitations
While exceptionally robust for hydraulic oils and similar non-corrosive fluids, the valve's design, particularly its seal and seat materials, dictates specific fluid compatibility limitations:
- Not Suitable for Steam: The high temperatures associated with steam applications exceed the thermal limits of the Buna seals and PTFE seats, leading to rapid degradation, loss of sealing integrity, and potential failure.
- Not Suitable for Potable Water: The materials used, while excellent for industrial fluids, are not certified for contact with potable (drinking) water. There could be concerns regarding leaching of materials or compliance with public health standards for drinking water systems. For potable water applications, valves specifically designed and certified for such use (e.g., NSF/ANSI standards) are required.
It is imperative that users adhere to these fluid compatibility guidelines to ensure the valve's safe and reliable operation and to prevent premature wear or system contamination.
Installation and Maintenance Guidelines
Proper installation is crucial for maximizing the performance and lifespan of this high-pressure ball valve. When installing, ensure:
- Cleanliness: Hydraulic systems must be meticulously clean. Any particulate matter can damage valve seats and seals, leading to premature failure.
- Thread Preparation: While NPTF threads are designed for dryseal connections, a minimal amount of hydraulic thread sealant compatible with high pressure may be used judiciously on the male threads to ensure optimal sealing, taking care not to obstruct the flow path or contaminate the system.
- Proper Torque: Connections should be tightened to manufacturer specifications to achieve a secure, leak-free seal without over-stressing the valve body or fittings.
- System Flushing: After installation, the hydraulic system should be thoroughly flushed to remove any residual debris or air before full operation.
Maintenance for ball valves is generally minimal due to their simple and robust design. Periodic visual inspections for external leakage, corrosion, or damage are recommended. The blow-out proof stem design and durable Buna seals contribute to long service intervals, reducing the total cost of ownership.
Conclusion: A Benchmark in High-Pressure Hydraulic Control
The 1/2 Inch NPTF 2-Port High Pressure Ball Valve from Buyers Products stands as a testament to engineering excellence in the realm of hydraulic fluid control. Its meticulously chosen carbon steel body, hardened steel ball, Teflon seats, and Buna seals, coupled with its advanced blow-out proof stem design, are all synergistically integrated to deliver a product of unparalleled reliability and safety. With a formidable 7250 PSI working pressure rating and precision NPTF threading, this valve is not merely a component but a foundational element for maintaining peak performance and operational continuity in the most demanding hydraulic applications. For professionals seeking a robust, safe, and efficient solution for on/off flow control in high-pressure hydraulic systems, this valve represents an intelligent and dependable investment.
