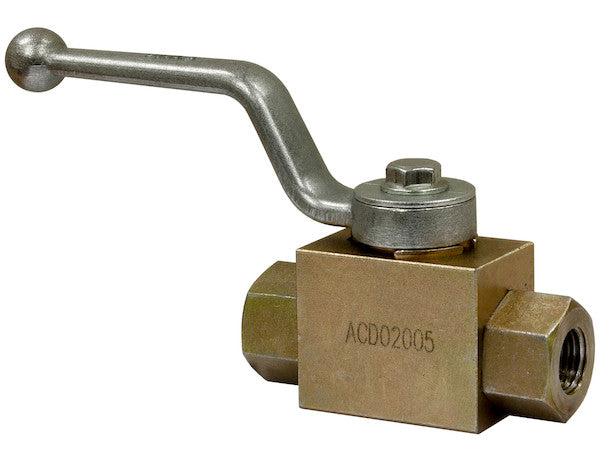

The 2 Port High Pressure Ball Valve from Buyers Products reliably controls the flow of fluids in your truck's hydraulic system. It's made to withstand very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.
Specifications
| Ball Material | Hardened Steel |
|---|---|
| Body Finish | Zinc Plated Clear |
| Body Material | Carbon Steel |
| Body Style | Ball |
| Handle Material_1 | Carbon Steel |
| Maximum Pressure (Water, Oil, Gas) | 7250 |
| Maximum Working Pressure | 7250 |
| Pipe Size | 0.750 |
| Seat Material | Teflon |
| Thread Size | 3/4 NPT |
Comprehensive Technical Overview: 3/4 Inch NPTF 2-Port High Pressure Ball Valve
The 3/4 Inch NPTF 2-Port High Pressure Ball Valve represents a critical component in advanced hydraulic systems, engineered for uncompromising performance and reliability in demanding industrial and mobile applications. This valve is meticulously designed to manage fluid flow with precision, integrity, and safety, even under extreme operating conditions. Its construction and material selection reflect a deep understanding of fluid dynamics and material science, ensuring longevity and consistent functionality.
Engineering Excellence in Design and Construction
At the core of this high-pressure ball valve's robust performance lies its superior design and choice of materials. The valve body is fabricated from high-grade Carbon Steel, a material renowned for its exceptional tensile strength and fatigue resistance, making it an ideal choice for containing hydraulic pressures up to 7250 PSI (500 bar). Carbon steel offers a formidable balance of mechanical properties, capable of withstanding the dynamic stresses inherent in high-pressure hydraulic circuits without succumbing to deformation or catastrophic failure. This inherent strength is crucial for applications where sudden pressure spikes or continuous high-pressure cycling are routine.
Further enhancing the durability and lifespan of the carbon steel body is the application of a Zinc Plated Clear finish. This surface treatment is not merely aesthetic; it serves as a vital protective barrier against environmental aggressors. Zinc plating provides excellent galvanic corrosion resistance, effectively preventing oxidation and deterioration of the steel body. In environments where exposure to moisture, road salts, or other corrosive agents is common, such as in truck-mounted hydraulic systems, this protective layer is indispensable. The clear passivation layer further seals the zinc, offering enhanced protection and maintaining the valve's appearance over time, minimizing maintenance requirements and preserving operational integrity.
Advanced Ball and Seating Mechanism
The operational integrity of a ball valve is largely dependent on the quality of its internal components, particularly the ball and seat. In this 2-Port High Pressure Ball Valve, the ball is crafted from Hardened Steel. This material undergoes specific heat treatments to achieve superior hardness, wear resistance, and dimensional stability. Hardened steel effectively resists erosion from high-velocity fluid flow and abrasive particulates that might be present in hydraulic oil. This resistance ensures that the spherical integrity of the ball is maintained, which is paramount for achieving a leak-tight seal and precise flow control over countless operational cycles. The hardening process also augments the ball's ability to withstand significant differential pressures across its surface without deforming, thus preventing internal leakage and maintaining the valve's rated performance.
Complementing the hardened steel ball are the precision-engineered Teflon (PTFE) seats. Polytetrafluoroethylene (PTFE), commonly known by its brand name Teflon, is selected for its extraordinary properties that make it uniquely suited for high-pressure sealing applications. PTFE exhibits an exceptionally low coefficient of friction, which allows for smooth and effortless quarter-turn operation of the valve, even under high system pressure. Its chemical inertness ensures compatibility with a vast array of hydraulic fluids, including mineral oils, synthetic esters, and environmentally friendly alternatives, without degradation or contamination. Furthermore, PTFE possesses excellent temperature stability, performing reliably across a broad operational temperature range typical of hydraulic systems. The resilient yet firm nature of PTFE seats provides a reliable, bubble-tight seal against the hardened steel ball, effectively preventing internal bypass and ensuring accurate control of fluid pathways. The combination of hardened steel and PTFE creates a low-wear, high-performance sealing interface that contributes significantly to the valve's extended service life.
Superior Sealing Technology: Buna Seals and Non-Blowout Stem
External leakage control and operational safety are paramount in high-pressure hydraulic applications. This valve incorporates Buna (Nitrile Butadiene Rubber) seals, a highly effective sealing compound meticulously chosen for its exceptional resistance to petroleum-based hydraulic fluids, oils, and greases. Buna seals offer an excellent balance of elasticity, compression set resistance, and tensile strength, allowing them to form a durable and consistent seal around the valve stem and other critical interfaces. Their resilience ensures they maintain sealing force even under fluctuating pressures and temperatures, preventing the egress of hydraulic fluid and safeguarding system efficiency and environmental cleanliness. The specific formulation of the Buna compound utilized is optimized for the intended hydraulic media, maximizing its operational lifespan and preventing premature degradation.
A critical safety feature integrated into the design is the non-blowout stem. In high-pressure environments, an unsecured stem can be ejected from the valve body under extreme pressure, posing a significant safety hazard. This valve is engineered with a specialized stem retention mechanism that physically prevents the stem from blowing out, even in the unlikely event of over-pressurization or internal seal failure. The stem is designed with an enlarged collar or shoulder that seats against an internal machined surface of the valve body, effectively capturing it within the valve. This robust design feature underscores a commitment to operator safety and system integrity, providing an essential layer of protection in demanding industrial settings where hydraulic system pressures can be formidable.
Performance Characteristics and Pressure Ratings
The 3/4 Inch NPTF 2-Port High Pressure Ball Valve is rated for a Maximum Working Pressure of 7250 PSI (500 Bar), a testament to its robust engineering and material selection. This pressure rating is not merely an arbitrary figure but the result of rigorous design calculations, material testing, and extensive validation processes to ensure the valve can operate continuously and safely at or below this pressure. It signifies the maximum continuous pressure the valve can endure without experiencing material fatigue, leakage, or structural compromise, providing a substantial safety margin for typical hydraulic system operations. This high-pressure capability makes the valve suitable for the most demanding hydraulic circuits, where fluid power is central to heavy machinery operation and efficient force transmission.
While the stated working pressure is 7250 PSI, it's important to understand the concept of burst pressure. Burst pressure refers to the maximum pressure a component can withstand before catastrophic failure. Industrial standards typically mandate a safety factor, meaning the burst pressure is significantly higher than the maximum working pressure, often by a factor of 3:1 or 4:1. This inherent over-design provides an additional layer of safety against unforeseen pressure surges or transient spikes in the hydraulic system, ensuring the valve remains intact and functional, thereby protecting personnel and equipment downstream.
Thread Standard: 3/4 Inch NPTF for Reliable Sealing
The valve features 3/4 Inch NPTF (National Pipe Taper Fuel) thread connections. NPTF threads are a variant of the widely used National Pipe Taper (NPT) standard, specifically designed to provide a dry, self-sealing connection without the need for additional sealant compounds like Teflon tape or pipe dope. The "F" in NPTF signifies "Fuel" and denotes a thread form manufactured to tighter tolerances than standard NPT. This precision ensures that the crests of the male thread physically crush into the roots of the female thread upon assembly, creating a metal-to-metal seal that is highly resistant to leakage under high pressure. This characteristic is particularly advantageous in hydraulic systems where even minor fluid seepage can lead to performance degradation, environmental contamination, or safety hazards. The tapered design of both male and female threads causes them to wedge together when tightened, providing mechanical strength and a robust seal against both internal and external pressures. The 3/4 inch nominal size indicates the approximate internal diameter of the pipe or port it connects to, ensuring compatibility with standard hydraulic plumbing components.
Operational Principles and User Interface
As a 2-port ball valve, its function is elegantly simple yet profoundly effective: to provide absolute ON/OFF control of fluid flow within a hydraulic line. The valve operates via a quarter-turn rotation, meaning a 90-degree turn of the handle moves the internal ball from a fully open position, allowing unobstructed flow, to a fully closed position, completely blocking flow. This quick-acting characteristic is highly beneficial in applications requiring rapid response or emergency shut-off capabilities. The robust Carbon Steel handle is ergonomically designed for ease of operation and provides sufficient leverage to manipulate the ball even when under system pressure. The direct mechanical linkage between the handle and the hardened steel ball ensures positive feedback to the operator, clearly indicating the valve's current state (open or closed). When fully open, the valve offers a full port design, meaning the bore through the ball is the same diameter as the connecting pipe, minimizing pressure drop and flow turbulence, which is crucial for maintaining system efficiency and power transfer.
Diverse Application Suitability
While initially highlighted for "truck's hydraulic system," the versatility and robust design of this 3/4 Inch NPTF 2-Port High Pressure Ball Valve extend its applicability across a broad spectrum of heavy-duty hydraulic machinery and industrial fluid power systems. In mobile hydraulics, it is indispensable for:
- Dump Trucks and Refuse Vehicles: Controlling the flow to cylinders that lift and lower dump beds or compactors.
- Snowplows and Salt Spreaders: Managing hydraulic circuits for blade positioning, angling, and material discharge.
- Utility Vehicles and Service Trucks: Isolating or directing flow to auxiliary equipment such as cranes, winches, or outriggers.
- Agricultural Machinery: For precise control in tractors, harvesters, and implements that rely on hydraulic power for various functions.
- Construction Equipment: Essential in excavators, loaders, and dozers for isolating sections of hydraulic circuits during maintenance or to control specific attachments.
Maintenance and Longevity
The design philosophy behind this 2-Port High Pressure Ball Valve emphasizes minimal maintenance requirements and extended operational longevity. The combination of hardened steel, PTFE seats, and Buna seals, along with the protective zinc plating, forms a highly durable system designed to resist wear, corrosion, and chemical degradation. Proper installation, adhering to manufacturer specifications for torqueing NPTF connections, is crucial to achieving the specified leak-free performance. Once installed correctly, the valve's robust construction and self-lubricating PTFE seats contribute to a long service life under its rated operating conditions, reducing the total cost of ownership through decreased downtime and replacement frequency. Regular visual inspections for external damage or leakage, along with adherence to recommended hydraulic fluid cleanliness standards, will further maximize the valve's lifespan and ensure continued reliable operation.
Safety Considerations and Limitations
The inclusion of a non-blowout stem is a primary safety feature, actively preventing hazardous stem ejection in high-pressure scenarios. However, it is crucial for operators and maintenance personnel to understand and respect the valve's specified limitations to ensure safe operation. The directive that the valve is "not suitable for steam or potable water applications" is based on material compatibility and regulatory standards. For steam, the elevated temperatures and specific chemical properties of steam exceed the maximum operational temperature limits for the Buna seals and potentially the PTFE seats, leading to rapid degradation and premature failure. Furthermore, the materials used, specifically the carbon steel body and zinc plating, are not typically certified or suitable for contact with potable (drinking) water due to potential leaching of metals or chemicals into the water, which would violate health and safety regulations for public consumption. Dedicated valves designed with NSF or other potable water certifications and constructed from appropriate materials (e.g., lead-free brass or stainless steel) are required for such applications. Similarly, specialized valves designed for high-temperature steam applications typically utilize different sealing materials and body alloys. Adhering to these application limitations is critical for ensuring the safety of personnel, preventing system failures, and complying with relevant industry standards and regulations.
Conclusion
In summary, the 3/4 Inch NPTF 2-Port High Pressure Ball Valve is a meticulously engineered component, providing reliable and safe fluid control in the most demanding hydraulic environments. Its construction from carbon steel with a zinc plated finish, hardened steel ball, Teflon seats, and Buna seals, coupled with the critical non-blowout stem design, ensures exceptional durability, pressure resistance, and operational safety. The precision NPTF threads guarantee a robust, leak-free connection, while the quarter-turn actuation offers rapid and clear control over hydraulic circuits. This valve is an indispensable solution for a wide range of mobile and industrial hydraulic systems, delivering uncompromising performance and contributing significantly to the efficiency, safety, and longevity of the machinery it serves. By understanding its technical specifications and adhering to its operational parameters, users can leverage the full potential of this high-performance fluid control device.
