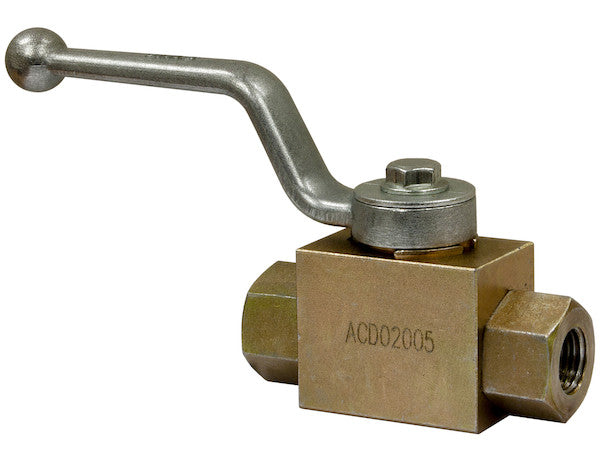

HBVS100 - 1 Inch NPTF 2-Port High Pressure Ball Valve

The 2 Port High Pressure Ball Valve from Buyers Products reliably controls the flow of fluids in your truck's hydraulic system. It's made to withstand very high pressures without failing. The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure. Choose from a range of thread sizes and maximum working pressure ratings to fit your needs. Note: The valve is not suitable for steam or potable water applications.

Specifications

The 1 Inch NPTF 2-Port High Pressure Ball Valve represents a pinnacle of fluid control technology engineered for the most demanding hydraulic applications. Precision-designed and rigorously tested, this valve is an indispensable component for systems requiring absolute reliability, superior pressure handling, and exceptional longevity. Its robust construction and meticulously selected materials ensure optimal performance in environments where failure is not an option, making it ideal for a diverse array of heavy-duty industrial and mobile hydraulic equipment.

At the core of this valve's exceptional capability is its formidable Maximum Working Pressure rating of 7250 PSI. This extraordinary pressure resistance is a testament to sophisticated engineering and material science. To achieve such a rating, every component, from the body to the seals, must be designed to withstand immense hydrostatic and dynamic forces without yielding, deforming, or leaking. This level of pressure handling signifies that the valve is suitable for severe-duty applications, preventing system downtime and ensuring operational safety in high-stress environments. Typical applications benefitting from such high-pressure tolerance include hydraulic power units, heavy construction machinery, refuse compactors, agricultural equipment, and specialized industrial presses where high force generation is paramount.

The valve's Body Material, carbon steel, is a fundamental contributor to its high-pressure rating. Carbon steel offers an excellent balance of tensile strength, yield strength, and toughness, making it inherently capable of containing high-pressure fluids. Its resistance to deformation under load ensures structural integrity even at 7250 PSI. Furthermore, carbon steel provides a cost-effective solution without compromising on mechanical performance, making this valve a practical choice for industrial applications. The specific grade of carbon steel chosen for this valve is selected for its superior mechanical properties, ensuring it meets the stringent demands of high-pressure hydraulic systems. This material's inherent strength is crucial for the valve body, which acts as the primary containment vessel for the pressurized fluid.

Complementing the robust body is the specialized Zinc Plated Clear Body Finish. This protective coating serves multiple critical functions. Primarily, it provides enhanced corrosion resistance, which is vital in hydraulic systems that may be exposed to moisture, chemicals, or harsh outdoor conditions. Zinc plating acts as a sacrificial layer, preferentially corroding before the underlying carbon steel, thereby extending the valve's service life and maintaining its aesthetic integrity. The "clear" aspect refers to the chromate conversion coating applied over the zinc, which further enhances corrosion protection and provides a clean, professional appearance. This finish ensures the valve remains functional and reliable even in challenging operational environments, reducing maintenance requirements and preserving capital investment.

The valve's operational heart, the Ball Material, is hardened steel. This choice is deliberate and critical for the valve's long-term performance and sealing efficiency. Hardened steel possesses exceptional wear resistance, crucial for the rotating ball that constantly interacts with the valve seats. This hardness prevents premature erosion and pitting, even when exposed to abrasive particles that may be present in hydraulic fluids. Moreover, the superior surface finish achievable with hardened steel contributes to a smoother operating torque and tighter shut-off. The hardened surface ensures that the spherical integrity of the ball is maintained over thousands of cycles, which is paramount for achieving a reliable seal against the PTFE seats and preventing internal leakage, even under extreme pressure differentials.

Integral to the valve's safety profile is the Blow-Out Proof Stem design. This critical safety feature is engineered to prevent the stem from ejecting under excessive internal pressure, a potentially hazardous failure mode in high-pressure systems. The stem is typically retained by an internal shoulder that is larger than the bore of the body entry, ensuring that even if the packing or primary seal fails, the stem cannot be expelled from the valve body. This design adheres to recognized industry safety standards, providing an additional layer of protection for operators and nearby equipment. In the highly dynamic and often unforgiving environments of hydraulic machinery, such a safety measure is not merely a feature but a fundamental requirement, mitigating risks associated with uncontrolled fluid release and mechanical failure.

The valve's sealing integrity is further fortified by the use of Buna seals. Buna-N, or Nitrile Butadiene Rubber, is a highly effective and widely utilized elastomer in hydraulic applications due to its excellent resistance to petroleum-based oils, greases, and non-aromatic hydrocarbons—the primary components of most hydraulic fluids. Buna seals offer superior resistance to compression set, abrasion, and tear, ensuring long-term sealing performance under varying pressures and temperatures. Their resilience allows them to maintain a tight seal around the stem and within the valve body, preventing external leakage and internal bypass. The precise formulation of the Buna compound used in these seals is optimized for the specific operating conditions and fluid compatibility required for high-pressure hydraulic systems, ensuring maximum protection against leakage and operational failure.

The Teflon (PTFE) Seat Material plays a pivotal role in the valve's sealing capabilities and operational efficiency. Polytetrafluoroethylene (PTFE) is renowned for its exceptional properties: low coefficient of friction, superior chemical inertness, wide operating temperature range, and excellent non-stick characteristics. In a ball valve, PTFE seats provide a highly effective seal against the hardened steel ball, enabling bubble-tight shut-off. The low friction of PTFE ensures smooth and easy quarter-turn operation, even under high differential pressures, reducing the required operating torque. Its chemical resistance makes it impervious to degradation from hydraulic fluids, while its resilience allows it to deform slightly under pressure to create a perfect seal around the ball, compensating for minor irregularities. This combination of properties results in reliable sealing, minimal wear, and extended valve life, making PTFE an ideal choice for high-performance ball valve seats.

The 1 Inch NPTF Thread Size specifies the critical interface for connecting the valve to the hydraulic system piping. NPTF stands for National Pipe Taper Fuel, a specific type of NPT (National Pipe Taper) thread designed for a dryseal connection without the need for additional sealants for pressure retention, though sealants or PTFE tape are often used to ensure complete leak prevention in critical applications or to facilitate assembly. The taper of the thread allows for a mechanical interference fit between the male and female threads, creating a robust seal. The 1-inch nominal pipe size refers to the internal diameter of the pipe the valve is designed to connect to. This size is commonly found in medium to large hydraulic systems where significant flow rates are required. The precision machining of these NPTF threads is essential to ensure a leak-free and secure connection, capable of withstanding the valve's maximum operating pressure of 7250 PSI.

As a 2-Port Ball Valve, its primary function is straightforward on/off flow control or isolation within a hydraulic circuit. Fluid enters through one port and exits through the other, with the flow path dictated by the position of the internal ball. When the handle is turned 90 degrees, the spherical ball rotates, either aligning its bore with the flow path for full flow or presenting its solid side to the flow, thereby completely blocking it. This quarter-turn operation provides rapid shut-off capability, which is often crucial in hydraulic systems for emergency stops, isolating sections for maintenance, or switching between different operational modes. The simplicity of the 2-port design contributes to its reliability and widespread adoption across numerous applications, from managing the flow to a hydraulic cylinder to isolating a pump from a reservoir.

The Handle Material, carbon steel, further underscores the valve's commitment to durability and robust performance. A carbon steel handle provides the necessary strength and rigidity to operate the valve effectively, even when overcoming residual pressure or minor friction from the seals. Unlike plastic or lighter metal handles that might bend or break under stress, a carbon steel handle ensures reliable manual operation over the valve's lifespan. Its sturdy construction ensures that the operator can confidently apply the necessary torque to actuate the valve, maintaining control over the hydraulic system's fluid flow without concern for handle integrity.

This high-pressure ball valve from Buyers Products is specifically engineered for critical fluid control in a wide array of hydraulic system applications. Its suitability extends to mobile equipment such as dump trucks, snowplows, refuse vehicles, and utility trucks, where hydraulic power is used for lifting, tilting, compacting, or operating attachments. In the industrial sector, it finds application in manufacturing facilities for controlling fluid power to machinery, presses, and material handling systems. Agricultural machinery, including tractors and harvesters with hydraulic implements, also greatly benefits from the valve's robust design. The capacity to reliably manage pressures up to 7250 PSI makes it indispensable for applications demanding exceptional strength, leak prevention, and precision control of hydraulic oil, ensuring both operational efficiency and safety across diverse heavy-duty sectors.

It is important to reiterate the specified limitations: "Note: The valve is not suitable for steam or potable water applications." This exclusion is based on several technical considerations. For steam applications, the high temperature and corrosive nature of superheated steam can degrade the Buna seals and PTFE seats more rapidly than hydraulic oils, leading to premature failure and leakage. Additionally, the thermal expansion and contraction cycles inherent in steam systems can place undue stress on valve components not specifically designed for such environments. For potable water, the restriction typically relates to material certifications and health standards. Materials suitable for hydraulic oil (like carbon steel, zinc plating, Buna, and Teflon) may not meet the stringent regulatory requirements for components in contact with drinking water, which often demand lead-free alloys or specific NSF certifications to prevent contamination. Adhering to these limitations ensures the valve performs optimally within its intended design parameters and complies with relevant safety and health guidelines for its specified applications.

In summary, the 1 Inch NPTF 2-Port High Pressure Ball Valve is a meticulously engineered component, purpose-built for the rigors of high-pressure hydraulic systems. Its construction from carbon steel with a zinc-plated finish, coupled with a hardened steel ball, blow-out proof stem, robust Buna seals, and durable Teflon seats, collectively provides unparalleled reliability, safety, and longevity. The 7250 PSI working pressure rating ensures it can handle the most demanding tasks, while the 1-inch NPTF threads guarantee a secure and leak-free connection. This valve stands as a testament to advanced fluid control technology, offering an optimal solution for industries reliant on efficient, safe, and dependable hydraulic operations. Its comprehensive design and material selection ensure that it delivers consistent performance, minimizes maintenance, and enhances the overall safety and efficiency of any high-pressure fluid power system it is integrated into.
