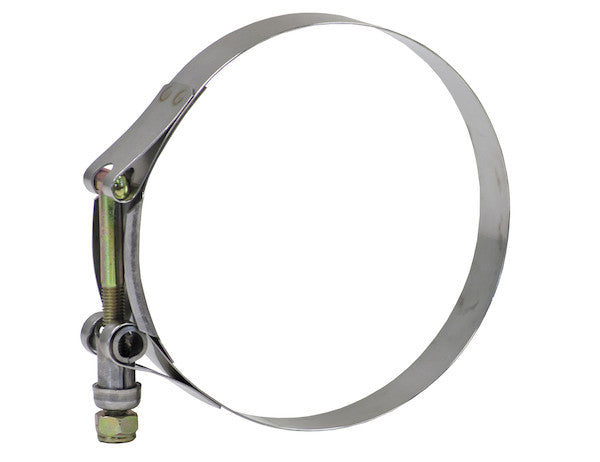

HC100 - T-Bolt Hose Clamp 1-1/2 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

Advanced Engineering and Performance of the 1-1/2 Inch Nominal T-Bolt Hose Clamp

In demanding industrial, automotive, and marine applications, the integrity of fluid and air transfer systems hinges critically on the reliability of connection points. The T-Bolt Hose Clamp, with a nominal diameter of 1-1/2 inches, engineered by Buyers Products, represents a pinnacle of design and material science tailored to address these stringent requirements. This clamp is not merely a fastening device; it is a meticulously designed component built for sustained performance, exceptional durability, and unparalleled sealing integrity under severe operating conditions.

Fundamental Design Principles and Mechanical Advantages

The T-Bolt hose clamp operates on a distinct mechanical principle that sets it apart from traditional worm-drive or band clamps. Its design leverages a robust T-bolt and a precision-engineered band to apply a uniform radial clamping force around the circumference of a hose. Unlike worm-drive clamps that exert pressure through a series of perforations and a screw thread directly compressing the band, T-Bolt clamps distribute force more evenly across a solid, smooth inner band. This crucial difference translates into several mechanical advantages:

• Superior Clamping Force: The T-bolt mechanism, featuring a strong threaded bolt and a locknut, allows for significantly higher tightening torques compared to other clamp types. This elevated torque capacity directly results in a higher and more consistent clamping load, which is essential for sealing against elevated internal pressures and resisting separation under dynamic loads.
• Uniform 360-Degree Pressure Distribution: The smooth, non-perforated inner band, combined with the trunnion-style connection (which the T-bolt passes through to engage the band ends), ensures that pressure is applied uniformly around the entire circumference of the hose. This equalized pressure mitigates the risk of “pinch points” or localized stress concentrations that can lead to hose deformation, fluid bypass, or premature hose failure. It creates a robust, leak-proof seal that can withstand vibration, thermal expansion and contraction, and pressure fluctuations.
• Hose Protection: The inherent design of the T-Bolt clamp, featuring a smooth inner band, is intrinsically protective of the hose material. Unlike clamps with cut-out perforations that can abrade, indent, or even cut into the hose under high torque or prolonged vibration, this clamp’s continuous surface prevents such damage. This is particularly vital for delicate hose materials like silicone, soft rubbers, or thin-walled hoses, extending their service life and preventing costly replacements.

Material Science and Engineering for Enhanced Durability

The longevity and reliability of any fastening component are inextricably linked to the materials from which it is constructed and the manufacturing processes employed. This T-Bolt hose clamp showcases a strategic selection of materials:

• Band Material: 304 Stainless Steel: The primary component responsible for circumferential clamping, the band, is fabricated from 304 Stainless Steel. This austenitic stainless steel grade is renowned for its exceptional balance of properties:
  • Corrosion Resistance: 304 SS contains approximately 18% chromium and 8% nickel, which form a passive oxide layer on its surface. This layer provides outstanding resistance to atmospheric corrosion, many chemical environments (including mild acids, alkaline solutions, and chlorides), and the corrosive effects of various fluids commonly found in engines and industrial systems (e.g., coolant, exhaust gases, hydraulic fluids). This makes it ideal for applications exposed to moisture, road salt, or aggressive industrial atmospheres.
  • Temperature Performance: 304 SS maintains its mechanical integrity and corrosion resistance across a wide temperature range, from cryogenic conditions to elevated temperatures well beyond typical engine compartment heat. This ensures consistent performance in environments subject to significant thermal cycling.
  • Mechanical Properties: It offers excellent tensile strength, yield strength, and ductility, allowing the band to withstand significant radial forces without permanent deformation or failure. Its non-magnetic properties are also beneficial in certain sensitive electronic environments.
  • Cleanliness and Hygiene: The smooth, non-porous surface of 304 SS is easy to clean and resist bacterial growth, making it suitable for applications where cleanliness is a concern.
• T-Bolt and Locknut Material: Heat-Treated Plated Steel: The T-bolt and its corresponding locknut are fabricated from heat-treated plated steel. This specific material choice for the fastening mechanism is deliberate and optimized for strength and wear resistance:
  • Heat Treatment: The steel undergoes a controlled heat treatment process (e.g., quenching and tempering). This process alters the microstructure of the steel, significantly increasing its hardness, tensile strength, and fatigue resistance. These properties are critical for the bolt, as it is the component that bears the majority of the tensile load when the clamp is tightened, ensuring it can withstand high torquing forces without yielding or stripping.
  • Plating: The heat-treated steel is then surface-plated (e.g., zinc plating, zinc-nickel, or chrome plating). This plating serves multiple vital functions:
    • Corrosion Protection: While the band is 304 SS, the plated steel bolt provides sacrificial corrosion protection. The plating acts as a barrier and, if scratched, corrodes preferentially to protect the underlying steel, thereby extending the life of the fastener.
    • Reduced Friction: Plating can also reduce the coefficient of friction during tightening, leading to more accurate torque application and preventing galling.
    • Aesthetics: It provides a clean, silver finish that matches the overall appearance of the clamp.
  • Locknut Mechanism: The use of a plated steel locknut is critical for maintaining tension and preventing loosening under dynamic conditions. Locknuts incorporate features (e.g., nylon insert, distorted threads) designed to resist vibration-induced back-off, ensuring the clamp’s secure engagement over extended periods.
  • Thread Specification (1/4-28): The 1/4-28 fine thread specification for the T-bolt is a key engineering detail. Fine threads have a larger minor diameter, offering greater strength and shear resistance compared to coarse threads of the same nominal size. They also provide finer adjustment and a higher resistance to loosening under vibration, contributing significantly to the clamp’s long-term reliability and precise clamping force application.

Optimal Sizing and Application Range

The T-Bolt Hose Clamp is precisely engineered for applications requiring a nominal diameter of 1-1/2 inches. Its operational range, specified as a minimum diameter of 1.25 inches and a maximum diameter of 1.49 inches, is crucial for proper selection and installation:

• Nominal Diameter: The 1.50-inch nominal diameter signifies its intended use for hoses with an approximate outer diameter (O.D.) of 1.5 inches.
• Operational Range: The minimum and maximum diameters define the effective clamping range. Hoses with an O.D. between 1.25 inches and 1.49 inches will be securely accommodated. This range allows for manufacturing tolerances in hose dimensions and provides flexibility for different hose wall thicknesses when mating to a specific fitting. It is paramount to select a clamp whose range comfortably encompasses the actual outer diameter of the hose over the fitting or barb. An undersized clamp will not fit, while an oversized clamp will not be able to apply sufficient clamping force, leading to a weak or leaky connection.

Diverse Applications and Industry Versatility

The robust construction and superior performance characteristics of this 1-1/2 inch T-Bolt Hose Clamp make it an indispensable component across a broad spectrum of industries and applications:

• Heavy-Duty Automotive and Commercial Vehicles: Essential for connecting coolant hoses, air intake systems, turbocharger plumbing, exhaust systems, and radiator hoses in trucks, buses, off-highway equipment, agricultural machinery, and construction vehicles. Its ability to withstand high temperatures, vibrations, and corrosive engine environments is critical here.
• Industrial Fluid Transfer Systems: Widely used in manufacturing plants, processing facilities, and hydraulic systems for connecting hoses that convey water, chemicals, oils, and pneumatic lines. The consistent sealing force is vital for preventing leaks and maintaining system efficiency and safety.
• Marine Applications: Ideal for engine cooling systems, bilge pump outlets, exhaust components, and fuel lines on boats and marine vessels. The 304 SS band offers excellent resistance to saltwater corrosion, a primary concern in marine environments.
• HVAC Systems: Employed in commercial and industrial heating, ventilation, and air conditioning systems for securing ducting and fluid lines, ensuring airtight and watertight connections.
• Agricultural Equipment: Tractors, harvesters, and other farm machinery rely on secure hose connections for hydraulic systems, cooling, and air management, often in dusty and harsh conditions.
• Specialty Applications: Any application where high pressure, vacuum, extreme temperatures, vibration, or critical sealing integrity is a primary concern.

Installation Best Practices for Optimal Performance

While the design of the T-Bolt clamp inherently promotes reliability, proper installation is paramount to achieving its full performance potential:

• Hose and Fitting Preparation: Ensure that both the hose and the fitting (barb, nipple, etc.) are clean, free of debris, and properly aligned. Any lubricant or sealant used should be compatible with the hose material and not interfere with the clamping action.
• Correct Sizing Verification: Always confirm that the selected clamp’s effective diameter range (1.25” - 1.49” for this model) adequately encompasses the actual outer diameter of the hose when seated on the fitting. Incorrect sizing is a leading cause of connection failure.
• Positioning: Position the clamp over the fitting and hose connection point such that the band fully covers the sealing area, typically over the barb or sealing ridge of the fitting. Avoid placing the clamp too close to the end of the hose or over an area where the hose is not fully supported by the fitting.
• Torquing Procedure: Tighten the T-bolt with a suitable wrench, applying a controlled and appropriate torque. Consult industry standards or manufacturer recommendations for specific torque values if available for your particular hose and fitting combination. The 1/4-28 fine thread allows for precise adjustment. Over-tightening can damage the hose or the clamp, while under-tightening will compromise the seal. The locknut will provide positive engagement to prevent loosening.
• Post-Installation Inspection: After tightening, visually inspect the connection to ensure uniform compression of the hose and proper seating of the clamp. Check for any signs of hose bulging or damage. For critical applications, pressure testing the system is recommended.

Commitment to Quality and Reliability

Buyers Products’ commitment to engineering excellence is evident in the meticulous design and material selection for this T-Bolt Hose Clamp. By combining a 304 Stainless Steel band with a heat-treated, plated steel T-bolt and locknut, the company delivers a product that not only meets but often exceeds the demanding requirements of its intended applications. The precise diameter range (1.25” - 1.49” for a 1.50” nominal hose) and the fine 1/4-28 thread on the T-bolt underscore a dedication to precision and performance. This clamp represents an investment in system reliability, reduced maintenance, and enhanced operational safety.

Conclusion

The T-Bolt Hose Clamp with a 1-1/2 inch nominal diameter from Buyers Products is a sophisticated solution for critical hose connection requirements. Its technical superiority lies in its ability to deliver high, uniform clamping force through a smooth, hose-protective band, utilizing a robust heat-treated, plated steel T-bolt and locknut for exceptional durability and wear resistance. With its 304 Stainless Steel construction for the band, this clamp offers outstanding corrosion and temperature resistance, making it suitable for the most challenging environments. From heavy-duty vehicle systems to complex industrial processes, this T-Bolt clamp ensures secure, leak-free, and long-lasting connections, safeguarding operational efficiency and minimizing downtime. Choosing this engineered fastening solution means opting for an unparalleled level of performance and reliability in your fluid and air transfer systems.
