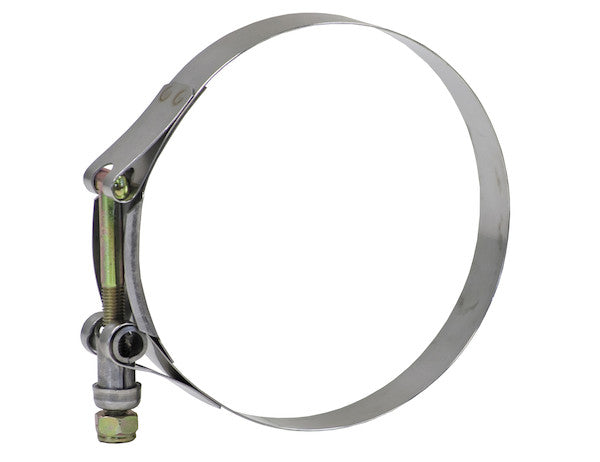

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.
Specifications
| Color | Silver |
|---|---|
| Finish | Plain |
| Material | 304 Stainless Steel |
| Maximum Diameter | 1.79 |
| Minimum Diameter | 1.55 |
| Nominal Diameter | 1.75 |
| T-Bolt Thread Size | 1/4-28 |
The T-Bolt Hose Clamp, with a nominal diameter of 1-3/4 inches (1.75 inches), represents a pinnacle in advanced fluid transfer system securement technology. Engineered by Buyers Products, this component is meticulously designed to provide superior clamping force, structural integrity, and prolonged service life in demanding industrial and commercial applications. Unlike conventional worm-gear clamps, the T-Bolt design offers a sophisticated mechanical advantage crucial for high-pressure, high-vibration, or large-diameter hose connections where reliability is paramount. Its robust construction and intelligent material selection ensure optimal performance and mitigate common failure modes associated with less advanced clamping solutions.
Advanced Design and Mechanical Superiority
At the core of this product's exceptional performance is its meticulously engineered T-Bolt mechanism. This design departs significantly from traditional worm-drive clamps by employing a heavy-duty T-bolt and a sturdy saddle, which together distribute clamping force more uniformly around the hose circumference. The T-bolt, characterized by its substantial cross-section and fine-pitch threads (1/4-28), facilitates the application of significantly higher torque values. This increased torquing capability translates directly into higher radial compression forces, ensuring a more secure and leak-proof seal, particularly beneficial for connections subjected to elevated internal pressures or dynamic operational stresses. The fine-pitch threading of the 1/4-28 T-bolt allows for precise adjustment and fine-tuning of the clamping force, which is essential for achieving an optimal seal without over-stressing the hose material.
A critical distinguishing feature is the smooth inner band. This design element is not merely an aesthetic choice but a fundamental engineering decision aimed at preserving the integrity of the hose material. Unlike worm-drive clamps, which can imprint or shear into the outer surface of a hose due to their perforated bands and uneven pressure points, the T-Bolt's smooth inner band ensures an even, circumferential pressure distribution. This uniformity prevents localized stress concentrations, which are common precursors to hose damage such as cutting, bulging, or premature wear. By eliminating these stress risers, the clamp extends the operational lifespan of the hose itself, reducing maintenance frequency and system downtime. The smooth contact surface also minimizes the risk of cold flow or material creep in softer hose compounds, ensuring long-term sealing performance.
Material Science and Engineering for Durability
The selection of materials for the T-Bolt Hose Clamp is a testament to its professional-grade construction. The band of the clamp is fabricated from 304 Stainless Steel, a material renowned for its exceptional corrosion resistance, mechanical strength, and broad temperature tolerance. AISI 304 stainless steel is an austenitic alloy composed primarily of 18% chromium and 8% nickel, providing an excellent balance of properties. The chromium content forms a passive oxide layer on the surface, which is self-healing and provides outstanding resistance to atmospheric corrosion, fresh water, and a wide array of chemicals including many acids, alkalis, and salts. This makes the 304 SS band ideally suited for environments where exposure to moisture, road salts, or aggressive industrial fluids is common.
Beyond its chemical inertness, 304 stainless steel offers superior mechanical properties, including high tensile strength and ductility. This allows the band to withstand significant radial forces without permanent deformation or brittle fracture, ensuring the clamp maintains its integrity even under extreme operational conditions. Its ductility also enables the smooth, uniform contouring required for a consistent 360-degree seal around the hose. Furthermore, 304 SS exhibits good performance across a wide temperature spectrum, from cryogenic conditions to elevated temperatures well beyond typical automotive or industrial operational ranges, making it a versatile choice for diverse applications.
Complementing the stainless steel band, the T-bolt itself is constructed from heat-treated plated steel, with a corresponding plated steel locknut. The use of heat-treated steel for the T-bolt is a deliberate engineering choice to maximize its mechanical strength and toughness. Heat treatment processes, such as quenching and tempering, significantly enhance the material's yield strength and hardness, making the bolt highly resistant to stretching, shearing, and deformation under the high torquing forces it is designed to endure. This superior strength is critical for maintaining the high clamping loads necessary for a robust seal, especially in applications subject to cyclic loading or intense vibration.
The plating applied to the steel T-bolt and locknut serves a dual purpose: enhanced corrosion resistance and improved surface hardness. While stainless steel is used for the band, high-strength steel for the bolt and nut requires surface protection. Common plating materials for such components include zinc, nickel, or proprietary alloys, often followed by a chromate conversion coating. This plating provides a sacrificial barrier against corrosion, protecting the underlying steel from oxidation and environmental degradation. Additionally, the plating can reduce friction during tightening, allowing for a more accurate application of torque and preventing galling, thereby extending the lifespan of the threads.
The plated steel locknut plays an integral role in the clamp's long-term reliability. A locknut, by design, incorporates features that resist loosening when subjected to vibration, shock, or thermal cycling. While the specific type of locknut is not detailed, common designs include prevailing torque nuts (e.g., nylon insert or all-metal deformed thread types) which create an interference fit with the bolt threads. This interference generates friction that actively prevents the nut from backing off, even in high-stress, dynamic environments. This critical feature ensures that the applied clamping force remains consistent over extended periods, preventing catastrophic failures due to loosening.
Precision Engineering and Dimensional Specifications
The nominal diameter of 1-3/4 inches (1.75 inches) indicates the ideal size range for hoses this clamp is designed to secure. The specified minimum diameter of 1.55 inches and maximum diameter of 1.79 inches define the precise operational range, ensuring a perfect fit across a variety of hoses within this classification. This narrow, yet effective, clamping range is crucial for achieving optimal sealing performance. Hoses that fall outside this specified range may not experience the full benefits of the clamp’s design, potentially leading to inadequate sealing or over-compression.
The T-bolt thread size of 1/4-28 is a critical specification. The "1/4" refers to the nominal diameter of the bolt shank in inches, while "28" indicates the number of threads per inch (TPI). This fine-pitch thread, part of the Unified National Fine (UNF) series, offers several distinct advantages over coarser threads. Fine threads provide greater resistance to vibrational loosening due to their smaller helix angle and increased thread contact area, making them ideal for applications involving significant dynamic loads. Furthermore, fine threads allow for finer adjustments and higher clamping forces for a given applied torque, enhancing the precision and effectiveness of the hose seal. The design inherently allows for superior "pull-up" strength compared to single-slotted screw designs, providing greater axial strength in the threaded engagement.
Performance Metrics and Application Versatility
The T-Bolt Hose Clamp's design directly translates into superior performance metrics. Its ability to generate equal 360-degree clamping force is paramount for preventing leaks. This uniform pressure distribution eliminates pinch points and gaps, creating an impenetrable seal against fluid or air egress. This feature is particularly vital in systems transporting critical fluids, such as coolants, engine intake air, or hydraulic oils, where even minor leaks can compromise system efficiency, lead to environmental contamination, or result in equipment failure.
The inherent durability and wear-resistance of the chosen materials ensure a long operational lifespan. The combination of corrosion-resistant 304 SS, heat-treated steel, and protective plating contributes to the clamp’s ability to withstand harsh environmental conditions, including exposure to extreme temperatures, chemicals, and abrasive particles, without significant degradation. This robust construction translates into reduced total cost of ownership over the life of the equipment, minimizing the need for frequent clamp replacement and associated labor costs.
This 1-3/4 inch T-Bolt Hose Clamp is a preferred choice in numerous heavy-duty and high-performance applications. These include, but are not limited to, automotive and heavy-duty truck cooling systems, particularly for radiator and heater hoses where expansion and contraction cycles are significant. In construction and agricultural machinery, where equipment operates in dirty, vibrating, and thermally challenging environments, these clamps provide reliable connections for air intake systems, exhaust systems, and various fluid lines. Marine applications benefit from the 304 SS's resistance to saltwater corrosion, ensuring system integrity on vessels. Industrial processes involving pneumatic and hydraulic lines, HVAC systems, and chemical transfer also leverage the superior sealing and durability of T-Bolt clamps, especially for high-pressure or critical connection points.
Installation Best Practices and Maintenance
Proper installation is crucial to realizing the full benefits of the T-Bolt Hose Clamp. It is recommended to use appropriate tooling, such as a torque wrench, to apply the specified torque for the 1/4-28 T-bolt. Over-tightening can deform the hose or clamp components, while under-tightening compromises the seal. The fine threads facilitate precise torque application, allowing technicians to achieve optimal clamping force with accuracy. Regular inspection of the hose and clamp assembly for signs of wear, corrosion, or loosening is also recommended as part of a comprehensive maintenance schedule, particularly in environments with high vibration or extreme temperature fluctuations.
Conclusion
The T-Bolt Hose Clamp from Buyers Products, with its 1-3/4 inch nominal diameter, embodies advanced engineering principles for critical hose securement. Its innovative design, featuring a smooth inner band and high-strength T-bolt mechanism, coupled with the strategic selection of 304 Stainless Steel for the band and heat-treated plated steel for the T-bolt and locknut, delivers unparalleled performance. This clamp excels in providing uniform 360-degree clamping force, superior torquing capability, and exceptional resistance to corrosion, wear, and vibration. For engineers, maintenance professionals, and equipment manufacturers seeking a highly reliable, durable, and leak-proof solution for fluid transfer systems in challenging operational environments, this T-Bolt Hose Clamp represents an optimal investment in system integrity and longevity.
