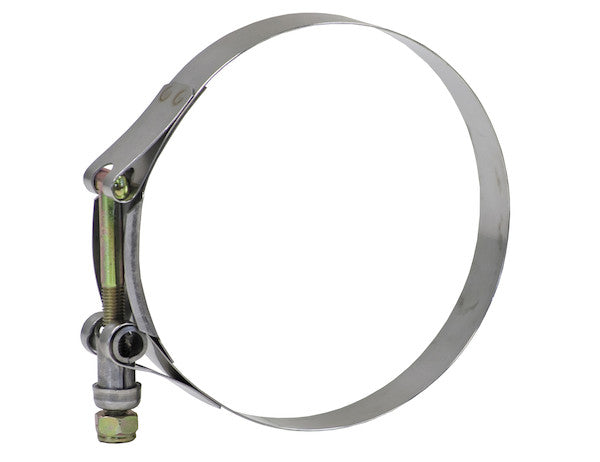

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.
Specifications
| Color | Silver |
|---|---|
| Finish | Plain |
| Material | 304 Stainless Steel |
| Maximum Diameter | 1.97 |
| Minimum Diameter | 1.73 |
| Nominal Diameter | 2.00 |
| T-Bolt Thread Size | 1/4-28 |
Precision Engineering for Demanding Applications: A Deep Dive into the T-Bolt Hose Clamp
In the realm of fluid transfer systems, the integrity of a hose connection is paramount, directly influencing operational efficiency, safety, and system longevity. The T-Bolt Hose Clamp, particularly the 2-inch nominal diameter model from Buyers Products, represents a pinnacle of clamping technology engineered to meet these rigorous demands. This comprehensive description delves into the advanced design, material science, performance characteristics, and application versatility that define this essential component, providing a technical perspective on its superiority in securing critical hose connections.
Fundamental Design and Operational Principles
The core efficacy of the T-Bolt hose clamp lies in its meticulously engineered design, which differentiates it significantly from conventional clamping mechanisms. Unlike worm-gear clamps that exert force via a screw thread drawing a perforated band, the T-Bolt clamp employs a robust T-shaped bolt and a solid, smooth band to achieve superior clamping force distribution and integrity.
The T-Bolt Mechanism: High-Strength Clamping
The T-bolt mechanism is central to the clamp's high-performance capabilities. Comprising a heat-treated plated steel T-bolt and a corresponding plated steel locknut, this assembly facilitates direct, high-tensile engagement. When the locknut is tightened, the T-bolt draws the ends of the clamp band together, applying radial compression around the hose. This direct-pull action, as opposed to the indirect winding action of a worm gear, allows for significantly higher applied torque values without the risk of thread stripping, which can plague lesser designs. The 1/4-28 T-Bolt thread size specified indicates a fine thread pitch, which offers a larger surface area for engagement, enhancing the bolt's resistance to loosening under vibration and providing finer adjustment capabilities for precise clamping force.
The Smooth Inner Band Advantage: Protecting Hose Integrity
A critical feature highlighted in the product's description is the smooth inner band. This design choice is not merely aesthetic but a fundamental engineering decision that directly impacts hose longevity and seal integrity. In clamps with perforated or serrated inner bands (common in worm-gear designs), the uneven surface can create stress concentrations on the hose material. Under high clamping loads or prolonged exposure to vibration and thermal cycling, these stress points can lead to:
- Hose Material Extrusion: The hose material can be forced into the perforations, leading to localized thinning and weakening.
- Shear Failure: Sharp edges can cut or abrade the hose, compromising its structural integrity.
- Uneven Pressure Distribution: This can result in leak paths forming in areas of lower compression.
The smooth inner band of the T-Bolt clamp mitigates these risks by providing an uninterrupted, uniform contact surface. This ensures that the applied clamping force is distributed evenly across the hose circumference, preventing material damage, minimizing cold flow or creep of the hose material, and maximizing the effective sealing area. This design promotes a longer service life for the hose assembly and enhances reliability, especially in applications where hose material integrity is critical.
Achieving Uniform 360-Degree Clamping Force: The Essence of a Tight Connection
The promise of "equal 360-degree clamping force" is a testament to the T-Bolt clamp's design superiority. Achieving this uniform radial compression is crucial for creating a leak-proof seal, particularly under varying internal pressures, external vibrations, and thermal expansion/contraction cycles. The robust construction of the band, combined with the high-strength T-bolt mechanism, ensures that the applied torque translates into consistent pressure around the entire circumference of the hose. This even distribution:
- Prevents Leakage: By eliminating localized areas of insufficient pressure, the clamp ensures a continuous, impermeable seal against fluid or gas escape.
- Enhances Blow-Off Resistance: In systems operating at high pressures, uniform clamping force is vital to prevent the hose from separating from the fitting.
- Improves Vibration Resistance: A consistently tight connection is less susceptible to loosening caused by dynamic operational conditions, maintaining seal integrity over time.
- Reduces Stress on Hose and Fitting: By distributing stress evenly, it prevents premature failure of either the hose or the fitting due to localized over-stressing.
This attention to uniform force distribution is a hallmark of high-performance clamping solutions, essential for applications where reliability cannot be compromised.
Advanced Material Science: Durability and Performance
The selection of materials for the T-Bolt Hose Clamp is a critical factor in its overall performance, durability, and resistance to environmental degradation. A combination of 304 Stainless Steel for the band and heat-treated plated steel for the T-bolt and locknut provides a synergistic balance of corrosion resistance, mechanical strength, and wear resistance.
304 Stainless Steel Band: The Core of Corrosion Resistance
The clamp band, being the largest component and in direct contact with the hose and external environment, is fabricated from 304 Stainless Steel. This austenitic stainless steel is renowned for its excellent combination of properties:
- Composition and Properties: 304 SS typically contains 18% Chromium and 8% Nickel, along with small percentages of carbon, manganese, and silicon. The chromium content forms a passive oxide layer on the surface, providing outstanding corrosion resistance. The nickel content stabilizes the austenitic microstructure, enhancing ductility, formability, and weldability.
- Corrosion Resistance Profile: 304 SS exhibits superior resistance to a wide range of corrosive media, including freshwater, atmospheric conditions, many organic and inorganic chemicals, and various acidic environments. This makes it suitable for diverse applications, from general industrial use to marine environments where salt spray corrosion is a significant concern. While highly resistant, it is important to note that 304 SS can be susceptible to pitting corrosion in chloride-rich environments (e.g., seawater immersion) and stress corrosion cracking at elevated temperatures in chloride solutions. For such extreme conditions, higher grades like 316 SS might be considered, but for the vast majority of T-bolt clamp applications, 304 SS offers an excellent cost-to-performance ratio.
- Mechanical Strength and Ductility: 304 SS possesses good tensile strength and yield strength, providing the structural integrity required to withstand high clamping forces and maintain its shape under operational stresses. Its excellent ductility allows the material to be formed into the seamless, smooth band without compromising its mechanical properties, ensuring the crucial 360-degree contact.
- Thermal Stability: 304 SS maintains its mechanical properties across a broad range of temperatures, from cryogenic to moderately elevated temperatures (up to approximately 870°C for intermittent service, though specific application temperature limits would be lower for a clamp application due to other component considerations). This ensures the clamp's performance is consistent in environments with fluctuating temperatures.
Heat-Treated Plated Steel T-Bolt and Locknut: Strength Under Torque
The T-bolt and locknut, the components responsible for generating and maintaining the clamping force, are constructed from heat-treated plated steel. This material combination is chosen for its superior strength, hardness, and wear resistance compared to stainless steel for threaded components, allowing for the "greater torquing capability" described.
- Role of Plated Steel: Steel, by its nature, offers higher tensile strength and hardness than austenitic stainless steel in many forms. This is crucial for the threads of the T-bolt and locknut, which experience high localized stresses during tightening. The "plated" aspect refers to a protective metallic coating applied to the steel, typically zinc or a zinc alloy. This plating provides a sacrificial layer that corrodes preferentially to the underlying steel, protecting it from rust and extending its service life in moderately corrosive environments. The silver color and plain finish are consistent with common zinc plating.
-
The Significance of Heat Treatment: Heat treatment is a controlled process of heating and cooling steel to alter its microstructure and improve its mechanical properties. For a T-bolt, heat treatment (e.g., quenching and tempering) significantly increases:
- Tensile Strength: Allowing the bolt to withstand higher tightening torques without yielding or fracturing.
- Hardness: Enhancing wear resistance in the threads, preventing premature stripping or deformation under repeated use.
- Fatigue Resistance: Improving the bolt's ability to endure cyclic loading without failure.
- The Locknut: Securing the Connection: The plated steel locknut is designed to resist loosening caused by vibration, thermal cycling, or dynamic loads. While the specific type isn't detailed, typical industrial locknuts (e.g., all-metal prevailing torque nuts or nylon insert nuts) provide an interference fit or frictional resistance that prevents spontaneous unscrewing. This ensures the clamping force remains constant over time, maintaining the integrity of the hose connection.
Synergy of Dissimilar Metals: Considerations and Best Practices
The combination of 304 stainless steel (band) and plated steel (T-bolt/locknut) is a common and effective choice in industrial clamps. While it introduces the theoretical possibility of galvanic corrosion due to dissimilar metals, in most applications, the benefit of the steel's superior thread strength and wear resistance outweighs this concern. The plating on the steel acts as a buffer. For applications in extremely corrosive or immersed environments, where galvanic corrosion could be accelerated, specialized coatings or a full stainless steel (316 SS) T-bolt assembly might be considered, though this often comes with a trade-off in ultimate tensile strength for the threaded components. For the general and heavy-duty applications this clamp is designed for, the chosen material combination offers an optimal balance of strength, corrosion resistance, and cost-effectiveness.
Performance Metrics and Engineering Benefits
The meticulous design and material selection coalesce to deliver a hose clamp with exceptional performance characteristics, making it suitable for high-stress and critical applications.
Superior Torquing Capability and Clamping Pressure
The T-bolt design, reinforced by heat-treated steel, allows for significantly higher applied torque compared to standard worm-gear clamps. This translates directly into higher, more consistent clamping pressure on the hose. Higher clamping pressure is vital for:
- Sealing High Internal Pressures: The ability to exert substantial radial force helps counteract internal fluid pressure attempting to expand the hose and breach the seal.
- Preventing Hose Blow-Off: A stronger clamp connection resists axial forces that could cause the hose to detach from the fitting.
- Accommodating Harder Hose Materials: Some hoses, particularly those with reinforcing plies or made of stiffer elastomers, require greater force to compress them effectively onto a fitting.
Vibration Resistance and Joint Integrity
Dynamic operational environments, such as those found in heavy machinery, commercial vehicles, and industrial equipment, subject hose assemblies to constant vibration. The robust T-bolt and locknut mechanism, combined with uniform 360-degree clamping, ensures superior vibration resistance. The locknut specifically prevents the loosening of the connection, while the even pressure distribution minimizes relative movement between the hose and fitting, thereby preserving seal integrity and reducing the likelihood of fatigue-induced failure over extended periods.
Operational Temperature Range
The selected materials contribute to a broad operational temperature range. 304 Stainless Steel retains its properties across a wide thermal spectrum, while the heat-treated plated steel T-bolt and locknut also offer good thermal stability within typical industrial operating temperatures. This ensures the clamp maintains its structural integrity and clamping force without significant degradation due to temperature fluctuations inherent in many engine compartments or industrial processes.
Resistance to Environmental Factors and Chemical Exposure
With its 304 SS band, the clamp offers strong resistance to common environmental challenges including humidity, road salt, and many industrial pollutants. The plating on the T-bolt and locknut further augments this protection. This resistance ensures a longer operational life even when exposed to demanding external conditions, reducing maintenance frequency and replacement costs.
Precision Sizing and Application Suitability
Accurate sizing is fundamental to the effective performance of any hose clamp. The specified dimensions for this T-Bolt Hose Clamp underscore its versatility for a range of applications.
Understanding Diameter Specifications: Nominal, Minimum, and Maximum
The specifications provide crucial sizing information:
- Nominal Diameter: 2.00 inches (50.8 mm): This refers to the approximate inner diameter of the hose for which the clamp is typically designed.
- Minimum Diameter: 1.73 inches (43.94 mm): This is the smallest diameter the clamp can effectively secure.
- Maximum Diameter: 1.97 inches (50.04 mm): This is the largest diameter the clamp can effectively secure without over-extending.
This range (1.73" to 1.97") indicates that while it's nominally a 2-inch clamp, it is specifically designed for hoses with an *outer diameter* that falls within this range. The difference between the nominal hose ID and the clamp's OD range is typically accounted for by the wall thickness of the hose. It is critical to measure the actual outer diameter of the hose (and often the fitting underneath) to ensure it falls within the clamp's effective clamping range for optimal performance and to prevent over-tightening or insufficient clamping.
Diverse Industrial Applications
The robust construction and high-performance characteristics of this T-Bolt Hose Clamp make it an ideal choice for a multitude of demanding industrial and commercial applications:
- Heavy-Duty Automotive and Commercial Vehicles: Indispensable for securing air intake systems (turbochargers, intercoolers), coolant hoses, and exhaust components where high clamping force, vibration resistance, and durability are critical due to engine heat and road conditions.
- Industrial Manufacturing and Process Control: Utilized in various industrial pipelines, machinery, and equipment for securing fluid and air transfer hoses operating under moderate to high pressures and temperatures.
- Marine Environments: The 304 Stainless Steel band provides excellent corrosion resistance, making it suitable for use in marine engines, bilge pump hoses, and other boat applications where exposure to freshwater and saltwater spray is common.
- Agricultural Machinery: Essential for maintaining hydraulic lines, coolant systems, and air transfer hoses on tractors, harvesters, and other farm equipment that operate in harsh, dusty, and often corrosive outdoor environments.
- HVAC and Fluid Transfer Systems: Employed in commercial and industrial heating, ventilation, and air conditioning systems, as well as general fluid transfer applications where a reliable, leak-proof connection is essential for system efficiency and safety.
Installation Best Practices and Maintenance Protocols
To maximize the performance and longevity of the T-Bolt Hose Clamp, adherence to proper installation and maintenance practices is essential.
Proper Installation Techniques
Ensure the hose end is clean and free of debris. Position the clamp squarely over the hose and fitting connection, ensuring the band fully covers the barb or sealing surface of the fitting. Avoid placing the clamp directly on the flared or beaded edge of a fitting, as this can concentrate stress and lead to failure. Tighten the locknut gradually and evenly, using appropriate tools, until the desired torque is achieved. Avoid over-tightening, as this can damage the hose, deform the fitting, or strip the threads of the T-bolt.
Recommended Torque Values and Their Importance
While specific torque values are not provided with this description, it is crucial that installers consult manufacturer-recommended torque specifications for the specific clamp and hose/fitting combination. Applying the correct torque ensures optimal clamping force without causing damage. Undertightening can lead to leaks and blow-offs, while over-tightening can reduce the effective life of the clamp, hose, and fitting. Using a calibrated torque wrench is highly recommended for critical applications.
Routine Inspection and Maintenance for Longevity
Periodic inspection of hose clamp connections is vital, especially in demanding applications. Check for:
- Visual Integrity: Look for signs of corrosion, deformation, cracking, or overtightening (e.g., bulging of the hose underneath the clamp).
- Tightness: Verify that the clamp remains securely tightened. Re-torque if necessary, following specified values.
- Hose Condition: Inspect the hose itself for signs of wear, hardening, cracking, or leaks around the clamp area.
Proactive maintenance and timely replacement of worn or damaged clamps contribute significantly to the overall reliability and safety of the fluid transfer system.
Comparative Advantages in Clamping Technology
While various hose clamp designs exist, the T-Bolt clamp offers distinct advantages that position it as a superior choice for many demanding applications.
T-Bolt Clamps vs. Worm Gear Clamps
The primary competitor in the general hose clamp market is the worm gear (or jubilee) clamp. Key differences include:
- Clamping Force: T-Bolt clamps deliver significantly higher and more consistent clamping forces due to their direct-pull mechanism and robust T-bolt assembly, making them ideal for high-pressure or heavy-duty applications. Worm gear clamps, while versatile, are limited in the maximum torque they can withstand before thread stripping or band perforation deformation occurs.
- Pressure Distribution: The smooth, solid band of a T-Bolt clamp ensures uniform 360-degree pressure, minimizing stress concentrations and reducing the risk of hose damage or leaks. Worm gear clamps, with their perforated bands, can create uneven pressure points.
- Durability: T-Bolt clamps, particularly those with heat-treated components, offer superior durability and resistance to vibration-induced loosening compared to the often thinner, more flexible bands and less robust screw mechanisms of worm gear clamps.
When to Choose a T-Bolt Clamp
The T-Bolt Hose Clamp is the preferred choice when the application demands:
- High internal line pressures.
- Resistance to severe vibration or shock.
- Long-term reliability and minimal maintenance.
- Secure connections for thick-walled or hard-material hoses.
- Operation in environments where robust corrosion resistance and mechanical strength are critical.
While potentially having a higher initial cost or requiring a slightly larger installation envelope than some simpler clamp types, the superior performance, extended lifespan, and reduced risk of failure often result in a lower total cost of ownership for critical applications.
Quality Assurance and Compliance
As a product from Buyers Products, this T-Bolt Hose Clamp is expected to conform to stringent quality control standards. While specific certifications (e.g., SAE, ASTM) are not detailed, the use of specified materials like 304 Stainless Steel and heat-treated plated steel, combined with precise manufacturing, indicates an adherence to industry best practices for material specification and component fabrication. Such quality assurance ensures that each clamp meets the described performance parameters and contributes to reliable system operation.
Conclusion: Unwavering Reliability for Critical Connections
The 2-inch nominal diameter T-Bolt Hose Clamp from Buyers Products stands as an exemplary solution for securing hose connections in demanding industrial and commercial environments. Its sophisticated design, featuring a high-strength T-bolt, a robust heat-treated plated steel T-bolt and locknut, and a smooth 304 Stainless Steel band, is meticulously engineered to provide superior clamping force, uniform pressure distribution, and exceptional resistance to vibration and environmental factors. By mitigating the risks of hose damage, blow-off, and leakage, this clamp ensures the integrity and longevity of critical fluid transfer systems. For professionals seeking an uncompromising, high-performance clamping solution that delivers unwavering reliability, this T-Bolt Hose Clamp represents an optimal investment in operational efficiency and safety.
