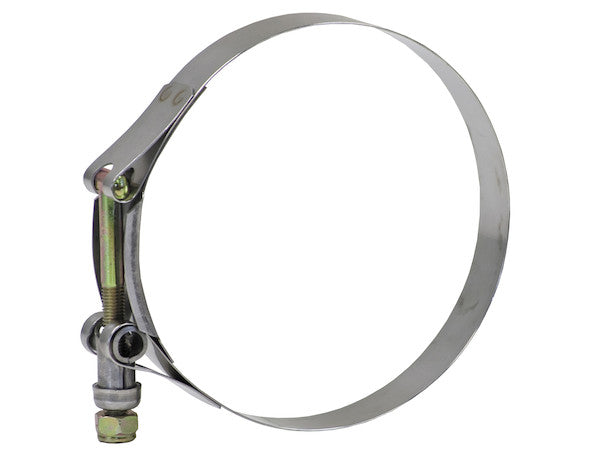

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.
Specifications
| Color | Silver |
|---|---|
| Finish | Plain |
| Material | 304 Stainless Steel |
| Maximum Diameter | 2.17 |
| Minimum Diameter | 1.86 |
| Nominal Diameter | 2.13 |
| T-Bolt Thread Size | 1/4-28 |
The T-Bolt Hose Clamp, precisely engineered for a 2-1/8 inch nominal diameter, represents a pinnacle in advanced fluid connection technology. Designed and manufactured by Buyers Products, this component is a testament to rigorous engineering principles, superior material science, and an unwavering commitment to operational integrity across diverse industrial and automotive applications. Its core function is to establish and maintain a secure, leak-proof seal on hose connections, particularly in environments characterized by high pressures, significant vibrations, and thermal cycling, where conventional clamping solutions often fall short.
Advanced Design and Engineering Principles
The efficacy of the T-Bolt Hose Clamp stems from its meticulously refined design. Unlike traditional worm-drive clamps, which rely on a screw mechanism that can unevenly distribute clamping force and potentially damage the hose, the T-bolt design offers a substantially more robust and uniform clamping action. The distinctive T-bolt mechanism, coupled with a robust locknut, forms the cornerstone of its superior performance.
The T-Bolt Mechanism: Strength and Stability
The T-bolt itself is fabricated from heat-treated plated steel, a critical material choice that imbues it with exceptional tensile strength and wear resistance. Heat treatment, a controlled process involving heating and cooling cycles, modifies the microstructure of the steel, significantly enhancing its hardness and toughness. This ensures that the T-bolt can withstand substantial torque application without yielding or fracturing, a fundamental requirement for maintaining high clamping forces over extended periods. The plating, typically zinc, serves multiple functions: it provides a sacrificial layer that protects the underlying steel from corrosion, particularly crucial in demanding environments, and reduces the coefficient of friction, facilitating smoother thread engagement with the locknut and ensuring consistent torque-to-clamping force translation. The specified 1/4-28 T-bolt thread size is an industry standard for this class of clamp, offering an optimal balance between fine adjustment capability and robust engagement, critical for precise tensioning and resistance to loosening under dynamic loads.
The Smooth Inner Band: Protecting Hose Integrity
A hallmark feature of the T-Bolt Hose Clamp is its smooth inner band, manufactured from 304 Stainless Steel. This design element is paramount to preventing hose damage, which often manifests as cutting, gouging, or bulging under pressure from clamps with perforated or serrated bands. The continuous, smooth surface of the 304 Stainless Steel band ensures that the clamping force is distributed uniformly across the entire circumference of the hose. This uniform pressure distribution is vital not only for achieving an airtight and leak-proof seal but also for extending the service life of the hose itself by mitigating localized stress concentrations that can lead to premature material fatigue or failure. Furthermore, the inherent lubricity of the smooth stainless steel surface allows the hose material to adapt and compress without binding, accommodating minor dimensional variations and ensuring consistent contact.
The Plated Steel Locknut: Secure and Reliable Fastening
Complementing the heat-treated T-bolt is the plated steel locknut. This component is integral to the clamp's ability to maintain tension even under severe vibrational stress and thermal fluctuations. The plating on the locknut mirrors that of the T-bolt, ensuring galvanic compatibility and further enhancing corrosion resistance. The locknut's design, often incorporating features such as a nylon insert or an all-metal prevailing torque thread, is engineered to resist loosening, providing a secure, vibration-proof fastening solution. This self-locking characteristic prevents the clamp from backing off under dynamic operational conditions, thereby preserving the integrity of the connection and preventing costly leaks or system failures.
Performance Characteristics and Superiority
The synergistic design of the T-bolt, band, and locknut culminates in a hose clamp that delivers exceptional performance across several key metrics, distinguishing it from lesser alternatives.
Uniform 360° Clamping Force
The ability to assure equal 360° clamping force around the hose is a critical advantage. This uniform pressure distribution eliminates pinch points and areas of reduced compression, which are common failure modes in conventional clamps. By maintaining consistent contact pressure around the entire hose circumference, the T-Bolt clamp effectively seals against internal fluid pressure, prevents external contaminant ingress, and mitigates the risk of hose extrusion or blow-off, particularly important in high-pressure hydraulic or pneumatic systems. This precise and even force application is central to achieving a "tight connection" that resists both static and dynamic forces.
Enhanced Torquing Capability
The robust construction of the T-bolt and its substantial thread engagement with the locknut permit significantly greater torquing capability compared to worm-drive clamps. This higher torque capacity translates directly into a more powerful and secure grip on the hose. For applications requiring a very high retention force, such as those involving large diameter hoses, thick-walled hoses, or systems operating at elevated pressures, this enhanced torquing potential is indispensable. It allows technicians to apply the specified torque values with confidence, ensuring optimal compression without fear of stripping threads or distorting the clamp components.
Vibration and Thermal Resistance
Fluid systems, especially in mobile equipment or industrial machinery, are frequently subjected to constant vibration and significant thermal cycling. The T-Bolt Hose Clamp is engineered to excel in these challenging environments. The mechanical interlock provided by the T-bolt and locknut, combined with the inherent stiffness of the 304 Stainless Steel band, creates a connection that is highly resistant to vibrational loosening. Furthermore, the material properties of 304 Stainless Steel and plated steel are chosen for their stability across a wide range of temperatures. As hoses and fittings expand and contract due to temperature fluctuations, the T-bolt clamp's design ensures that the clamping force remains consistent, preventing thermal relaxation and maintaining the integrity of the seal through these dynamic changes.
Material Science Deep Dive
The selection of materials for each component of this T-Bolt Hose Clamp is a deliberate engineering decision aimed at optimizing its performance, durability, and wear resistance in specific applications.
304 Stainless Steel for the Band
The band of the T-Bolt Hose Clamp is constructed from 304 Stainless Steel, an austenitic chromium-nickel alloy renowned for its exceptional corrosion resistance and mechanical properties. Comprising approximately 18% chromium and 8% nickel, 304 SS forms a passive oxide layer on its surface when exposed to oxygen. This passive layer is self-repairing and provides robust protection against oxidation, rust, and corrosion from a wide range of media, including freshwater, saltwater spray, mild acids, alkaline solutions, and various industrial fluids. This makes the clamp ideal for marine, automotive, and industrial applications where exposure to corrosive elements is common.
Beyond its corrosion resistance, 304 SS offers excellent mechanical strength. It exhibits a high tensile strength (typically 515-620 MPa or 75-90 ksi) and yield strength, allowing the band to withstand significant radial forces without deforming. Its ductility and formability are also advantageous during manufacturing, ensuring a smooth, uniform band profile that conforms perfectly to the hose. The material's non-magnetic properties (in its annealed state) can also be beneficial in certain specialized applications. The plain finish further highlights the inherent qualities of the stainless steel, prioritizing functional performance over decorative aesthetics.
Heat-Treated Plated Steel for the T-Bolt and Locknut
The choice of heat-treated plated steel for the T-bolt and locknut is a strategic decision that leverages the specific advantages of carbon steel for fastening applications. While 304 Stainless Steel is excellent for corrosion resistance, certain high-strength applications benefit from the enhanced hardness and toughness achievable with heat-treated carbon steels. Heat treatment processes, such as quenching and tempering, significantly increase the core strength and wear resistance of the steel, making it ideal for the high-stress demands placed on the T-bolt threads and the locknut engagement.
The plating, typically zinc, acts as a sacrificial barrier against corrosion, protecting the underlying steel from environmental degradation. Zinc plating offers good protection in many atmospheric conditions and, importantly, provides a level of galvanic compatibility when coupled with 304 Stainless Steel. Although different metals can sometimes lead to galvanic corrosion, the zinc plating acts as a buffer and, in this specific clamp design, where the primary load-bearing and sealing components are distinct (stainless steel band for hose contact, plated steel for the fastening mechanism), the risk is well-managed and outweighed by the benefits of superior mechanical strength and cost-effectiveness for the T-bolt assembly. This composite material strategy ensures that each part of the clamp performs optimally for its intended function – corrosion resistance for the band contacting the hose, and maximum strength and durability for the tensioning mechanism.
Dimensional Specifications and Application Matching
Understanding the precise dimensional specifications is crucial for selecting the correct T-Bolt Hose Clamp for a given application, ensuring optimal fit and performance.
Nominal, Minimum, and Maximum Diameters
The T-Bolt Hose Clamp is specified with a nominal diameter of 2-1/8 inches (approximately 2.125 inches), with the technical specification listing 2.13 inches, indicating a close approximation. This nominal diameter provides a central reference point for hose sizing. The clamp's operational range is defined by its Minimum Diameter (1.86 inches) and Maximum Diameter (2.17 inches). This range indicates the specific diameters of hoses that the clamp is designed to effectively seal. When selecting a clamp, it is imperative that the outer diameter of the hose, once installed onto its fitting, falls within this specified minimum and maximum range. A hose diameter too small will result in insufficient clamping force, leading to leaks, while a hose diameter too large will prevent proper clamp engagement or even damage the clamp upon tightening. For instance, a hose with an OD of 2.0 inches would be perfectly suited for this clamp, falling well within the 1.86" to 2.17" range.
T-Bolt Thread Size: 1/4-28
The T-Bolt Thread Size of 1/4-28 refers to the industry-standard dimensions of the bolt's threads. "1/4" denotes a nominal major diameter of 0.250 inches, and "28" signifies 28 threads per inch (TPI). This fine thread pitch provides several engineering advantages: it allows for very precise adjustments to clamping tension, minimizes the likelihood of vibrational loosening due to the larger contact area between threads, and enhances the mechanical advantage during tightening, enabling higher clamping forces with less applied torque. Compatibility with standard 1/4-28 nuts and tools ensures ease of installation and maintenance.
Key Applications and Industry Suitability
The robust construction and superior performance characteristics of the 2-1/8 inch T-Bolt Hose Clamp make it an ideal solution for a broad spectrum of demanding applications across various industries.
- Heavy-Duty Automotive and Trucking: Essential for securing coolant hoses, air intake systems, and exhaust connections on diesel engines, commercial trucks, buses, and off-highway vehicles. Its resistance to vibration and high clamping force ensures reliability in harsh road conditions.
- Agricultural Equipment: Used on tractors, harvesters, and other farm machinery for hydraulic lines, coolant systems, and air induction, where dust, dirt, and constant vibration are prevalent challenges.
- Construction and Earthmoving Equipment: Crucial for maintaining critical fluid connections in excavators, loaders, bulldozers, and other heavy machinery operating in rugged, high-stress environments.
- Industrial Machinery: Found in manufacturing plants, processing facilities, and power generation units for securing hoses in cooling systems, pneumatic lines, and general fluid transfer applications requiring robust connections.
- Marine Applications: The 304 Stainless Steel band provides excellent corrosion resistance against saltwater and humidity, making these clamps suitable for engine coolant systems, exhaust hoses, and bilge pump outlets on boats and marine vessels.
- HVAC Systems: Utilized in large-scale industrial and commercial HVAC systems for connecting ducts and heavy-duty hoses, ensuring leak-free performance and efficient air or fluid transfer.
- Fluid Transfer and Processing: Applicable in chemical processing plants (where 304 SS compatibility is established), water treatment facilities, and other environments where dependable, leak-proof transfer of various liquids and slurries is critical.
Installation, Maintenance, and Longevity
Proper installation and periodic maintenance are key to maximizing the lifespan and performance of the T-Bolt Hose Clamp. Before installation, ensure that both the hose and the fitting are clean and free of debris or burrs. Position the clamp squarely over the connection point, ensuring the band fully covers the sealing area without protruding past the hose end or interfering with other components. Using a torque wrench is highly recommended to apply the manufacturer-specified torque for the 1/4-28 T-bolt, ensuring optimal clamping force without over-tightening, which can damage the hose or the clamp, or under-tightening, which can lead to leaks. Regular inspection for signs of wear, corrosion, or loosening is advisable, especially in high-vibration or corrosive environments. With proper installation and care, these clamps are designed to provide years of reliable service.
Comparative Analysis and Value Proposition
When contrasted with standard worm-drive clamps, the T-Bolt Hose Clamp offers undeniable advantages in applications demanding higher performance. Worm-drive clamps, while economical for low-pressure, low-vibration applications, suffer from uneven clamping force distribution due to their perforated band and single-point tightening mechanism, making them prone to leaks under higher pressures and vibrations. The T-bolt design, with its solid band, robust T-bolt, and heavy-duty locknut, provides superior concentric sealing, higher burst pressure ratings, and exceptional resistance to dynamic forces. This translates into fewer failures, reduced maintenance, and enhanced operational safety, ultimately offering a lower total cost of ownership over the product's lifespan. The investment in a high-quality T-Bolt Hose Clamp is an investment in system reliability and longevity.
Conclusion
The T-Bolt Hose Clamp, with its 2-1/8 inch nominal diameter, is a precisely engineered fastening solution that stands out for its robust construction, superior material selection, and exceptional performance characteristics. From its smooth 304 Stainless Steel band designed to protect hose integrity and ensure uniform 360° clamping force, to its heat-treated plated steel T-bolt and locknut providing unmatched durability and high torquing capability, every aspect of this clamp is optimized for reliability. Ideal for rigorous applications in heavy-duty automotive, industrial, marine, and construction sectors, it delivers a secure, leak-proof connection that withstands the most demanding operational conditions. This T-Bolt Hose Clamp from Buyers Products embodies advanced engineering to provide a dependable, long-lasting solution for critical fluid transfer systems.
