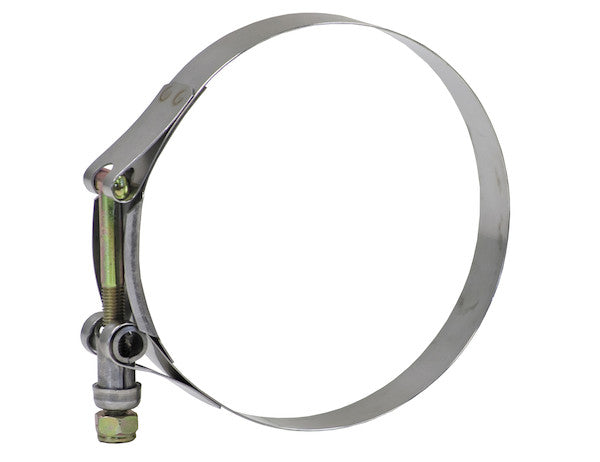

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.
Specifications
| Color | Silver |
|---|---|
| Finish | Plain |
| Material | 304 Stainless Steel |
| Maximum Diameter | 2.34 |
| Minimum Diameter | 2.03 |
| Nominal Diameter | 2.25 |
| T-Bolt Thread Size | 1/4-28 |
Advanced Engineering and Performance Analysis: T-Bolt Hose Clamp (2-1/4 Inch Nominal Diameter)
The T-Bolt Hose Clamp, precisely engineered for a 2-1/4 inch nominal diameter, represents a critical component in systems demanding robust, leak-proof, and durable hose connections. Manufactured by Buyers Products, this clamp is not merely an accessory but a fundamental element designed to ensure the integrity and operational efficiency of various fluid and air transfer applications. Its design, material selection, and performance characteristics are meticulously optimized to address the demanding environments encountered in heavy-duty automotive, industrial, marine, and agricultural sectors. The emphasis on a smooth inner band, superior torquing capabilities, and consistent 360-degree clamping force underscores its advanced engineering ethos, providing a reliable solution where conventional clamping mechanisms may falter.
Core Design and Mechanical Principles
The fundamental advantage of the T-Bolt hose clamp lies in its distinctive design, which significantly departs from traditional worm-drive clamps. Instead of a slotted band and screw mechanism, the T-bolt design employs a solid, wide band secured by a T-shaped bolt and a robust locknut. This configuration confers several mechanical advantages critical for high-performance applications. The T-bolt, characterized by its larger thread diameter and robust construction, facilitates the application of substantially higher clamping torque compared to the fine threads and smaller screws of worm-drive clamps. This increased torque translates directly into superior clamping force, essential for maintaining a tight seal under elevated pressures, vibrations, and temperature fluctuations.
The direct axial pull exerted by the T-bolt on the band, via the bridge assembly, ensures that the clamping force is distributed uniformly around the hose circumference. This 360-degree radial compression is paramount for preventing leaks and maintaining hose integrity over extended periods. Unlike designs where the screw mechanism can create localized pressure points or distortions, the T-bolt system distributes stress evenly, thereby mitigating the risk of hose material degradation or premature failure. Furthermore, the absence of slots or perforations on the inner surface of the band, a hallmark of this design, eliminates potential shear points that could damage soft hose materials. This smooth contact surface ensures that the hose material remains uncompromised, preserving its structural integrity and extending its operational lifespan, even under significant radial compression.
Material Science and Construction Excellence
The selection of materials for the T-Bolt Hose Clamp is a critical factor in its overall performance, durability, and resistance to environmental degradation. The primary component, the clamping band, is fabricated from 304 Stainless Steel, a material renowned for its exceptional properties. AISI 304 stainless steel is an austenitic chromium-nickel alloy, characterized by its excellent corrosion resistance across a broad spectrum of atmospheric and chemical environments. This resistance is attributed to the formation of a passive chromium oxide layer on its surface, which self-repairs when scratched or exposed to oxygen. For the demanding applications of hose clamps, 304 SS offers a superior balance of strength, ductility, and resistance to oxidation, making it ideal for exposure to moisture, road salts, engine fluids, and moderate chemicals.
The tensile strength of 304 SS (typically 515-620 MPa or 75-90 ksi) combined with its good ductility allows the band to conform precisely to the hose contour without cracking, even during high-torque tightening. Its service temperature range, generally up to 870°C (1600°F) for intermittent service and 925°C (1700°F) for continuous service, ensures its performance is maintained in engine compartments, exhaust systems, and other high-temperature applications where conventional materials would degrade rapidly. While 304 SS offers excellent general corrosion resistance, it is important to note that for applications involving highly corrosive chlorides (e.g., saltwater marine environments or certain industrial chemicals), alternative grades such as 316 Stainless Steel (with added molybdenum) might be considered for enhanced pitting and crevice corrosion resistance. However, for the vast majority of heavy-duty applications, 304 SS provides an optimal balance of cost-effectiveness and performance.
The T-bolt and locknut assembly are constructed from heat-treated plated steel. This material specification indicates a strategic choice to optimize mechanical strength and surface protection. Heat treatment, such as quenching and tempering, significantly enhances the hardness, tensile strength, and fatigue resistance of steel, properties crucial for a component subjected to high torque and dynamic loads. A typical heat treatment process can elevate the ultimate tensile strength of medium carbon steel to over 1000 MPa (145 ksi), far exceeding that of untreated or lower-grade steels. This enhanced strength prevents thread stripping, bolt elongation, or fracture, even when the clamp is subjected to its maximum permissible torque values.
The plating applied to the heat-treated steel, typically zinc plating, serves a dual purpose: it provides a sacrificial layer of corrosion protection and improves lubricity for easier tightening. Zinc plating offers galvanic protection, meaning the zinc corrodes preferentially to the underlying steel, thereby extending the component's lifespan in moderately corrosive environments. The "Silver" color and "Plain" finish referenced in the specifications usually denote a standard electroplated finish, providing a clean, professional appearance while delivering essential protection against atmospheric oxidation. While galvanized or plated steel components may exhibit some susceptibility to "red rust" over time in severe environments compared to solid stainless steel, their superior mechanical properties for the T-bolt itself are often prioritized for structural integrity. The interface between the 304 SS band and the plated steel T-bolt is generally managed without significant galvanic corrosion issues in most common applications due to the proximity of these materials in the galvanic series and the protective nature of the plating.
Performance Characteristics and Operational Advantages
The synergistic combination of robust design and advanced materials imbues the T-Bolt Hose Clamp with superior performance characteristics, setting it apart as a preferred choice for critical connections. One of its most significant advantages is the greater torquing capability. The larger thread pitch and robust cross-section of the 1/4-28 T-bolt, compared to the finer threads of worm-drive clamps, allow for the application of higher installation torques without risking thread stripping or component failure. This directly translates into a significantly higher radial clamping force on the hose, ensuring a much more secure and leak-resistant connection, particularly vital in systems operating under elevated internal pressures or subject to pulsations and vibrations. The ability to apply precise and high torque values also aids in accommodating various hose wall thicknesses and material durometers, providing a consistent seal across a wider range of applications.
The commitment to achieving equal 360-degree clamping force is a cornerstone of this clamp's design philosophy. This uniform pressure distribution is achieved through the wide, unbroken stainless steel band and the balanced force applied by the T-bolt mechanism. By eliminating localized pressure points, the clamp prevents deformation or "necking" of the hose material, which can lead to stress concentrations, eventual fatigue, and premature failure. This comprehensive sealing capability is particularly critical in coolant systems, air intake lines, and turbocharger connections where any leakage can severely compromise system efficiency, lead to component damage, or even catastrophic failure. The integrity of the seal is maintained even under dynamic operating conditions, such as engine vibration or thermal expansion/contraction cycles.
Furthermore, the smooth inner band is a deliberate design choice that enhances hose longevity and operational reliability. Unlike clamps with cut-through or perforated bands, which can abrade, cut into, or extrude the hose material under high clamping forces, the seamless inner surface of the T-Bolt clamp protects the hose. This preventative measure is especially important for silicone, rubber, or flexible plastic hoses that are susceptible to surface damage. By safeguarding the hose's outer layer, the clamp extends the hose's service life, reduces maintenance frequency, and minimizes the risk of sudden hose failures caused by mechanical stress concentrating on a damaged surface. This feature contributes to lower total cost of ownership over the operational life of the equipment.
The inherent durability and wear-resistance of the T-Bolt clamp are directly attributable to its premium material composition and construction. The 304 Stainless Steel band offers excellent resistance to corrosion, high temperatures, and environmental degradation, while the heat-treated and plated steel T-bolt and locknut provide superior mechanical strength and localized corrosion protection. This combination ensures that the clamp can withstand harsh operating conditions, including exposure to fuels, oils, coolants, dust, dirt, and varying weather conditions, without compromising its structural integrity or clamping performance. Its robust construction provides resistance to fatigue from repeated thermal cycling and vibration, ensuring a long and reliable service life in demanding industrial and mobile applications.
Dimensional Specifications and Precision Sizing
The precise dimensional specifications of the T-Bolt Hose Clamp are fundamental to ensuring a correct fit and optimal performance for specific hose applications. This particular model is designated with a Nominal Diameter of 2.25 inches (2-1/4 inch), which serves as a central reference point for its intended use. However, the crucial operational range is defined by its Minimum Diameter of 2.03 inches and Maximum Diameter of 2.34 inches. This range indicates the specific hose outer diameters that the clamp is designed to accommodate effectively. For proper installation, the outer diameter of the hose, including any fittings or sleeves, must fall within this span to allow for adequate compression without over-tightening or insufficient engagement.
Accurate sizing is paramount. Selecting a clamp that is too small for the hose will prevent proper engagement and tightening, leading to insufficient clamping force and potential leaks. Conversely, a clamp that is excessively large will bottom out before achieving sufficient compression, resulting in a loose connection and a high risk of failure. Engineers and technicians must precisely measure the actual outside diameter (OD) of the hose assembly at the point where the clamp will be installed. This measurement should account for any manufacturing tolerances in the hose and fittings. For instance, a hose with an OD close to the 2.25-inch nominal diameter would be ideally suited, allowing the clamp to operate within its optimal adjustment range, providing maximum clamping force and sealing effectiveness.
The T-Bolt Thread Size of 1/4-28 is another critical specification. This designation refers to a 1/4-inch nominal diameter bolt with 28 threads per inch (fine thread series). The fine thread pitch provides several advantages for a clamping mechanism: it allows for more precise adjustments of clamping force with each turn, reduces the likelihood of loosening due to vibration (self-locking characteristic), and often results in a stronger connection in terms of shear strength compared to coarse threads of the same nominal diameter. This standardized thread size also ensures compatibility with common tools, simplifying installation and maintenance procedures. The combination of a robust T-bolt and fine threading contributes significantly to the clamp's high torquing capability and overall mechanical reliability.
Installation, Maintenance, and Longevity
Proper installation is paramount to achieving the full performance potential of the T-Bolt Hose Clamp. Before installation, it is essential to ensure that the hose and fitting surfaces are clean and free of debris or lubricants that could compromise the seal. The clamp should be positioned squarely over the hose and fitting, ensuring that the band covers the entire sealing surface evenly. The T-bolt should then be tightened gradually using a torque wrench to the manufacturer's recommended torque specifications. While specific torque values vary based on hose material, pressure, and application, adhering to these guidelines prevents both under-tightening (leading to leaks) and over-tightening (which can damage the hose, the clamp, or strip the threads). For critical applications, a final visual inspection should confirm uniform compression around the hose circumference and proper seating of the clamp components.
Routine maintenance plays a crucial role in maximizing the longevity and reliability of T-Bolt hose clamps. Periodic inspections should be conducted to check for any signs of loosening, corrosion, material degradation (of the hose or clamp), or physical damage. Environmental factors such as extreme temperature fluctuations, exposure to corrosive chemicals, or excessive vibration can accelerate wear. If any signs of compromise are observed, the clamp should be promptly re-torqued or replaced. While the 304 Stainless Steel band offers excellent corrosion resistance, the plated steel T-bolt and locknut may eventually show signs of surface corrosion in highly aggressive environments. Early detection and replacement prevent systemic failures. The design of the T-Bolt clamp typically allows for relatively straightforward removal and reinstallation, facilitating maintenance tasks and hose replacements.
Applications and Industry Relevance
The T-Bolt Hose Clamp, with its 2-1/4 inch nominal diameter, finds extensive application across a diverse range of industries where secure and durable hose connections are non-negotiable. Its robust design and superior clamping force make it an indispensable component in heavy-duty automotive and truck applications, particularly for turbocharger intake and charge air cooler connections, engine coolant lines, and exhaust systems where hoses are subjected to high pressures, extreme temperatures, and significant vibrations. In these environments, the integrity of a T-bolt clamp directly impacts engine performance, emissions control, and overall vehicle reliability.
In industrial machinery and equipment, these clamps are critical for hydraulic lines (where appropriate, generally for lower pressure return lines or air systems), pneumatic systems, and fluid transfer lines, including those in manufacturing plants, processing facilities, and material handling equipment. Their ability to withstand continuous operation and harsh industrial environments makes them a preferred choice for ensuring operational continuity and safety. Agricultural equipment, such as tractors, combines, and irrigation systems, also heavily relies on T-bolt clamps for coolant, fuel, and air intake hoses, where dirt, moisture, and vibration are constant challenges. Similarly, in construction equipment, from excavators to bulldozers, these clamps secure vital fluid and air lines that are subject to extreme mechanical stress and environmental exposure.
The marine sector also benefits significantly from the T-Bolt clamp's resilience. While saltwater environments may necessitate 316 SS components for maximum corrosion resistance, the standard 304 SS band with plated hardware still offers a substantial upgrade over common steel clamps for freshwater applications and less severe marine exposures, securing exhaust hoses, cooling water lines, and fuel systems. Furthermore, specialized applications in HVAC systems for large commercial buildings, power generation facilities, and mining operations often utilize T-bolt clamps where high-performance, long-lasting connections are essential for operational safety and efficiency.
The design and performance of these clamps often align with or exceed requirements set by various industry standards, such as those from the Society of Automotive Engineers (SAE) or the American Society for Testing and Materials (ASTM), which dictate specifications for hose clamps used in different applications. While not explicitly detailed for this specific product, the engineering principles employed are consistent with achieving such standards, ensuring a product that meets rigorous quality and performance benchmarks.
Conclusion
The T-Bolt Hose Clamp, with its 2-1/4 inch nominal diameter, stands as a testament to precision engineering and material science in the realm of fluid and air handling. Its core attributes – a smooth 304 Stainless Steel band, a heat-treated plated steel T-bolt and locknut, superior torquing capabilities, and uniform 360-degree clamping force – converge to deliver an exceptionally robust and reliable connection solution. Designed to protect hose integrity, resist demanding operational stresses, and ensure leak-proof performance, this clamp is an indispensable component for critical applications across heavy-duty automotive, industrial, marine, and agricultural sectors. Investing in such a high-performance clamping solution not only secures vital connections but also contributes significantly to the safety, efficiency, and longevity of the systems it serves, ultimately reducing maintenance costs and operational downtime.
