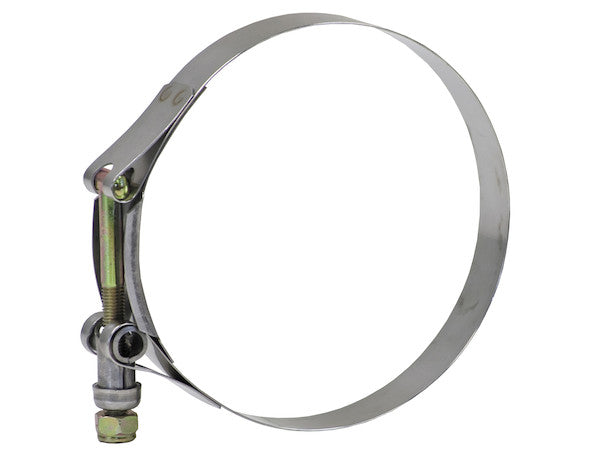

HC205 - T-Bolt Hose Clamp 2-5/8 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

Precision Engineering: The T-Bolt Hose Clamp for Critical Applications

The T-Bolt Hose Clamp, precisely engineered for a 2-5/8 inch nominal diameter, represents a pinnacle in fluid transfer system fastening technology. Designed and manufactured by Buyers Products, this component is not merely an accessory but a critical element in maintaining the integrity and performance of various demanding industrial and automotive systems. Its robust construction and intelligent design ensure a secure, leak-free connection, capable of withstanding the rigorous conditions often encountered in heavy-duty applications. This detailed exposition delves into the engineering principles, material science, performance characteristics, and application suitability of this high-grade T-Bolt clamp.

Fundamental Design Principles and Advantages

At the core of the T-Bolt hose clamp's superior performance lies its distinctive design, which offers significant advantages over conventional worm gear or band clamps. The T-Bolt mechanism is specifically engineered to provide a high mechanical advantage, translating applied torque into substantial clamping force. This allows for the generation of significantly higher sealing pressures across the hose surface, crucial for applications involving elevated internal pressures or temperatures. The 2-5/8 inch nominal diameter clamp, with its adjustable range from 2.41 inches minimum to 2.72 inches maximum, ensures a precise fit for a broad spectrum of hoses within this critical size bracket.

The Smooth Inner Band: Protecting Hose Integrity and Optimizing Seal

A defining characteristic of this T-Bolt clamp is its smooth inner band. Unlike conventional clamps with perforations or serrations on their inner surface, which can lead to localized stress points, hose damage, and cold flow, the smooth band design distributes clamping pressure evenly across the entire contact area. This meticulous design prevents the hose material from being cut, abraded, or extruded under high compression, thereby extending hose life and preventing premature failure. Furthermore, the uniform pressure distribution facilitated by the smooth band minimizes the risk of uneven bulging, which can compromise the seal and lead to leaks. This feature is particularly vital in applications where hoses are subjected to dynamic movements, vibrations, or temperature fluctuations, ensuring the integrity of the fluid path over extended operational periods.

Achieving 360° Clamping Force: The Key to Leak Prevention

The primary objective of any hose clamp is to create a hermetic seal. The T-Bolt clamp achieves this with exceptional efficacy by ensuring equal 360° clamping force around the hose circumference. This uniform radial compression is paramount for establishing a consistent and reliable seal, preventing fluid or air ingress/egress. The mechanism of the T-bolt, engaging with a robust, pre-formed band, draws the band taut symmetrically, applying pressure evenly. This uniform force mitigates potential leak paths that can arise from localized under-clamping or over-clamping, a common issue with less sophisticated clamp designs. For systems reliant on precise pressure maintenance or vacuum integrity, this consistent circumferential compression is indispensable.

Material Science: Durability, Strength, and Corrosion Resistance

The selection of materials for the T-Bolt Hose Clamp is dictated by the imperative for long-term durability, high mechanical strength, and excellent corrosion resistance in diverse operational environments. The clamp’s components – the band, the T-bolt, and the locknut – are judiciously chosen to complement each other and maximize overall performance.

304 Stainless Steel Band: The Backbone of Resilience

The band of the T-Bolt clamp is fabricated from 304 Stainless Steel. This austenitic stainless steel is renowned for its exceptional balance of strength, ductility, and corrosion resistance, making it an ideal choice for demanding applications. Key properties of 304 Stainless Steel include:

• Corrosion Resistance: 304 SS provides excellent resistance to a wide range of atmospheric environments, fresh water, and numerous corrosive media. Its chromium content forms a passive oxide layer on the surface, which self-repairs in the presence of oxygen, protecting the underlying steel from oxidation and rust. This makes it suitable for outdoor, marine (freshwater splash zone), and industrial settings where exposure to moisture, chemicals, and mild acids is common.
• High Strength and Durability: With a typical tensile strength of 515-620 MPa (75-90 ksi) and a yield strength of 205-310 MPa (30-45 ksi), 304 SS offers robust mechanical properties, allowing the clamp band to withstand significant radial forces without deformation. This strength is critical for maintaining clamping integrity under high hose internal pressures.
• Temperature Performance: 304 Stainless Steel maintains its mechanical properties across a wide temperature range, performing well in both cryogenic conditions and elevated temperatures up to approximately 870°C (1600°F) for intermittent service and 925°C (1697°F) for continuous service, although the clamp's operational temperature will also be limited by the hose material and other components.
• Chemical Compatibility: Its resistance to various chemicals, including many acids, alkalis, and chlorides (though limited in highly concentrated or hot chloride environments), ensures compatibility with diverse fluids conveyed through the hoses.

The choice of 304 Stainless Steel for the band underscores the commitment to a product that delivers enduring performance and reliability, minimizing the need for frequent replacement in challenging conditions.

Heat-Treated Plated Steel T-Bolt and Locknut: Strength and Lubricity

In contrast to the 304 Stainless Steel band, the T-bolt and its corresponding locknut are constructed from heat-treated plated steel. This material combination is selected to optimize specific functional requirements:

• Heat Treatment: The steel T-bolt undergoes a heat treatment process, which significantly enhances its mechanical properties, primarily its tensile strength, hardness, and fatigue resistance. This is crucial for the bolt, as it is the primary load-bearing component that transmits the tightening torque into clamping force. A stronger bolt resists stretching and yielding, ensuring the clamp maintains tension over time, even under vibration or cyclic loading.
• Plating: The plating on the steel T-bolt and locknut serves a dual purpose. Firstly, it provides an additional layer of corrosion protection to the underlying carbon steel, preventing rust and preserving the aesthetic integrity of the component. Common plating materials include zinc or zinc-nickel, which offer galvanic protection, sacrificing themselves to protect the steel. Secondly, the plating acts as a lubricant during tightening. This reduced friction between the bolt threads and the locknut allows for smoother engagement and more accurate torque application, minimizing galling (cold welding) and ensuring that more of the applied torque is converted into clamping force, rather than being lost to friction.
• Plated Steel Locknut: The locknut is also made of plated steel, typically featuring a nylon insert (nyloc nut) or prevailing torque design. This design prevents loosening due to vibration or thermal cycling, ensuring the clamp remains securely fastened under dynamic operating conditions. The 1/4-28 T-Bolt Thread Size indicates a fine thread pitch, which provides greater resistance to loosening and allows for more precise torque adjustments compared to coarse threads.

While the band is 304 Stainless Steel and the bolt/nut are plated steel, the careful selection and surface treatment of each component ensure optimal performance. In certain highly corrosive environments, the plating on the T-bolt and locknut may eventually degrade, but their primary function is to provide strength and reliable fastening, which they do exceptionally well.

Performance Characteristics and Operational Benefits

The synergy of its design and material composition imbues the T-Bolt Hose Clamp with superior performance characteristics essential for demanding applications.

• High Torque Capability and Sealing Pressure: The T-bolt design intrinsically allows for significantly higher applied torque compared to worm gear clamps. This translates directly into higher, more consistent radial sealing pressure on the hose, making the clamp ideal for high-pressure fluid lines, charge air cooler (CAC) systems, and other critical connections where leakage is unacceptable.
• Vibration Resistance: The robust T-bolt and locknut assembly, particularly with a prevailing torque locknut, provides excellent resistance to loosening under severe vibration. This mechanical locking feature is vital for equipment operating in harsh, dynamic environments, preventing unexpected disconnections and system failures.
• Temperature Stability: Given the use of 304 Stainless Steel for the band and heat-treated steel for the bolt, the clamp can maintain its integrity and clamping force across a broad range of operating temperatures. This is critical for engine compartments, exhaust systems, and industrial processes where extreme thermal cycles are common.
• Enhanced Durability and Wear Resistance: The heat-treated and plated steel T-bolt combined with the 304 SS band offers superior resistance to mechanical wear and environmental degradation. This contributes to a longer service life, reducing maintenance requirements and replacement costs.

Dimensional Specifications and Application Fitment

The precise dimensional specifications of the T-Bolt Hose Clamp are critical for ensuring proper fitment and optimal performance. This particular clamp is designated as "2-5/8 Inch Diameter nominal," which translates to 2.63 inches (2 + 5/8 = 2.625, rounded to 2.63). This nominal diameter serves as a general identifier, but the actual operational range is defined by the minimum and maximum diameters.

• Nominal Diameter: 2.63 inches (2-5/8 inches)
• Minimum Diameter: 2.41 inches
• Maximum Diameter: 2.72 inches

This operational range indicates that the clamp is designed to effectively seal hoses with outside diameters (OD) between 2.41 inches and 2.72 inches. When selecting a T-Bolt clamp, it is paramount to accurately measure the actual outside diameter of the hose to be clamped. A clamp that is too small will not fit, while one that is too large will not provide adequate compression or may bottom out before achieving sufficient clamping force. The specified range provides flexibility for slight variations in hose manufacturing tolerances or for specific applications where the hose may slightly expand or contract. The use of a fine thread pitch (1/4-28 T-Bolt Thread Size) allows for precise adjustments within this range, ensuring a snug and secure fit.

Installation Best Practices and Maintenance Considerations

Proper installation is crucial to realizing the full performance potential of the T-Bolt Hose Clamp. Adhering to best practices ensures optimal sealing and longevity:

• Hose Preparation: Ensure the hose end is clean, free of debris, and cut squarely. Any imperfections can compromise the seal.
• Positioning: Slide the clamp over the hose end, ensuring it is positioned correctly over the connection point (e.g., hose barb or pipe end). The clamp should sit evenly without being skewed.
• Torque Application: Use a torque wrench to tighten the T-bolt. While specific torque values may vary based on hose material, fitting type, and pressure requirements, it is generally recommended to tighten to the manufacturer's specified torque or to a value that achieves sufficient sealing without over-compressing the hose. The 1/4-28 thread size offers fine control over tightening. Over-tightening can damage the hose or the clamp components, while under-tightening will result in leaks.
• Inspection: After installation, visually inspect the clamp for evenness and proper seating. Check for any signs of hose bulging or crimping.
• Periodic Maintenance: In critical applications, periodic inspection of hose clamps is recommended. Check for any signs of loosening, corrosion, or damage. Re-torque if necessary, following manufacturer guidelines.

Diverse Applications Across Industries

The T-Bolt Hose Clamp with its 2-5/8 inch nominal diameter is a versatile component, finding extensive use in a multitude of demanding industries and applications where reliable, high-pressure, or vibration-resistant connections are paramount:

• Heavy-Duty Transportation: Widely used in trucks, buses, and off-highway vehicles for charge air cooler (CAC) systems, engine cooling systems, air intake systems, and exhaust components. The robust nature of the T-bolt clamp is essential for the high vibrations and pressures encountered in these environments.
• Construction and Agricultural Equipment: Integral to the hydraulic and pneumatic systems of excavators, loaders, tractors, and other heavy machinery. Their resilience ensures operation in dirty, high-impact environments.
• Industrial Machinery: Employed in various industrial processes involving fluid transfer, ventilation systems, filtration units, and material handling equipment, particularly where elevated temperatures or pressures are present.
• Marine Applications: Though primarily used for freshwater exposure, the 304 Stainless Steel offers better resistance than plated steel in certain marine engine components and bilge systems, excluding direct saltwater immersion for prolonged periods without additional protection.
• Automotive Performance and Aftermarket: Preferred for aftermarket turbocharger installations, intercooler piping, and high-performance intake systems where integrity under boost pressure is critical.
• HVAC Systems: Used in industrial HVAC and ducting systems for secure connections of flexible hoses and tubes carrying air or refrigerants.

The inherent strengths of the T-Bolt design – superior clamping force, even pressure distribution, high vibration resistance, and durable materials – make it the clamp of choice for engineers and technicians seeking uncompromising reliability in these critical applications.

The Buyers Products Advantage

Buyers Products is a recognized leader in providing high-quality components for the work truck and industrial equipment markets. This T-Bolt Hose Clamp embodies their commitment to engineering excellence and product reliability. By integrating premium materials like 304 Stainless Steel and heat-treated plated steel with a meticulous design process, Buyers Products ensures that each clamp meets stringent performance standards. Choosing a Buyers Products T-Bolt clamp means investing in a component that offers:

• Enhanced System Longevity: Protecting hoses from damage and maintaining leak-free connections extends the life of entire fluid transfer systems.
• Reduced Downtime: Reliable clamps prevent failures and leaks, minimizing unexpected maintenance and costly operational interruptions.
• Safety and Compliance: Secure connections contribute to safer working environments by preventing fluid spills or component failures, aiding in compliance with industry standards.
• Cost-Effectiveness: While potentially having a higher initial cost than basic clamps, the superior durability and performance of T-Bolt clamps deliver significant long-term savings through reduced replacements and minimized system damage.

Conclusion

The T-Bolt Hose Clamp, with a nominal diameter of 2-5/8 inches, stands as a testament to precision engineering and material science in the realm of fluid connection technology. Its thoughtful design, featuring a smooth inner band, robust T-bolt mechanism, and the strategic deployment of 304 Stainless Steel for the band and heat-treated plated steel for the bolt and locknut, culminates in a fastening solution of exceptional strength, durability, and sealing capability. From preventing hose damage to ensuring consistent 360° clamping force, every aspect of this clamp is optimized for peak performance in the most demanding industrial, heavy-duty, and high-performance applications. For engineers and maintenance professionals seeking an uncompromising solution for critical hose connections, the Buyers Products T-Bolt Hose Clamp represents an intelligent and reliable investment.
