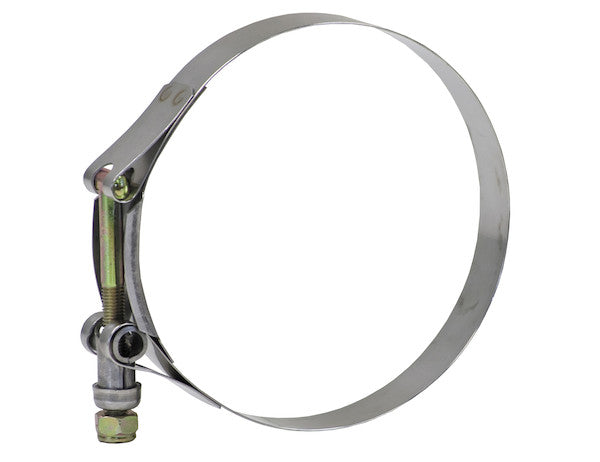

HC210 - T-Bolt Hose Clamp 2-3/4 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

Advanced Technical Overview: T-Bolt Hose Clamp 2-3/4 Inch Nominal Diameter

The T-Bolt Hose Clamp, with a 2-3/4 inch nominal diameter, represents a pinnacle in connection security and fluid transfer integrity for demanding applications. Engineered by Buyers Products, this clamping solution is specifically designed to meet stringent requirements where conventional clamping methods may prove inadequate. Its construction and operational principles are optimized for durability, exceptional clamping force, and long-term reliability in environments subjected to high pressures, significant vibrations, and corrosive elements.

Precision Engineering and Material Science

Superior Band Design and Hose Protection

A cornerstone of this T-Bolt Hose Clamp's design is its smooth inner band. Unlike many traditional worm gear clamps that feature perforations or serrations on the band, which can incise or abrade the hose material under high torque, this clamp presents an unblemished contact surface. This smooth interface is critical for several reasons:

• Elimination of Hose Damage: By preventing direct contact of sharp edges or rough surfaces with the hose, the clamp significantly reduces the risk of cutting, pinching, or prematurely wearing the hose's outer layer. This extends the service life of the hose, minimizing downtime and replacement costs.
• Uniform Pressure Distribution: The continuous, smooth band facilitates an even distribution of radial clamping force around the entire circumference of the hose. This uniform pressure application is essential for creating a hermetic seal that prevents leaks, even under fluctuating pressure conditions. It mitigates the common issue of localized stress concentrations that can lead to bulging or cold flow of the hose material.
• Enhanced Sealing Integrity: The ability to apply uniform pressure over a broad contact area enhances the clamp's efficacy in sealing various hose materials, including silicone, rubber, and reinforced synthetic compounds. This is particularly important for critical fluid or air transfer systems where leak prevention is paramount.

Optimized Torquing Capability and Clamping Force

The T-bolt mechanism is inherently superior to standard worm-drive clamps in terms of achievable clamping force and resistance to loosening. The 1/4-28 T-Bolt Thread Size signifies a fine thread pitch, which offers a greater mechanical advantage. This allows for:

• Higher Torque Application: The robust T-bolt and nut assembly can withstand significantly higher tightening torques compared to the delicate screw mechanism of worm gear clamps. This translates directly into a higher radial clamping force on the hose.
• Increased Sealing Pressure: Greater clamping force directly results in increased pressure on the hose against the barb or connection fitting. This elevated sealing pressure is crucial for maintaining integrity in high-pressure systems, preventing blow-off, and resisting the internal pressure forces that attempt to dislodge the hose.
• Reduced Risk of Loosening: The heat-treated plated steel T-bolt combined with a plated steel locknut provides excellent resistance to vibration-induced loosening. The locknut's design, often featuring an internal nylon insert or deformed thread, creates friction against the T-bolt, ensuring that the clamp tension is maintained even in dynamic operating environments. This is a critical safety feature in applications where unexpected disconnections could lead to catastrophic failures or environmental contamination.

360-Degree Clamping Force Assurance

The design of this T-Bolt clamp ensures an equal 360-degree clamping force around the hose. This is achieved through:

• Robust Band and Bridge Design: The wide, heavy-gauge 304 Stainless Steel band, coupled with a robust bridge mechanism where the T-bolt engages, ensures that the clamping force is evenly distributed without creating weak points. The T-bolt pulls the band ends together consistently around the entire hose circumference.
• Prevention of Cold Flow and Deformation: Uniform pressure prevents the hose material from deforming unevenly, which can lead to leaks over time. This uniform compression ensures that the hose maintains its circular profile, maximizing contact with the fitting.
• Enhanced Blow-off Resistance: For applications involving high internal pressures, a complete 360-degree seal is indispensable. This clamp's design minimizes potential leak paths, providing superior resistance to hose blow-off compared to clamps that may exhibit uneven pressure distribution.

Material Specifications and Performance Attributes

The material selection for the T-Bolt Hose Clamp is pivotal to its performance and longevity, particularly in challenging industrial and vehicular environments.

304 Stainless Steel Band

The primary clamping band is fabricated from 304 Stainless Steel. This austenitic stainless steel grade is renowned for its:

• Exceptional Corrosion Resistance: 304 SS offers excellent resistance to a wide range of atmospheric environments, chemicals, and fresh or saltwater exposure. This makes it ideal for marine, automotive (road salt), chemical processing, and outdoor industrial applications where rust and material degradation would compromise performance.
• High Strength-to-Weight Ratio: It possesses high tensile strength and yield strength, allowing the clamp to exert significant clamping force without deforming or failing.
• Temperature Resistance: 304 SS maintains its mechanical properties across a broad temperature range, from cryogenic conditions up to approximately 870°C (1600°F) in intermittent service, or 925°C (1700°F) in continuous service, although specific application temperatures for clamps will be limited by the hose material itself. This makes the clamp suitable for engine compartments, exhaust systems, and high-temperature process lines.
• Ductility and Weldability: While primarily formed, the material's ductility ensures it can conform effectively to the hose contour without cracking.

The "Plain" finish implies the natural mill finish of the 304 Stainless Steel, which is inherently silver in color, reflecting its unpolished, functional aesthetic and material integrity.

Heat-Treated Plated Steel T-Bolt and Plated Steel Locknut

The T-bolt and accompanying locknut are critical load-bearing components. Their material specifications ensure maximum operational integrity:

• Heat-Treated Steel: Heat treatment processes, such as hardening and tempering, are applied to increase the strength, hardness, and wear resistance of the steel. This prevents stretching or deformation of the T-bolt threads under high torque loads, ensuring consistent clamping pressure.
• Plated Steel: The steel components are plated, typically with zinc or other corrosion-resistant coatings. This plating provides an essential sacrificial barrier against rust and environmental corrosion, protecting the underlying steel and ensuring smooth thread engagement and disengagement over the clamp's lifespan. The plating also provides lubricity, facilitating proper torque application and reducing thread galling.
• Locknut Functionality: The plated steel locknut is integral to preventing vibrational loosening. Its design, often a prevailing torque type, creates resistance during installation, maintaining a tight, secure connection even in dynamic and high-vibration environments. This critical feature ensures long-term reliability and reduces the need for frequent re-tightening.

Dimensional Precision and Application Versatility

The specifications of the T-Bolt Hose Clamp underscore its precise application targeting.

• Nominal Diameter (2.75 inches): This refers to the approximate central diameter around which the clamp is designed to operate most effectively. It generally corresponds to the outside diameter (OD) of the hose it is intended for.
• Minimum Diameter (2.53 inches) and Maximum Diameter (2.84 inches): This range defines the operational clamping circumference. A minimum diameter of 2.53 inches indicates the smallest hose OD this clamp can effectively secure, while 2.84 inches is the largest. This specific range of 0.31 inches (7.87 mm) provides ample adjustability to accommodate manufacturing tolerances in hose dimensions and variations in fitting sizes, ensuring a tight, custom fit. Proper sizing is crucial; selecting a clamp whose range encompasses the actual hose OD ensures optimal performance and prevents over-tightening or insufficient clamping force.
• T-Bolt Thread Size (1/4-28): The 1/4-28 designation refers to a 1/4-inch nominal diameter thread with 28 threads per inch (fine pitch). This fine pitch thread provides several advantages:
  • Precise Adjustment: The fine pitch allows for very granular adjustments in clamping force, enabling technicians to achieve the exact tension required without excessive effort or risk of overtightening.
  • Increased Strength: Fine threads generally have a larger minor diameter and thus greater shear strength compared to coarse threads of the same nominal diameter, contributing to the overall robustness of the T-bolt assembly.
  • Resistance to Loosening: The increased number of threads in engagement over a given length, combined with the locknut, further enhances the clamp's resistance to vibrational loosening.

Key Applications and Industries

Given its robust design and material specifications, the 2-3/4 inch nominal T-Bolt Hose Clamp is exceptionally well-suited for a wide array of heavy-duty and critical applications across various sectors:

• Heavy-Duty Automotive & Trucking: Ideal for air intake systems, turbocharger connections, radiator and coolant hoses, intercooler piping, and exhaust system connections on commercial vehicles, construction equipment, agricultural machinery, and performance automotive applications. Its ability to withstand high temperatures, vibrations, and corrosive road conditions makes it invaluable.
• Industrial Machinery: Utilized in hydraulic and pneumatic systems, process piping for chemical transfer, water treatment facilities, and material handling equipment. The 304 SS construction provides resistance to various industrial fluids and environmental factors.
• Marine Applications: Excellent for securing cooling water lines, exhaust hoses, and other fluid transfer systems on boats and marine vessels. The 304 SS offers superior resistance to saltwater corrosion, a critical factor in marine environments.
• Agricultural Equipment: Employed on tractors, harvesters, irrigation systems, and other farm machinery where hoses are subjected to dirt, moisture, chemicals, and constant vibration.
• Construction Equipment: Essential for heavy machinery such as excavators, bulldozers, and loaders, where hydraulic lines, air lines, and cooling systems require uncompromisingly secure connections to withstand extreme operational stresses.
• HVAC Systems: Suitable for commercial and industrial HVAC installations, particularly for securing larger diameter ducting and fluid lines where a durable, leak-proof seal is necessary.

Installation and Maintenance Considerations

Proper installation is paramount to achieving the full performance potential of the T-Bolt Hose Clamp. It is recommended to use a torque wrench to ensure the T-bolt is tightened to the manufacturer's specified torque values. This prevents over-tightening, which can damage the hose or clamp, and under-tightening, which can lead to leaks or disconnections. Regular visual inspections are advisable to check for any signs of wear, corrosion, or loosening, especially in critical applications or harsh environments.

Conclusion

The T-Bolt Hose Clamp with a 2-3/4 inch nominal diameter from Buyers Products stands as a testament to engineering excellence in fluid connection technology. Its sophisticated design, featuring a smooth inner band, high-strength heat-treated T-bolt and locknut, and premium 304 Stainless Steel construction, ensures unparalleled performance. It provides superior clamping force, uniform pressure distribution, and exceptional resistance to corrosion, vibration, and temperature extremes. For applications demanding the highest level of reliability and security in hose connections, this T-Bolt clamp offers a robust, long-lasting solution, significantly contributing to the operational integrity and safety of systems across numerous heavy-duty industries.
