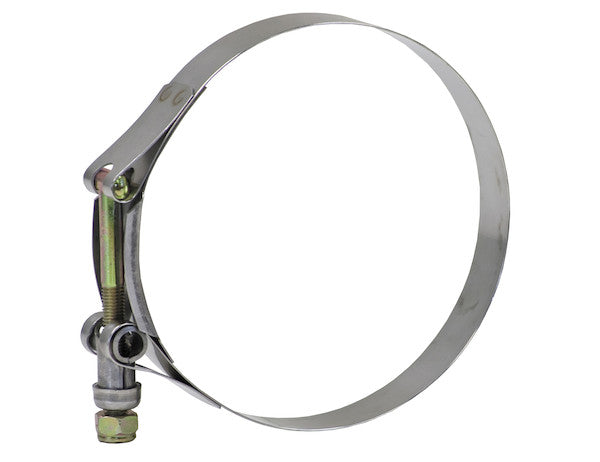

HC250 - T-Bolt Hose Clamp 3-1/8 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

Advanced Engineering and Performance of the T-Bolt Hose Clamp (3-1/8 Inch Nominal Diameter)

The T-Bolt Hose Clamp, precisely engineered by Buyers Products for applications requiring superior clamping force and reliability, represents a pinnacle in hose retention technology. This particular model, with a nominal diameter of 3-1/8 inches (3.13 inches), is designed to address the stringent demands of high-pressure, high-vibration, and temperature-variable environments. Its construction and design principles are rooted in delivering uncompromised performance and exceptional longevity across a diverse range of industrial, automotive, marine, and heavy-duty applications. This detailed exposition delves into the technical attributes, material science, and operational advantages that collectively define the efficacy and robustness of this essential fastening component.

Precision Design and Operational Mechanics

At the core of the T-Bolt Hose Clamp’s superior performance lies its meticulously crafted design. Unlike conventional worm-gear clamps, the T-bolt mechanism provides a fundamentally different approach to applying clamping force. The key innovation is the T-bolt itself, which engages directly with a robust threaded locknut, allowing for significantly higher and more consistent clamping loads. This mechanical advantage is crucial for maintaining integrity in hose connections that are subjected to extreme internal pressures or external stresses.

Smooth Inner Band Technology for Hose Preservation

A critical feature highlighted in the product's design is its smooth inner band. This attribute is not merely an aesthetic choice but a deliberate engineering decision with profound implications for hose integrity and longevity. The absence of perforations or sharp edges, commonly found in standard worm-gear clamps, eliminates potential stress concentration points on the hose surface. When a conventional clamp is tightened, these perforations can act as micro-stress risers, leading to localized indentations, bulging, or even premature cutting of the hose material. Over time, particularly under dynamic conditions of pressure cycling, temperature fluctuations, or vibration, these localized stresses can initiate fatigue cracks and ultimately lead to hose failure.

By maintaining a uniformly smooth contact surface, the T-Bolt Hose Clamp ensures that the clamping force is distributed evenly across the entire circumference of the hose. This uniform pressure profile prevents the hose material from deforming or bulging inwards, preserving its structural integrity and material properties. The smooth band also mitigates abrasive wear between the clamp and the hose, extending the operational life of both components. In critical applications where hose material integrity is paramount for preventing leaks and system failures, this design aspect provides an indispensable layer of protection and reliability.

360° Equal Clamping Force for Unrivaled Sealing

The operational efficacy of any hose clamp is directly proportional to its ability to generate and maintain a consistent, circumferential clamping force. The T-Bolt design excels in this regard, ensuring an equal 360° clamping force around the hose. This symmetrical pressure distribution is vital for establishing and preserving an impenetrable seal between the hose and the fitting. In environments where fluid or air containment is critical—such as in engine coolant lines, turbocharger air intake systems, or hydraulic circuits—any irregularity in clamping force can lead to minute gaps, resulting in leaks, pressure loss, or the ingress of contaminants.

The T-bolt mechanism, coupled with the rigid band structure, allows for a more linear and direct application of force, minimizing the "pinch" points often associated with less robust clamp designs. This uniform compression not only prevents leakage but also enhances the hose's resistance to "blow-off" under high internal pressures. The consistent clamping force ensures that the hose remains firmly seated on the barb or fitting, even when subjected to significant axial pull forces or rotational stresses, thereby providing a secure and dependable connection throughout its operational lifespan.

Enhanced Torquing Capability for Robust Connections

The design of the T-Bolt Hose Clamp inherently allows for significantly greater torquing capability compared to many other types of clamps. This feature is a cornerstone of its heavy-duty classification. The robust T-bolt and locknut assembly, combined with the substantial band material, are engineered to withstand higher applied torque values without stripping threads or deforming the clamp components. Greater torquing capability directly translates into higher achievable clamping force. This increased clamping force is indispensable in applications demanding superior sealing integrity and resistance to disconnection under extreme conditions.

For example, in high-boost turbocharger systems or high-pressure pneumatic and hydraulic lines, the ability to apply a precisely measured and substantial torque ensures that the hose connection can withstand significant internal pressures without expansion or detachment. The fine 1/4-28 thread size of the T-bolt, as specified, further contributes to this capability. A finer thread pitch allows for more precise adjustment and a greater mechanical advantage, meaning a given amount of torque can generate a higher axial force, translating into a tighter, more secure clamp. This precision and strength are critical for maintaining system performance and preventing catastrophic failures in demanding industrial and automotive settings.

Material Science and Durability

The selection of materials for each component of the T-Bolt Hose Clamp is fundamental to its overall performance, durability, and resistance to environmental degradation. Buyers Products has meticulously chosen materials that are optimized for strength, corrosion resistance, and longevity.

Band Material: 304 Stainless Steel

The main clamping band is constructed from 304 Stainless Steel, a material renowned for its exceptional properties. AISI 304 is an austenitic stainless steel, comprising approximately 18% chromium and 8% nickel. This composition imparts several critical advantages:

• Corrosion Resistance: The high chromium content forms a passive, self-repairing oxide layer on the surface, providing excellent resistance to a wide range of corrosive media, including fresh water, salt water, many chemicals, and atmospheric conditions. This makes the clamp ideal for marine, outdoor, and chemical processing environments.
• High Temperature Resistance: 304 Stainless Steel retains significant strength and corrosion resistance at elevated temperatures, making it suitable for applications involving hot engine components, exhaust systems, and industrial processes where thermal stability is crucial.
• Mechanical Strength: It offers a good balance of tensile strength and ductility, allowing the clamp to exert high clamping forces without deforming or failing. This strength is vital for maintaining the integrity of connections under pressure and vibration.
• Hygienic Properties: In applications where cleanliness is a concern, such as in food processing or pharmaceutical industries (though this specific plain finish might not be sterile-grade), 304 SS is preferred due to its smooth surface and ease of cleaning.

The "Silver" color and "Plain" finish indicate a standard industrial appearance, which is typically unpolished but structurally sound, focusing on functional performance rather than aesthetic refinement, which is appropriate for most heavy-duty applications.

T-Bolt and Locknut: Heat-Treated Plated Steel

The T-bolt and locknut components, which bear the brunt of the tightening torque and clamping load, are manufactured from heat-treated plated steel. This material combination ensures maximum strength and resistance to wear and environmental factors:

• Heat Treatment: The steel undergoes a controlled heat treatment process (e.g., hardening and tempering). This process alters the microstructure of the steel, significantly increasing its hardness, tensile strength, yield strength, and toughness. A stronger T-bolt is essential to prevent thread stripping or bending under high torque, ensuring that the maximum possible clamping force can be applied reliably.
• Plating: The steel components are coated with a protective plating (commonly zinc, though specific plating type is not detailed). This plating serves multiple purposes:
  • Corrosion Protection: The plating acts as a sacrificial barrier, protecting the underlying steel from rust and environmental corrosion, thus extending the operational life of the bolt and nut, particularly in damp or corrosive environments.
  • Reduced Friction: The plating can also help reduce friction during tightening, allowing for smoother engagement of the threads and ensuring that more of the applied torque is translated into clamping force rather than being lost to friction.
  • Wear Resistance: Plating enhances the surface hardness of the bolt and nut threads, improving their resistance to wear during repeated tightening and loosening cycles.
• Locknut Functionality: The inclusion of a plated steel locknut is critical for maintaining the applied clamping force under dynamic conditions. Locknuts are designed to resist loosening caused by vibration, thermal expansion/contraction, or shock loads. They achieve this through various mechanisms, such as distorted threads, nylon inserts, or prevailing torque designs, which create friction against the bolt threads, preventing accidental backing off and ensuring the connection remains secure over extended periods.

Dimensional Precision and Application Versatility

The specific dimensions of the T-Bolt Hose Clamp are paramount for ensuring proper fitment and optimal performance across a range of hose sizes.

• Nominal Diameter (3.13 inches or 3-1/8 inches): The product title and specifications clearly identify a nominal diameter of 3-1/8 inches (which converts to 3.125 inches), specified precisely as 3.13 inches in the table. This nominal value serves as a reference point for matching the clamp to the corresponding hose outside diameter (OD).
• Minimum Diameter (2.91 inches) and Maximum Diameter (3.22 inches): The defined clamping range from 2.91 inches to 3.22 inches is critical. This range indicates the effective compression capability of the clamp, allowing it to securely fasten hoses with outside diameters falling within this spectrum. This accommodates manufacturing tolerances in hoses and ensures a versatile fit for various brands and types of tubing. Proper sizing is crucial; a clamp that is too large will not achieve adequate compression, while one that is too small cannot be installed or will overstress the hose. The specified range allows for precise adjustment to create the ideal seal.
• T-Bolt Thread Size (1/4-28): As previously discussed, the 1/4-28 thread pitch is a fine-thread specification. Fine threads offer several advantages in clamping applications: they provide a larger stress area, allowing for higher clamping forces; they are less prone to loosening from vibration due to the shallower helix angle; and they allow for finer adjustments to the clamping pressure. This choice reinforces the clamp's suitability for high-performance and critical applications where precise and secure fastening is non-negotiable.

Optimal Applications and Industries

Given its robust construction, superior material properties, and precision engineering, the 3-1/8 inch nominal diameter T-Bolt Hose Clamp is ideally suited for a wide array of demanding applications:

• Heavy-Duty Automotive and Trucking: Essential for securing turbocharger boost hoses, intercooler piping, coolant lines, and air intake systems in heavy-duty diesel engines, commercial trucks, buses, and off-highway equipment. Its ability to withstand high temperatures, vibrations, and boost pressures is critical here.
• Marine Applications: The 304 Stainless Steel construction provides excellent corrosion resistance against saltwater and humid marine environments, making it ideal for engine cooling systems, exhaust risers, and fuel lines on boats and ships.
• Industrial Machinery: Used in manufacturing plants, mining equipment, construction machinery, and agricultural vehicles for securing various fluid transfer hoses, pneumatic lines, and exhaust components where reliability under harsh operating conditions is paramount.
• Agricultural Equipment: For securing hoses on tractors, harvesters, and irrigation systems, where exposure to dirt, moisture, and vibration is common.
• Specialized Fluid Transfer Systems: In chemical processing, power generation, and wastewater treatment facilities, where precise and leak-free connections are vital for safety and operational efficiency.

The specific 3-1/8 inch diameter range is common for various automotive and industrial hoses, particularly those found in medium to large engine bays or heavy equipment where larger bore hoses are required for adequate flow of air, coolant, or other fluids.

Installation Best Practices and Longevity

While the T-Bolt Hose Clamp is designed for maximum durability and ease of use, proper installation is key to realizing its full potential. It is recommended to use a torque wrench to tighten the locknut to the manufacturer's specified torque values (or industry-standard values for similar clamps) to ensure optimal clamping force without overtightening, which could damage the hose or the clamp components. Regular inspection of hose connections, especially in critical applications, can further extend the life of both the hose and the clamp by identifying any potential issues before they escalate.

The T-Bolt Hose Clamp's design minimizes maintenance requirements due to its corrosion-resistant materials and robust construction. However, periodic checks for tightness, especially after initial installation and after severe temperature cycling, are prudent to confirm the integrity of the connection.

Conclusion: An Investment in Reliability

The T-Bolt Hose Clamp from Buyers Products, with its 3-1/8 inch nominal diameter, represents a professionally engineered solution for hose retention that transcends the capabilities of conventional clamping mechanisms. Its foundational elements—the smooth inner band, uniform 360° clamping force, and superior torquing capability—are meticulously supported by a judicious selection of materials: 304 Stainless Steel for the band and heat-treated, plated steel for the T-bolt and locknut. These material choices endow the clamp with exceptional resistance to corrosion, high temperatures, and mechanical stresses, ensuring a long and reliable service life.

The precise dimensional specifications, including a clamping range of 2.91 to 3.22 inches and a 1/4-28 T-bolt thread size, underscore its design for exacting performance requirements. This clamp is not merely a fastening device; it is a critical component engineered to maintain system integrity, prevent leaks, and withstand the harshest operating conditions across heavy-duty automotive, industrial, marine, and agricultural sectors. Investing in this T-Bolt Hose Clamp is an investment in the long-term reliability, safety, and operational efficiency of any system where robust hose connections are paramount.
