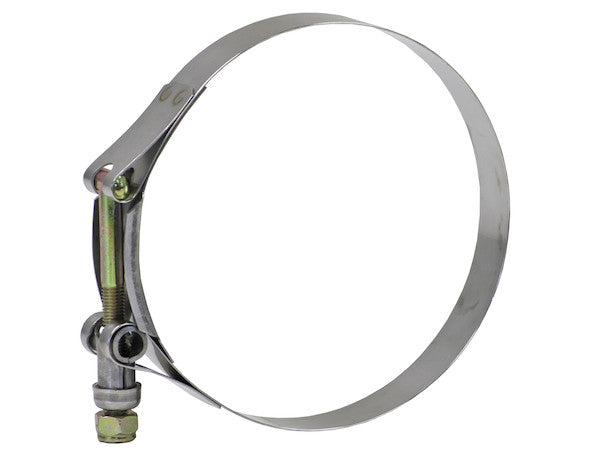

HC260 - T-Bolt Hose Clamp 3-1/4 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

The T-Bolt Hose Clamp with a nominal diameter of 3-1/4 inches, as presented by Buyers Products, represents a meticulously engineered fastening solution designed for applications demanding superior clamping force and reliability. This technical discourse will delve into the advanced design features, material science, operational mechanics, and critical application considerations that underscore the performance of this specific T-bolt clamp. By examining its construction and specifications, we aim to provide a comprehensive understanding of its suitability for demanding industrial and automotive environments.

Advanced Design and Mechanical Principles

At its core, the T-Bolt Hose Clamp distinguishes itself from conventional worm gear clamps through a robust design optimized for high-pressure and high-vibration environments. The fundamental principle revolves around achieving a circumferential clamping force that is both exceptionally high and uniformly distributed. The smooth inner band, fabricated from 304 Stainless Steel, is a critical design element. Unlike perforated worm gear clamps which can induce stress concentrations and potential shear points on the hose surface, the smooth band ensures an uninterrupted contact area. This eliminates the risk of scoring, cutting, or creating localized pressure points that could lead to premature hose degradation, bulging, or failure under operational pressures. This smooth profile is paramount in preserving the integrity of soft hose materials, elastomers, and silicone connections, thereby extending their service life and minimizing maintenance cycles.

The T-bolt mechanism itself is central to the clamp's superior performance. Consisting of a heat-treated plated steel T-bolt and a corresponding plated steel locknut, this assembly allows for significantly greater torquing capability compared to the relatively low torque limits of worm gear screw mechanisms. The larger thread pitch and robust cross-sectional area of the T-bolt provide enhanced shear and tensile strength, enabling installers to apply higher installation torque. This directly translates into a substantially higher radial clamping force on the hose, ensuring a tighter, more secure seal against leakage, even under elevated internal pressures or dynamic operational conditions. The inclusion of a locknut, specifically engineered to resist vibrational loosening, further augments the clamp's reliability by maintaining consistent tension and preventing inadvertent detachment, a common concern in applications subjected to continuous motion or pulsation.

The 360-degree clamping force is not merely an advantageous feature but a fundamental requirement for a hermetic seal in many high-performance systems. The T-bolt design, with its rigid band and high-strength fastener, ensures that the compressive force is evenly distributed around the entire circumference of the hose. This uniform pressure profile minimizes the formation of unsealed gaps or "cold spots" where fluid or air could potentially escape. Such comprehensive engagement is particularly crucial for critical fluid transfer systems, high-boost turbocharger connections, and coolant lines where any minute leakage can compromise system efficiency, lead to costly downtime, or pose safety risks. The precision engineering of the band and the fastening mechanism guarantees that the installed clamp forms a consistent, impenetrable barrier against external contaminants and internal fluid escape.

Material Science and Engineering Selection

The selection of materials for the T-Bolt Hose Clamp is a critical factor influencing its durability, performance, and application suitability. The specifications indicate that the primary material for the band is 304 Stainless Steel, while the T-bolt and locknut are constructed from heat-treated plated steel. This hybrid material approach is an engineering decision based on optimizing specific performance characteristics and cost-efficiency.

304 Stainless Steel for the Clamp Band:

Type 304 Stainless Steel is an austenitic chromium-nickel alloy renowned for its excellent combination of strength, ductility, and corrosion resistance. Its chemical composition typically includes 18-20% Chromium and 8-10.5% Nickel, along with minor amounts of Manganese, Silicon, Carbon, Sulfur, and Phosphorus. The high chromium content forms a passive oxide layer on the surface, which is self-repairing and provides superior resistance to oxidation and many corrosive agents. This characteristic is vital for the clamp band, which is in direct contact with the hose and exposed to various environmental conditions.

Key properties of 304 Stainless Steel that make it ideal for the clamp band include:

• Corrosion Resistance: It exhibits excellent resistance to a wide range of atmospheric, freshwater, and mild chemical environments, including many acids and alkalis. This protects the band from rust and degradation, ensuring a long service life even in humid, saline, or chemically exposed conditions.
• High Strength and Ductility: 304 SS offers a good balance of tensile strength (typically 515-620 MPa) and yield strength (typically 205-310 MPa), coupled with high ductility. This allows the band to withstand significant clamping forces without deforming permanently or fracturing, while also permitting the necessary malleability for manufacturing.
• Temperature Resistance: It maintains its mechanical properties and corrosion resistance across a broad temperature range, from cryogenic temperatures up to approximately 870°C (1600°F) for intermittent service and 925°C (1700°F) for continuous service, although mechanical strength decreases at elevated temperatures. This makes it suitable for engine compartments and industrial processes where temperature fluctuations are common.
• Hygiene: The smooth, non-porous surface of 304 SS is easy to clean and resistant to bacterial growth, making it a suitable choice for applications requiring a degree of cleanliness, though not necessarily sanitary-grade.

The use of 304 Stainless Steel for the band ensures that the critical component responsible for circumferential compression remains robust, corrosion-free, and structurally sound throughout its operational life, directly contributing to the long-term sealing integrity of the hose connection.

Heat-Treated Plated Steel for the T-Bolt and Locknut:

The decision to utilize heat-treated plated steel for the T-bolt and locknut, rather than full stainless steel, is a deliberate engineering choice that balances performance, cost, and specific mechanical requirements. This combination leverages the benefits of both material categories:

• Heat Treatment: Steel fasteners undergo heat treatment processes, such as quenching and tempering, to enhance their mechanical properties significantly. This increases the hardness, tensile strength, and fatigue resistance of the T-bolt, making it less susceptible to stretching, stripping, or shearing under high torque loads. The specified 1/4-28 thread size benefits greatly from this enhanced strength, allowing for precise and powerful engagement without deformation.
• Plating: The steel components are coated with a protective layer, commonly zinc plating (electrozinc plating) or zinc-nickel plating. This plating serves several critical functions:
  • Corrosion Protection: While not as inherently corrosion-resistant as stainless steel, a well-applied plating provides a sacrificial barrier against rust and environmental corrosion. Zinc plating, for instance, corrodes preferentially to the underlying steel, offering cathodic protection.
  • Reduced Friction: The plating creates a smoother, more consistent surface finish on the threads, which reduces friction during tightening. This allows for a more accurate application of torque, as less energy is lost to overcoming thread friction and more is converted into axial bolt tension and thus clamping force.
  • Aesthetics: The silver color and plain finish mentioned in the specifications are typical characteristics of plated steel components, offering a clean, professional appearance.

The combination of heat treatment and plating provides a robust, high-strength fastening system that can withstand the significant forces required for secure clamping, while offering adequate corrosion protection for many common industrial and vehicle operating environments. This allows the manufacturer to offer a high-performance clamp at a more competitive price point compared to an all-stainless steel construction, without compromising critical functional parameters for its intended applications. It's important to note potential galvanic corrosion if these plated steel fasteners are used in highly aggressive, salt-spray, or chemically exposed environments where the plating might eventually degrade, although for most typical uses, this combination proves highly effective and durable.

Clamping Mechanics and Performance Metrics

The performance of the 3-1/4 inch nominal diameter T-Bolt Hose Clamp is characterized by several key mechanical metrics:

• Greater Torquing Capability: The T-bolt and locknut design inherently permits the application of higher installation torque compared to traditional worm gear clamps. This increased torque directly translates into higher axial tension in the T-bolt, which in turn generates a superior radial clamping force on the hose. The robust 1/4-28 thread size contributes significantly to this capability, allowing for fine adjustment and strong engagement. A higher clamping force is critical for maintaining a leak-proof seal under pressure pulsations, vibrations, and thermal cycling, which can cause conventional clamps to lose tension and leak.
• Sealing Integrity: The combination of the smooth 304 SS inner band and the high, evenly distributed clamping force ensures exceptional sealing integrity. The band's continuous contact surface minimizes stress concentrations and prevents spiraling or channeling along the hose, which are common failure modes in less robust clamp designs. The locknut’s function is paramount here, as it mechanically locks the T-bolt in place, preventing rotational loosening that could diminish clamping force over time due to dynamic loads or thermal contractions. This robust tension retention is a cornerstone of reliable sealing.
• Vibration Resistance: Systems operating under constant vibration, such as engine compartments, heavy machinery, and industrial pumps, demand fastening solutions that resist self-loosening. The plated steel locknut, designed with prevailing torque features (e.g., distorted threads, nylon inserts if applicable, though typically a standard locknut for this type of clamp relies on tight thread engagement), is engineered to maintain tension even under severe vibratory loads. This prevents the clamp from gradually loosening, which could lead to loss of clamping force, hose dislodgment, or leakage.
• Pressure Ratings and Suitability: While specific pressure ratings for this clamp are not provided, T-bolt clamps are generally specified for medium to high-pressure applications where standard worm gear clamps would be inadequate. Their design allows them to withstand significantly higher internal pressures within the hose without experiencing creep, burst, or disconnection. This makes them ideal for pressurized air intake systems, cooling systems, and moderate-pressure hydraulic or pneumatic lines found in heavy-duty commercial vehicles, off-highway equipment, and industrial machinery.
• Thermal Expansion and Contraction Accommodation: Hoses and fittings in dynamic environments are subject to thermal expansion and contraction cycles. The robust clamping force generated by the T-bolt clamp, coupled with the inherent elasticity of the hose material itself, allows the connection to accommodate these dimensional changes without catastrophic failure or consistent leakage. The secure grip ensures that even with slight changes in hose diameter due to temperature, the seal remains effective.

Dimensional Precision and Application Sizing

The specified dimensions for this T-Bolt Hose Clamp are crucial for ensuring correct fitment and optimal performance:

• Nominal Diameter: 3.25 inches (3-1/4 inch): This represents the intended average diameter for which the clamp is designed, corresponding to the typical outer diameter of the hose it is meant to secure.
• Minimum Diameter: 3.03 inches: This is the smallest diameter the clamp can effectively compress. When selecting a clamp, the hose's outer diameter (OD) should be greater than or equal to this minimum diameter to ensure proper engagement and clamping.
• Maximum Diameter: 3.34 inches: This is the largest diameter the clamp can encompass while still providing sufficient clamping force. The hose's OD must be less than or equal to this maximum diameter.

The range between the minimum and maximum diameters (3.03" to 3.34") defines the operational window for this specific clamp. Proper clamp sizing is paramount. An undersized clamp will either not fit over the hose or will be over-stressed when tightened, leading to potential failure. An oversized clamp, conversely, may not be able to generate sufficient clamping force at its minimum adjustment point, resulting in a loose connection and potential leakage. Engineers and technicians must accurately measure the outer diameter of the hose, ideally with the fitting inserted, to ensure the selected clamp's operational range fully encompasses the hose's OD. For the 3-1/4 inch nominal clamp, it is ideally suited for hoses with an OD closely matching this nominal dimension, falling securely within the 3.03" to 3.34" range.

Installation, Maintenance, and Longevity

Proper installation and routine maintenance are vital for maximizing the longevity and effectiveness of the T-Bolt Hose Clamp:

• Preparation: Ensure that both the hose and the fitting surfaces are clean, free from grease, oil, dirt, or debris that could compromise the seal or create stress points.
• Placement: Position the clamp squarely over the area to be secured, ensuring it covers the full sealing surface of the hose and fitting. Avoid placing the clamp too close to the end of the hose or over any sharp edges.
• Tightening: The T-bolt should be tightened progressively and evenly. While specific torque values are not provided, it is critical to consult hose and fitting manufacturers' recommendations where available. Over-tightening can damage the hose, warp the fitting, or strip the T-bolt threads. Under-tightening will result in an insecure connection and potential leaks. The 1/4-28 thread allows for precise, controlled torque application.
• Inspection: Periodically inspect clamped connections. Look for signs of hose bulging, cracking near the clamp edge, rust on the T-bolt or locknut (though less likely with plated steel in typical environments), or signs of leakage.
• Re-tightening: In some applications, especially after initial thermal cycling, it may be beneficial to re-torque the clamps as the hose material may "set" or compress slightly.

The heat-treated plated steel T-bolt and locknut, combined with the 304 Stainless Steel band, are designed for durability and wear resistance, contributing to a long service life under specified operating conditions. Adherence to these practices ensures the clamp performs to its full potential, providing a reliable and secure connection for an extended period.

Diverse Applications

The T-Bolt Hose Clamp with its 3-1/4 inch nominal diameter finds extensive utility across a broad spectrum of industrial, commercial, and heavy-duty applications, particularly where robust and high-integrity hose connections are paramount:

• Heavy-Duty Automotive and Trucking: Essential for securing air intake hoses, turbocharger connections, intercooler piping, coolant lines, and exhaust components in diesel engines and other high-performance vehicles where vibration, high temperatures, and boost pressures are common.
• Industrial Machinery: Used in manufacturing facilities, processing plants, and construction equipment for hydraulic lines, pneumatic systems, material handling hoses, and various fluid transfer applications.
• Marine Industry: Critical for engine cooling systems, exhaust hoses, and bilge pump connections on boats and marine vessels, where resistance to corrosion and secure fastening under dynamic conditions are vital.
• Agricultural Equipment: Employed on tractors, combines, and other farm machinery for fuel lines, hydraulic hoses, and irrigation systems, enduring harsh outdoor environments and heavy usage.
• Piping and Ducting: In HVAC systems, dust collection systems, and general industrial ventilation, these clamps secure flexible ducting and piping, ensuring airtight connections.
• Specialized Fluid Transfer: For applications requiring the secure transfer of chemicals, abrasives, or other demanding fluids, where the smooth inner band prevents hose damage and the high clamping force ensures no leakage.

The 3-1/4 inch size is a common dimension for many medium-diameter hose applications in these sectors, making this specific clamp a versatile and indispensable component for engineers and maintenance professionals.

Conclusion

The T-Bolt Hose Clamp, with its 3-1/4 inch nominal diameter, manufactured by Buyers Products, represents a meticulously engineered solution for secure hose connections in demanding environments. Its construction from 304 Stainless Steel for the smooth inner band and heat-treated plated steel for the T-bolt and locknut underscores a strategic material selection designed to optimize corrosion resistance, mechanical strength, and overall durability. The technical advantages, including superior torquing capability, uniform 360-degree clamping force, and robust vibration resistance, collectively contribute to an exceptional level of sealing integrity and extended component lifespan. By providing a comprehensive understanding of its design principles, material science, operational performance, and critical application insights, this detailed analysis reaffirms the T-Bolt Hose Clamp as a high-performance fastening device, indispensable for ensuring the reliability and safety of critical fluid and air transfer systems across a multitude of industries.
