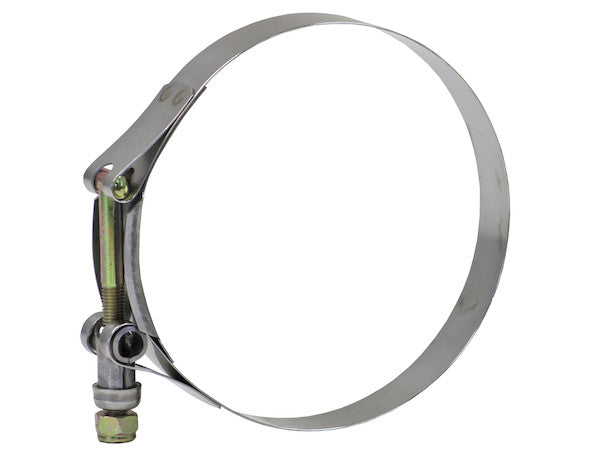

HC310 - T-Bolt Hose Clamp 3-7/8 Inch Diameter nominal

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.

Specifications

Advanced Technical Overview: T-Bolt Hose Clamp for High-Performance Applications

The T-Bolt Hose Clamp, with a nominal diameter of 3-7/8 inches (3.88 inches), represents a pinnacle of precision engineering in fluid transfer and pneumatic systems. Designed to meet the rigorous demands of industrial, automotive, marine, and heavy-duty applications, this clamp provides an unparalleled combination of robust construction, superior clamping force distribution, and long-term durability. Its meticulously engineered design addresses critical challenges associated with maintaining secure, leak-proof connections in environments characterized by high pressures, fluctuating temperatures, and dynamic vibrations. This comprehensive technical description delves into the material science, mechanical principles, and application benefits that define this essential fastening component.

Engineered Design for Optimal Performance

Smooth Inner Band Technology

A cornerstone of this T-Bolt Hose Clamp's superior performance is its smooth inner band. Unlike conventional worm gear clamps that feature perforations or cut-through slots for the screw thread, the continuous, unblemished surface of the T-Bolt clamp's inner band is critical for protecting the integrity of the hose. This design actively prevents the hose material from being cut, abraded, or extruded into the clamp's structure, which is a common failure point in less robust designs. Furthermore, the smooth band eliminates localized pressure points, thereby mitigating the risk of hose bulging or cold flow, which can compromise the seal over time. By distributing the clamping load uniformly across the hose circumference, the smooth band ensures material stability and extends the service life of the entire hose assembly. This feature also contributes significantly to the clamp's ability to withstand higher torquing capabilities, allowing installers to achieve a tighter, more reliable seal without fear of hose damage.

Uniform 360° Clamping Force Distribution

The fundamental objective of any hose clamp is to exert radial compressive force around a hose to secure it onto a fitting. The T-Bolt Hose Clamp excels in this regard by guaranteeing an equal 360-degree clamping force. This symmetrical pressure distribution is achieved through the T-bolt mechanism's linear pull and the inherent rigidity of the clamp band. Unlike single-point tightening mechanisms that can create uneven compression, potentially leading to leaks or premature hose wear on the looser side, the T-bolt design ensures that the force applied by the fastener is evenly translated across the entire contact surface between the hose and the fitting. This uniform stress profile is paramount for maintaining a robust, leak-free connection, especially in applications involving pressurized fluids or gases, or those subject to significant vibration and thermal cycling. The consistent radial pressure effectively minimizes gap formation and ensures that the hose material is compressed optimally against the barb or lip of the fitting, establishing an impermeable barrier.

Material Science and Robust Construction

304 Stainless Steel Band for Enhanced Durability

The primary material for the clamp band is specified as 304 Stainless Steel. This austenitic stainless steel alloy is renowned for its exceptional corrosion resistance, high tensile strength, and excellent formability, making it an ideal choice for the demanding environments where these clamps operate. The chemical composition of 304 SS typically includes 18-20% chromium and 8-10.5% nickel, which form a passive oxide layer on the surface. This chromium-rich layer spontaneously regenerates when damaged, providing inherent protection against oxidation, rust, and various corrosive agents found in industrial and outdoor settings. Specifically, 304 SS offers good resistance to freshwater, atmospheric corrosion, and a wide range of chemicals, including many acids, alkalis, and chlorides (though extreme chloride concentrations can lead to pitting corrosion). Its operational temperature range is broad, maintaining mechanical integrity from cryogenic temperatures up to approximately 870°C (1600°F) in intermittent service and 925°C (1700°F) in continuous service, although the clamping efficiency at very high temperatures would also depend on the hose material properties. The inherent strength of 304 SS ensures the clamp band resists deformation under high tightening loads and maintains its integrity over prolonged periods of use, contributing significantly to the clamp's overall reliability and lifespan.

Heat-Treated Plated Steel T-Bolt and Locknut

The critical fastening components—the T-bolt and its corresponding locknut—are constructed from heat-treated plated steel. This material specification underscores a deliberate engineering choice to optimize strength, wear resistance, and thread integrity. Heat treatment, typically involving processes such as quenching and tempering, significantly enhances the mechanical properties of steel, increasing its hardness, tensile strength, and fatigue resistance beyond what is achievable with untreated steel. This is crucial for the T-bolt, which bears the direct tensile load during tightening and throughout the clamp's operational life. The plating process, commonly zinc or chromium plating, provides an additional layer of protection against corrosion for the carbon steel base material, particularly important in areas exposed to moisture or corrosive atmospheres. Plating also reduces friction during tightening, allowing for smoother engagement of the threads and facilitating accurate torque application. The robust 1/4-28 thread size indicates a fine thread pitch, which offers superior thread engagement and a finer adjustment capability compared to coarser threads. Fine threads are also inherently stronger in shear and more resistant to loosening under vibration, making them ideal for high-stress clamping applications where joint integrity is paramount. The plated steel locknut complements the T-bolt, providing a secure fastening solution that resists loosening under dynamic loads and vibrations, thus ensuring the long-term stability of the clamped connection.

Technical Specifications and Performance Metrics

Precise Diameter Range and Nominal Fitment

This T-Bolt Hose Clamp is engineered for a specific diameter range, with a minimum diameter of 3.66 inches and a maximum diameter of 3.97 inches, centering around a nominal diameter of 3.88 inches (3-7/8 inches). This precise range is critical for ensuring optimal fitment across a variety of hose and fitting combinations within this size category. The carefully defined operational range allows for adequate compression without overstretching the clamp band or under-compressing the hose. The nominal diameter serves as a standard reference point for compatibility, while the min/max values account for manufacturing tolerances of hoses and fittings, as well as the desired compression ratio. The design ensures that within this range, the clamp can achieve its full 360-degree uniform clamping force, critical for preventing leaks and maintaining system pressure. Proper selection based on the outer diameter of the hose (after it's placed on the fitting) is paramount to leverage the full mechanical advantage of this clamp.

Enhanced Torquing Capability and Thread Integrity

The T-Bolt design, coupled with its heat-treated plated steel construction and 1/4-28 thread size, provides significantly greater torquing capability compared to many other clamp types. This higher torque capacity translates directly into a more robust and secure connection. The fine thread pitch of 28 threads per inch on the 1/4-inch diameter T-bolt offers a larger cumulative shear area and finer adjustment, which allows for precise control over the clamping force. This precision is vital for achieving the recommended torque specifications without damaging the hose or stripping the bolt threads. The robust materials ensure that the T-bolt assembly can withstand the applied torque repeatedly, facilitating maintenance and reusability without degradation of fastening performance. This ability to apply substantial and controlled torque is a key differentiator, enabling secure seals in high-pressure and critical applications where marginal clamping force is unacceptable.

Resistance to Vibration and Thermal Cycling

In many industrial and vehicular applications, hose assemblies are continuously subjected to vibrations, shocks, and wide temperature fluctuations. These dynamic stresses can cause conventional clamps to loosen over time, leading to leaks, reduced efficiency, or catastrophic failures. The T-Bolt Hose Clamp's design directly addresses these challenges. The uniform 360-degree clamping force, combined with the secure engagement of the locknut on the T-bolt, creates a highly stable joint that is inherently resistant to self-loosening mechanisms. The robust materials maintain their mechanical properties across varied temperatures, ensuring that thermal expansion and contraction cycles do not compromise the seal. Furthermore, the inherent rigidity of the T-bolt and band design helps dampen vibrations, preventing relative movement between the hose and fitting that could lead to wear or fatigue. This resilience makes the clamp an ideal choice for engines, heavy machinery, and other systems where operational stability is critical.

Diverse Applications Across Industries

The versatility and robust performance of the 3-7/8 inch nominal T-Bolt Hose Clamp make it indispensable across a multitude of industries and applications:

• Heavy-Duty Automotive and Commercial Vehicles: Essential for securing critical coolant lines, air intake systems, turbocharger hoses, and exhaust connections on trucks, buses, construction equipment, and agricultural machinery. Its ability to withstand engine vibrations and temperature extremes ensures reliability in demanding operational cycles.
• Marine Industry: Ideal for freshwater and saltwater applications, including engine cooling systems, exhaust manifolds, and bilge pump hoses. The 304 stainless steel band provides excellent corrosion resistance against marine environments.
• Industrial Machinery and Manufacturing: Used in various fluid transfer systems, hydraulic power units, pneumatic lines, and material handling equipment where secure, leak-proof connections are non-negotiable for operational safety and efficiency.
• HVAC Systems: Employed in large-scale heating, ventilation, and air conditioning systems for ducting connections and flexible piping, ensuring airtight seals for optimal energy efficiency and performance.
• Process Piping and Chemical Handling: Suitable for securing hoses in low to moderate corrosive environments within processing plants, where the integrity of fluid lines is paramount to prevent spills and maintain process control.
• Agricultural Equipment: Critical for irrigation systems, tractor hydraulics, and pneumatic controls, where components must endure harsh outdoor conditions and continuous vibration.

Installation Best Practices and Maintenance Considerations

To maximize the performance and longevity of the T-Bolt Hose Clamp, proper installation and routine maintenance are crucial:

Installation Guidelines

1. Hose and Fitting Preparation: Ensure both the hose and the fitting surfaces are clean, free of debris, oil, or damage. A clean contact surface is essential for achieving an optimal seal.
2. Positioning: Place the clamp squarely over the hose and fitting connection, ensuring the band fully covers the sealing area of the fitting. Avoid placing the clamp too close to the end of the hose or over barb transitions, which can create stress concentrations.
3. Torque Application: Always use a calibrated torque wrench for tightening the T-bolt. Refer to industry standards or hose manufacturer recommendations for appropriate torque values. Overtightening can damage the hose and the clamp, while undertightening can lead to leaks. The 1/4-28 thread allows for precise torque control.
4. Initial Snugness: Hand-tighten the locknut until snug, then apply the specified torque in a controlled, progressive manner.

Maintenance and Inspection

Regular inspection of T-Bolt Hose Clamps is vital for preventative maintenance. Key aspects to monitor include:

• Visual Inspection: Check for any signs of corrosion on the band or the T-bolt assembly. Look for deformation, cracks, or loose connections.
• Hose Integrity: Inspect the hose material for signs of bulging, cracking, hardening, or softening near the clamp, which could indicate over-compression, material degradation, or an impending failure.
• Leakage: Periodically check for any signs of fluid or gas leakage around the clamp area.
• Re-torqueing: In systems subject to significant thermal cycling or vibration, periodic re-torqueing may be necessary as part of a scheduled maintenance program to compensate for material creep or minor settling.

Quality Assurance and Compliance

The manufacturing process for this T-Bolt Hose Clamp adheres to stringent quality control standards, ensuring that each unit meets the specified material and dimensional tolerances. Compliance with relevant industry standards for materials and mechanical properties assures customers of the product's reliability and consistency. The selection of 304 Stainless Steel for the band and heat-treated plated steel for the T-bolt and locknut reflects a commitment to providing a fastening solution that performs reliably under challenging conditions, offering superior resistance to environmental degradation and mechanical stress.

Conclusion

The T-Bolt Hose Clamp, with its 3-7/8 inch nominal diameter, stands as a testament to advanced engineering in the realm of fluid and air handling systems. Its meticulous design, featuring a smooth inner band for hose protection and uniform 360-degree clamping force, coupled with the robust material selection of 304 Stainless Steel for the band and heat-treated plated steel for the T-bolt assembly, ensures exceptional performance. This clamp offers superior durability, enhanced torquing capability, and unwavering resistance to vibration and corrosion. From heavy-duty automotive and marine applications to industrial machinery and HVAC systems, this T-Bolt Hose Clamp provides a secure, leak-proof connection, upholding the highest standards of reliability and operational safety. Investing in such a precisely engineered component is an investment in the long-term integrity and efficiency of your critical systems.
