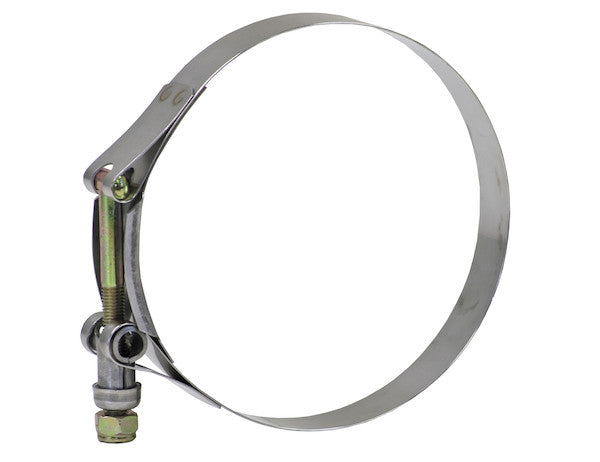

The T-Bolt Hose Clamp from Buyers Products has a smooth inner band that will not cut the hose or cause it to bulge, while allowing greater torquing capability. It will assure equal 360?? clamping force around the hose for a tight connection. The T-bolt is made out of heat-treated plated steel with a plated steel locknut for durability and wear-resistance.
Specifications
| Color | Silver |
|---|---|
| Finish | Plain |
| Material | 304 Stainless Steel |
| Maximum Diameter | 4.34 |
| Minimum Diameter | 4.03 |
| Nominal Diameter | 4.25 |
| T-Bolt Thread Size | 1/4-28 |
The T-Bolt Hose Clamp: Engineered for Uncompromising Performance and Durability
The T-Bolt Hose Clamp, with a 4-1/4 inch nominal diameter, represents a pinnacle of fastening technology, meticulously engineered to provide superior clamping force and reliability in demanding industrial and automotive applications. Unlike conventional worm gear clamps, the T-Bolt design offers significant advancements in structural integrity, pressure distribution, and material science, making it the preferred choice for critical connections involving high pressure, temperature fluctuations, and vibrational stress.
Precision Engineering and Design Excellence
At the core of this T-Bolt clamp's exceptional performance lies its intelligent design. The "smooth inner band" is not merely an aesthetic feature; it is a critical engineering element designed to protect the integrity of the hose. In traditional worm gear clamps, the serrated band can impinge upon the hose material, leading to wear, abrasion, and premature failure, especially under dynamic conditions or with softer hose materials like silicone. The smooth surface of our T-Bolt clamp's band ensures a uniform contact area with the hose, preventing localized stress concentrations that could otherwise cut, abrade, or cause the hose to bulge or extrude under pressure. This smooth engagement maintains the hose's structural integrity, extending its service life and preventing costly downtime associated with hose failures.
A key differentiator of this T-Bolt clamp is its "greater torquing capability." The robust T-bolt and locknut assembly, combined with the band's material properties, allows for significantly higher tightening torques compared to other clamp types. This translates directly into a higher clamping force, which is essential for maintaining a secure, leak-free seal in high-pressure systems, such as charge air cooler (CAC) applications, turbocharger lines, or heavy-duty coolant systems. The ability to apply precise, higher torque values ensures that the clamp remains steadfast, even when subjected to extreme vibrations, thermal cycling, or pressure surges commonly encountered in heavy machinery, commercial vehicles, and industrial processes.
Furthermore, the design assures "equal 360-degree clamping force around the hose." This omnidirectional pressure distribution is paramount for preventing leaks and maintaining the integrity of the hose connection. Uneven clamping can lead to "cold flow" in the hose material, where the material deforms and flows away from areas of high pressure, creating potential leak paths. The T-Bolt mechanism, when properly torqued, exerts a consistent radial force, ensuring that the hose is uniformly compressed against the fitting's barb or bead. This even pressure distribution is crucial for preventing blow-offs and fluid loss, especially in systems operating at elevated pressures or those transporting hazardous media where containment is critical.
Advanced Material Science for Unrivaled Durability
The selection of materials for the T-Bolt Hose Clamp is a testament to its commitment to long-term performance and reliability. The "Material" specification indicates "304 Stainless Steel" for the clamp band. AISI 304 stainless steel is an austenitic chromium-nickel alloy renowned for its exceptional corrosion resistance, mechanical strength, and ductility. Its composition typically includes 18% chromium and 8% nickel, which forms a passive oxide layer on the surface, providing superior protection against oxidation, rust, and a wide array of corrosive agents encountered in industrial and marine environments. This includes resistance to many acids, alkalis, and salts, making it suitable for applications exposed to road salts, chemicals, and saltwater spray without succumbing to pitting or crevice corrosion.
Beyond its corrosion resistance, 304 stainless steel offers excellent mechanical properties. It exhibits high tensile strength (typically 515-620 MPa or 75-90 ksi) and yield strength (205-310 MPa or 30-45 ksi), enabling the clamp band to withstand substantial stress without deformation or fracture. Its ductility allows the band to conform precisely to the hose's contours while maintaining its structural integrity under high tension. Furthermore, 304 SS maintains its mechanical properties across a broad temperature range, making it ideal for applications that experience significant thermal cycling, such as engine compartments where temperatures can fluctuate from sub-zero to hundreds of degrees Fahrenheit. This material choice ensures the clamp remains resilient and effective throughout its operational lifespan, even in the most challenging conditions.
The "T-bolt" and "plated steel locknut" are crafted from "heat-treated plated steel." This combination underscores a deliberate engineering choice to maximize both strength and surface protection. Heat treatment, a controlled process involving heating and cooling steel, significantly enhances its mechanical properties, primarily increasing its hardness, tensile strength, and wear resistance. Processes such as quenching and tempering transform the steel's microstructure, making it far more robust than untreated steel. This added strength is crucial for the T-bolt, as it is the primary component subjected to the highest tensile loads during the tightening process. A stronger T-bolt ensures that the clamp can achieve and maintain the desired high clamping force without yielding or stretching.
The "plated steel" aspect of the T-bolt and locknut refers to the application of a protective metallic coating, commonly zinc or a zinc alloy, followed by a chromate conversion coating. This plating serves multiple critical functions. Firstly, it provides a sacrificial barrier against corrosion, protecting the underlying steel from environmental attack. Zinc plating, for example, corrodes preferentially to steel, thereby extending the life of the fastener. Secondly, the plating enhances the lubricity of the threads, reducing friction during tightening and allowing for a more accurate and consistent application of torque. This results in more predictable clamping forces. Thirdly, the plating provides a clean, aesthetic finish, contributing to the overall professional appearance of the assembled product. The 1/4-28 "T-Bolt Thread Size" indicates a fine-thread design. Fine threads offer greater resistance to loosening under vibration, finer adjustment, and a larger stress area, enhancing the strength of the threaded connection compared to coarse threads of the same diameter. This is critical for maintaining a tight connection over time.
Optimized for a 4-1/4 Inch Nominal Diameter
The "Nominal Diameter" of 4.25 inches (4-1/4 inch) specifies the target size for which this clamp is ideally suited. This dimension is crucial for precise fitment on hoses and pipes with corresponding outside diameters. The "Minimum Diameter" of 4.03 inches and "Maximum Diameter" of 4.34 inches define the effective clamping range of this specific T-Bolt. This range provides essential flexibility, accommodating slight variations in hose manufacturing tolerances or specific fitting designs. Proper clamp sizing is critical; a clamp too small will not fit, while one too large may bottom out before applying adequate pressure or result in uneven clamping due to excessive band overlap. This precise range ensures optimal engagement and performance for hoses within the specified diameter window.
Versatile Applications Across Industries
The robust construction and superior performance characteristics of this T-Bolt Hose Clamp make it indispensable across a wide spectrum of industrial and commercial applications:
- Heavy-Duty Automotive and Trucking: Essential for charge air coolers (CAC), turbocharger systems, exhaust connections, and heavy-duty coolant hoses. These systems operate under high boost pressures, extreme temperatures, and constant vibration, conditions where standard clamps often fail. The T-Bolt's ability to maintain high, consistent clamping force prevents expensive and dangerous blow-offs.
- Industrial Machinery: Used in construction equipment, agricultural machinery, and stationary engines for securing air intake, exhaust, and fluid transfer lines. The durability of 304 stainless steel and heat-treated components ensures reliability in harsh, often corrosive, operational environments.
- Marine Applications: The inherent corrosion resistance of 304 stainless steel makes these clamps highly suitable for marine engines and onboard systems, where exposure to saltwater and humid conditions is continuous and unforgiving.
- HVAC Systems: For commercial and industrial HVAC ductwork and large-diameter fluid lines where airtight and watertight seals are critical for efficiency and preventing leaks.
- Fluid Transfer and Process Piping: In various manufacturing and chemical processing plants, for securing lines carrying water, air, or other industrial fluids, particularly where a secure, leak-proof connection is non-negotiable for safety and process integrity.
Installation Guidelines and Performance Optimization
To fully leverage the capabilities of this T-Bolt Hose Clamp, proper installation is paramount. It is recommended to use a torque wrench to achieve the manufacturer-specified torque values for the 1/4-28 T-bolt, typically around 75 to 100 inch-pounds (8.5 to 11.3 Nm), though specific applications may vary. Overtightening can deform the hose or clamp components, while undertightening can lead to leaks. The fine threads of the 1/4-28 T-bolt allow for precise torque application, ensuring that the clamp is adequately tightened without exceeding material limits. Regularly inspecting clamped connections, especially in high-vibration or high-temperature applications, can help identify and address potential issues before they escalate, thus contributing to the longevity and safety of the system.
Comparative Advantages and Economic Benefits
Compared to other common hose clamping solutions, the T-Bolt design offers distinct advantages. Worm gear clamps, while economical, often suffer from uneven clamping force due to the housing mechanism and can damage softer hoses with their perforations. Spring clamps provide constant tension but have limited clamping force and are not suitable for high-pressure applications. Wire clamps offer minimal sealing force. The T-Bolt clamp, by contrast, provides superior sealing, higher burst pressure resistance, and enhanced durability. While the initial investment for a T-Bolt clamp may be slightly higher than for a basic worm gear clamp, the long-term economic benefits are substantial. Reduced downtime from hose failures, decreased leakage, extended hose life, and enhanced safety collectively translate into significant operational savings and improved system reliability. The "Silver" "Plain" finish, indicative of the natural appearance of 304 stainless steel, is both functional and aesthetically consistent with robust industrial components.
Commitment to Quality and Reliability
The T-Bolt Hose Clamp from Buyers Products is a testament to meticulous engineering and a commitment to quality. Each component, from the high-grade 304 stainless steel band to the heat-treated, plated steel T-bolt and locknut, is selected and manufactured to meet rigorous performance standards. The precision of the 4-1/4 inch nominal diameter and its specified min/max range ensures a perfect fit for its intended applications, providing engineers and technicians with a reliable solution for securing critical hose connections. Investing in a T-Bolt clamp is an investment in the long-term integrity, safety, and efficiency of your fluid and air transfer systems.
