HCN125 - Zinc Plated Combination Nipple 1-1/4 Inch NPT x 1-1/4 Inch Hose Barb

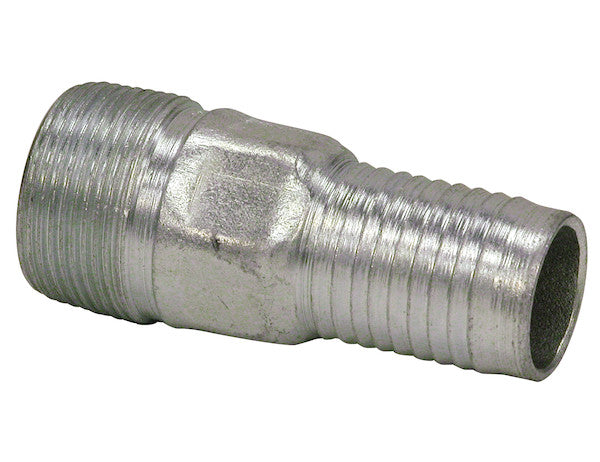

The Combination Nipple from Buyers Products is precision-machined to close tolerances with defined serrations. Made from rugged schedule 40 pipe, it features a long first serration for easy hose connection. It is zinc-plated for corrosion resistance.

Specifications

Advanced Technical Overview: Zinc Plated Combination Nipple 1-1/4 Inch NPT x 1-1/4 Inch Hose Barb

The Zinc Plated Combination Nipple, featuring a 1-1/4 Inch NPT (National Pipe Taper) male thread on one end and a 1-1/4 Inch Hose Barb on the other, is an indispensable component engineered for robust and reliable fluid transfer applications. This precision-machined fitting serves as a critical interface, enabling the seamless and secure connection between rigid pipe systems utilizing NPT threads and flexible hose assemblies. Its design inherently addresses the challenges of integrating disparate fluid conduit types, offering a singular, high-integrity solution.

Manufactured by Buyers Products, this combination nipple embodies a commitment to performance and durability, utilizing rugged Schedule 40 carbon steel pipe as its foundational material. The selection of Schedule 40 carbon steel is strategic, providing exceptional mechanical strength, resistance to pressure, and structural integrity far surpassing lighter-duty alternatives. This inherent robustness is further augmented by a meticulously applied zinc plating, delivering superior corrosion resistance crucial for extending the operational lifespan in diverse and often harsh environmental conditions.

Precision Engineering and Design Philosophy

The core functionality of this combination nipple stems from its precise engineering. Each unit is subjected to stringent machining processes, ensuring adherence to tight dimensional tolerances. This precision is paramount for several reasons: it guarantees optimal fitment, minimizes the potential for leaks, and facilitates consistent performance across all units. The straight configuration of the nipple simplifies installation and maintains a direct flow path, reducing turbulence and pressure drops within the system.

A key design differentiator is the incorporation of defined serrations on the hose barb end, including a notably longer first serration. These serrations are not merely superficial but are geometrically optimized to create a formidable mechanical grip with the inner diameter of a compatible flexible hose. The extended initial serration is a thoughtful ergonomic and functional enhancement, designed to guide the hose more easily onto the barb, reducing installation effort and preventing potential damage to the hose lining during engagement. This feature ensures a more rapid, secure, and reliable hose connection, particularly vital in high-volume installation or maintenance scenarios.

National Pipe Taper (NPT) Thread Mechanics

The 1-1/4 Inch NPT end of this combination nipple conforms to the ANSI/ASME B1.20.1 standard, which specifies the design and dimensions for tapered pipe threads. The tapered geometry, with a 1:16 taper ratio (3/4 inch per foot), is fundamental to the NPT sealing mechanism. Unlike parallel threads that require a gasket or O-ring for sealing, NPT threads achieve a seal through a combination of flank interference and the use of a thread sealant (such as PTFE tape or pipe dope). As the male and female tapered threads are tightened, their flanks deform and wedge against each other, creating a metal-to-metal seal. The thread sealant fills any remaining helical leak paths, ensuring a leak-tight connection under pressure.

The 1-1/4 inch NPT designation refers to the nominal pipe size, which does not correspond directly to the actual thread diameter but rather to the standard pipe size it fits. This size is commonly utilized in a wide array of industrial, commercial, and heavy-duty residential applications where moderate to high flow rates and pressures are encountered. Proper installation of NPT connections is critical and involves applying the appropriate thread sealant, ensuring correct alignment, and tightening to the recommended torque specifications without overtightening, which can damage the threads or deform the pipe, compromising the seal integrity.

Hose Barb Connection: Principles of Secure Fluid Conveyance

The 1-1/4 Inch Hose Barb end is specifically engineered for a secure mechanical connection with flexible hoses of corresponding inner diameter. The barb features a series of raised ridges, or serrations, that progressively increase in diameter from the fitting neck outwards. When a flexible hose is pushed over the barb, the elastic properties of the hose material allow it to stretch over these ridges. Upon release, the hose material attempts to return to its original shape, creating a compressive force around the barb's ridges. This radial compression, combined with the multiple contact points provided by the serrations, generates a robust frictional grip that resists axial pull-out forces and prevents leakage.

The "long first serration" is a deliberate design feature that facilitates easier initial engagement of the hose onto the barb. It acts as a guide and provides a larger lead-in surface, minimizing the effort required to initiate the hose-fitting connection and reducing the likelihood of cutting or scoring the inner wall of the hose. Once engaged, subsequent serrations provide escalating levels of grip. For enhanced security and to prevent hose disengagement, especially under pressure or vibration, the use of appropriate hose clamps (e.g., worm drive clamps, crimp clamps, Oetiker clamps) over the hose barb is essential. The choice of clamp type should be consistent with the application's pressure, temperature, and vibration characteristics.

Material Science: Schedule 40 Carbon Steel

The selection of carbon steel, specifically in a Schedule 40 wall thickness, underscores the nipple's design for demanding environments. Carbon steel offers a highly desirable combination of properties for fluid transfer applications:

• High Tensile Strength: Provides excellent resistance to pulling and breaking forces, crucial for maintaining connection integrity.
• Yield Strength: Ensures the fitting can withstand significant internal pressures without plastic deformation.
• Ductility: Allows the material to deform before fracturing, offering a safety margin and facilitating precision machining.
• Impact Resistance: Enables the fitting to absorb shocks and vibrations common in industrial and mobile applications without catastrophic failure.
• Thermal Stability: Maintains structural integrity across a broad range of operating temperatures.

Schedule 40 refers to the wall thickness of the pipe, a standard established by ASME B36.10M. For a 1-1/4 inch nominal pipe size, Schedule 40 provides a substantial wall thickness that translates directly into higher pressure ratings and increased resistance to external damage compared to lighter schedule pipes. This makes the fitting suitable for a diverse array of applications, from general industrial plumbing to more rigorous hydraulic or pneumatic systems where consistent pressure and flow are paramount.

Corrosion Protection: Zinc Plating Technology

The zinc plating applied to this combination nipple is a critical performance enhancement, significantly extending the product's lifespan and reliability. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the surface of the carbon steel. This finish serves a dual protective role:

1. Barrier Protection: The zinc layer acts as a physical barrier, isolating the underlying carbon steel from corrosive elements such as moisture, oxygen, and various chemicals present in the operating environment.
2. Sacrificial Protection (Cathodic Protection): Zinc is electrochemically more active than steel. If the zinc coating is scratched or compromised, exposing the steel, the zinc will preferentially corrode, sacrificing itself to protect the steel substrate. This galvanic action prevents rust formation on the steel, even when the coating is locally damaged.

The zinc plating enhances the aesthetic appeal of the fitting while providing a robust, long-lasting defense against common forms of corrosion. This protective layer is particularly beneficial in outdoor applications, humid environments, or where exposure to mild corrosive agents is expected, reducing maintenance requirements and the frequency of replacements.

Applications and Operational Environments

The Zinc Plated Combination Nipple 1-1/4 Inch NPT x 1-1/4 Inch Hose Barb is versatile and finds application across numerous industries and systems:

• Industrial Fluid Handling: For connecting pumps, valves, and process equipment to flexible transfer hoses in factories and manufacturing plants.
• Hydraulic Systems: In low to medium-pressure hydraulic lines, agricultural machinery, and construction equipment where reliable fluid power transmission is critical.
• Pneumatic Systems: For air lines and compressed air delivery systems, providing secure connections for pneumatic tools and machinery.
• Agricultural Equipment: Irrigation systems, sprayers, and other farm machinery requiring robust and corrosion-resistant fluid connections.
• Construction Machinery: For water, fuel, or hydraulic lines in excavators, loaders, and other heavy equipment.
• Marine Applications: Suitable for non-potable water systems, bilge pumps, and fuel lines in marine vessels, benefiting from its corrosion resistance in damp environments.
• Automotive and Transportation: In heavy-duty vehicle systems, such as coolant lines, air brakes, or fuel transfer.
• HVAC Systems: For refrigerant lines or water circulation systems where durable connections are required.

Installation Best Practices and Maintenance

To ensure optimal performance and longevity of the combination nipple, adherence to proper installation and maintenance procedures is crucial:

• Thread Sealant: Always apply an appropriate NPT thread sealant (e.g., PTFE tape or pipe compound) to the male NPT threads before assembly to ensure a leak-free seal.
• Tightening Torque: Tighten NPT connections to the manufacturer's recommended torque specifications. Overtightening can stress the material, leading to cracks or thread damage, while undertightening can result in leaks.
• Hose Compatibility: Select hoses with an inner diameter precisely matching the 1-1/4 inch barb for a snug fit. Ensure the hose material is compatible with the fluid being transferred and the operating temperature/pressure range.
• Hose Clamping: Always use suitable hose clamps over the barb end. Position the clamp correctly over the serrated area, ensuring it is tightened adequately to prevent slippage but not excessively to damage the hose or barb.
• Alignment: Ensure proper alignment of both pipe and hose before making connections to avoid cross-threading or stressing the fitting.
• Regular Inspection: Periodically inspect the nipple and its connections for any signs of wear, corrosion, leaks, or hose degradation. Address any issues promptly to prevent system failure.
• Environmental Considerations: While zinc plated for corrosion resistance, prolonged exposure to highly aggressive chemicals or extreme conditions may still necessitate more frequent inspection or alternative material considerations.

Conclusion

The Zinc Plated Combination Nipple 1-1/4 Inch NPT x 1-1/4 Inch Hose Barb from Buyers Products is a testament to superior engineering and manufacturing quality. Its robust construction from Schedule 40 carbon steel, coupled with precision machining and an advanced zinc plating for corrosion resistance, positions it as a premier choice for professionals demanding reliability and longevity in their fluid transfer systems. The thoughtful design, including the specific NPT taper and the effectively serrated hose barb with its long first serration, optimizes both performance and ease of installation. This component is not merely a connection point but a critical assurance of operational efficiency and system integrity across a broad spectrum of industrial and commercial applications.
