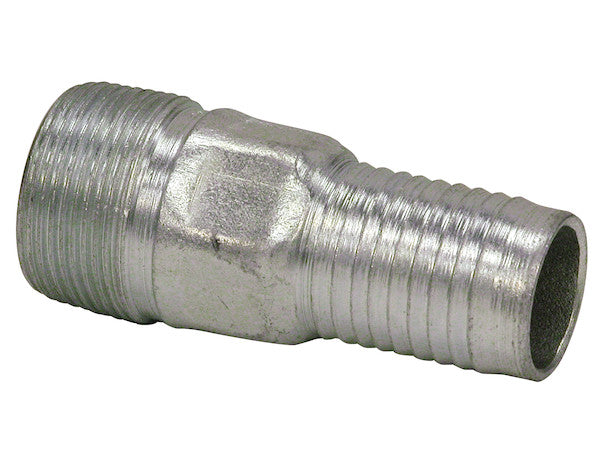

HCN150 - Zinc Plated Combination Nipple 1-1/2 Inch NPT x 1-1/2 Inch Hose Barb

The Combination Nipple from Buyers Products is precision-machined to close tolerances with defined serrations. Made from rugged schedule 40 pipe, it features a long first serration for easy hose connection. It is zinc-plated for corrosion resistance.

Specifications

The Zinc Plated Combination Nipple 1-1/2 Inch NPT x 1-1/2 Inch Hose Barb represents a pinnacle of engineering precision and material science, designed to serve as a critical interface component in a multitude of industrial fluid transfer systems. This versatile fitting provides a robust and reliable connection point, seamlessly transitioning between a rigid piping infrastructure utilizing National Pipe Taper (NPT) threads and a flexible hose assembly, ensuring continuity and integrity in demanding operational environments. Engineered by Buyers Products, this component embodies a commitment to durability, performance, and ease of installation, making it an indispensable asset for hydraulic, pneumatic, and general fluid handling applications.

At the core of this combination nipple's exceptional performance lies its construction from rugged Schedule 40 carbon steel pipe. Carbon steel is renowned for its superior mechanical properties, including high tensile strength, excellent ductility, and inherent resistance to shock and vibration. These characteristics are fundamental for components subjected to varying pressures, temperatures, and mechanical stresses common in industrial settings. The designation "Schedule 40" refers to the specific wall thickness of the pipe, a critical factor determining the fitting's pressure handling capacity and overall structural rigidity. Schedule 40 pipe offers a standard, robust wall thickness that ensures the nipple can withstand significant internal and external forces without deforming or failing, thereby providing a secure and long-lasting connection solution for a broad spectrum of moderate to high-pressure systems. The material's inherent strength contributes significantly to the fitting's ability to maintain its structural integrity over prolonged periods of operation, reducing the risk of fatigue-related failures and contributing to the overall reliability of the fluid transfer system.

The manufacturing process employs precision machining to close tolerances, a critical aspect that directly impacts the fitting's functionality and reliability. Precision machining ensures that all dimensional specifications, particularly those related to thread profiles and barb diameters, are met with exacting accuracy. This meticulous attention to detail is paramount for creating leak-proof connections. In the case of NPT threads, accurate tapering and pitch are essential for achieving the necessary interference fit that seals the connection. For the hose barb, precise diameter and uniform serration depth are vital for establishing a secure grip on the hose. Any deviation in these tolerances could compromise the seal integrity, lead to fluid leakage, or even cause hose detachment under pressure. The consistent quality delivered through precision machining translates directly into enhanced system performance, reduced maintenance requirements, and prolonged operational lifespan for the entire assembly.

A distinguishing feature of this combination nipple is its meticulously designed defined serrations on the hose barb end. These multiple, sharply contoured ridges are engineered to maximize the gripping force exerted on the inner wall of the flexible hose. As the hose is pushed onto the barb, the serrations create a series of tight, circumferential seals, preventing both axial movement (pull-off) and rotational slippage. This design ensures an extremely secure connection, even under fluctuating pressures or vibrations. Furthermore, the inclusion of a long first serration significantly enhances the ease of hose connection. This extended initial ridge provides a larger contact area for the hose to engage with, allowing for a smoother, less resistant initial insertion. This design feature reduces the effort required during installation, minimizes the potential for damaging the hose's inner lining, and facilitates a quicker, more reliable assembly process, particularly in applications where multiple connections are required or access is restricted.

The dual nature of the connections defines the combination nipple's utility. Side 1 features a 1-1/2 Inch NPT (National Pipe Taper) connection. NPT threads are the most prevalent standard for tapered threads used in North America for joining pipes and fittings, particularly in hydraulic, pneumatic, and plumbing systems. The tapered design means that the thread diameter decreases along the length of the thread, creating a mechanical interference fit when male and female NPT threads are engaged. This inherent wedging action, combined with the use of an appropriate thread sealant (such as PTFE tape or pipe compound), facilitates a highly effective, leak-resistant seal for gas or fluid under pressure. The 1-1/2 inch nominal size indicates its compatibility with standard 1-1/2 inch NPT female ports found on pumps, valves, cylinders, and rigid pipe systems. Proper installation of NPT connections involves cleaning the threads, applying a compatible sealant evenly, and tightening to the manufacturer's recommended torque specifications to achieve optimal sealing without over-stressing the threads or the fitting material. The male NPT configuration of this nipple allows it to be threaded directly into a female NPT port, forming a secure and rigid termination point.

Conversely, Side 2 features a 1-1/2 Inch Hose Barb connection. This connection type is specifically designed for the secure attachment of flexible hoses. The hose barb's cylindrical form, coupled with its precisely machined serrations, creates a strong mechanical interlock with the inner diameter (ID) of a compatible flexible hose. For an optimal connection, it is crucial that the hose's internal diameter matches the nominal size of the barb (1-1/2 inches in this instance) to ensure a snug fit that maximizes the engagement of the serrations. Once the hose is fully seated over the barb, a hose clamp (e.g., worm drive, band clamp, or crimp clamp) is typically applied externally, immediately behind the last serration. This clamp compresses the hose material onto the barb, reinforcing the seal and preventing the hose from slipping off, even under significant pressure or vibration. The hose barb provides a convenient and flexible solution for connecting to equipment that requires vibration isolation, or where routing dictates a flexible pathway for fluid or gas transfer.

To safeguard against environmental degradation and extend the service life of the fitting, the Zinc Plated Combination Nipple undergoes a robust surface treatment: zinc plating. This electroplated coating provides superior corrosion resistance, particularly crucial for applications exposed to moisture, varying atmospheric conditions, or mild chemical agents. Zinc plating functions as a sacrificial coating; meaning, in the presence of an electrolyte (like water), the zinc layer will corrode preferentially to the underlying carbon steel substrate. This electrochemical protection prevents rust and oxidation from attacking the base metal, thereby preserving the structural integrity and aesthetic appearance of the fitting over time. The zinc layer also provides a physical barrier, isolating the steel from direct contact with corrosive elements. This protective measure is vital in reducing maintenance costs, improving system reliability, and ensuring that connections remain structurally sound and functional throughout their intended service life, even in challenging industrial environments. The bright, clean finish also aids in visual inspection and contributes to the overall professional appearance of the assembled system.

The broad applicability of the Zinc Plated Combination Nipple spans numerous industries and operational contexts. In hydraulic systems, it serves as a crucial link for connecting flexible hydraulic hoses to rigid components such as pumps, motors, valves, and cylinders, facilitating fluid power transmission in heavy machinery, manufacturing equipment, and mobile hydraulics. For pneumatic systems, it allows for the reliable transfer of compressed air, connecting air lines to tools, actuators, and control devices. Beyond these primary applications, its utility extends to industrial fluid transfer for water, lubricants, fuels (compatible with zinc plating), and other non-corrosive liquids in processing plants, utilities, and general manufacturing. Specific sectors such as agriculture find this fitting invaluable for connecting hydraulic lines on tractors, sprayers, and irrigation equipment. In construction equipment, it ensures the integrity of fluid circuits in excavators, loaders, and cranes. Its reliability and robust construction also make it a staple in maintenance, repair, and operations (MRO) departments, offering a dependable solution for unexpected repairs or system modifications, thereby minimizing downtime and operational interruptions. The versatility of its connection types, combined with its robust construction and corrosion protection, positions this combination nipple as an essential and adaptable component across a diverse range of demanding industrial applications.

The operational performance of this fitting is characterized by its inherent durability, pressure handling capability, and efficient flow characteristics. Constructed from Schedule 40 carbon steel and featuring precision-machined connections, the nipple is designed to withstand typical industrial operating pressures, though specific pressure ratings should always be confirmed with respect to the entire system's weakest link (e.g., hose, clamp, other fittings). The robust material and construction also confer excellent temperature stability, allowing the fitting to perform reliably across a wide range of industrial operating temperatures, far exceeding the typical limits of flexible hose materials. The straight design of the nipple ensures minimal flow restriction, contributing to efficient fluid transfer with negligible pressure drop, which is critical for maintaining system efficiency and power. The combination of high-quality materials, protective zinc plating, and precision manufacturing ensures an extended service life and consistent, reliable performance, translating into lower long-term ownership costs and enhanced system uptime.

Proper installation and adherence to best practices are paramount to realizing the full potential and safety benefits of the Zinc Plated Combination Nipple. For the NPT threaded end, it is critical to ensure that both male and female threads are clean and free from debris. The application of an appropriate thread sealant, such as PTFE tape or pipe dope, is essential to create a leak-tight seal; sealant should be applied judiciously to prevent contamination of the fluid system. Tightening should be performed to recommended torque specifications, avoiding both under-tightening, which can lead to leaks, and over-tightening, which can strip threads or damage the fitting. For the hose barb connection, the internal diameter of the flexible hose must perfectly match the external diameter of the barb to ensure maximum contact and grip. It is often beneficial to lightly lubricate the barb with a compatible fluid to ease hose installation. Crucially, a correctly sized hose clamp of suitable material and strength must be applied firmly to the hose over the barb's serrations. The clamp should be positioned just behind the last serration to maximize retention force and prevent hose dislodgement under pressure. Furthermore, system designers and installers must always verify material compatibility with the transferred fluid or gas, operating temperature, and pressure requirements to ensure the entire assembly operates within safe and efficient parameters. Regular inspection of all connections for signs of wear, corrosion, or leakage is recommended to maintain system integrity and prevent potential failures.

In summary, the Zinc Plated Combination Nipple 1-1/2 Inch NPT x 1-1/2 Inch Hose Barb stands as a testament to meticulous engineering and manufacturing excellence. Its foundation in rugged Schedule 40 carbon steel, coupled with precision machining for tight tolerances and defined serrations, guarantees a robust and secure connection for both rigid and flexible fluid lines. The zinc plating provides a critical layer of corrosion resistance, enhancing durability and extending the lifespan in diverse operational environments. This indispensable component effectively bridges the gap between different fluid transfer methodologies, offering unparalleled reliability, performance, and ease of installation across a broad spectrum of industrial, agricultural, and commercial applications. By selecting this high-quality combination nipple from Buyers Products, users can ensure the integrity and efficiency of their fluid handling systems, mitigating risks and optimizing operational continuity.
