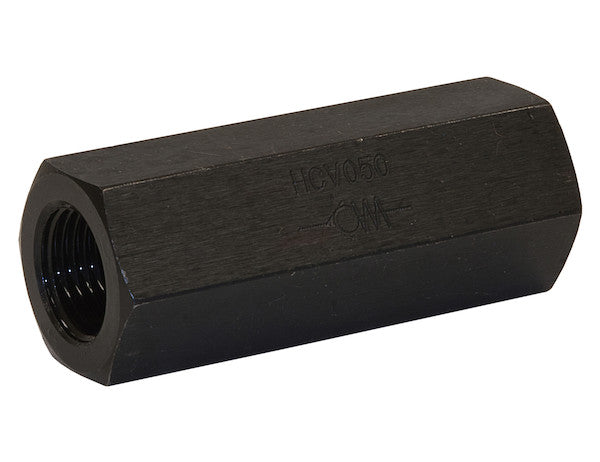

HCV075 - 3/4 Inch NPT Steel Check Valve

The Steel Check Valve from Buyers Products allows fluid to flow in only one direction and prevents fluid backing up into hydraulic filters or pumps. This small, durable valve can take a maximum pressure of 4500 PSI. It's available in a range of port sizes.

Specifications

The 3/4 Inch NPT Steel Check Valve: Unidirectional Flow Control for Demanding Hydraulic Systems

In the intricate landscape of hydraulic engineering, the integrity and efficiency of fluid power systems are paramount. Components must not only perform their designated functions flawlessly but also withstand extreme operational conditions, ensuring both safety and longevity. The 3/4 Inch NPT Steel Check Valve from Buyers Products exemplifies this principle, serving as a critical device designed to meticulously regulate fluid flow in one direction while unequivocally preventing any potential backflow. This foundational component safeguards vital hydraulic infrastructure, including sensitive pumps and sophisticated filtration systems, from deleterious reverse pressure events and contamination ingress.

Advanced Design and Core Functionality

At its core, a check valve is a self-actuating mechanical device that permits fluid (in this context, hydraulic fluid) to flow through it in only one direction. This unidirectional control is achieved through a precisely engineered internal mechanism, typically a poppet or a ball, held against a seat by a light spring or simply by gravity and downstream pressure. When the upstream pressure (inlet) exceeds the cracking pressure of the valve (the minimum pressure differential required to open it), the poppet or ball lifts off its seat, allowing fluid to flow freely through the valve. As soon as the upstream pressure drops below the cracking pressure, or if back pressure is introduced from the downstream side, the spring force and/or the differential pressure immediately reseat the poppet/ball, creating a hermetic seal and instantaneously halting reverse flow.

The 3/4 Inch NPT Steel Check Valve is engineered for optimal responsiveness and reliability. Its internal design minimizes turbulence and pressure drop during forward flow, ensuring that hydraulic systems maintain peak efficiency. The swift and decisive sealing action upon flow reversal is crucial for protecting delicate components such as variable displacement pumps from cavitation or rapid pressure fluctuations that could lead to premature wear and catastrophic failure. Furthermore, preventing backflow into hydraulic filters ensures that filtered fluid remains clean and prevents particulate matter from re-entering the system during periods of pump shutdown or pressure loss, thereby extending the life of all hydraulic components.

Material Excellence: The Robustness of Steel

The choice of material is a pivotal aspect in the design of any high-performance hydraulic component. For this check valve, the selection of steel is deliberate and provides a multitude of advantages essential for demanding applications. Steel, particularly high-strength carbon or alloy steel, offers exceptional mechanical properties. These properties include superior tensile strength, enabling the valve housing to withstand immense internal pressures without yielding or rupturing. The impressive yield strength ensures that the valve retains its structural integrity even under continuous high-stress cycles, preventing plastic deformation over its operational lifespan.

Beyond static strength, steel provides excellent fatigue resistance, a critical attribute for components subjected to dynamic pressure fluctuations inherent in hydraulic systems. This inherent durability translates directly into an extended service life and reduced maintenance requirements. Furthermore, steel's hardness contributes to the wear resistance of internal components and valve seats, ensuring consistent sealing performance over millions of operational cycles. While steel offers inherent resistance to many hydraulic fluids, specialized surface treatments or coatings can be applied for enhanced corrosion resistance in environments where aggressive fluids or external corrosive agents are present, further augmenting the valve's robust characteristics and adaptability across diverse industrial and mobile hydraulic settings.

Precision Threading: The 3/4 Inch NPT Standard

The integration of hydraulic components into a cohesive system relies heavily on secure and leak-proof connections. The 3/4 Inch NPT (National Pipe Taper) threading standard featured on this check valve represents a globally recognized and highly effective method for achieving such connections. NPT threads are designed with a tapered profile, meaning the thread diameter decreases along the length of the male thread and increases along the length of the female thread. When these tapered threads are engaged, they create an interference fit that, when properly assembled with a suitable sealant like PTFE tape or liquid pipe dope, forms a robust mechanical seal. This design minimizes the potential for fluid leakage, even under the extreme pressures (up to 4500 PSI) that this valve is rated to handle.

The 3/4-inch nominal size denotes a common pipe size for hydraulic lines, striking an optimal balance between flow capacity and system compactness. The precision machining of these NPT threads is critical; accurate thread geometry ensures maximum thread engagement, creating the necessary metal-to-metal contact and uniform distribution of sealing compound to guarantee a leak-tight connection. Installers must adhere to proper torque specifications and best practices for thread sealing to fully realize the benefits of this reliable connection type, thereby contributing significantly to the overall integrity and safety of the hydraulic circuit.

Unrivaled Pressure Handling: Rated for 4500 PSI

The ability to withstand a maximum pressure of 4500 PSI (approximately 310 Bar) is a defining characteristic of this 3/4 Inch NPT Steel Check Valve, positioning it firmly within the realm of high-performance hydraulic applications. This exceptional pressure rating signifies that the valve is meticulously engineered and constructed to operate reliably and safely in systems where conventional components might fail or experience premature wear. High-pressure hydraulic systems are prevalent in heavy industrial machinery, robust mobile equipment like large excavators, forestry equipment, and specialized testing apparatus where immense forces are generated.

Achieving this pressure rating requires not only the superior material properties of steel but also a sophisticated design that evenly distributes stress across the valve body and internal components. Every aspect, from the thickness of the valve housing walls to the material and strength of the internal spring and the precision of the poppet-to-seat interface, is optimized to prevent material fatigue, deformation, or catastrophic failure under sustained high-pressure conditions. The 4500 PSI rating provides a substantial safety margin for most demanding applications, offering engineers and operators confidence in the system's operational integrity and long-term reliability even when subjected to intense cyclical loading and transient pressure spikes.

Optimized Flow Dynamics: 25 GPM Maximum Flow Rate

Alongside pressure capability, the maximum flow rate is a critical parameter that dictates the valve's suitability for various hydraulic circuits. With a maximum flow rate of 25 GPM (Gallons Per Minute), equivalent to approximately 95 liters per minute, this check valve is designed to efficiently handle substantial volumes of hydraulic fluid without introducing excessive pressure drop or generating undue heat. This flow capacity makes it ideal for medium-to-large-scale hydraulic systems where rapid actuator movement or swift fluid transfer is essential.

The internal geometry of the valve is optimized to facilitate smooth, laminar flow, minimizing turbulence and ensuring that the hydraulic power generated by the pump is transmitted efficiently to the actuators. Excessive pressure drop across a valve translates directly into wasted energy, reduced system efficiency, and potential overheating of the hydraulic fluid, which can degrade its properties and shorten component life. The 25 GPM rating, combined with the 3/4-inch port size, indicates a carefully balanced design that ensures ample flow without compromising the valve's compact footprint or its robust pressure-holding capabilities. This makes it an excellent choice for protecting pumps in systems with moderate to high flow requirements, isolating critical subsystems, or maintaining pressure in specific lines.

Operational Simplicity: Non-Electrically Operated

In many hydraulic applications, simplicity and intrinsic reliability are prized over complex control mechanisms. This 3/4 Inch NPT Steel Check Valve is designed as a non-electrically operated device, meaning its function is purely mechanical, governed solely by the principles of fluid dynamics and spring force. This inherent simplicity offers several compelling advantages. Firstly, it eliminates the need for external power sources, wiring, and intricate control circuitry, thereby reducing installation complexity, potential points of failure, and overall system cost. It is a "fit and forget" component in terms of its operational control.

Secondly, the absence of electrical components makes the valve exceptionally robust and suitable for deployment in harsh operating environments where moisture, extreme temperatures, vibrations, or electromagnetic interference might compromise electrically actuated valves. Its reliability is directly tied to its mechanical integrity, making it a dependable choice for applications requiring uninterrupted service without constant monitoring or external input. This autonomous operation ensures that critical functions like backflow prevention occur instantly and automatically, providing an essential layer of passive protection to the hydraulic circuit.

Compact and Durable Construction

The description highlights this valve as "small" and "durable," attributes that are often challenging to achieve simultaneously in high-pressure hydraulic components. The compact design of this check valve allows for flexible installation in space-constrained applications, a common requirement in modern machinery where efficient use of available room is paramount. Despite its modest size, the valve's construction emphasizes durability, leveraging the superior mechanical properties of steel and precise manufacturing techniques.

Durability in this context encompasses resistance to physical shock, vibration, and the wear and tear associated with continuous fluid flow and pressure cycling. The robust internal poppet/ball and spring mechanism are engineered for millions of cycles, maintaining consistent performance throughout the valve's lifespan. The integrity of the valve body, typically machined from solid bar stock or forged for optimal grain structure, prevents leaks and ensures long-term structural stability. This combination of compact form factor and unwavering durability makes the 3/4 Inch NPT Steel Check Valve a highly practical and reliable choice for a vast array of demanding hydraulic applications, minimizing the footprint without compromising on performance or resilience.

Diverse Applications in Hydraulic Systems

The fundamental role of a check valve – enabling unidirectional flow – makes it an indispensable component across an expansive range of hydraulic applications. The 3/4 Inch NPT Steel Check Valve, with its high-pressure rating and robust construction, is particularly well-suited for:

• Pump Protection: Preventing reverse flow from accumulator discharge or pressurized lines back into the pump during shutdown or low-pressure conditions, thereby protecting against cavitation and mechanical shock.
• Accumulator Isolation: Isolating accumulators from the main hydraulic circuit, ensuring that stored energy is retained and preventing backflow when the pump is off or system pressure drops.
• Charge Lines: Maintaining pressure in the charge line of closed-loop hydrostatic transmissions, vital for efficient and responsive operation.
• Subsystem Isolation: Isolating specific branches or subsystems within a larger hydraulic circuit to maintain pressure or prevent interference between different operational stages.
• Pressure Line Protection: Safeguarding downstream components from sudden pressure surges or hydraulic hammer effects originating upstream.
• Lubrication and Cooling Circuits: Ensuring continuous, unidirectional flow of lubricating or cooling fluids to critical components, preventing drainage when the system is inactive.
• Mobile Equipment: Integral in construction, agriculture, and forestry machinery, utility vehicles, and municipal equipment for ensuring safe and controlled operation of hydraulic functions.
• Industrial Power Units: Used extensively in hydraulic power units (HPUs) for various manufacturing, processing, and material handling applications.
• Test Benches: Critical for maintaining precise fluid flow direction and protecting instrumentation in hydraulic testing and development environments.

Its versatility stems from its dependable mechanical operation and its ability to seamlessly integrate into high-pressure lines, providing an essential layer of protection and control without requiring complex external inputs or maintenance.

Installation and Maintenance Guidelines

To ensure optimal performance and longevity of the 3/4 Inch NPT Steel Check Valve, proper installation and adherence to best maintenance practices are crucial. While the valve itself is designed for minimal maintenance, its effectiveness is intrinsically linked to the overall health of the hydraulic system.

• Orientation: Always install the valve in the correct flow direction as indicated by an arrow on the valve body. Incorrect orientation will either block flow entirely or render the backflow prevention feature ineffective.
• Thread Sealing: For the 3/4 NPT threads, use an appropriate thread sealant (e.g., PTFE tape or liquid pipe sealant) to ensure a leak-proof connection. Apply sealant only to the male threads, keeping it away from the first thread to prevent contamination of the hydraulic fluid.
• Torque Specifications: Tighten connections to recommended torque specifications. Over-tightening can damage threads or the valve body, while under-tightening can lead to leaks. Consult relevant industry standards or manufacturer guidelines for specific torque values.
• System Cleanliness: Hydraulic fluid cleanliness is paramount. Ensure the system is flushed and free of contaminants before installing the valve. Particulate matter can foul the valve seat, leading to leakage in the closed position or impeding full opening. Regular filtration maintenance is essential.
• Fluid Compatibility: Verify that the hydraulic fluid used in the system is compatible with the steel construction and any internal seal materials (if applicable, though check valves often rely on metal-to-metal seating for primary seal).
• Inspection: Periodically inspect the valve and connections for any signs of external leakage, physical damage, or corrosion. While internal components are sealed, visible issues can indicate underlying problems.

By following these guidelines, operators can maximize the operational lifespan and ensure the continuous, reliable performance of this critical component within their hydraulic systems.

Commitment to Quality and Reliability

The manufacturing process for the 3/4 Inch NPT Steel Check Valve adheres to rigorous quality control standards, ensuring that each unit meets the specified performance parameters and durability expectations. From the selection of high-grade steel raw materials to precision machining, assembly, and final testing, every stage is meticulously managed. This commitment to quality translates into a product that delivers consistent, dependable performance in the most demanding environments.

Each valve undergoes thorough testing to verify its cracking pressure, sealing integrity, and ability to withstand its maximum rated pressure. This robust testing regimen provides assurance that the valve will perform reliably throughout its operational life, safeguarding hydraulic systems and contributing to their overall efficiency and safety. The intrinsic reliability of a mechanically operated steel check valve, combined with stringent manufacturing quality, establishes it as a superior choice for professional hydraulic applications.

Conclusion: An Essential Component for High-Performance Hydraulics

The 3/4 Inch NPT Steel Check Valve from Buyers Products stands as an exemplary component for any hydraulic system requiring uncompromising unidirectional flow control. Its robust steel construction, coupled with a high maximum pressure rating of 4500 PSI and an efficient 25 GPM flow capacity, ensures reliable operation in the most arduous industrial and mobile environments. The precision 3/4 NPT threads guarantee secure, leak-free connections, while its non-electrically operated design underscores its inherent simplicity and reliability. This valve is not merely a component; it is a vital guardian of hydraulic system integrity, protecting expensive pumps and filters, enhancing overall system efficiency, and contributing significantly to the safety and longevity of hydraulic machinery. For engineers and technicians seeking a durable, high-performance check valve that offers peace of mind and unwavering performance, this steel check valve represents an intelligent and indispensable investment.
