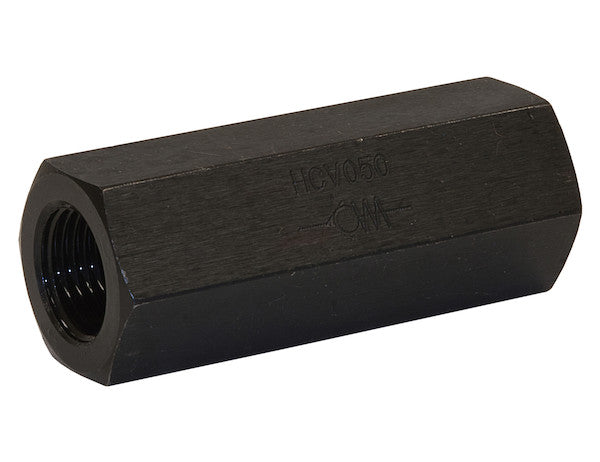

The Steel Check Valve from Buyers Products allows fluid to flow in only one direction and prevents fluid backing up into hydraulic filters or pumps. This small, durable valve can take a maximum pressure of 4500 PSI. It's available in a range of port sizes.
Specifications
| Electrically Operated (y/n) | No |
|---|---|
| Inlet Port Size | 1 NPT |
| Main Relief Setting | - |
| Maximum Flow Rate | 40 |
| Maximum Pressure | 4500 |
| Out Port Size | 1.000 |
| Outlet Port Size | 1 NPT |
| Port Type | NPT |
| Power Beyond (y/n) | No |
| Work Port Size | 1 NPT |
The 1 Inch NPT Steel Check Valve from Buyers Products represents a critical component in advanced hydraulic systems, meticulously engineered for precision, durability, and unwavering reliability. Designed to permit unimpeded fluid flow in a singular direction while rigorously preventing detrimental backflow, this valve safeguards integral hydraulic system elements such as pumps, filters, and other sensitive downstream components from damage or operational inefficiencies caused by reverse fluid dynamics. Fabricated from robust steel, it is purpose-built to withstand high-pressure environments, boasting an impressive maximum pressure rating of 4500 PSI, making it ideal for demanding industrial, mobile, and heavy-duty applications. Its non-electrically operated design ensures mechanical simplicity and inherent reliability, reducing reliance on complex control circuitry. The 1 NPT port size, a widely recognized industry standard, facilitates seamless integration into existing hydraulic circuits. This technical exposition provides an in-depth analysis of its engineering attributes, operational principles, application versatility, and installation considerations, defining its superior performance.
Fundamental Principles of Unidirectional Flow Control
A check valve, or non-return valve, is a two-port valve allowing fluid flow in one direction only. This critical function is essential for maintaining system integrity, preventing pump cavitation, protecting sensitive instrumentation, and ensuring correct operational sequencing in hydraulic circuits. The Buyers Products check valve operates on a self-actuating, spring-loaded poppet mechanism. Forward fluid flow generates pressure that overcomes the spring's resistive force, known as the cracking pressure, unseating the poppet and allowing fluid passage. Crucially, when forward flow ceases or back-pressure develops, the spring, aided by the reverse pressure differential, rapidly reseats the poppet, creating a leak-tight seal. This swift, mechanical action prevents backflow, which is vital for preventing hydraulic shock and maintaining system stability. Its non-electrically operated design ensures autonomous, reliable performance, functioning solely on system fluid dynamics without external power or complex control signals, thereby minimizing potential failure points and simplifying system architecture. This intrinsic reliability makes it a dependable component for critical backflow prevention tasks.
Advanced Material Science: The Strength of Steel
The selection of steel as the primary construction material is central to this check valve's exceptional performance and longevity in high-pressure hydraulic applications. Steel provides superior tensile strength, yield strength, and fatigue resistance, enabling the valve to maintain structural integrity under its maximum rated pressure of 4500 PSI (310 bar). This robust material offers excellent resistance to erosion from high-velocity fluid and abrasive wear from particulates, significantly extending the valve's operational lifespan. Its inherent rigidity minimizes distortion under pressure, ensuring consistent sealing performance. Steel's thermal stability also guarantees reliable operation across a broad range of temperatures typical in industrial and mobile hydraulic environments. Precision machining of steel components allows for tight tolerances, which are crucial for consistent cracking pressure and effective sealing. This material choice reflects a commitment to a durable, low-maintenance component, enhancing system reliability and contributing to a lower total cost of ownership through maximized operational uptime.
Precision Interfacing: 1-Inch NPT Thread Standard
The integration of 1 Inch NPT (National Pipe Taper) porting is a defining feature, signifying a widely accepted and highly reliable standard for fluid power connections. NPT threads utilize a conical design, creating an interference fit as they are tightened. This inherent taper forms a mechanical seal that resists leakage. For hydraulic applications up to 4500 PSI, proper thread sealant (e.g., PTFE tape or liquid pipe compound) is essential to fill microscopic leak paths and ensure a truly leak-tight connection. The 1-inch nominal pipe size corresponds to specific ANSI/ASME standardized dimensions, ensuring broad interchangeability with a vast array of hydraulic hoses, pipes, and fittings. Correct installation is paramount: threads must be clean, sealant applied properly, and tightening performed to recommended torque specifications. Over-tightening can deform threads; under-tightening compromises the seal. The ubiquity of NPT simplifies procurement, maintenance, and field modifications, ensuring seamless integration and enhancing overall system serviceability.
Key Performance Parameters
Maximum Pressure Rating: 4500 PSI
Rated for an impressive 4500 PSI (approximately 310 bar), this steel check valve is engineered for the most demanding hydraulic systems. This high-pressure capability ensures continuous system integrity and effective backflow prevention in heavy construction, large industrial presses, and specialized mobile machinery. The design rigorously considers material yield strength, burst pressure, and fatigue life, employing robust construction and precise manufacturing. This threshold provides a significant safety factor, enhancing system reliability and operator safety. Engineers can confidently integrate this valve into circuits requiring robust pressure containment, ensuring long-term operational stability and preventing failures due to pressure-related component fatigue, with the NPT threads maintaining integrity under these extreme forces.
Maximum Flow Rate: 40 GPM
With a maximum flow rate capacity of 40 GPM (gallons per minute, approximately 151 liters per minute), this 1-inch NPT check valve efficiently manages substantial fluid volumes with minimal energy loss. Proper flow rate matching is crucial; undersized valves induce excessive pressure drops, leading to heat generation and reduced efficiency. The internal geometry is optimized for smooth, laminar fluid passage during forward flow, minimizing turbulence and hydraulic resistance. This design ensures backflow protection does not create an unwanted bottleneck. The 40 GPM rating makes it suitable for main lines in medium-to-large hydraulic power units or critical sub-circuits, ensuring consistent and efficient fluid delivery. This balance of high flow capacity and robust pressure rating supports overall system efficiency and responsiveness.
Operational Simplicity and System Versatility
The valve's "non-electrically operated" status highlights its inherent mechanical simplicity and reliability. Functioning entirely on hydraulic pressure differentials, it eliminates the need for external power sources, wiring, and complex control signals. This design significantly reduces system complexity, installation time, and potential electrical failure points. In environments where electrical power is unreliable or hazardous, a purely mechanical valve offers distinct advantages, being intrinsically resistant to EMI, vibration, and thermal fluctuations. This contributes to a lower total cost of ownership by eliminating electrical maintenance. Its dependable, self-actuating nature ensures consistent backflow prevention without external command, making it an ideal "fit and forget" component for critical safety and operational integrity tasks. This simplicity also translates to faster response times, relying only on fluid dynamics for actuation.
The versatility of this 1 Inch NPT Steel Check Valve makes it indispensable across diverse industries. In mobile hydraulics (excavators, agricultural equipment), it prevents cylinder drift and protects pumps from surge pressures. For industrial manufacturing (presses, molding machines), it maintains line pressures, isolates circuits, and safeguards sensitive components from backflow contamination. It is also vital in lubrication and fluid transfer systems, ensuring unidirectional flow and preventing drain-back. In multi-pump or accumulator systems, it effectively isolates components and manages pressure dynamics. By preventing backflow into hydraulic filters, it extends filter life and maintains fluid cleanliness. Operating reliably at 4500 PSI, it protects high-pressure components like actuators and servo valves from sudden pressure reversals. Its 1-inch NPT ports allow easy integration into standard piping, making it a flexible choice for new designs and retrofits, enhancing system uptime and reducing maintenance costs.
Installation Best Practices and Longevity
Correct installation is crucial for maximizing the performance and lifespan of the 1 Inch NPT Steel Check Valve. Always observe the flow direction indicated by an arrow on the valve body; incorrect orientation will prevent system function. For NPT threads, apply a high-quality, hydraulic-rated thread sealant (e.g., PTFE tape or liquid pipe compound) to clean male threads to ensure a leak-free seal at high pressures. Tighten to manufacturer-specified torque; avoid over- or under-tightening. Ensure the valve is accessible for future inspection. While designed for minimal maintenance, periodic checks for external leaks and consistent system pressure are advisable in critical applications. Longevity is significantly enhanced by maintaining fluid cleanliness; contaminants can cause wear on internal components, compromising the seal. Regular hydraulic filter replacement and adherence to fluid specifications are key preventive measures. The robust steel construction offers inherent durability, but proper system filtration and operation within specified parameters are paramount for sustained, reliable backflow prevention.
Conclusion: Robust Control for Demanding Hydraulic Systems
The 1 Inch NPT Steel Check Valve from Buyers Products embodies robust engineering and unwavering reliability, making it an essential component for high-performance hydraulic systems. Its high-strength steel construction, 4500 PSI pressure rating, and 40 GPM flow capacity, combined with the industry-standard 1 NPT interface, deliver a powerful and practical solution. By ensuring precise unidirectional fluid flow through mechanical actuation, this valve simplifies system design, enhances operational safety, and protects vital hydraulic components. This commitment to mechanical integrity and high-performance specifications translates into extended system lifespan, reduced maintenance, and ultimately, greater operational efficiency and productivity across a broad spectrum of demanding applications. Investing in this steel check valve ensures long-term integrity and reliability for your hydraulic infrastructure.
