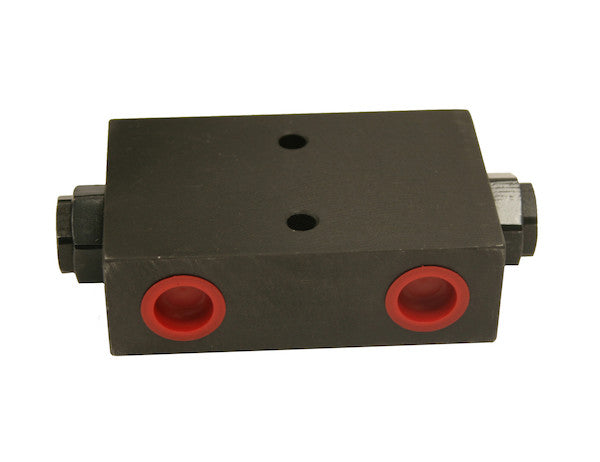

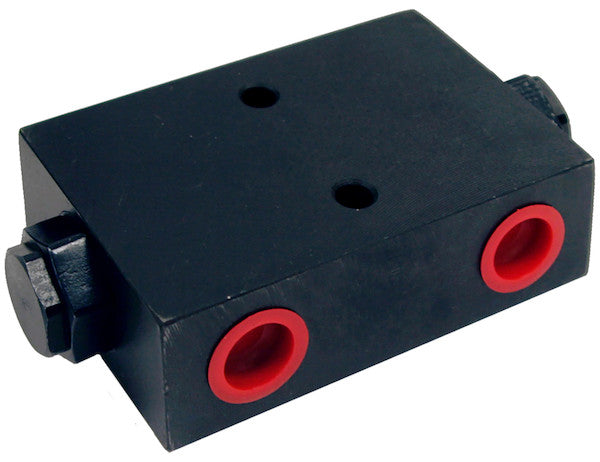

The Double Check Valve from Buyers Products allows you to convert a latch pin plow application to power angle plows. It is ideal for municipal plows. The valve is pilot-operated for smoother control.
Specifications
| Material | Oil Tempered Steel |
|---|---|
| Maximum Flow Rate | 15 |
| Maximum Pressure | 3625 |
| Maximum Relief Pressure Setting | - |
| Number of Ports | 2 |
| Port Size | 1/2 NPTF |
The Buyers Products 1/2 Inch NPT Double Check Valve represents a critical component in advanced hydraulic systems, specifically engineered to enhance the functionality and safety of mobile equipment. Designed with a robust understanding of operational demands, this pilot-operated valve is instrumental in modernizing hydraulic applications, particularly facilitating the conversion of traditional latch pin plow systems to more efficient and controllable power angle configurations. Its precision engineering and durable construction underscore its suitability for rigorous use, making it an indispensable asset for municipal plows and other heavy-duty machinery where reliable load holding and smooth control are paramount.
At its core, the mechanism of a hydraulic check valve is to permit fluid flow in one direction while preventing it in the opposite direction. The "Double Check Valve" designation, especially in the context of mobile hydraulics for cylinder control, often refers to a system or a component designed to offer superior load holding and controlled release. In this particular instance, while specifying "Number of Ports: 2," the inherent "pilot-operated" feature is key. A pilot-operated check valve (POCV) allows free flow in one direction, much like a standard check valve, but critically, it permits flow in the normally blocked reverse direction only when an external pilot pressure is applied. This external pilot signal acts on a small piston or spool within the valve, mechanically unseating the main check poppet, thereby opening a path for reverse flow. This design provides precise control over hydraulic cylinder movement, preventing unintended drift or sudden collapse of a load. For a double-acting cylinder, two such pilot-operated check valves (or an integrated dual block containing two POCVs) are typically employed, one for each side of the cylinder, to ensure comprehensive load holding and controlled extension and retraction.
The technical specifications of the 1/2 Inch NPT Double Check Valve are meticulously chosen to ensure optimal performance and durability in demanding environments. The "1/2 NPTF Port Size" is a significant detail. NPTF stands for National Pipe Taper Fuel, a thread standard known for its self-sealing characteristics. Unlike standard NPT (National Pipe Taper) threads, NPTF threads are designed to create a mechanical seal without the need for additional sealant, although sealants are often used as a precautionary measure to prevent leaks and galling. The tapered design of the threads allows for a tight, interference fit that, under proper torque, forms a robust and leak-resistant connection. The 1/2-inch nominal size denotes a common dimension for moderate flow rate hydraulic applications, offering an optimal balance between flow capacity and physical footprint for components like those found in snow plow hydraulic circuits. This standard ensures wide compatibility with existing hydraulic plumbing and ease of integration into various systems.
The selection of "Oil Tempered Steel" as the primary material for this valve is a testament to its engineered resilience. Oil tempering is a heat treatment process applied to steel after hardening. It involves heating the steel to a specific temperature below its critical point, followed by quenching in oil. This process significantly enhances the steel's mechanical properties, including increasing its toughness, ductility, and fatigue strength while reducing its brittleness. For hydraulic components operating under high pressure and dynamic loads, these properties are crucial. Oil tempered steel provides exceptional resistance to wear, impact, and fatigue, ensuring the valve maintains its structural integrity and functional precision over extended operational periods. This material choice is vital for components exposed to the harsh conditions typical of municipal equipment, such as varying temperatures, exposure to corrosive elements like road salt, and constant vibration and shock loads.
A "Maximum Flow Rate" of "15 GPM (Gallons Per Minute)" is a critical operational parameter. This value specifies the maximum volume of hydraulic fluid that can safely pass through the valve per minute without causing excessive pressure drop, heat generation, or premature wear. In system design, matching the valve's flow rate to the hydraulic pump's output and the actuators' speed requirements is essential for system efficiency and performance. A 15 GPM rating indicates suitability for applications with moderate flow demands, which is typical for snow plow angling and lifting cylinders. Exceeding this flow rate can lead to increased fluid velocity, resulting in higher pressure drops across the valve, increased energy consumption, and potential cavitation, which can damage the valve and other system components. Conversely, a valve with a significantly higher flow rating than required might be oversized, leading to unnecessary cost and bulk, while one with a lower rating would restrict flow and impede system responsiveness.
The "Maximum Pressure" rating of "3625 PSI (Pounds Per Square Inch)" signifies the maximum hydraulic pressure the valve is designed to safely withstand without compromising its structural integrity or operational performance. This high-pressure rating is fundamental for ensuring system safety and reliability, particularly in heavy-duty applications where significant forces are exerted. Hydraulic systems often operate at thousands of PSI, and every component must be capable of enduring not only the normal operating pressure but also transient pressure spikes and surges that can occur during operation. The 3625 PSI rating provides a substantial safety margin for most mobile hydraulic systems, preventing catastrophic failures such as burst components or uncontrolled fluid release. This robust pressure handling capability, combined with the oil tempered steel construction, ensures that the valve can reliably perform its load-holding and control functions even under peak system loads and adverse conditions, which are commonplace in snow removal operations.
The "Number of Ports: 2" indicates the primary fluid connections of the valve. For a pilot-operated check valve in its simplest configuration, these two ports typically represent the inlet and outlet for the main flow path. In a hydraulic circuit for a cylinder, one port would connect to the directional control valve (or other upstream component), and the other to the cylinder port. The pilot signal, which controls the opening of the check valve for reverse flow, is an integral part of the valve's design. This two-port configuration streamlines plumbing and often allows for a compact installation. When applied to a power angle plow utilizing a double-acting cylinder, two such 2-port pilot-operated check valves would typically be installed, one for each side of the cylinder, to independently control the extension and retraction movements, ensuring precise angling and secure load holding in both directions.
The pilot-operated mechanism is at the heart of the valve's ability to provide "smoother control." Unlike direct-acting check valves that open or close abruptly based on pressure differentials, a pilot-operated check valve introduces an element of controlled action. When pilot pressure is applied, it gradually overcomes the spring force and the main system pressure acting on the poppet, allowing for a more controlled opening of the flow path. This gradual transition prevents hydraulic shock, often referred to as 'water hammer,' which can cause jarring movements, noise, and potential damage to hydraulic components and the overall machinery. For power angle plows, smoother control translates directly to several operational advantages: more precise adjustments of the plow angle, reduced stress on the plow structure and mounting points, and a more comfortable and less fatiguing experience for the operator. The ability to hold a load firmly in position and release it smoothly also enhances safety by preventing uncontrolled movements or 'dropping' of the plow blade.
The application focus for this Double Check Valve is particularly on converting latch pin plow applications to power angle plows. Traditional latch pin plows rely on manual adjustment of the plow's angle, typically involving the operator exiting the vehicle, physically moving the plow blade to a desired position, and securing it with a mechanical pin. This process is time-consuming, labor-intensive, and inherently offers limited flexibility during operation. Power angle plows, conversely, utilize hydraulic cylinders to adjust the blade angle dynamically from within the cab, offering instantaneous and precise control. This valve is a crucial enabler of this conversion, as it provides the necessary hydraulic logic to safely and effectively control the power angling cylinders. By holding the plow blade securely at the commanded angle and allowing smooth, pilot-controlled adjustments, it transforms a manual process into an efficient, ergonomic, and safer operation. The inherent load-holding capability prevents the plow from drifting or moving inadvertently under the weight of snow or operational forces, which is essential for maintaining consistent plowing performance.
Furthermore, the valve is explicitly stated as "ideal for municipal plows." Municipal snow removal operations are characterized by their demanding nature, requiring equipment that can withstand continuous, heavy-duty use in harsh environmental conditions. Plowing often involves striking obstacles, encountering varying snow densities, and operating for extended periods, all of which put immense strain on hydraulic components. The robust design, oil tempered steel construction, and high-pressure rating of this valve are perfectly aligned with these requirements. For municipal fleets, reliability and minimal downtime are paramount. A valve that can withstand extreme conditions, provide consistent performance, and contribute to the overall safety and efficiency of operations translates directly into lower maintenance costs, increased productivity, and enhanced public service delivery. The ability to precisely control the plow angle also contributes to more effective snow clearing, reducing the need for multiple passes and optimizing fuel consumption.
Beyond its specific application in plow systems, the principles embodied in this pilot-operated check valve are broadly applicable across mobile hydraulics. Any application requiring positive load holding, controlled cylinder movement, and enhanced safety under load can benefit from similar valve technology. This includes a range of equipment such as loaders, forklifts, cranes, excavators, and agricultural machinery, where hydraulic cylinders are used to lift, hold, or position heavy loads. The valve's design ensures that if there is a sudden loss of hydraulic pressure, such as a hose rupture, the load will be safely locked in position, preventing uncontrolled descent and potential accidents. This inherent safety feature is a key differentiator for pilot-operated check valves compared to simpler check valves or relying solely on directional control valves for load holding.
The operational benefits derived from integrating the Buyers Products 1/2 Inch NPT Double Check Valve into a hydraulic system are manifold. It significantly enhances the overall system's stability and operational precision, which directly translates to improved productivity and reduced operational costs. The consistent and secure load holding capabilities minimize the risk of cylinder drift, thereby extending the service life of hydraulic cylinders and other associated components by reducing unnecessary wear and tear caused by uncontrolled movements. The smoother control facilitated by its pilot-operated mechanism not only improves operator comfort and reduces fatigue but also protects the mechanical structure of the equipment from shock loads. For system integrators, the valve’s standard 1/2 NPTF port size ensures straightforward compatibility with existing hydraulic circuits, simplifying installation and maintenance procedures. However, adherence to best practices in hydraulic system design, including proper fluid cleanliness and filtration, remains crucial to maximizing the valve's longevity and performance. While designed for minimal maintenance, periodic inspection for any signs of wear, leakage, or external damage is recommended to ensure continued optimal function in harsh working conditions. The oil tempered steel construction provides inherent durability, but attention to fluid quality is essential to prevent internal corrosion or particulate contamination that could impede the precise operation of the pilot mechanism.
In conclusion, the Buyers Products 1/2 Inch NPT Double Check Valve is a meticulously engineered hydraulic component designed for superior performance in demanding applications. Its combination of robust oil tempered steel construction, high-pressure and flow ratings, and advanced pilot-operated mechanism delivers exceptional load holding, smooth control, and enhanced safety. As a vital enabler for converting to power angle plows and an ideal choice for municipal operations, this valve stands as a testament to intelligent hydraulic design, offering a durable, reliable, and precise solution for critical mobile equipment control.
