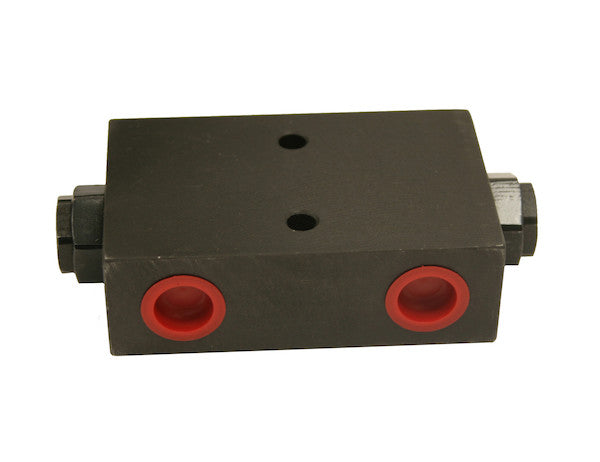

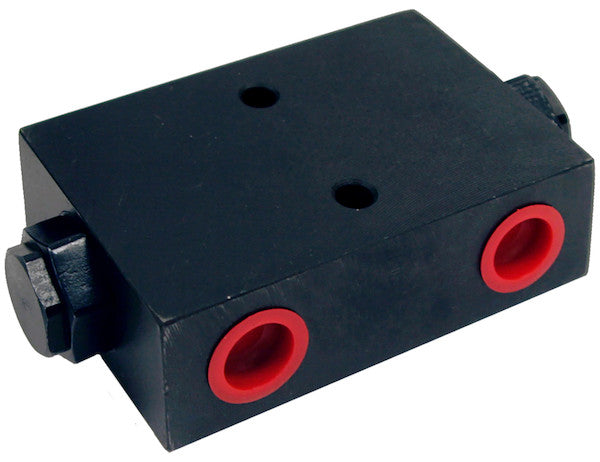

HCVD08SAE - #8 SAE Double Check Valve

The Double Check Valve from Buyers Products allows you to convert a latch pin plow application to power angle plows. It is ideal for municipal plows. The valve is pilot-operated for smoother control.

Specifications

Advanced Technical Overview: #8 SAE Double Check Valve for Power Angle Plow Systems

The Buyers Products #8 SAE Double Check Valve represents a critical hydraulic component engineered for robust performance and operational efficiency in demanding mobile applications, specifically within snow and ice control equipment. This valve is meticulously designed to facilitate the conversion of traditional latch pin plow systems to more advanced, hydraulically actuated power angle plows. Its unique pilot-operated design ensures superior control and responsiveness, making it an indispensable asset for municipal and commercial fleets requiring reliable and precise plow articulation.

Understanding the Double Check Valve Mechanism

A double check valve, in its fundamental hydraulic function, serves as a non-return or one-way valve, allowing fluid flow in one direction while preventing flow in the opposite direction. The "double" aspect signifies its capability to control flow in two distinct lines or directions, often working in tandem to hold a hydraulic cylinder in position. In the context of a plow system, this functionality is paramount for maintaining the plow's angled position against external forces, such as snow loads or uneven terrain, without allowing it to drift or change angle unintentionally.

The pilot-operated characteristic elevates the functionality of this particular double check valve. Unlike a direct-acting check valve that opens solely based on differential pressure across its inlet and outlet, a pilot-operated check valve incorporates an additional pilot port. Pressure applied to this pilot port acts on a small piston or diaphragm, which in turn mechanically unseats the check valve, allowing flow in the normally blocked direction. This design provides several distinct advantages: it allows for a lower pilot pressure to open the main check valve, offering more precise control and smoother transitions, and it ensures a positive lock when the pilot pressure is removed, enhancing safety and stability. For power angle plows, this means that the plow's angle can be securely locked, and then smoothly and predictably released or adjusted under operator command, preventing abrupt movements or uncontrolled repositioning that could lead to damage or unsafe conditions.

Application Specifics: Latch Pin to Power Angle Plow Conversion

Traditional latch pin plow applications rely on manual adjustment of the plow's angle, typically involving physical repositioning and securing with a pin. While functional, this method is labor-intensive, time-consuming, and often requires the operator to exit the cab, particularly in adverse weather conditions. The conversion to a power angle plow system, facilitated by this #8 SAE Double Check Valve, introduces hydraulic actuation, allowing the operator to adjust the plow angle from within the cab with a simple control input. This enhancement drastically improves operational efficiency, reduces operator fatigue, and significantly enhances safety by minimizing exposure to hazardous environments.

The valve's role in this conversion is to manage the hydraulic fluid flow to and from the angling cylinders. When the operator commands an angle change, hydraulic pressure is directed to one side of the cylinder, simultaneously pilot-operating the double check valve on the return side. This controlled release of pressure allows the cylinder to extend or retract, angling the plow. Once the desired angle is achieved and the hydraulic control lever is neutralized, the pilot pressure is removed, and the double check valve securely locks the cylinder in position, preventing hydraulic drift or creep. This ensures that the plow maintains its set angle even under the immense forces encountered during snow removal, providing consistent and effective plowing performance.

Optimized for Municipal Plow Operations

Municipal plow operations are characterized by their rigorous demands, extended operating hours, and exposure to extreme environmental conditions. Equipment utilized in these sectors must demonstrate exceptional durability, reliability, and precision. The Buyers Products Double Check Valve is specifically engineered to meet these stringent requirements. Its robust construction and technical specifications make it ideally suited for the heavy-duty cycles and continuous operation typical of municipal snow removal fleets.

In a municipal context, efficiency directly translates to public safety and service delivery. The ability to rapidly and precisely adjust plow angles without manual intervention allows operators to clear roads more quickly and effectively, navigating complex urban environments with varying obstacles and road geometries. The smooth control afforded by the pilot-operated design minimizes shock loads on the hydraulic system and mechanical components of the plow, extending the lifespan of the entire assembly and reducing maintenance downtime – a critical factor for maintaining operational readiness during peak snow events.

Detailed Analysis of Technical Specifications

The efficacy and reliability of any hydraulic component are intrinsically linked to its material composition and performance ratings. The specifications provided for the #8 SAE Double Check Valve underscore its premium quality and suitability for high-performance applications.

• Material: Oil Tempered Steel

  The choice of oil tempered steel for the valve's construction is a testament to its intended application in severe environments. Oil tempering is a heat treatment process involving heating steel to a specific temperature, rapidly quenching it in oil, and then reheating it to a lower temperature (tempering). This process significantly enhances the steel's mechanical properties, including:

  • Increased Hardness and Strength: The tempering process refines the grain structure, imparting superior hardness and tensile strength, essential for resisting deformation under high hydraulic pressures.
  • Improved Toughness and Fatigue Resistance: While hardening processes can make steel brittle, tempering restores a degree of ductility and toughness, making the material less susceptible to brittle fracture and improving its resistance to fatigue failure from repeated stress cycles inherent in hydraulic operations.
  • Enhanced Wear Resistance: Hardened steel surfaces are more resistant to abrasive wear caused by particulate contaminants in hydraulic fluid, prolonging the valve's operational life.
  • Dimensional Stability: Proper heat treatment ensures the component maintains its critical dimensions and tolerances, vital for the precise operation of internal sealing surfaces and moving parts.

  The use of oil tempered steel ensures that the valve can withstand the substantial forces and dynamic stresses encountered in heavy-duty plow applications, providing long-term reliability and structural integrity.

• Maximum Body Pressure: 4422 PSI (305 Bar)

  This specification refers to the maximum pressure that the valve body itself can safely contain without rupture or permanent deformation. A rating of 4422 PSI indicates a robust design capable of handling significant system pressures well beyond typical operating ranges. This provides a substantial safety margin, ensuring the valve's structural integrity even during transient pressure spikes or system anomalies. It signifies that the valve is built to a high engineering standard, offering resilience against potential overpressure events.

• Maximum Flow Rate: 15 GPM (56.8 LPM)

  The maximum flow rate specifies the highest volume of hydraulic fluid per minute that can pass through the valve without causing excessive pressure drop or internal erosion. A 15 GPM rating is well-suited for the hydraulic cylinders typically employed in power angle plow systems. This flow rate ensures that the plow can be angled at a responsive and efficient speed, crucial for quick adjustments during operations. Insufficient flow capacity would result in sluggish performance, while excessive flow without proper control could lead to abrupt movements. This valve's rating strikes an optimal balance, providing responsive control without compromising system stability.

• Maximum Pressure: 3625 PSI (250 Bar)

  Distinct from the maximum body pressure, the "Maximum Pressure" rating typically refers to the maximum continuous operating pressure for which the valve is designed. Operating at or below this pressure ensures optimal performance, longevity, and adherence to manufacturer specifications. While the body can withstand higher pressures (4422 PSI), operating pressure is a more practical indicator of the valve's sustained working capability. This 3625 PSI rating confirms its suitability for high-pressure hydraulic systems commonly found in heavy-duty mobile equipment, ensuring reliable operation under continuous load.

• Number of Ports: 2

  The two-port configuration refers to the primary inlet and outlet connections for the hydraulic fluid. In the context of a double check valve, this often implies a compact design where the two check valve mechanisms are integrated into a single housing, efficiently managing flow in opposing directions for a single hydraulic line (e.g., controlling flow to and from one side of a double-acting cylinder, with the pilot lines being internal or separate, usually small connections). This simplified interface eases installation and reduces potential leak points compared to multiple discrete components.

• Port Size: 1/2 SAE ORB (-8)

  The port size and type are critical for proper hydraulic system integration. "1/2 SAE ORB (-8)" refers to:

  • 1/2 Inch: Nominal diameter of the port connection.
  • SAE ORB (Society of Automotive Engineers O-Ring Boss): This is a widely recognized and preferred standard for hydraulic port connections. SAE ORB ports feature a straight thread and an O-ring seal that seats into a counterbore. This design provides an extremely reliable, leak-free connection, significantly superior to pipe thread connections which rely on thread interference for sealing and are prone to leakage, especially in high-pressure, vibrating mobile applications.
  • -8: This dash number is a common designation in hydraulic fittings that corresponds to the size. A -8 fitting typically denotes a 1/2-inch nominal size tube or hose connection.

  The use of SAE ORB connections is a hallmark of professional-grade hydraulic components, ensuring ease of assembly, superior sealing integrity, and reduced risk of leaks, which are critical for maintaining system efficiency and environmental compliance in municipal operations.

Advantages of Pilot-Operated Design for Enhanced Control

The pilot-operated nature of this double check valve is a cornerstone of its performance benefits, offering significant advantages over simpler check valve designs:

• Smoother Control and Precision: Pilot operation allows for a more controlled and gradual release of trapped pressure. When the pilot pressure is applied, it gradually opens the main check valve, preventing sudden movements or "jerking" of the plow. This translates to incredibly smooth and precise angle adjustments, crucial for detailed snow removal tasks and minimizing operator strain.
• Enhanced Safety: By providing a positive lock on the hydraulic cylinder, the pilot-operated check valve prevents unintended plow movement. This is a vital safety feature, ensuring the plow stays in its commanded position even if a hose ruptures or power is lost to the main control valve.
• Reduced Shock and Wear: The controlled opening and closing characteristics of pilot-operated valves help to dampen hydraulic shock (water hammer) within the system. This reduces stress on hoses, fittings, and other components, extending their lifespan and reducing maintenance requirements.
• Energy Efficiency: By securely holding the load, the valve minimizes the need for continuous pump operation to maintain plow position, leading to potential fuel savings and reduced wear on the hydraulic pump.

Installation and System Integration Considerations

Proper installation is paramount to leveraging the full capabilities of the #8 SAE Double Check Valve. The valve should be integrated into the hydraulic circuit between the directional control valve and the power angling cylinder. It is essential to ensure that all connections are made with appropriate 1/2 SAE ORB (-8) fittings, torqued to manufacturer specifications, to guarantee leak-free operation. The pilot lines, though typically internal to the valve's operation for standard conversion kits, must be correctly routed or controlled by the main directional valve to ensure proper pilot pressure activation.

System design should account for the valve's flow rate and pressure ratings, ensuring compatibility with the existing pump, reservoir, and cylinders. Regular inspection of hydraulic fluid cleanliness is also critical, as contaminants can impede valve function and accelerate wear. The use of high-quality hydraulic oil appropriate for cold-weather operation, as typically encountered in snow plowing, is strongly recommended.

Conclusion: A Strategic Investment in Performance and Reliability

The Buyers Products #8 SAE Double Check Valve is more than just a component; it is a strategic investment for enhancing the efficiency, safety, and longevity of snow removal operations. Its robust oil tempered steel construction, coupled with high pressure and flow ratings, guarantees durability under the most challenging conditions. The pilot-operated design delivers unparalleled smoothness and precision in plow articulation, transforming manual latch pin systems into sophisticated power angle configurations. For municipal fleets and commercial operators who demand uncompromising performance and reliability from their snow and ice control equipment, this valve offers a proven solution that optimizes operational workflow, minimizes downtime, and ultimately contributes to safer and more effectively cleared roadways.
