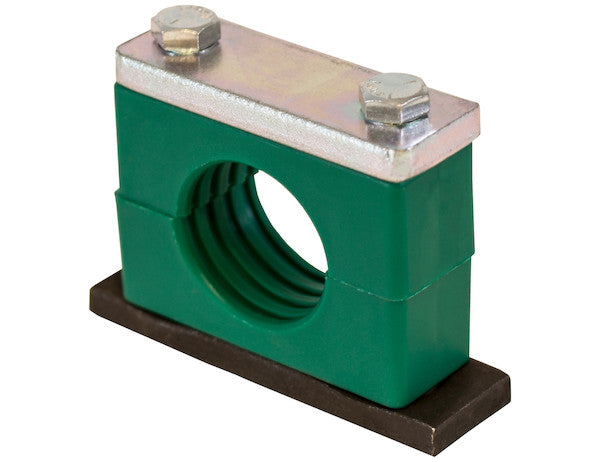

HDSSCP025 - Heavy-Duty Series Clamp For Pipe 1/4 Inch I.D.

The Weldable Heavy Duty Pipe Clamp from Buyers Products keeps pipes organized and in place in your truck's hydraulic system. It features thicker plastic and metal components for heavier duty applications. The clamp is easy to assemble and disassemble when needed.

Specifications

The Heavy-Duty Series Clamp for Pipe, designed for a nominal 1/4 inch I.D. hydraulic line, represents a critical component in the engineering and long-term reliability of fluid power systems, particularly those subjected to arduous operational conditions. Manufactured by Buyers Products, this robust clamp is engineered to provide superior pipe support and organization within demanding environments such as commercial truck hydraulic systems, heavy machinery, and industrial installations. Its designation as "Heavy-Duty Series" is not merely a descriptive term but signifies a commitment to enhanced structural integrity, material resilience, and operational longevity that surpasses conventional pipe restraint solutions.

Advanced Design and Application in Hydraulic Systems

Hydraulic systems are the backbone of countless modern applications, from the power steering in a vehicle to the complex movements of construction excavators. The efficiency and safety of these systems are intrinsically linked to the meticulous routing and securement of their high-pressure fluid lines. The Buyers Products Heavy-Duty Series Clamp addresses this fundamental requirement by offering a technically advanced solution for maintaining the precise positioning of hydraulic pipes. The primary function extends beyond mere organization; it encompasses the critical roles of vibration dampening, prevention of chafing, reduction of mechanical stress on connections, and mitigation of fatigue failures that can arise from dynamic loads and environmental stressors.

In environments such as truck chassis, where constant vibration, shock loads, and temperature fluctuations are standard, unsecured hydraulic lines are susceptible to movement. This uncontrolled movement can lead to premature wear of the pipe's outer surface due to contact with other components, abrasion of protective coatings, and ultimately, a compromise of the pipe's structural integrity. Furthermore, dynamic stresses on fittings and connections can cause leakage or catastrophic failure. This Heavy-Duty Series Clamp, specifically designed for a 0.250-inch outer diameter (O.D.) pipe—often nominally referred to as a 1/4 inch I.D. line in industry parlance—provides a precise, immovable anchor point, thereby safeguarding the entire hydraulic circuit against these debilitating forces.

Material Science and Engineering for Extreme Durability

The core of this clamp's heavy-duty performance lies in its meticulously selected materials and finishes, each chosen for specific contributions to durability and operational reliability:

1080 Steel Clamp Material

The choice of 1080 steel for the primary metallic component of the clamp underscores its heavy-duty classification. 1080 steel is a high-carbon steel alloy (typically containing 0.75-0.88% carbon), distinguished by its excellent balance of strength, hardness, and wear resistance. Unlike lower carbon steels, 1080 steel offers superior tensile strength and yield strength, making it exceptionally resistant to deformation under heavy static and dynamic loads. Its higher carbon content also allows for effective heat treatment processes, which, while not explicitly stated for this product, is an inherent capability of the material that can further enhance properties like surface hardness and toughness, if applied. This material selection ensures that the clamp body can withstand significant mechanical stresses, resisting bending, cracking, and fatigue over extended periods of service in demanding applications.

Plain Bottom Plate Finish: Optimized for Weldability

The "Plain" finish on the bottom plate is a deliberate engineering choice, indicating a surface prepared for optimal weldability. A plain finish typically means the surface is free from coatings or treatments that could interfere with the welding process, such as galvanization or paint. This allows for direct, high-strength fusion welding to structural elements of a truck chassis or industrial framework. Welding provides the most rigid and permanent attachment method, creating a connection point that is virtually immune to loosening from vibration or extreme shock loads, a common issue with bolted or clamped mounting solutions over time. The ability to weld directly ensures that the pipe clamp becomes an integral part of the support structure, offering unparalleled stability and load-bearing capacity for the hydraulic line.

Zinc Plated Top Plate Finish: Superior Corrosion Protection

In contrast to the plain bottom plate, the top plate features a "Zinc Plated" finish. Zinc plating is a highly effective method of preventing corrosion, particularly beneficial for components exposed to moisture, road salts, chemicals, and other corrosive agents prevalent in mobile and industrial environments. Zinc acts as a sacrificial anode; if the coating is scratched and the underlying steel is exposed, the zinc will corrode preferentially to the steel, protecting the base metal. This galvanic protection significantly extends the lifespan of the clamp, maintaining its aesthetic integrity and, more importantly, its structural integrity and functional reliability over years of service. The combination of weldable plain steel for the base and corrosion-resistant zinc plating for the visible and exposed top plate demonstrates a thoughtful engineering approach, optimizing each part for its specific functional and environmental requirements.

High-Performance Plastic Components

While the specific polymer is not detailed, the mention of "thicker plastic components" implies the use of an engineering-grade thermoplastic, such as polypropylene (PP) or polyamide (PA, Nylon), often reinforced for enhanced mechanical properties. These plastic inserts play several crucial roles:

1. Vibration Dampening: The elastic nature of the plastic absorbs and dissipates vibrational energy transmitted through the pipe, preventing it from resonating with the supporting structure and reducing noise and mechanical fatigue.
2. Galvanic Corrosion Prevention: By separating the metallic pipe from the steel clamp body, the plastic insert prevents galvanic corrosion, which can occur when two dissimilar metals are in electrical contact in the presence of an electrolyte (e.g., moisture).
3. Non-Marring Pipe Contact: The smooth, compliant surface of the plastic prevents scratching or damage to the outer surface of the hydraulic pipe, which is critical for maintaining the integrity of protective coatings or the pipe material itself.
4. Electrical Insulation: In certain applications, the plastic insert can provide electrical insulation, preventing stray currents from potentially damaging the hydraulic system or posing a safety hazard.

The "thicker" nature of these components indicates a greater capacity for absorbing energy and resisting deformation, thereby enhancing the overall resilience and longevity of the clamping mechanism.

Precision Engineering for 0.250 Inch O.D. Tubing

The precise specification of an "Inner Diameter: 0.250" and "Tubing Size: 0.250" is paramount for the optimal performance of this clamp. In the context of pipe clamps, this "Inner Diameter" refers to the precise O.D. of the tube or pipe that the clamp is designed to secure. Therefore, this clamp is meticulously engineered to accommodate tubing with an outer diameter of 0.250 inches, which aligns with the "Tubing Size: 0.250" specification. The title's reference to "Pipe 1/4 Inch I.D." is a common nominal sizing convention in the hydraulic and plumbing industries. It is critical to understand that the clamp grips the *outer* diameter of the pipe/tubing. The precise fit ensures that the pipe is held firmly without excessive compression or play. An accurate fit prevents any relative motion between the pipe and the clamp, which could otherwise lead to fretting corrosion, wear, or the accumulation of stress cycles.

The "Clamp Inner Diameter (in.): .53" listed in the specifications warrants clarification. This dimension most likely refers to the internal clearance or maximum inner dimension of the steel housing component, designed to securely house the specialized plastic insert that ultimately grips the 0.250" O.D. pipe. This allows for a robust steel housing to protect and contain the vibration-dampening plastic insert, ensuring that the combined assembly provides the intended heavy-duty performance and precise retention of the 0.250" O.D. hydraulic line.

Operational Efficiency and Ergonomics

Beyond its robust construction, the Heavy-Duty Series Clamp is designed with practical considerations for installation and maintenance. The "easy to assemble and disassemble" feature is a significant advantage for field service and system modifications. While the bottom plate is intended for permanent welding, the design allows for the top plate and plastic insert to be readily removed and reinstalled. This facilitates:

• Pipe Installation: Simplifies the process of laying new hydraulic lines.
• Maintenance and Inspection: Allows for quick visual inspection or replacement of pipes without requiring destructive removal of the entire clamping mechanism.
• System Modifications: Provides flexibility for future upgrades or reconfigurations of the hydraulic system.

The "Single" configuration ensures that each clamp is dedicated to securing one pipe, which can be advantageous in systems where individual pipe routing adjustments are needed, or where pipes are widely spaced. This single clamp design also contributes to a cleaner, more organized aesthetic and provides concentrated support exactly where needed.

Uncompromised Performance Metrics and System Benefits

Implementing the Heavy-Duty Series Clamp for Pipe 1/4 Inch I.D. offers a cascade of benefits for hydraulic system performance and longevity:

1. Enhanced System Integrity: By securely anchoring pipes, the clamp prevents uncontrolled movement, thereby reducing the risk of catastrophic line failures, leaks, and costly downtime.
2. Extended Component Lifespan: Protection against vibration and abrasion extends the service life of hydraulic hoses, tubes, fittings, and other connected components.
3. Optimized Fluid Flow: Maintaining consistent pipe geometry prevents kinks or excessive bending, ensuring smooth and efficient fluid flow, which can impact system pressure and overall hydraulic efficiency.
4. Reduced Noise and Vibration: The vibration-dampening properties of the plastic insert significantly reduce structure-borne noise and tactile vibration, contributing to a more comfortable and quieter operating environment for vehicle operators and industrial personnel.
5. Compliance with Safety Standards: Proper pipe securement is a fundamental requirement in numerous industry safety standards and regulations for hydraulic systems, preventing hazards associated with flying lines or uncontrolled fluid release in the event of a failure.
6. Cost-Effectiveness: While an initial investment, the clamp’s contribution to preventing premature failures, reducing maintenance frequency, and extending the lifespan of expensive hydraulic components translates into significant long-term cost savings.

Target Applications and User Profiles

This Heavy-Duty Series Clamp is ideally suited for a broad spectrum of demanding applications and critical industries, including:

• Commercial Trucking & Transport: For hydraulic systems in dump trucks, refuse vehicles, tow trucks, and other heavy-duty vocational trucks where consistent, robust pipe support is essential.
• Construction Equipment: Excavators, bulldozers, loaders, and cranes rely heavily on hydraulics, and these clamps provide the necessary durability to withstand rugged job site conditions.
• Agricultural Machinery: Tractors, harvesters, and implements often operate in harsh, vibratory environments, necessitating reliable pipe securing solutions.
• Municipal Vehicles: Fire trucks, utility vehicles, and snowplows require hydraulic systems that perform flawlessly under critical conditions.
• Industrial and Manufacturing Plants: Fixed machinery, hydraulic presses, and automated lines benefit from permanent and secure hydraulic line routing.

The primary users of this product would include hydraulic engineers, fleet maintenance managers, heavy equipment technicians, system integrators, and industrial maintenance personnel who prioritize durability, reliability, and safety in their hydraulic system designs and upkeep.

Conclusion

The Buyers Products Heavy-Duty Series Clamp for Pipe, specifically designed for 0.250-inch O.D. hydraulic lines, is an exemplary product in its category, engineered for uncompromised performance in the most challenging operational environments. Its thoughtful combination of high-grade 1080 steel, a plain weldable bottom plate, a corrosion-resistant zinc-plated top plate, and robust, thicker plastic inserts culminates in a superior solution for pipe management. By effectively mitigating vibration, preventing abrasion, and reducing stress concentrations, this clamp ensures the long-term integrity, safety, and efficiency of critical hydraulic systems. For professionals who demand the highest standards of reliability and durability from their components, this heavy-duty series clamp represents an indispensable investment in the operational longevity and structural soundness of their fluid power infrastructure.
